Orientek TR600 OTDR 1310/1550nm
Machine system English/ Korean/ French/ Spanish/ Portuguese/ Russian Languages
Come with Test Results PC Analysis software
Come with FC/UPC Adaptors
FEDEX/UPS/DHL 7-10 working days to destination
Industry’s First 3 Year Warranty
We, ORIENTEK, stand by our products and pleased to provide you with full 3 year service warranty for on all of our Splicer & OTDR products.The warranty is only valid if purchased through an authorized ORIENKE distributor.
Model | TR600-M | TR600-S | TR600-P1 | TR600-P2 | TR600-P3 | TR600-MS |
Wavelength(nm） | 850/1300 | 1310/1550 | 1310/1490/1550 | 1310/1550/1625 | 1310/1550/1625 | 850/1300/1310/1550 |
Dynamic range(dB) | 21/19 | 32/30 | 32/30/28 | 32/30/28 | 38/36/34 | 21/19 /32/30 |
Build-in VFL | Yes | No | ||||
Applicable fiber | SM(ITU-T G.652) | |||||
Distance range(km) | 0.1,0.5,1,2,5,10,20,30,50,100,200,240 | |||||
Pulse width(ns) | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 | |||||
Event dead zone | 1.8dB | |||||
Attenuation dead zone | 3m | |||||

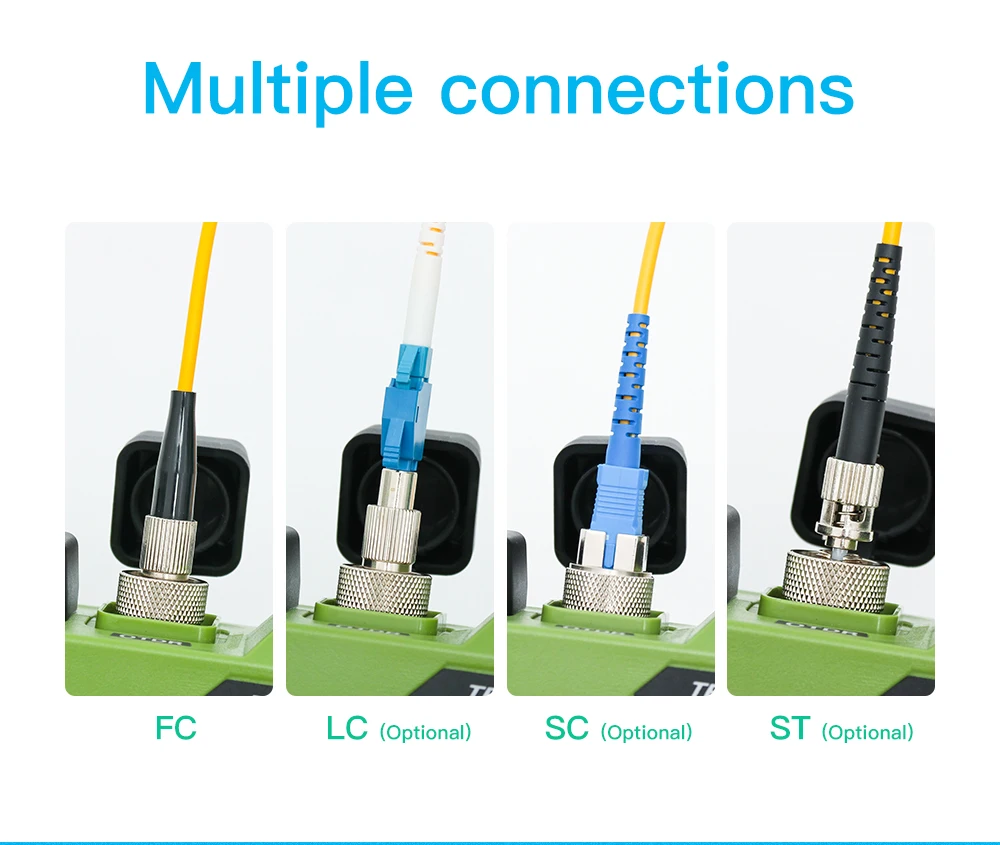

Optical connector | FC/UPC(Included) SC/UPC & LC/UPC ( optional ) | |||||
Laser class | Class 1m | |||||
Memory of trances | 10,000pieces | |||||
|
