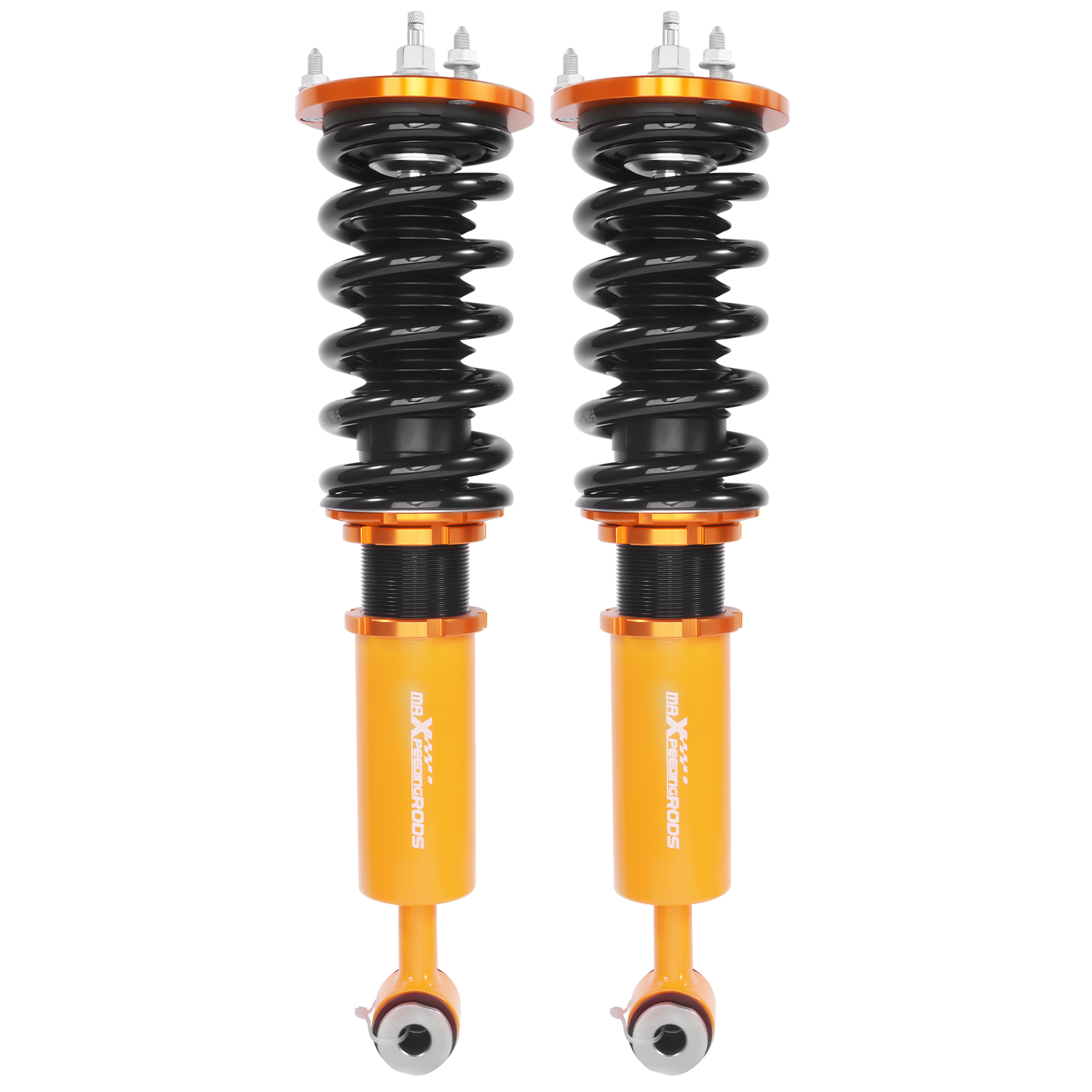

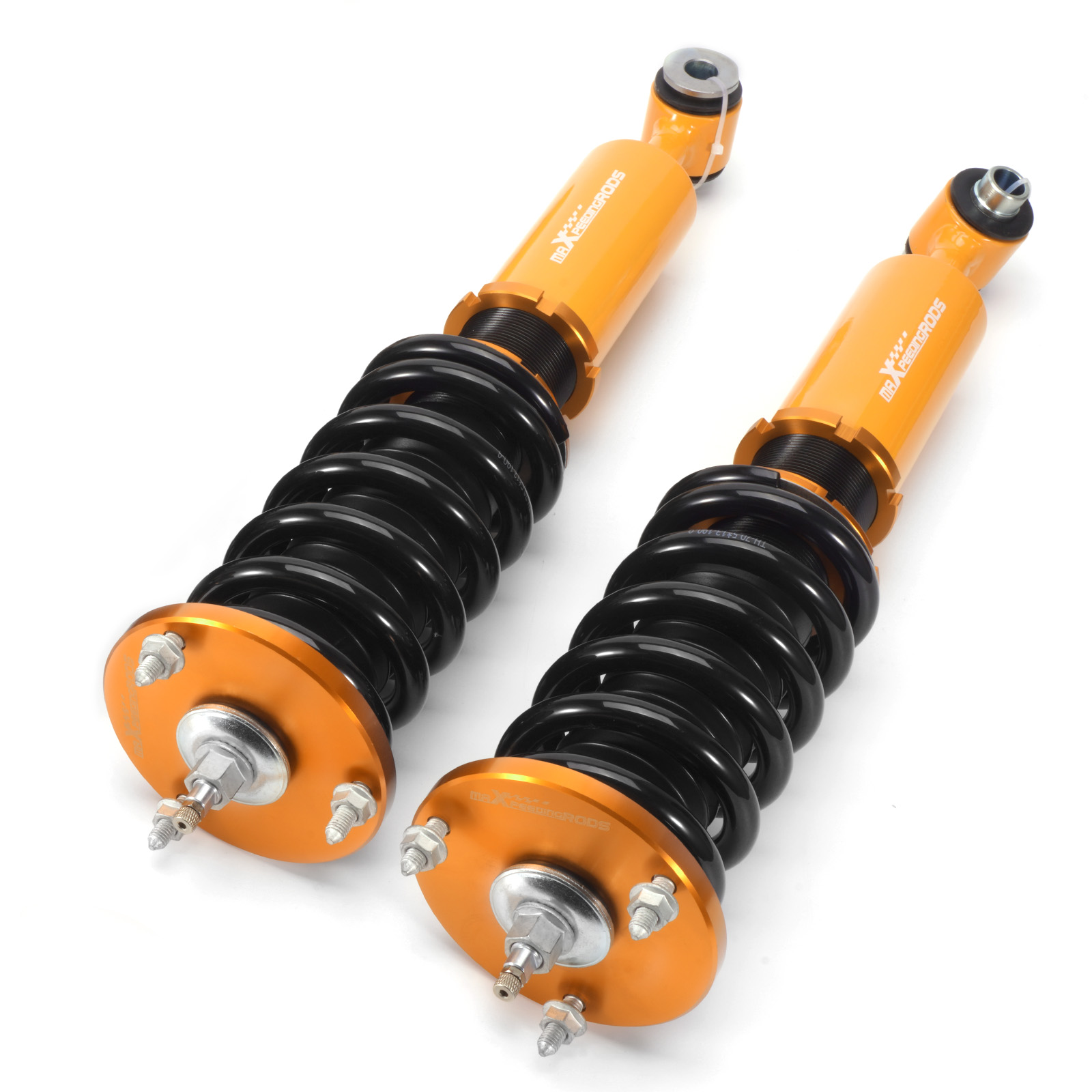

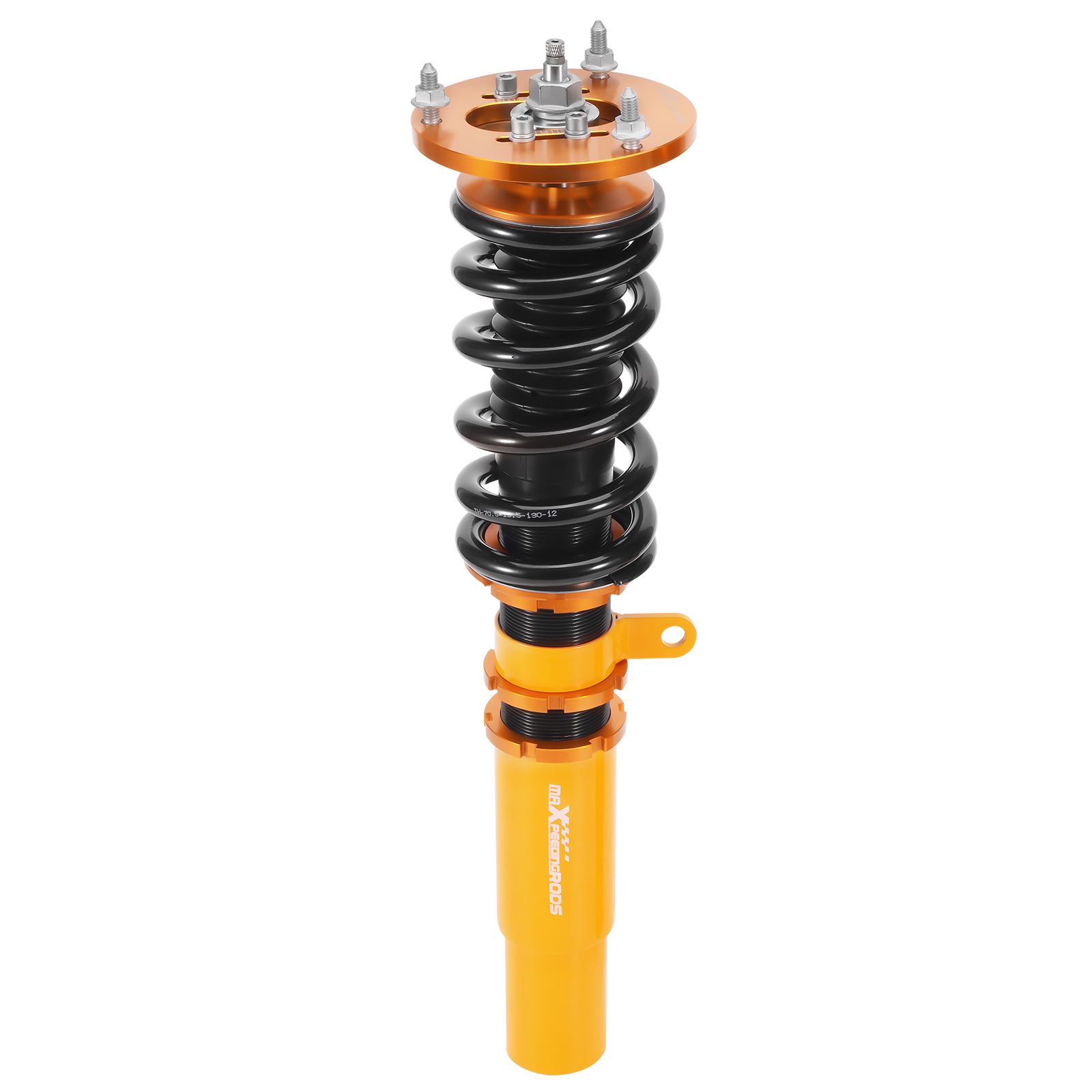

Suspension Coilovers Kit for BMW 5 Series E39 1995-2003 Shock 520i 523i 540i

Images



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

maXpeedingrods B3 is based on B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.



Application



For BMW 5 E39 1995-2003 RWD Saloon



Model: 520i, 523i, 525i, 528i, 530i, 535i, 540i, 520d, 525d, 530d, 525td, 525tds




Note 1 : Not for Wagon or M5 Models
         Will not fit Self Leveling/Air suspension model

Note 2 : The coilovers kit will "Lower your car" and does not keep to the original ride height.







Specifications



Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable: Available, 24 levels of rebound damping force

Front top mount: Pillow ball with camber  plate

Rear top mount: Standard rubber

Camber adjustable: Available

Spring rate Front: 12 kg/mm(672 lbs/in)

Spring rate Rear: 9 kg/mm (504 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 190 mm

Spring length Rear: 190 mm

Spring Preload advised: 7-10 mm

Shock type: Twin tube

Spring preload: 7-10 mm

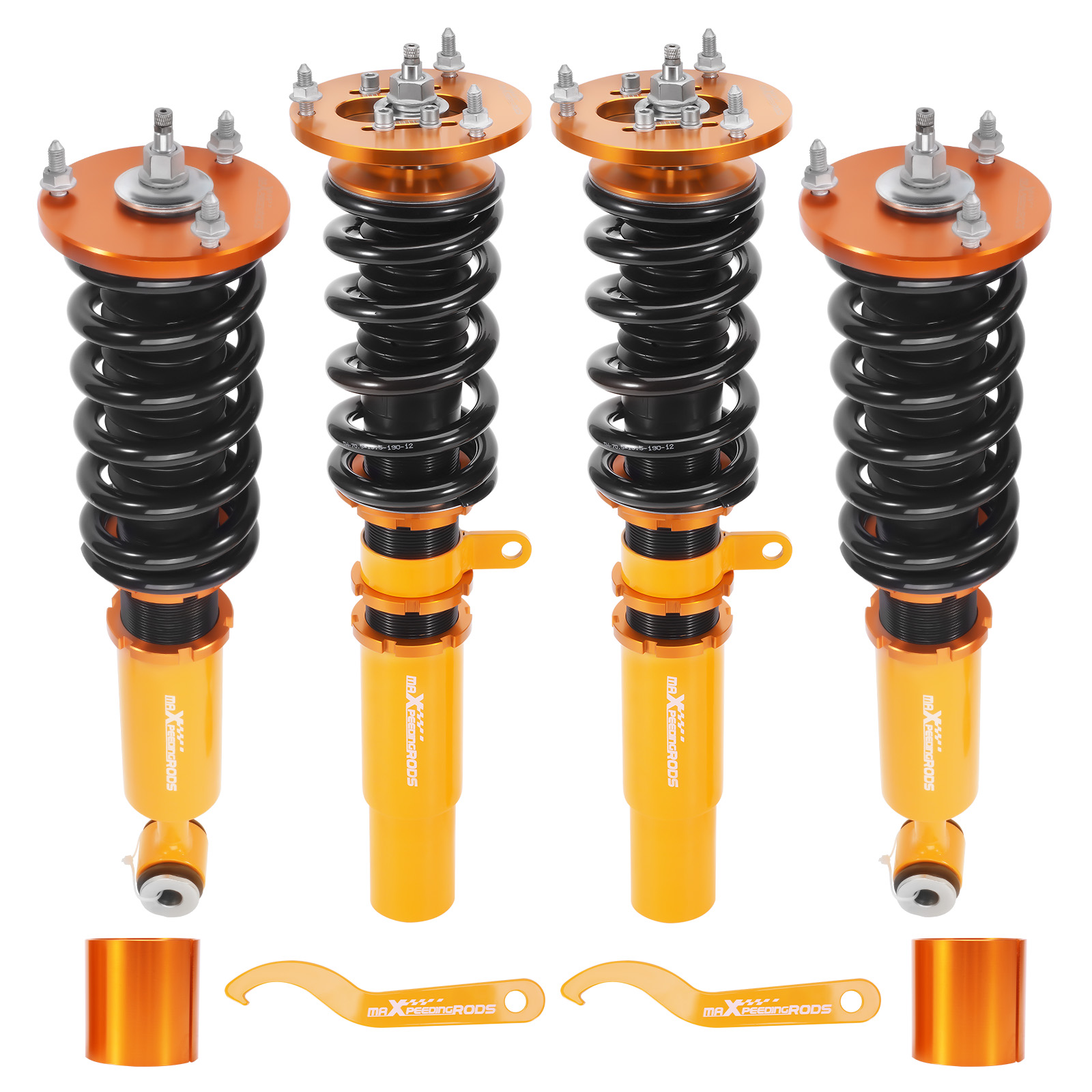

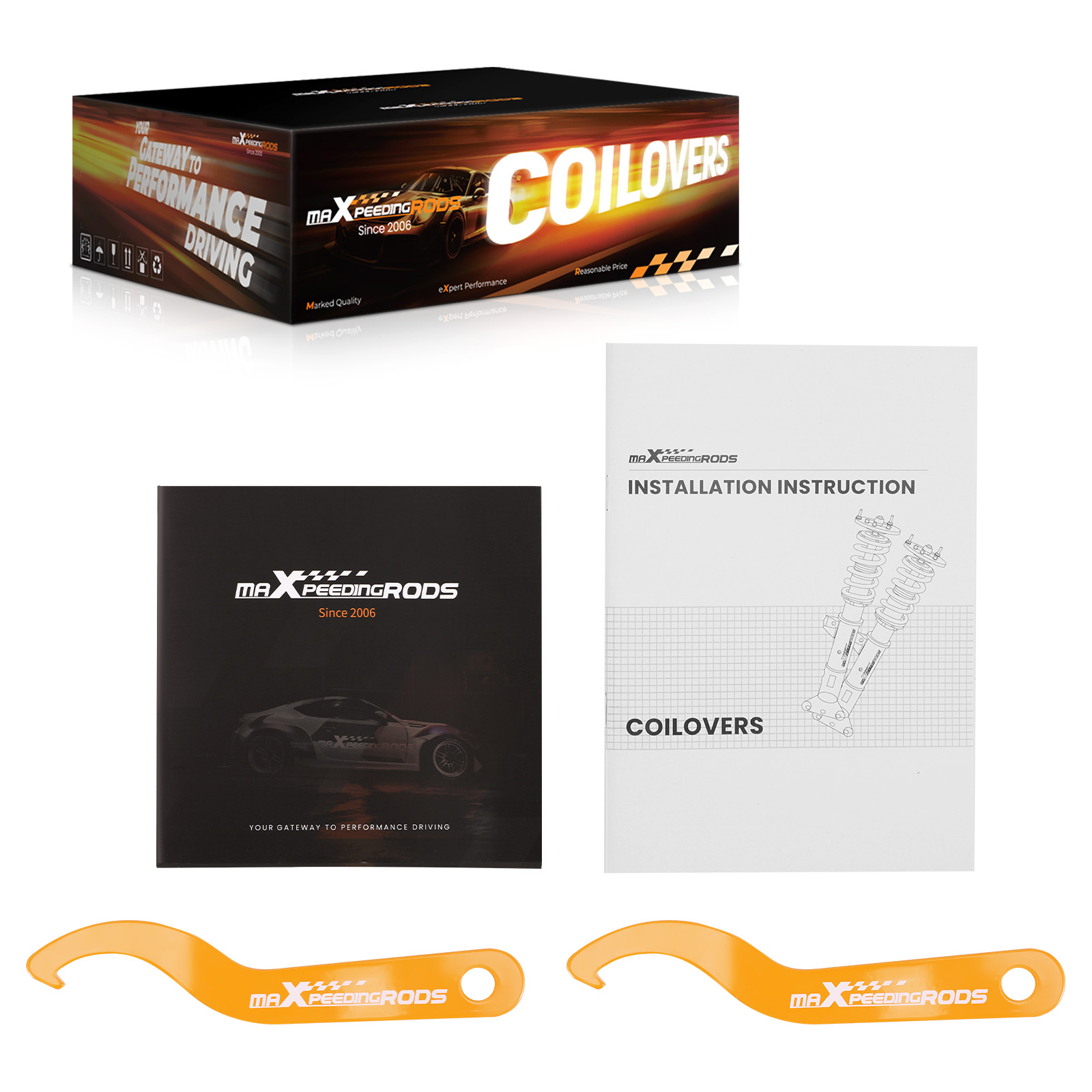

Package included


2x Front coil-overs
2x Rear coil-overs
2x Lower mount washers
1x Allen wrench
2x C spanners







Feature



1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

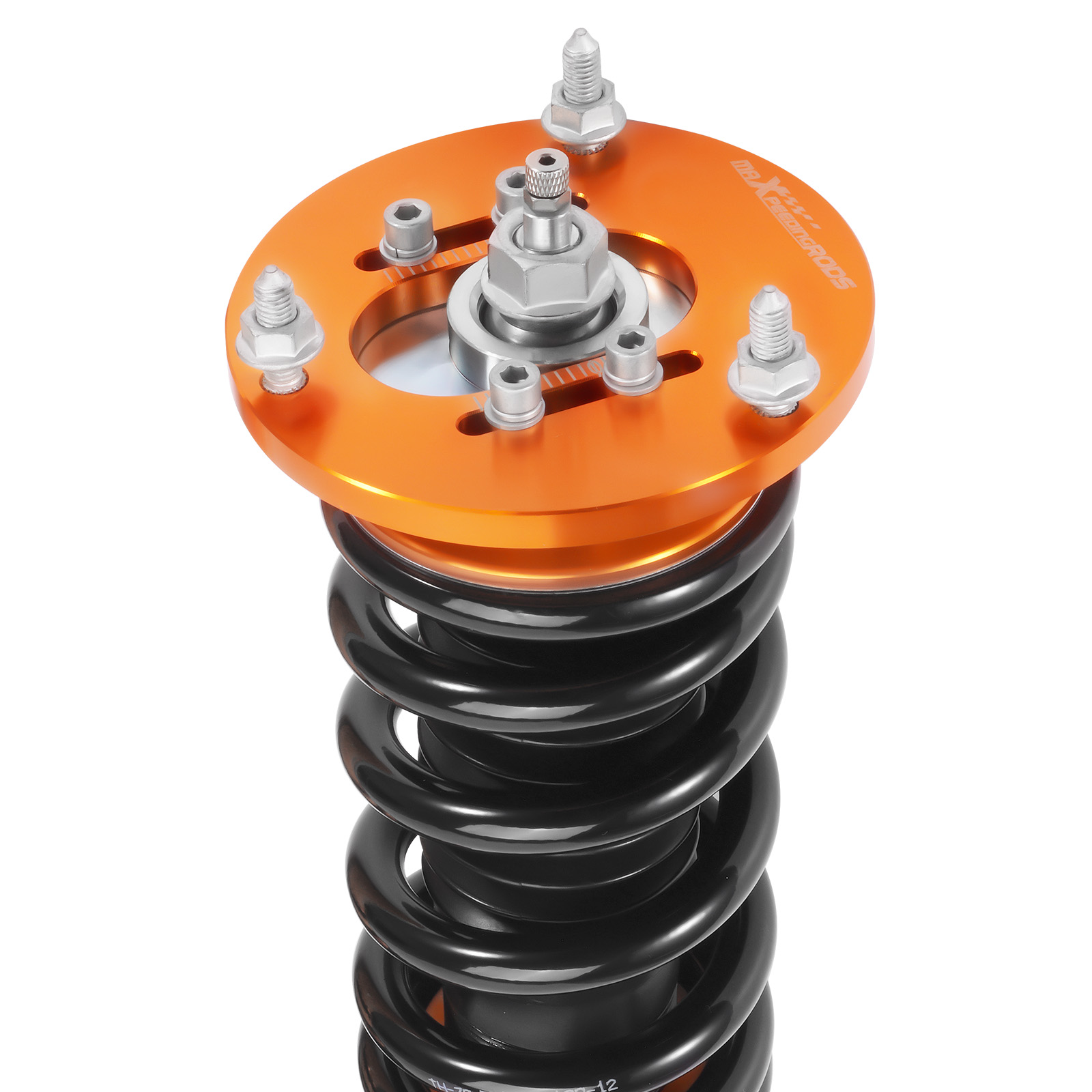

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts







Notice



1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.



Research Department of maXpeedingrods has been dedicated to the academic research of tuning car performance, and it has invested huge amount of manpower and material resources in continuously improving the car performance indexes. maXpeedingrods has modern laboratory, production factory, testing equipment and advanced techniques. It focuses on researching and developing various performance products, such as, high-performance racing car’s connecting rod, crankshaft, piston, suspension and air spring. Meanwhile, as Australian EMTRON’s general agency, maXpeedingrods has a longstanding commitment to the research of ECU, engine, gearbox and vehicle performance electronic calibration. maXpeedingrods has millions of audience and enjoys relatively high popularity in the global tuning car market. Its products cover 60% of the mainstream vehicle performance tuning categories. Currently, maXpeedingrods has cumulatively researched and developed over 4,000 high-performance car parts and obtained many technical patents. Lots of research results have been converted into volume production and delivered to global tuning car enthusiasts.

Established in 2006, maXpeedingrods has been engaged in the research of over world racing products and culture. It has strong capability of independent research & development, industry-leading capacity of quality control and perfect logistics and after-sales service system.

Racing Team

maXpeedingrods always follow the development concept that “Success derives from devotion and happiness comes from sharing” to make contributes to domestic and overseas car tuning enthusiasts and the global racing culture by excellent products and service.

Partnership

MaXpeedingrods has a longstanding commitment to the research of ECU, engine, gearbox and vehicle performance electronic calibration. We established cooperations with EMtron, Motec, LINK, Cartek, HiM, etc.

Warehouse

MaXpeedingrods owns its warehouses and branch offices in Hongkong, United States, Australia, United Kingdom and Germany.

  • Suspension Coilovers Kit for BMW 5 Series E39 1995-2003 Shock 520i 523i 540i

    Images



    All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

    ​​​​​​​

    maXpeedingrods B3 is based on B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.



    Application



    For BMW 5 E39 1995-2003 RWD Saloon



    Model: 520i, 523i, 525i, 528i, 530i, 535i, 540i, 520d, 525d, 530d, 525td, 525tds




    Note 1 : Not for Wagon or M5 Models
             Will not fit Self Leveling/Air suspension model

    Note 2 : The coilovers kit will "Lower your car" and does not keep to the original ride height.







    Specifications



    Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

    Damping adjustable: Available, 24 levels of rebound damping force

    Front top mount: Pillow ball with camber  plate

    Rear top mount: Standard rubber

    Camber adjustable: Available

    Spring rate Front: 12 kg/mm(672 lbs/in)

    Spring rate Rear: 9 kg/mm (504 lbs/in)

    Front spring inner diameter: 70.5 mm

    Rear spring inner diameter: 70.5 mm

    Spring length Front: 190 mm

    Spring length Rear: 190 mm

    Spring Preload advised: 7-10 mm

    Shock type: Twin tube

    Spring preload: 7-10 mm







    Package included


    2x Front coil-overs
    2x Rear coil-overs
    2x Lower mount washers
    1x Allen wrench
    2x C spanners







    Feature



    1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
    2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
    3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
    4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
    5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
    6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
    7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
    8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
    9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
    10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts







    Notice



    1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
    2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
    3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
    4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
    5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
