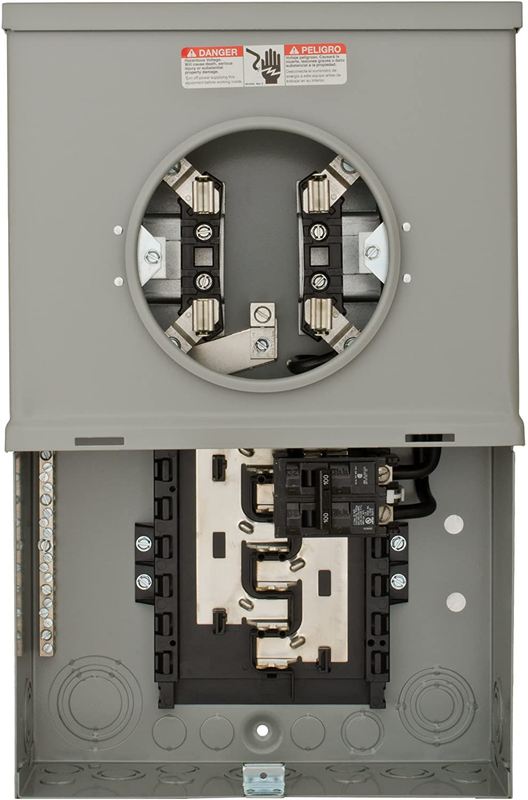

MC1020B1100S 10 Space 20 Circuit 100-Amp Surface Mount Meter Load Center Combina
- Uses Electric enter RX type hubs for overhead feed
- For overhead feed applications only
- Check with local utility for approval before installing
- UL Listed Panel
The MC1020B1100S is a 100 Amp rated meter-load center combination rated for use in utility areas that require the EUSERC standards be followed. A 100 Amp main breaker is installed along with a 10 space, 20 circuit interior. The enclosure is surface mount, NEMA 3R (outdoor) rated and is fabricated from Galvanized steel with a baked on polyester powder coating finish. The meter cover is ring type and the ring is provided. This panel is rated for over head service feed only and accepts the Electric enter "RX" class of hubs (EC38594, EC38595, EC38596, EC38597, EC38598, EC38599, or EC38600).
The MC1020B1100S is a 100 Amp rated meter-load center combination rated for use in utility areas that require the EUSERC standards be followed. A 100 Amp main breaker is installed along with a 10 space, 20 circuit interior. The enclosure is surface mount, NEMA 3R (outdoor) rated and is fabricated from Galvanized steel with a baked on polyester powder coating finish. The meter cover is ring type and the ring is provided. This panel is rated for over head service feed only and accepts the Electric enter "RX" class of hubs (EC38594, EC38595, EC38596, EC38597, EC38598, EC38599, or EC38600).
| Item model number | US2:MC1020B1100S |
| Part Number | MC1020B1100S |
| Style | Combination |
| Item Package Quantity | 1 |
| Number Of Circuits | 20 |
| Brand | SIEMENS |
| Material | Alloy Steel |
| AC Adapter Current | 100 Amps |
| Batteries Required? | No |
| Item Weight | 20.5 pounds |
| Batteries Included? | No |
| Voltage | 120240 Volts |
| Item Dimensions LxWxH | 5.12 x 19.88 x 12.88 inches |
| Manufacturer | Siemens |
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 5.12"L x 19.88"W x 12.88"H |
| Included Components | Electrical & Heating;Cord & Power Management;electrical-outlet-switches |
