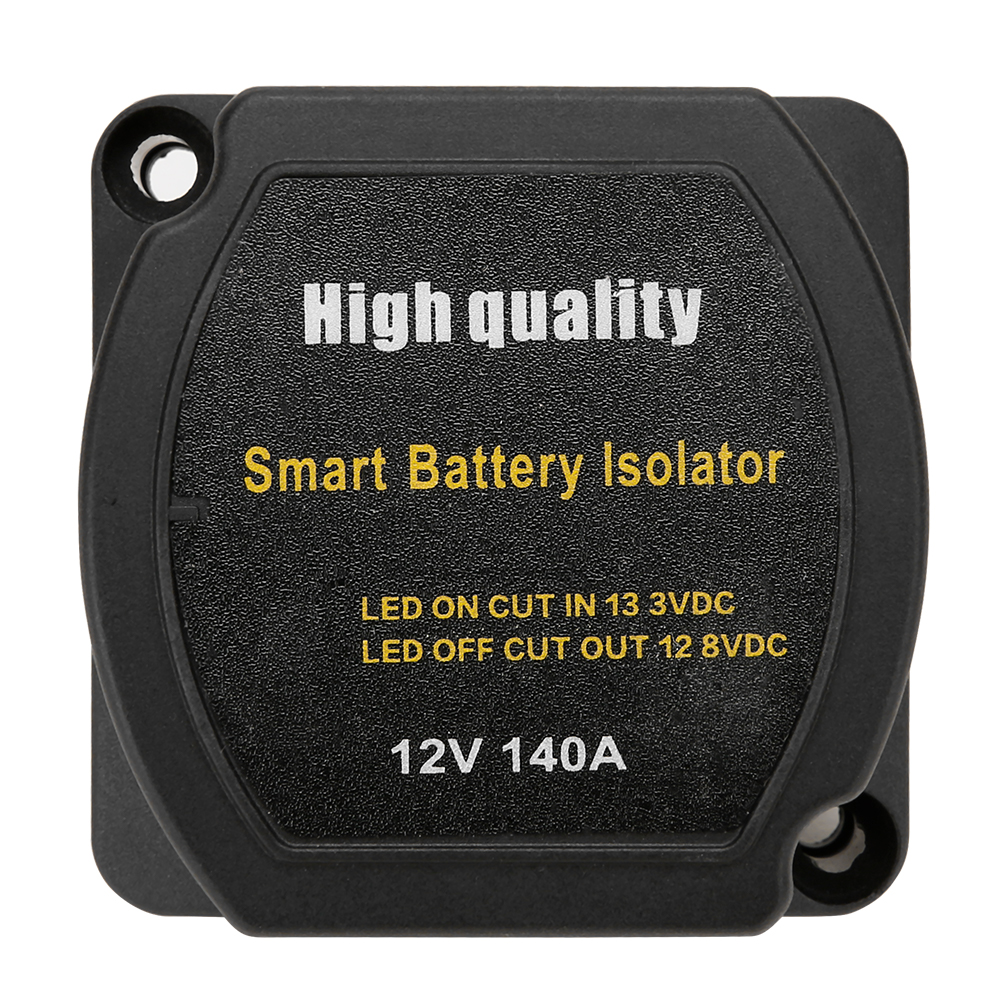

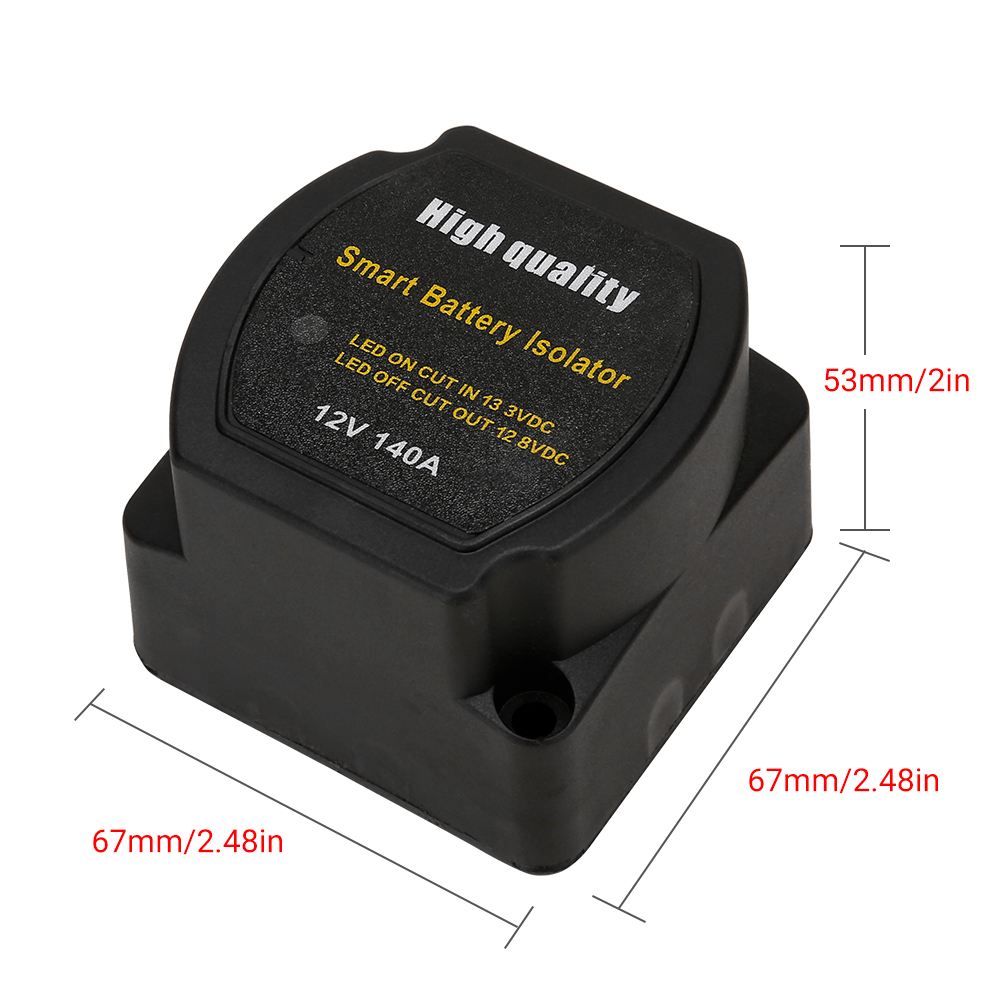

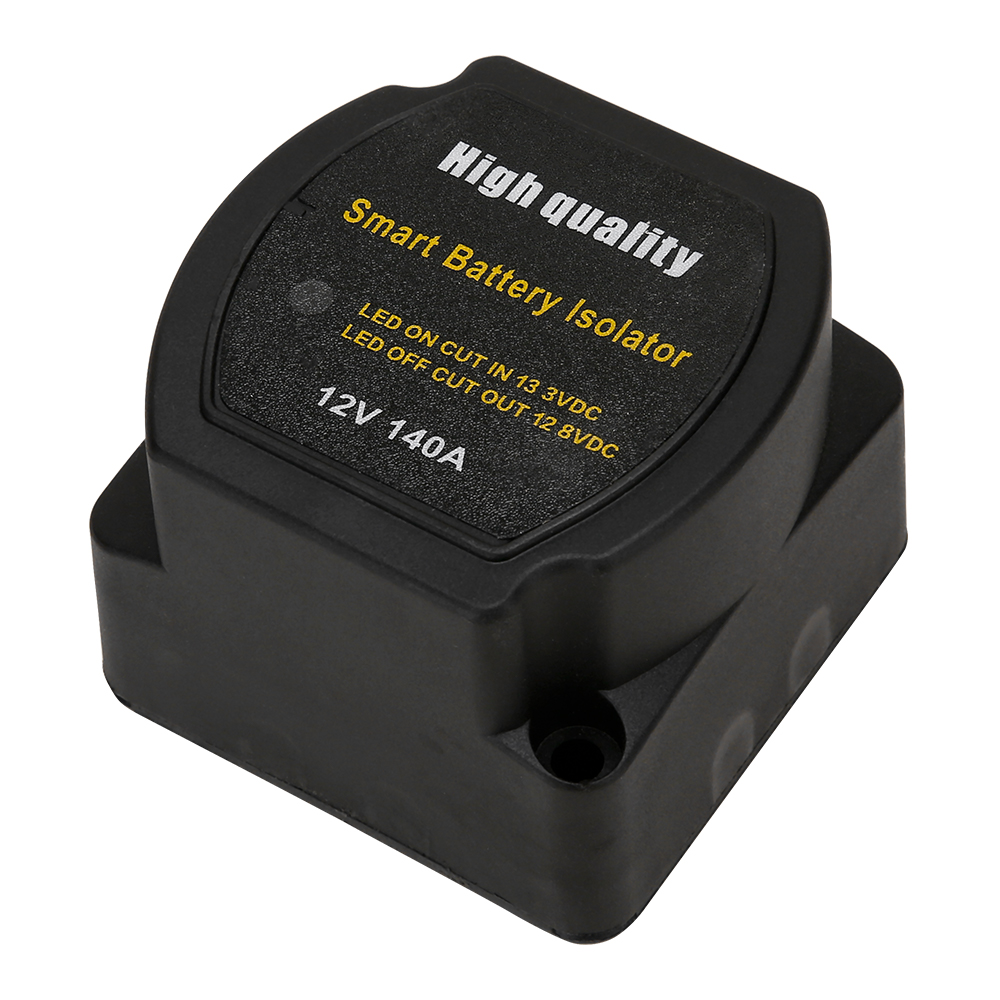

M6 1/4" Dual Battery System Smart Isolator Voltage Sensitive Relay VSR 140A 12V

Description:

The split charging relay is a CE-certified product with a red LED indicator, allowing the second battery to be separately

charged without discharging the main battery or the starter battery.

Feature:

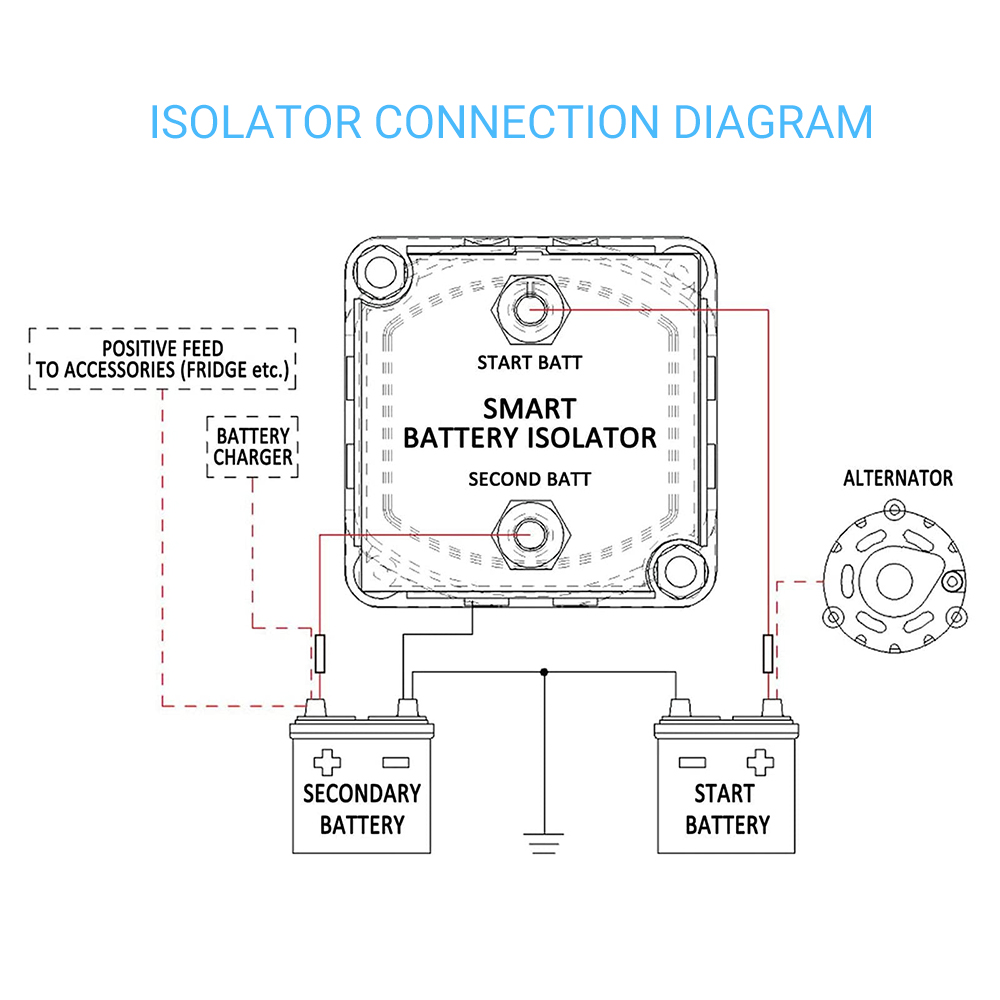

- Automatically merge the two batteries when charging, and automatically isolate the two batteries when not charging.

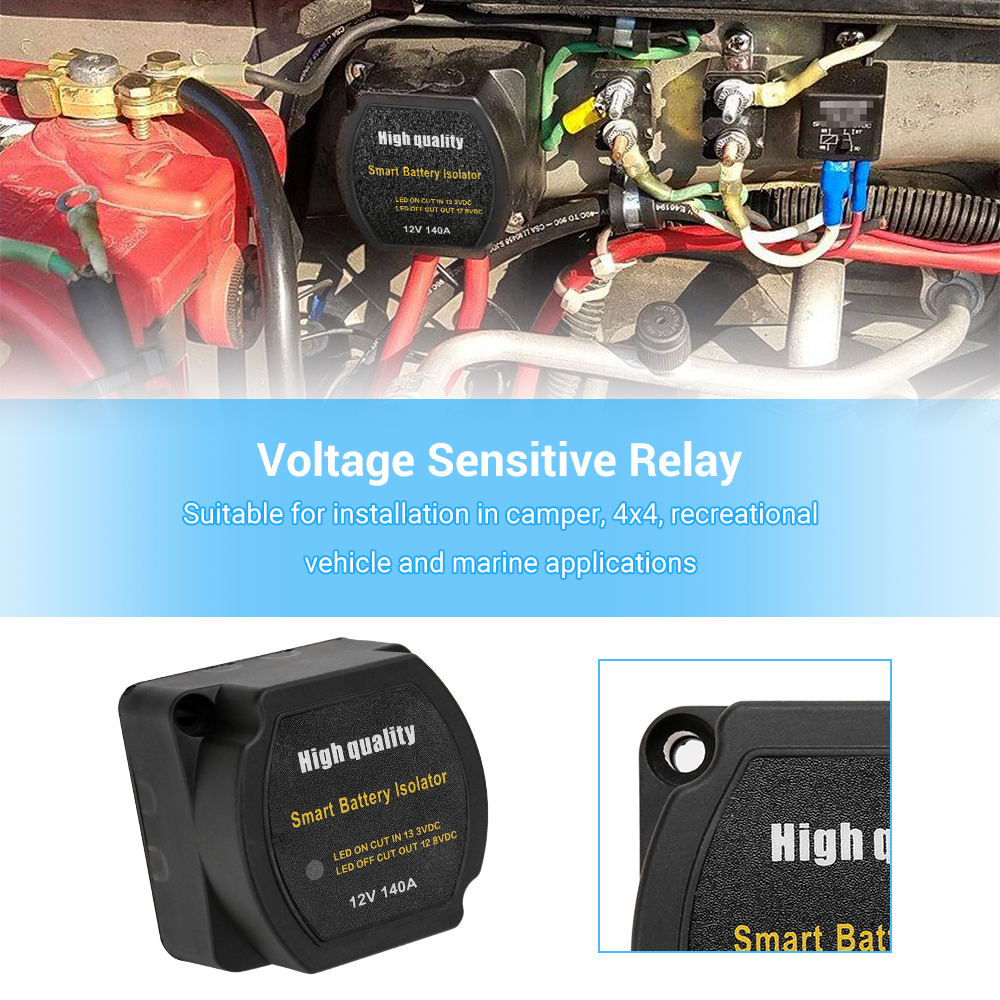

- Suitable for installation in camper, 4x4, recreational vehicle and marine applications.

- Not the 70 amp cable in some other similarly priced kits.

- Compared with the battery isolation diode (0.6V), there is no voltage drop.

- Comply with ISO8846 ignition protection, suitable for computer room.

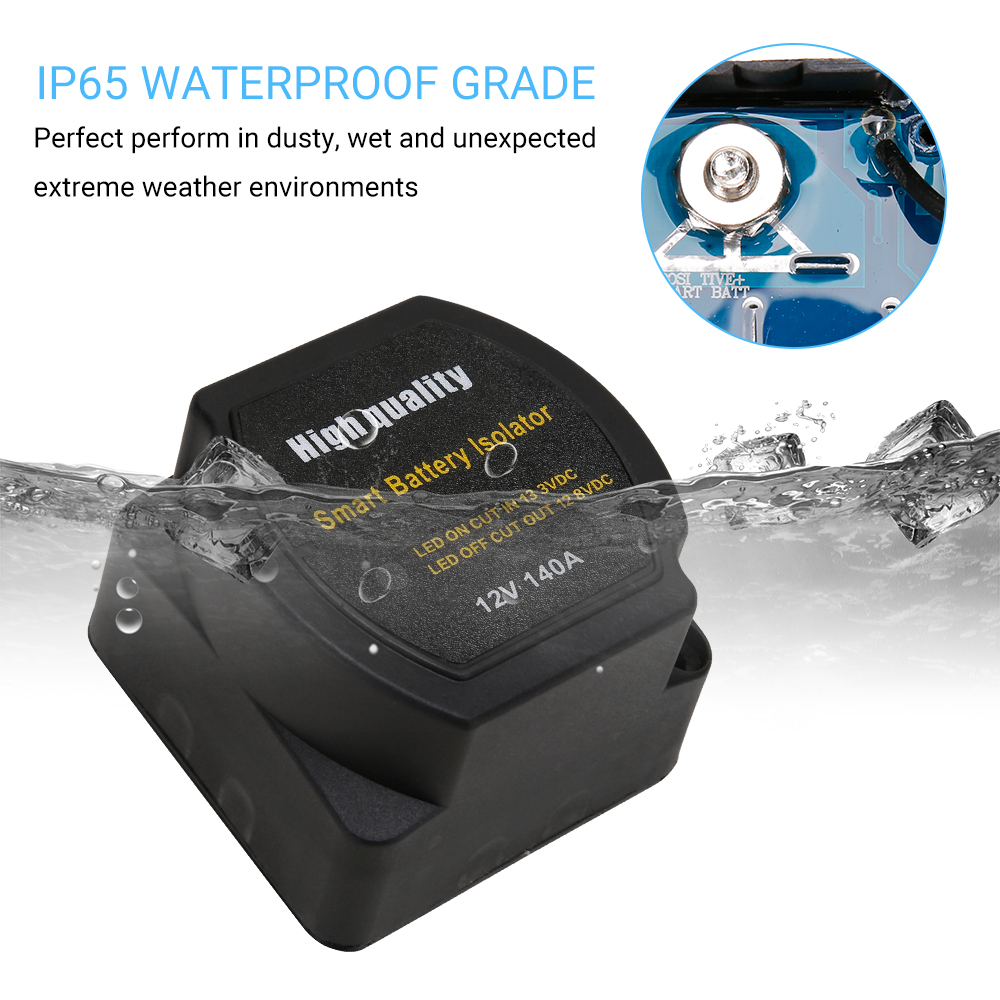

- Sturdy glass fiber reinforced nylon shell.

- Built-in LED indication (lights up when VSR is on).

- Surface or panel mounting options provide flexibility during installation.

- Optional storage mode can achieve zero power consumption when the engine is off.

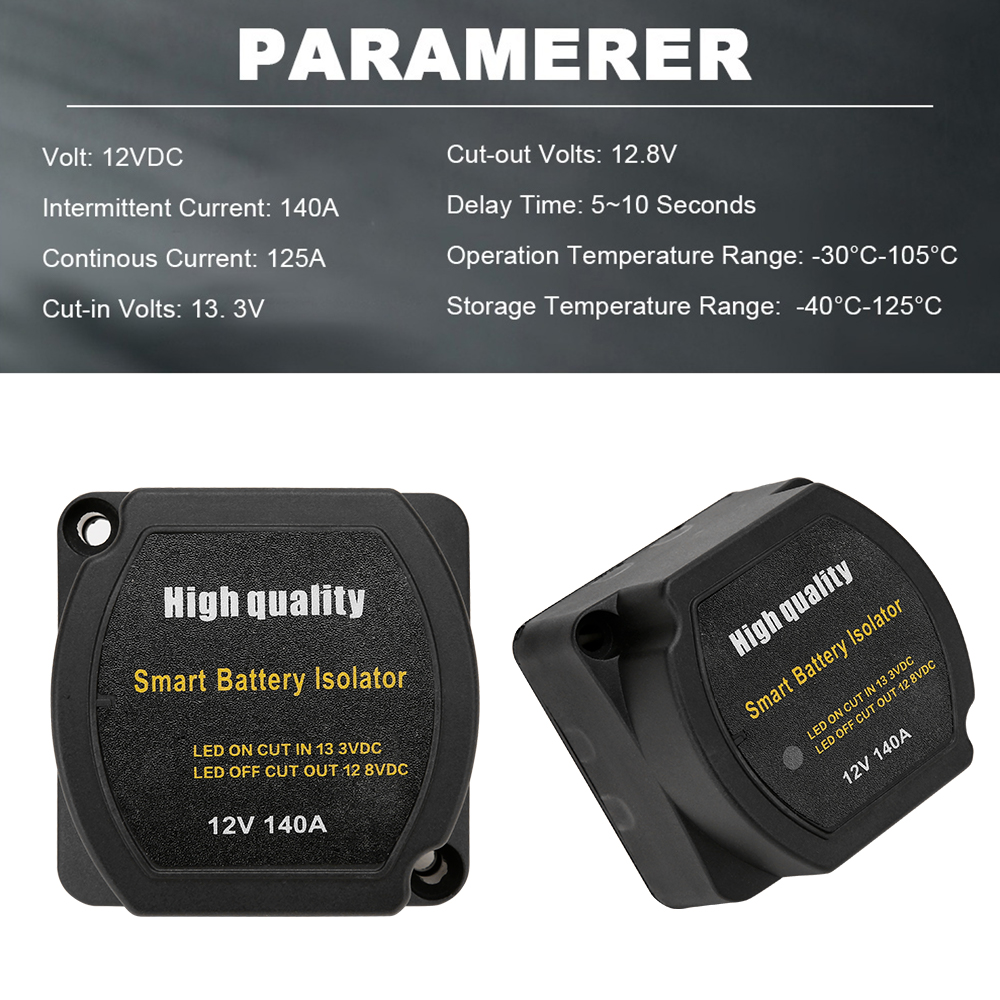

Specifications:

- Automobile dual battery isolation relay protection voltage shunt charging 12V 140A

Colour: Black

Nominal voltage: DC 12V

Combined voltage: DC 13.3V

Open circuit voltage: DC 12.8V

Continuous rating: DC 125A

Intermittent rating: DC 140A

Power consumption: 10mA (standby) / 330mA (use) / 0mA (storage)

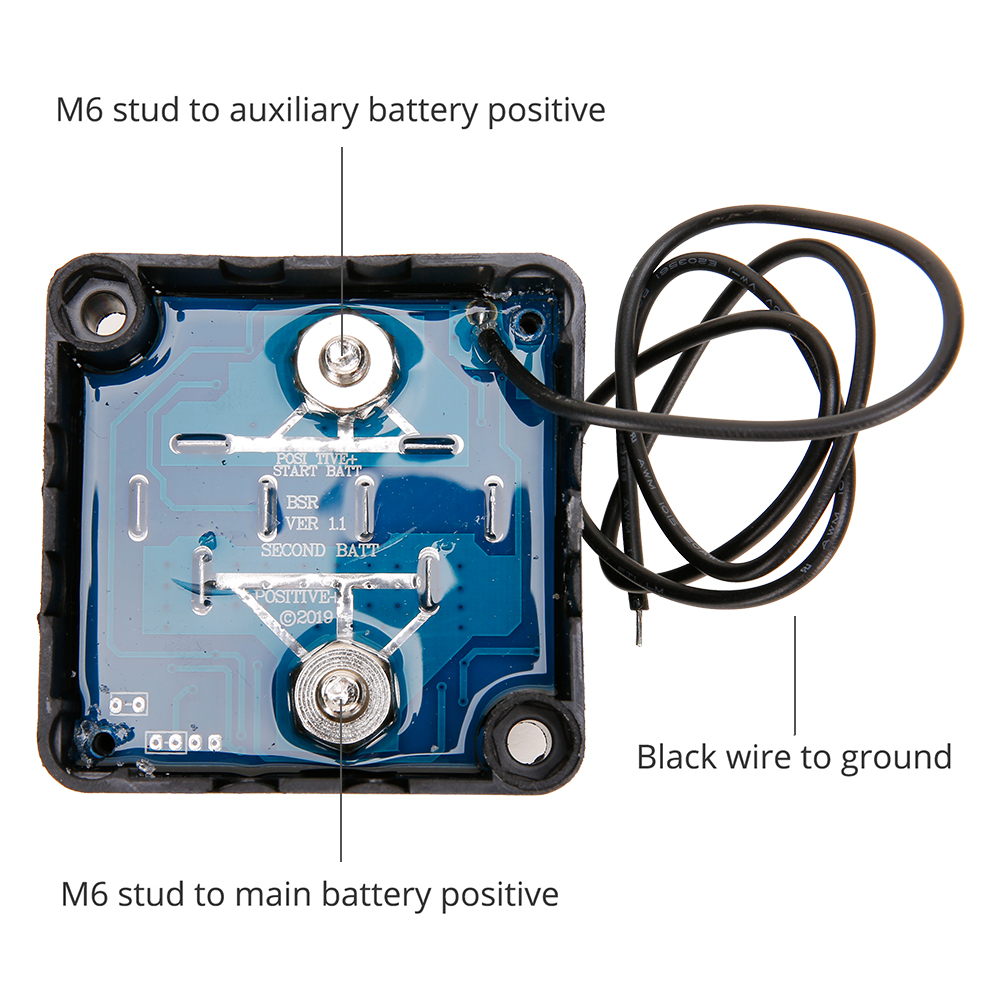

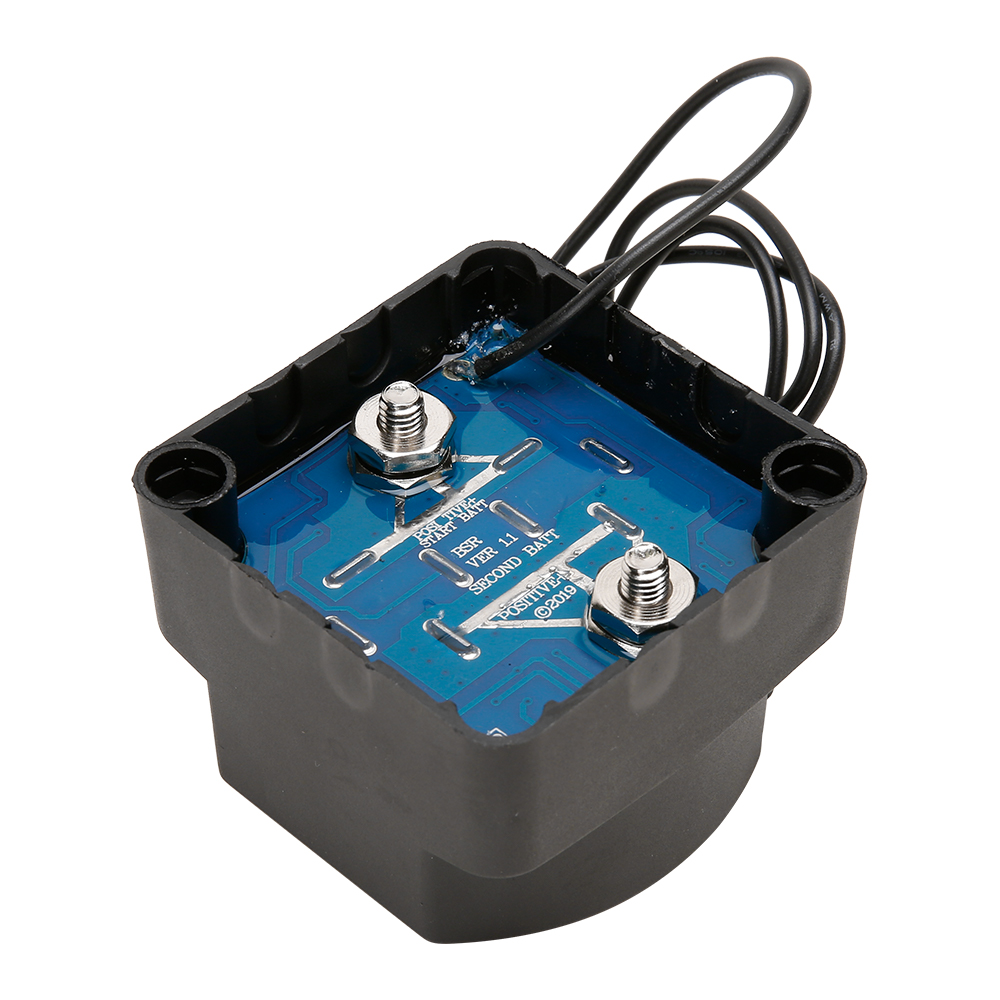

Terminal: M6(1/4”)

Package Including:

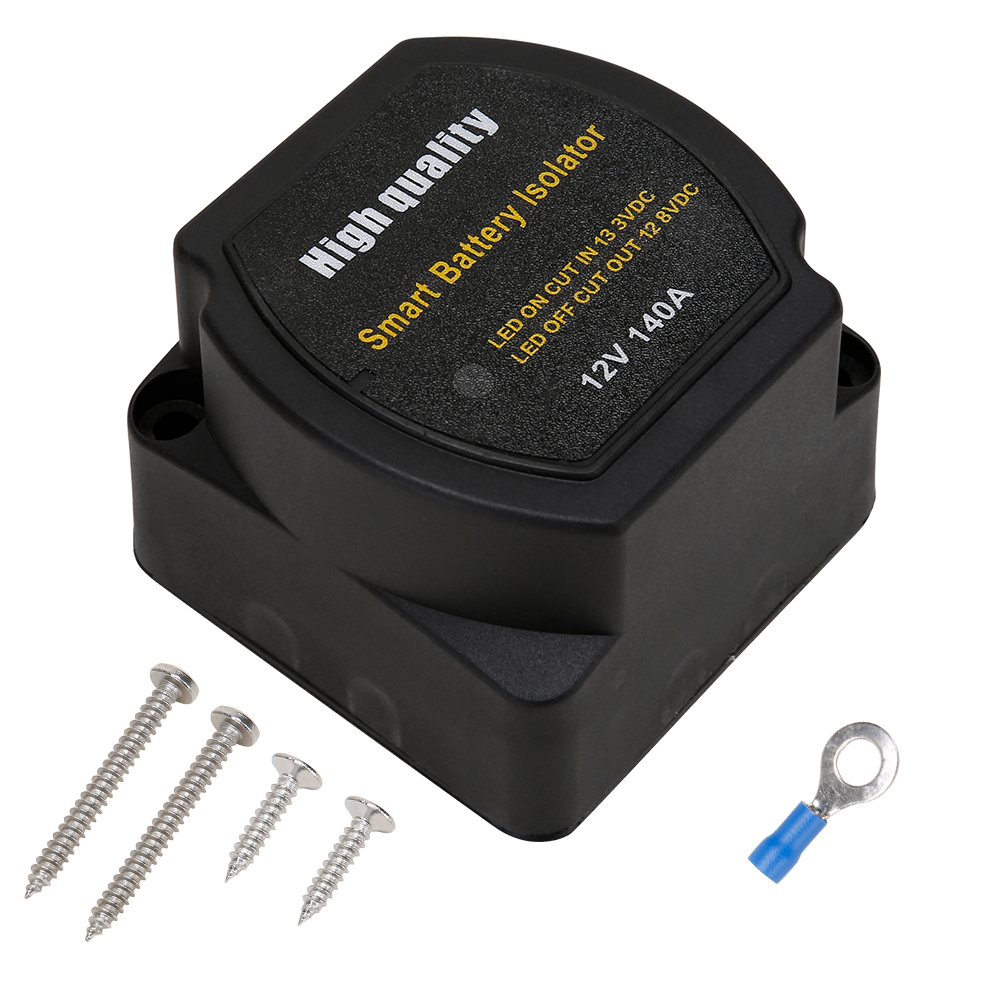

1 x voltage sensitive relay

Note:

1. No Install Template Will Be Included and We Highly Recommend Having the Installation Done by Skilled

Professional With Proper Tools.

2. Please Inspect the Item Carefully and Perform a Dry-Test Before You Actually Install or Paint the Item.
