24 Way Adjustable Damper Coilover For Mazda MX-5 I NA 1989-1998 NB 1998-2005








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

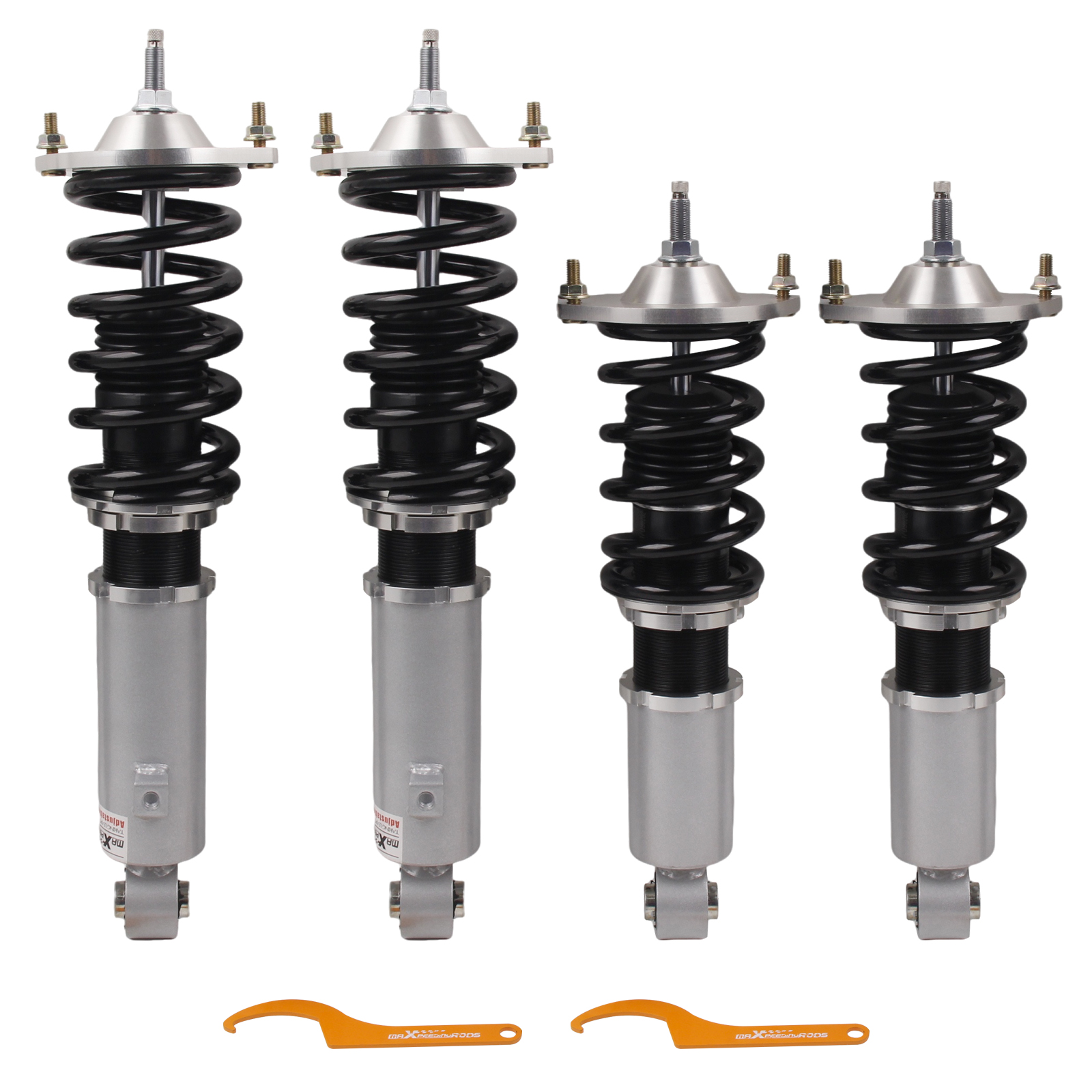

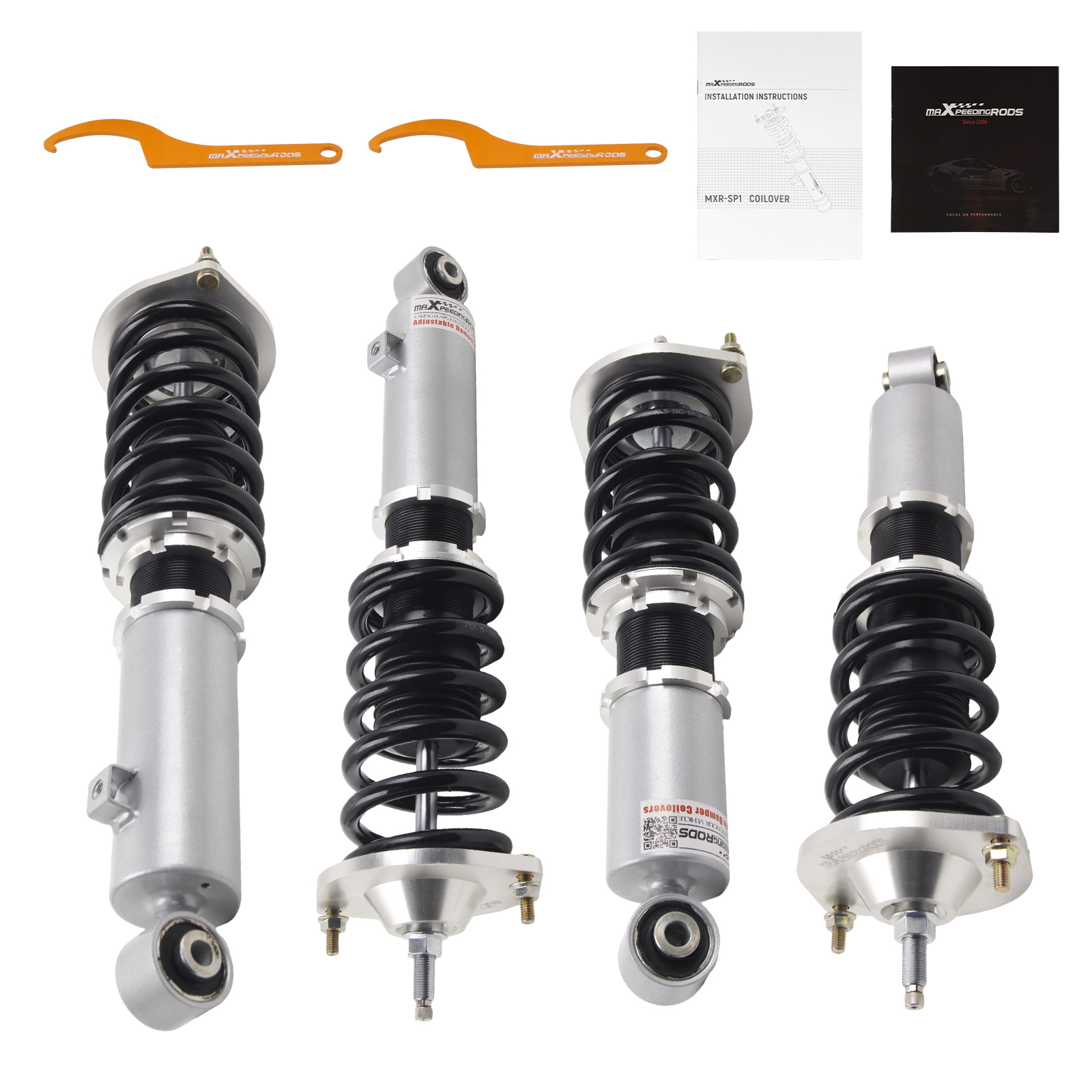

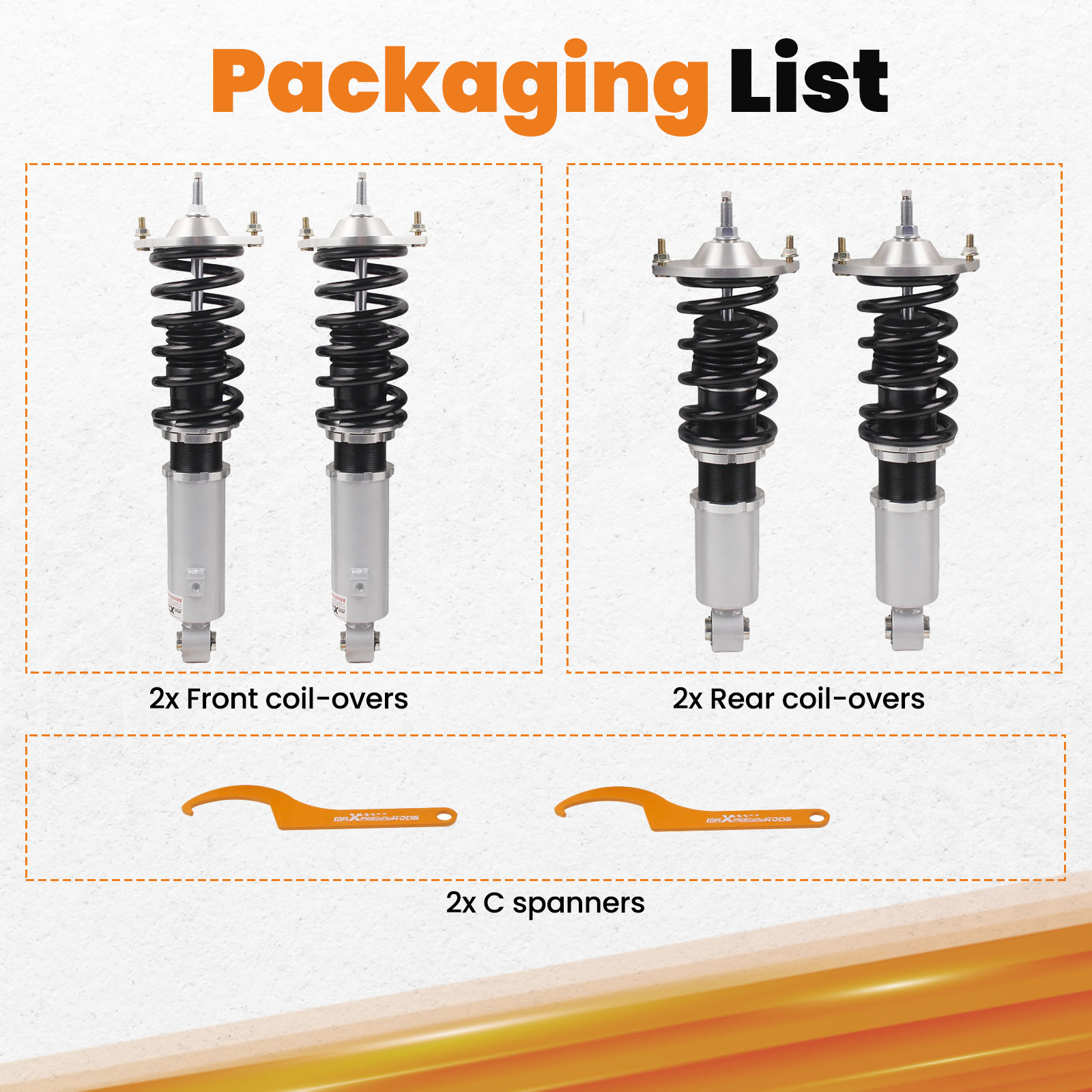

Package included
  • 2 pieces front
  • 2 pieces rear



Application

  • For MAZDA MX-5 I (NA) (09/1989-04/1998)
  • For MAZDA MX-5 II (NB) (01/1998-10/2005)
  • For Mazda Miata MX-5 NA (1.6L,1.8L) 1989-1997
  • For Mazda Miata MX-5 NB (1.6L,1.8L) 1998- 2005
  • For Mazda Miata Base Convertible 2D 1990-1997
  • For Mazda Miata Base Convertible 2D 1999-2005
  • For Mazda Miata SE Convertible 2D 2000-2003
  • For Mazda Miata LE Convertible 2D 1993
  • For Mazda Miata M Edition Convertible 2D 1994-1997
  • For Mazda Miata STO Convertible 2D 1997
  • For Mazda Miata 10th Anniversary Convertible 2D 1999
  • For Mazda Miata LS Convertible 2D 2000-2005

Standard Technical Specifications


Front and Rear top mount pillow ball
Damping 24 levels rebound damping adjustable

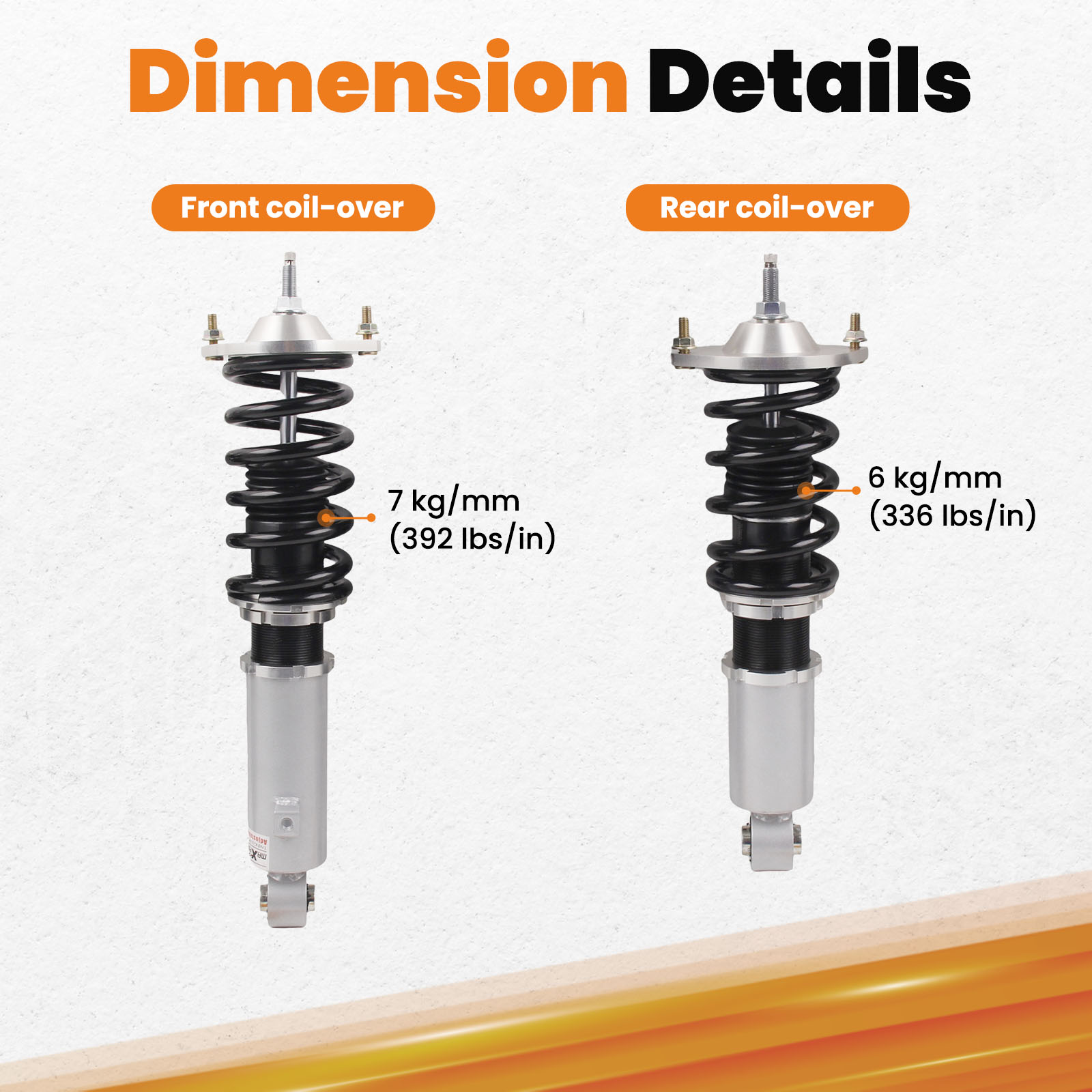

Front spring rate 7 kg/mm(392 lbs/in)
Rear spring rate 6 kg/mm (336 lbs/in)
Shock type twin tube
Spring Preload 7-10 mm
Adjustable camber plate No

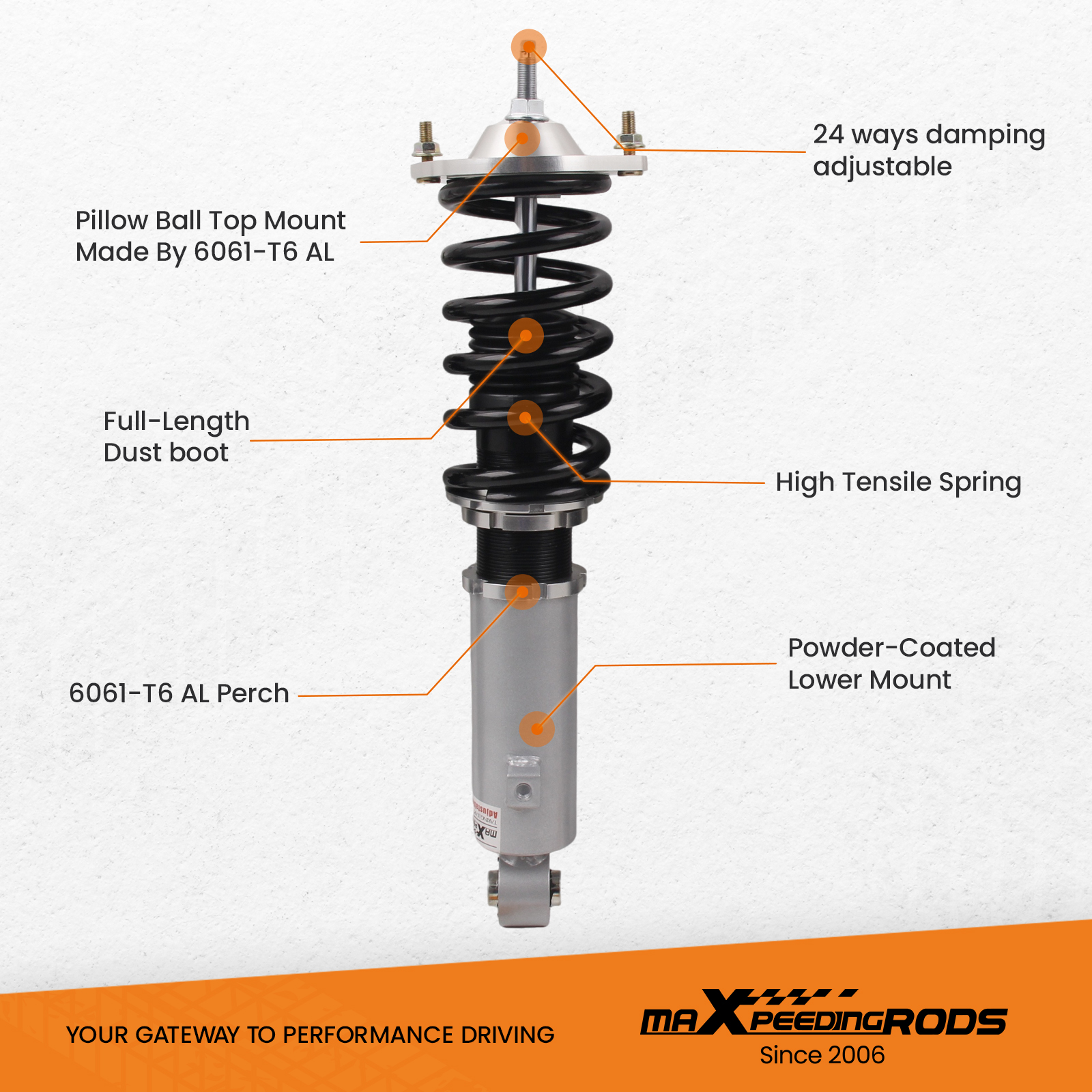

Details





















































Feature

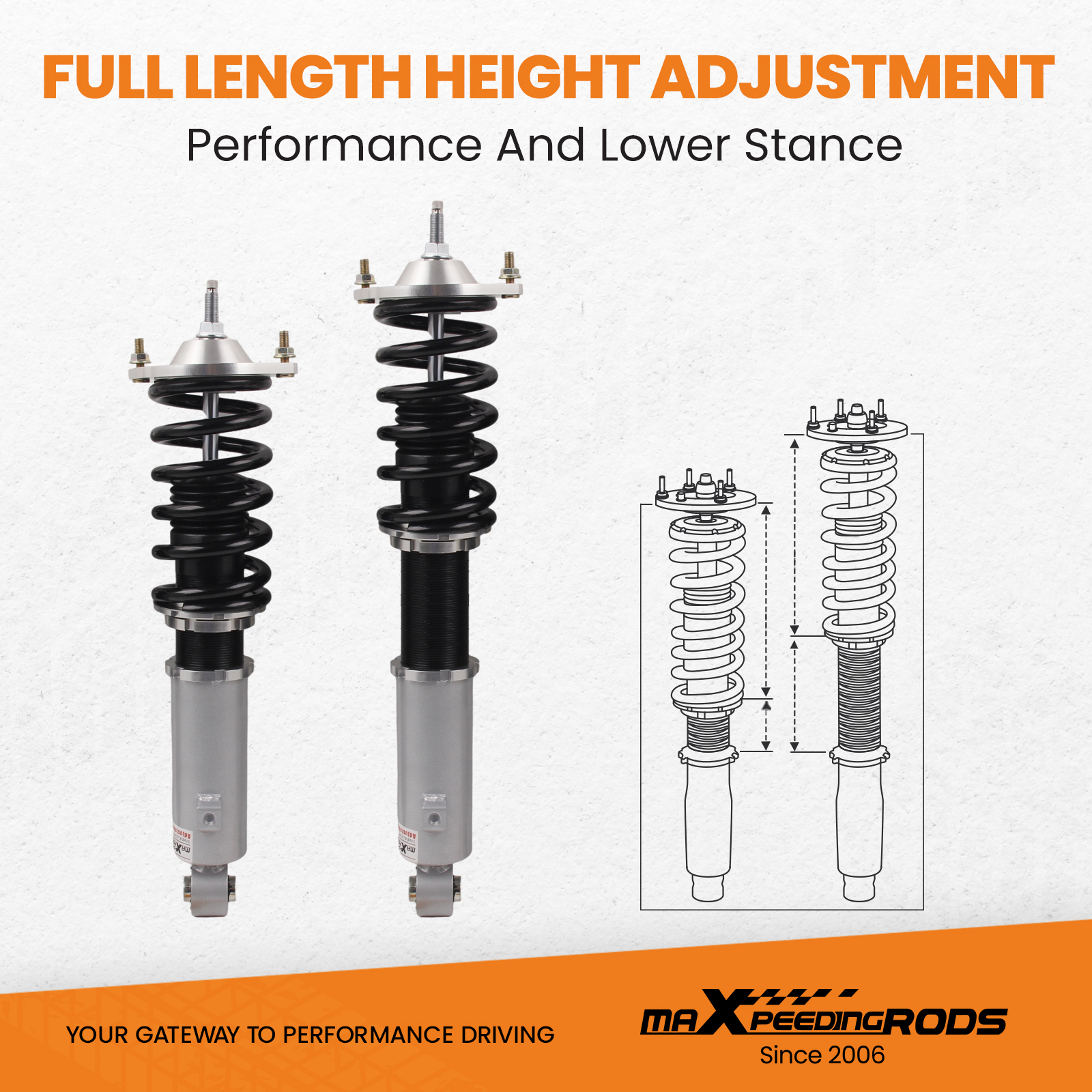

1. Lowered height adjustment 1/2 inch

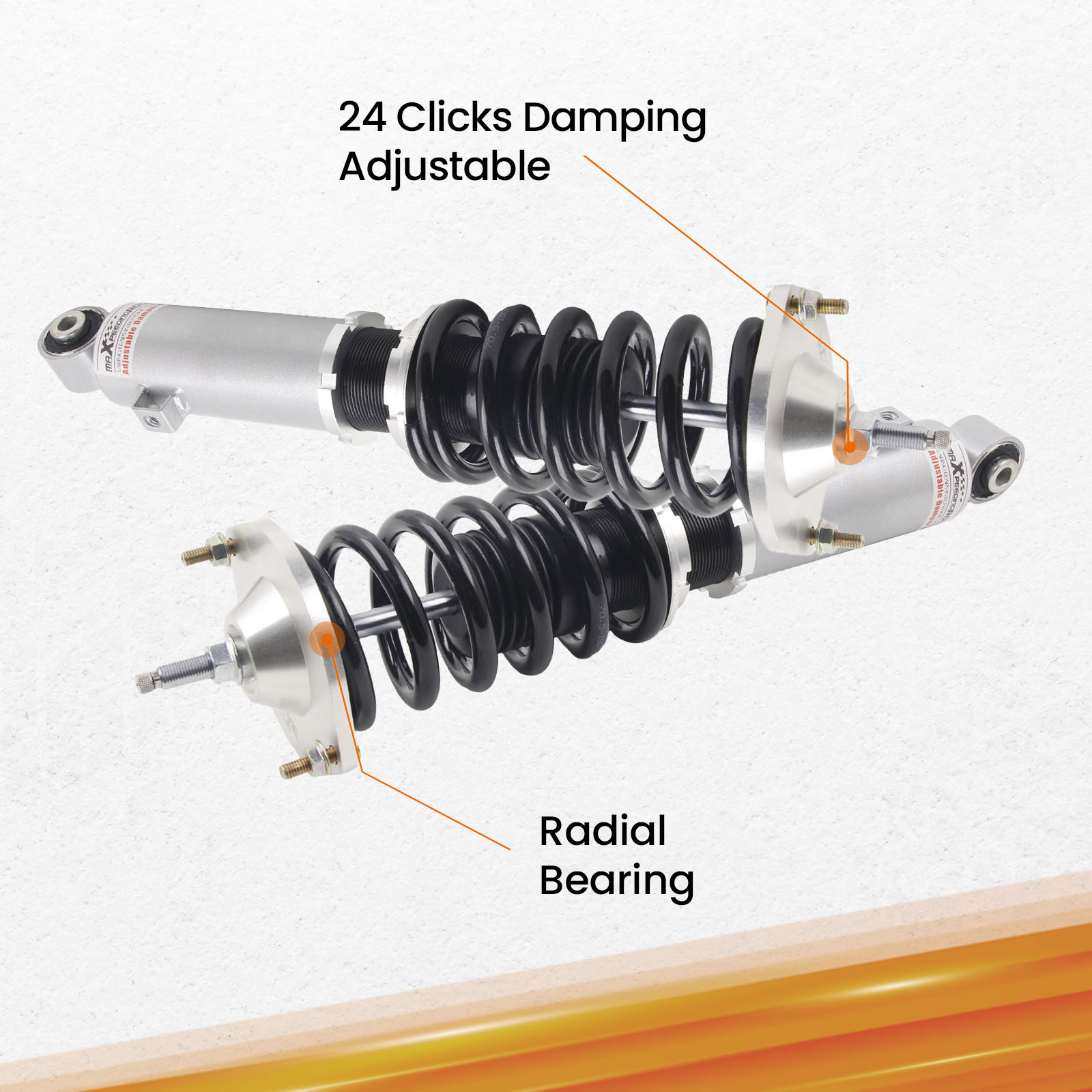

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

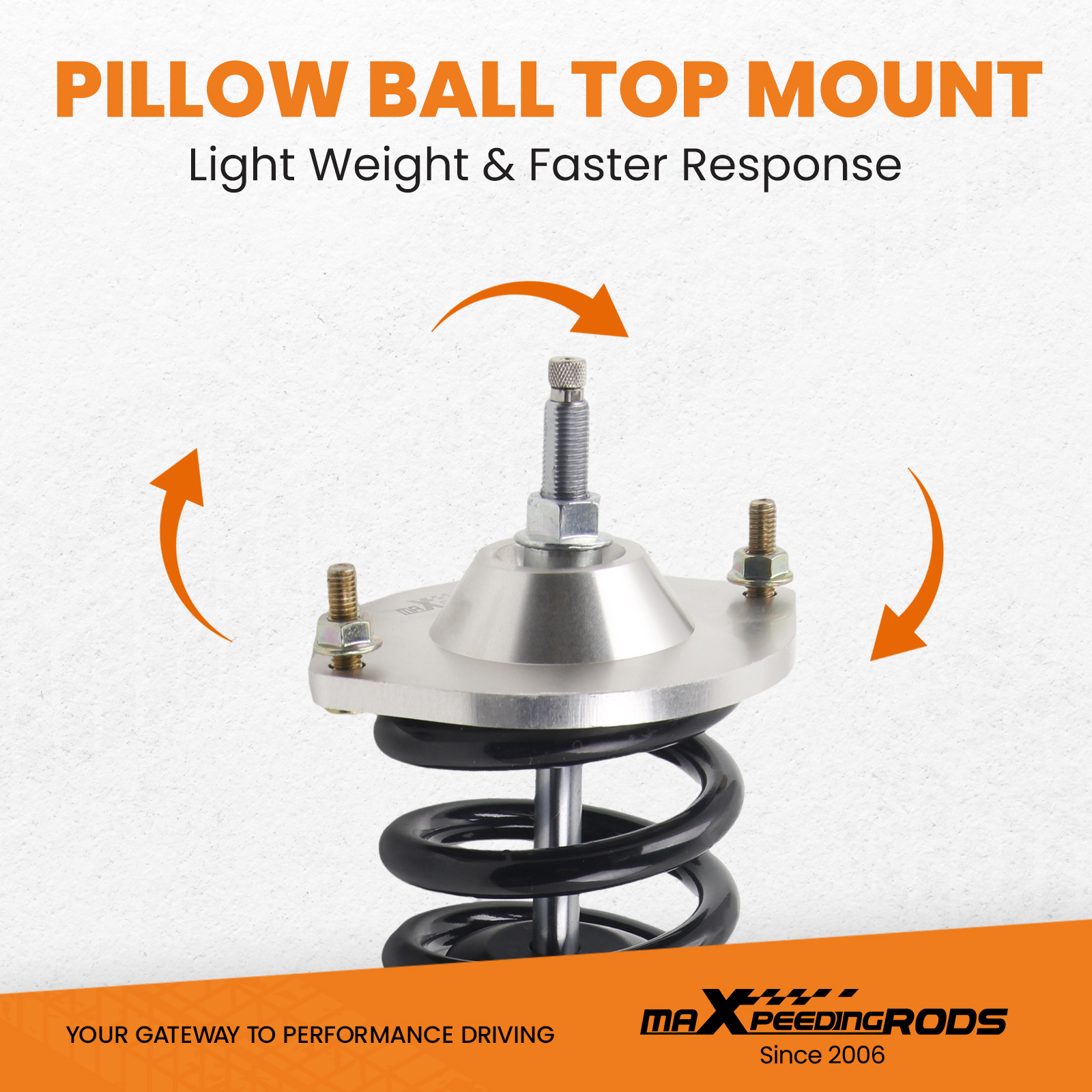

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

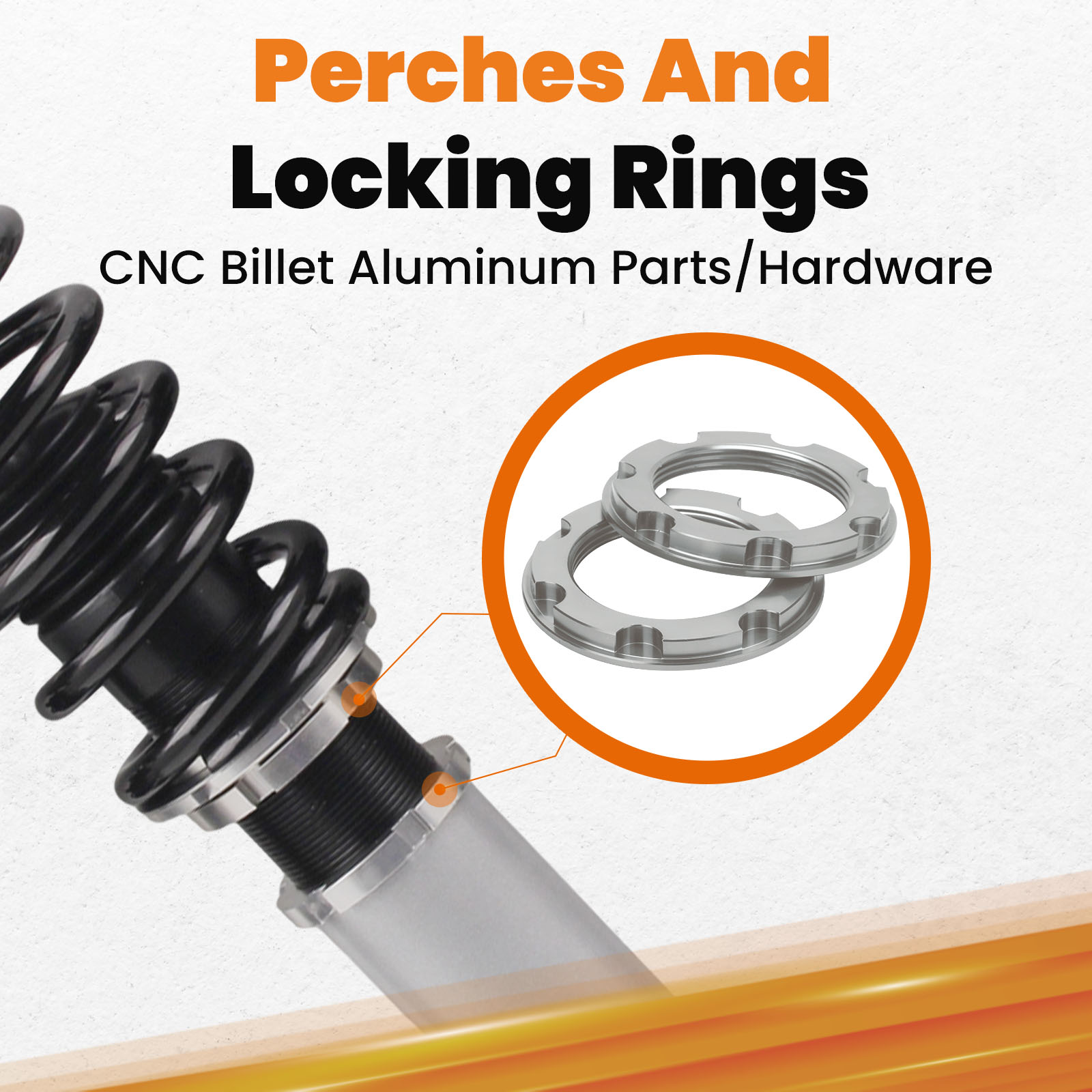

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
