| INTERCONNECTED WIRED 12v SMOKE DETECTOR FOR ALARM SYSTEM |

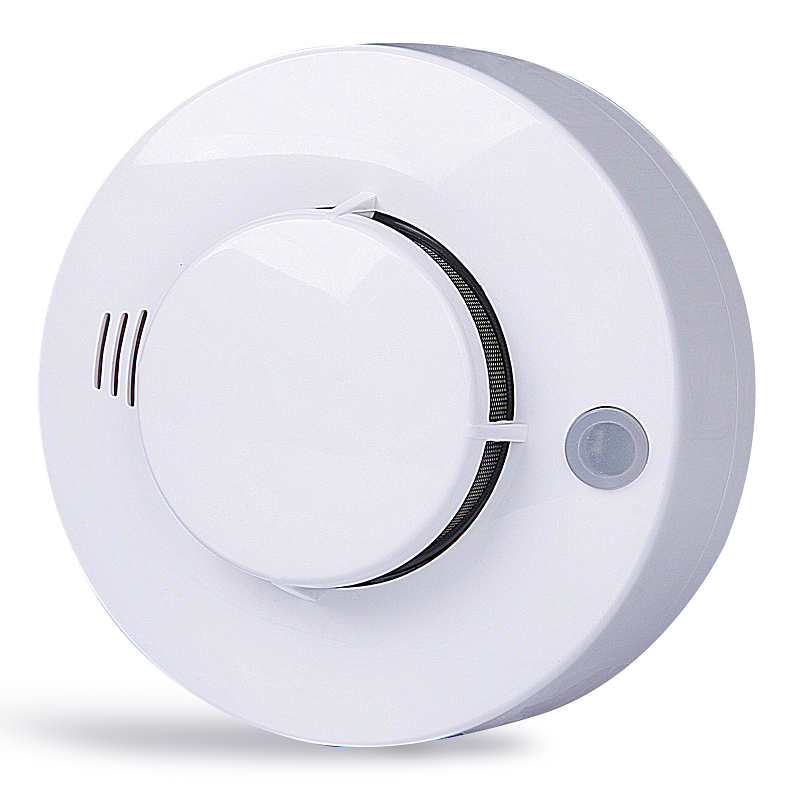

Photoelectronic Smoke Detector

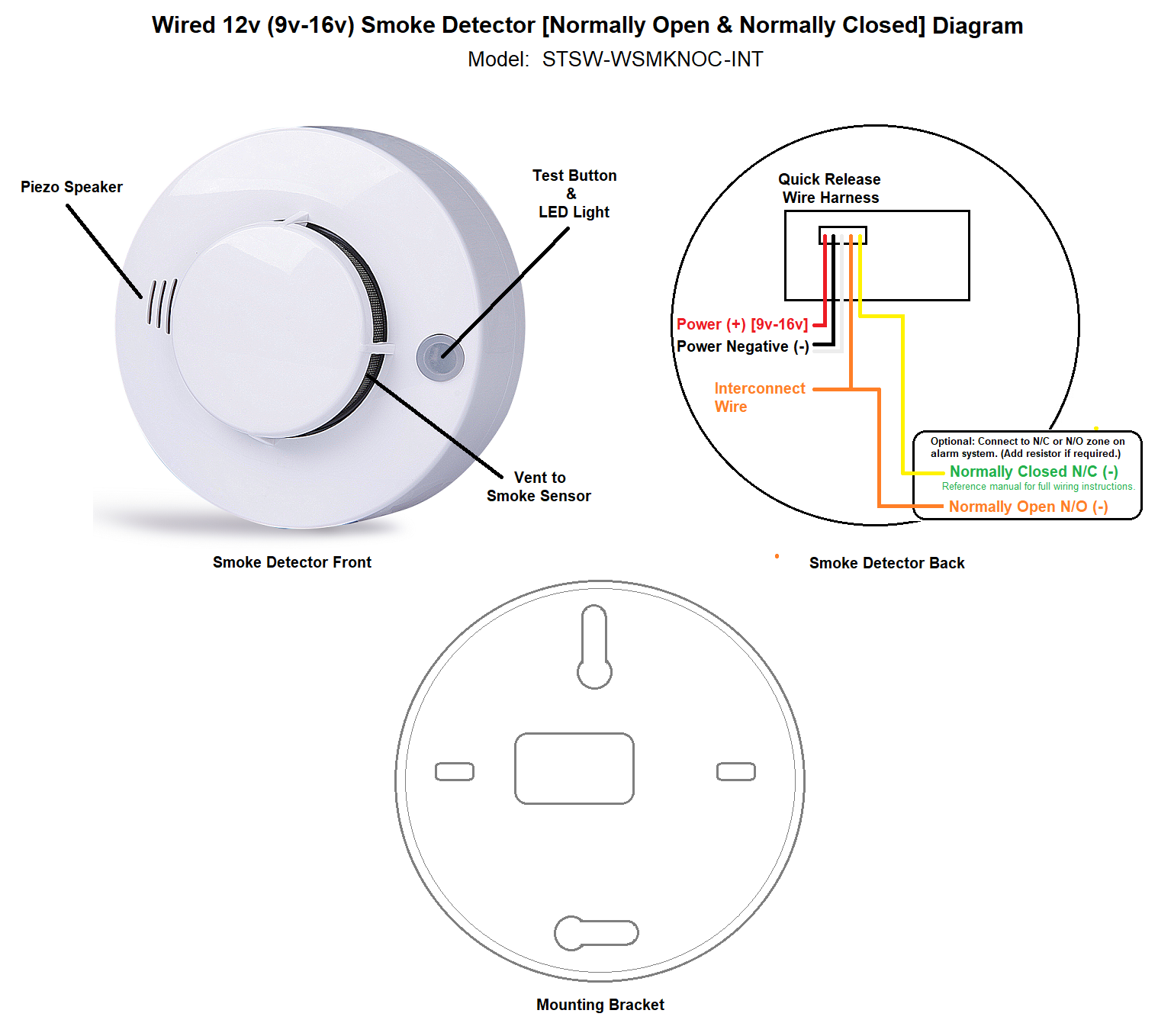

• Main Wire Connections
  • RED: 12v Power (+)
  • BLACK: Negative (-)
  • ORANGE: Interconnect Trigger Wire
• Interconnect Feature
  • If one detector sounds, they all sound.
  • Triggered detector sounds pulsating beep and flashes led indicator.
  • All other interconnected detectors sound solid beep tone.
• Connect to Alarm System (Optional)

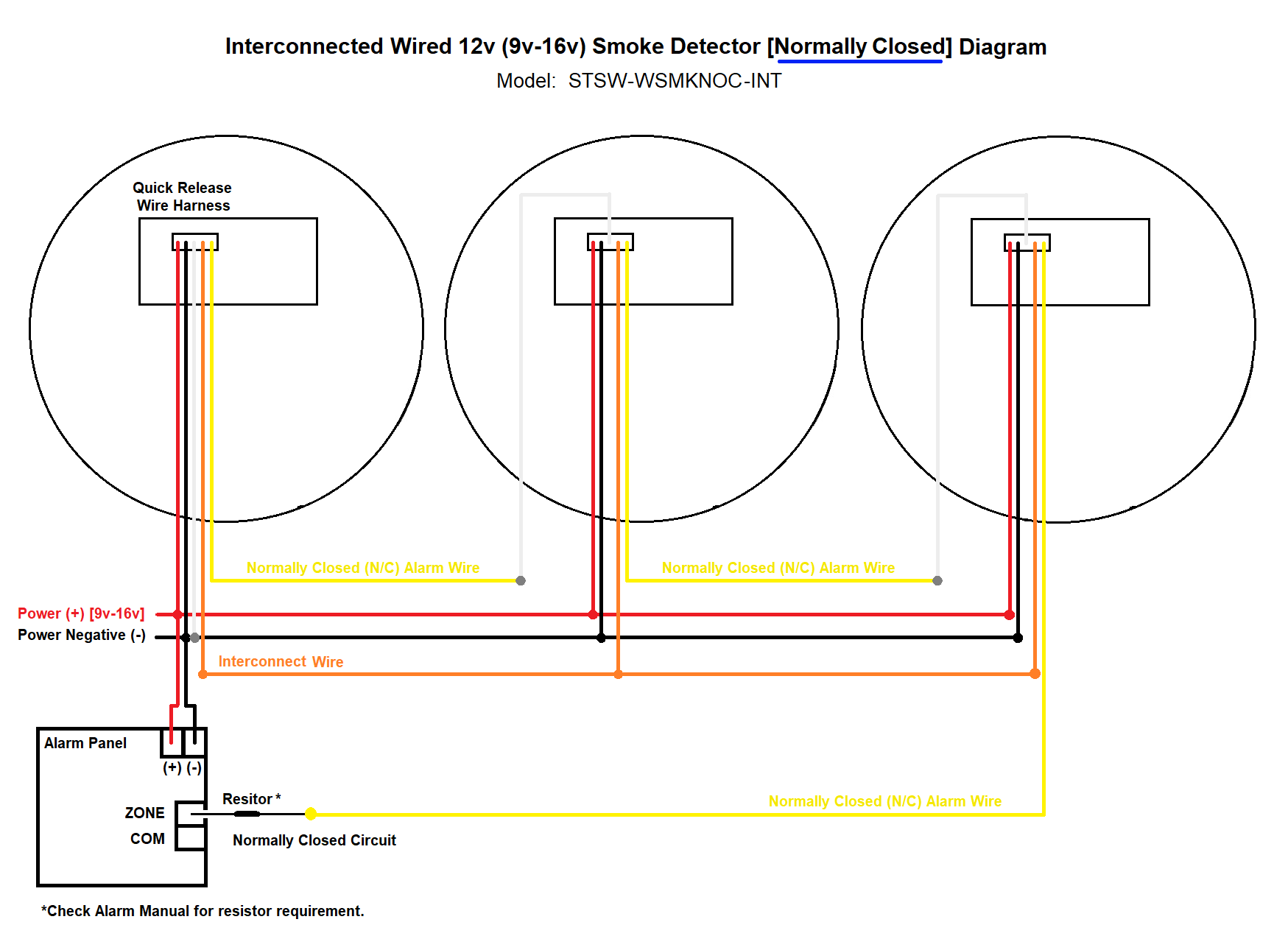

  • White: Interconnect & Relay Input (-)

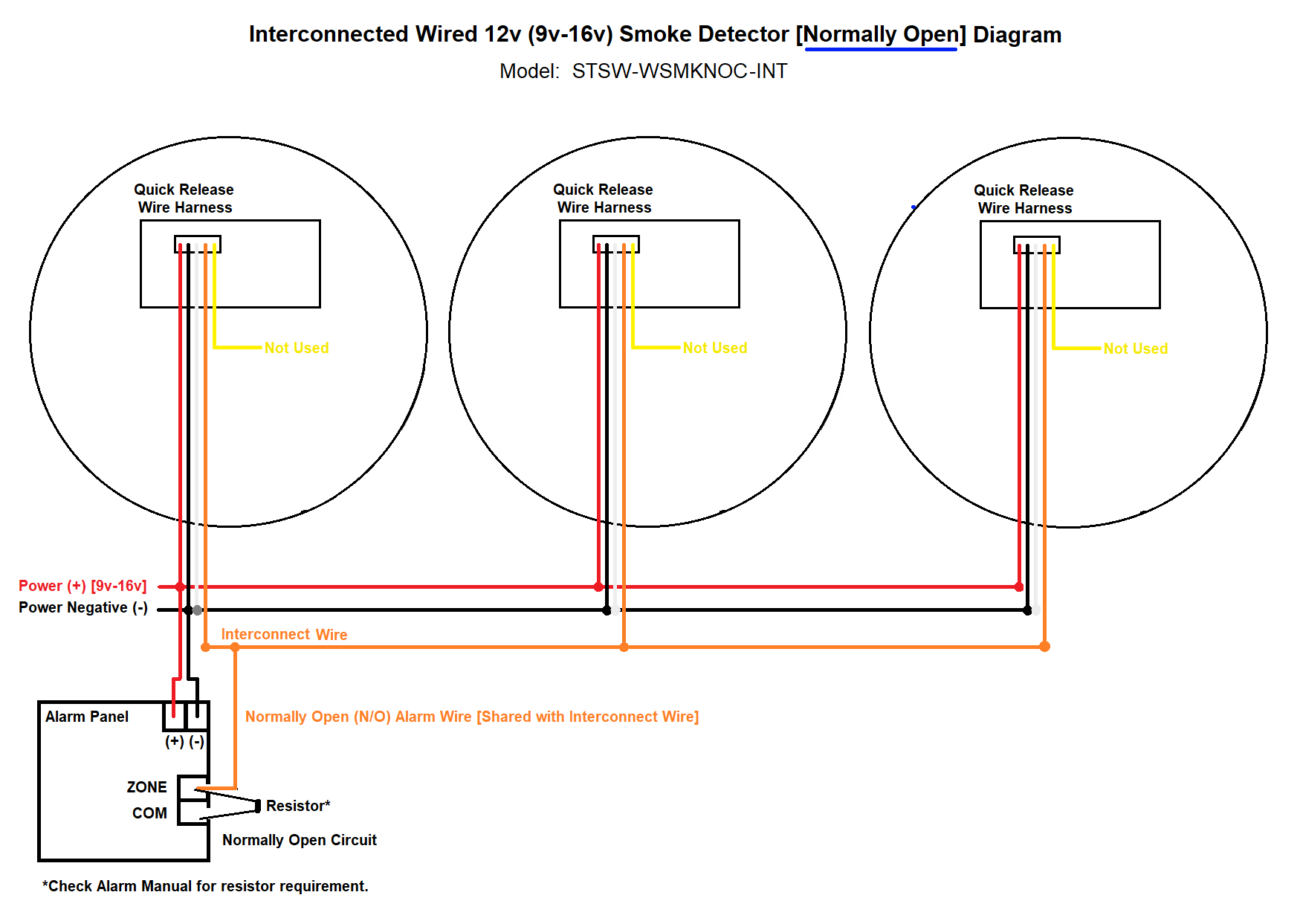

  • Orange: Normally Open (-)
  • Yellow: Normally Closed (-), Reference manual for full wiring instructions.
  • Use N/O and N/C at the same time
• Uses 12v (9v-16v) DC Power

• Built-In Piezo Speaker sounds when alarming
  • 95db @ 10 feet
• Red LED Indicator when alarming
• Automatic Reset when smoke dissipates

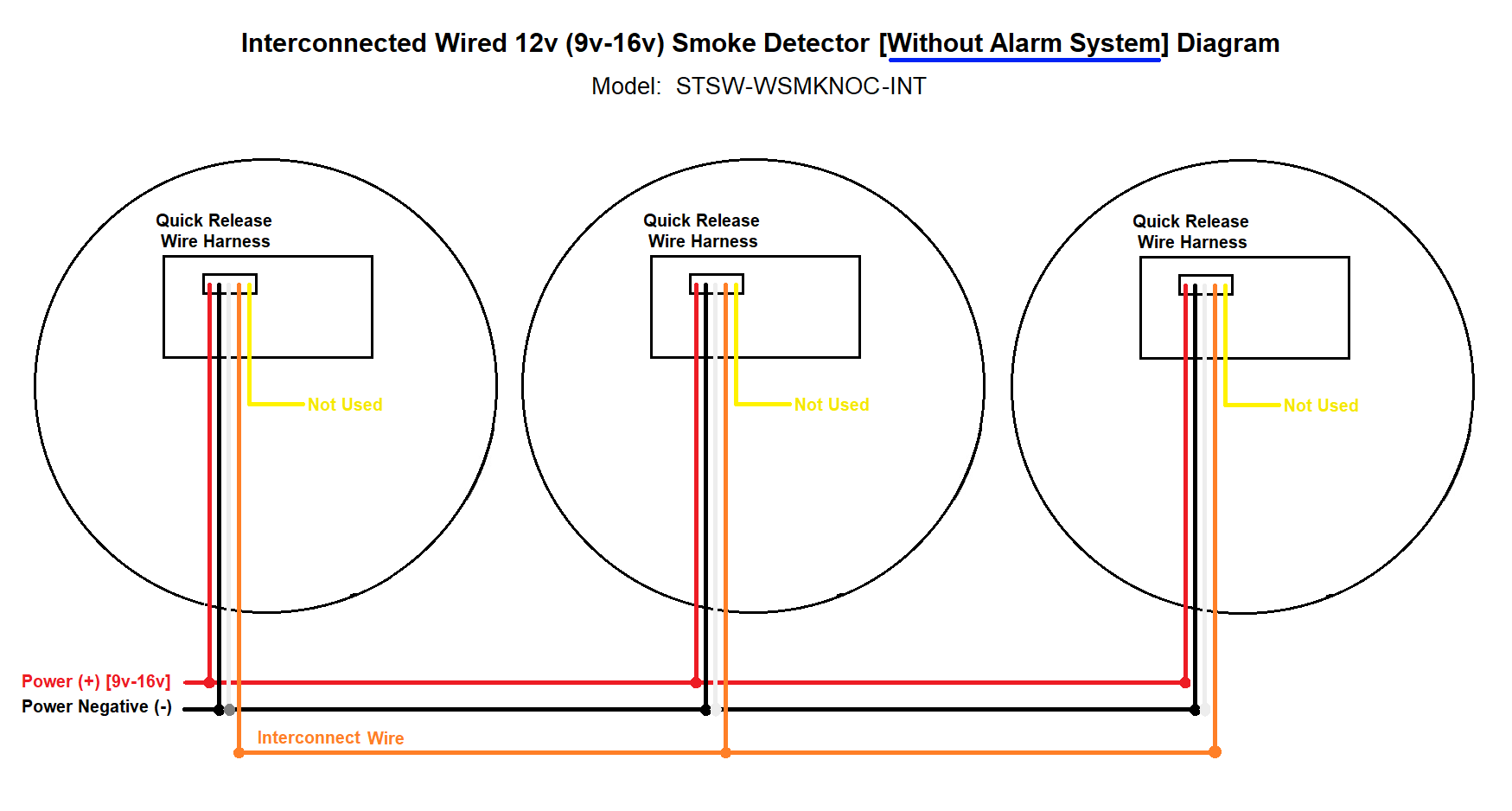

This wired smoke detector is compatible with any standard 12v alarm system that supports normally open (NO) or normally closed (NC) zones.  They only require 3-wires when not connected to an alarm system and 4-wires when connected to an alarm system.
