Product Description
83mm Cylinder Jug Piston Gasket Kit For Yamaha Big Bear, Bruin, Grizzly, Moto-4, Raptor, Warrior, Wolverine 350
Features:

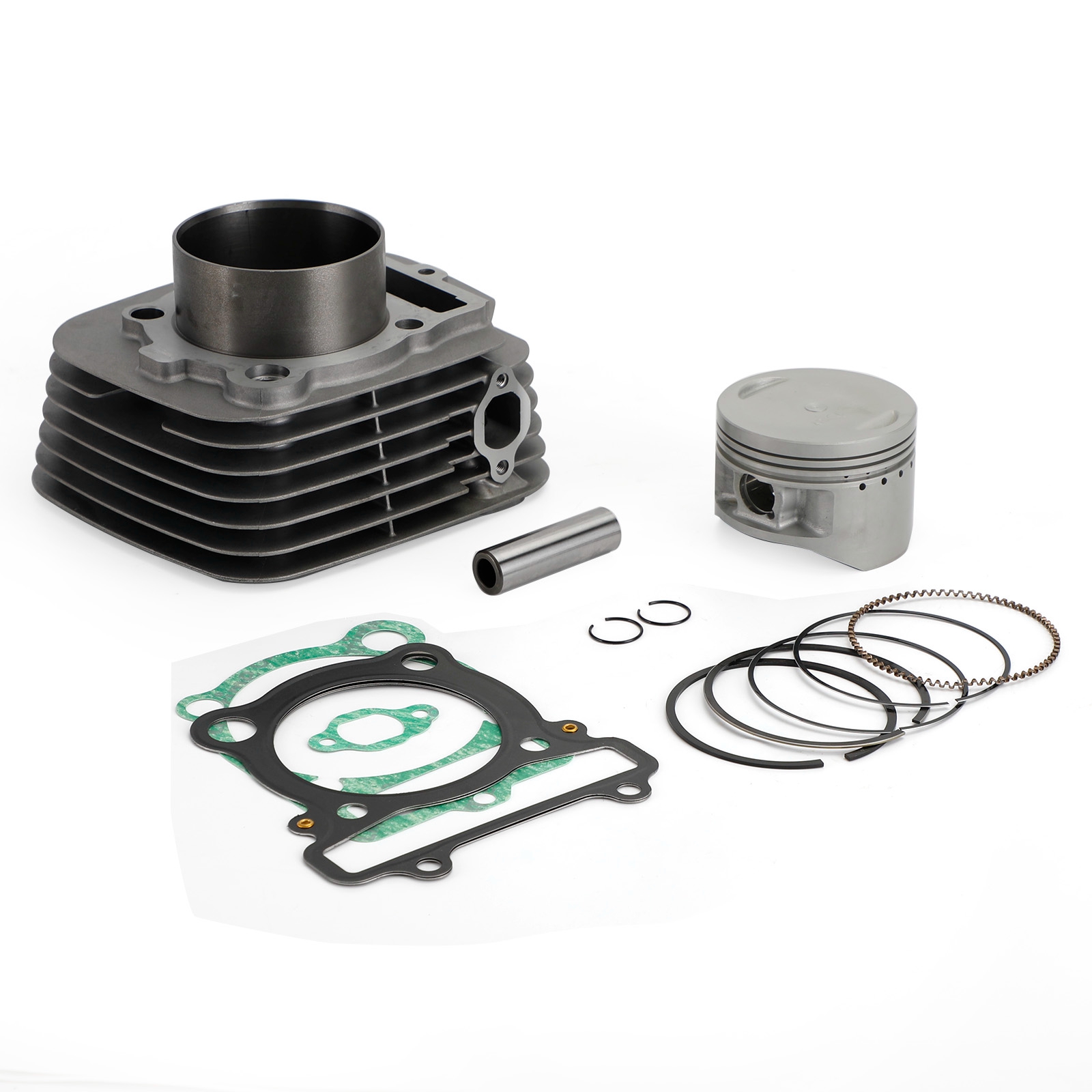

Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 83.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 348cc
Bore Type: Stanard Bore
Bore Size: STD 83.00mm
Stroke: 64.50mm
Piston Diameter: 82.95mm
Piston Height: 58.80mm
Pin Height: 65mm
Pin Diameter: 19mm
Replacement Part Number:
Cylinder: 1UY-11310-03, 5YT-11310-00-00, 4WU-11310-00-00
Cylinder Base Gasket: 4KB-11351-00
Cylinder Head Gasket: 1UY-11181-01
Chain Tensioner Gasket: 3GD-12213-00
Piston: 1YW-11631-01-Y0, 1UY-11631-01-Y0, 5UH-11631-00-C0
Pin, piston: 55V-11633-00
Ring Set, piston: 4GB-11610-00
Circlips, piston: 93450-19095
Fitments:
Fit for Yamaha Moto-4 350 (YFM350ER) 1987 - 1995
Fit for Yamaha Big Bear 350 4x4 (YFM350FW) 1987 - 1999
Fit for Yamaha Big Bear 350 2x4 (YFM350U) 1996 - 1999
Fit for Yamaha Bruin 350 4x4 (YFM350FA) 2004 - 2006
Fit for Yamaha Bruin 350 2x4 (YFM350A) 2004 - 2006
Fit for Yamaha Grizzly 350 2x4 (YFM350G) 2007 - 2011
Fit for Yamaha Grizzly 350 4x4 (YFM350FG) 2007 - 2014
Fit for Yamaha Grizzly 350 4x4 IRS (YFM350FGI) 2007 - 2011
Fit for Yamaha Warrior 350 (YFM350X) 1987 - 2004
Fit for Yamaha Raptor 350 (YFM350R) 2004 - 2013
Fit for Yamaha Wolverine 350 4x4 (YFM350FX) 1995 - 2005
Fit for Yamaha Wolverine 350 2x4 (YFM350X) 2006 - 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

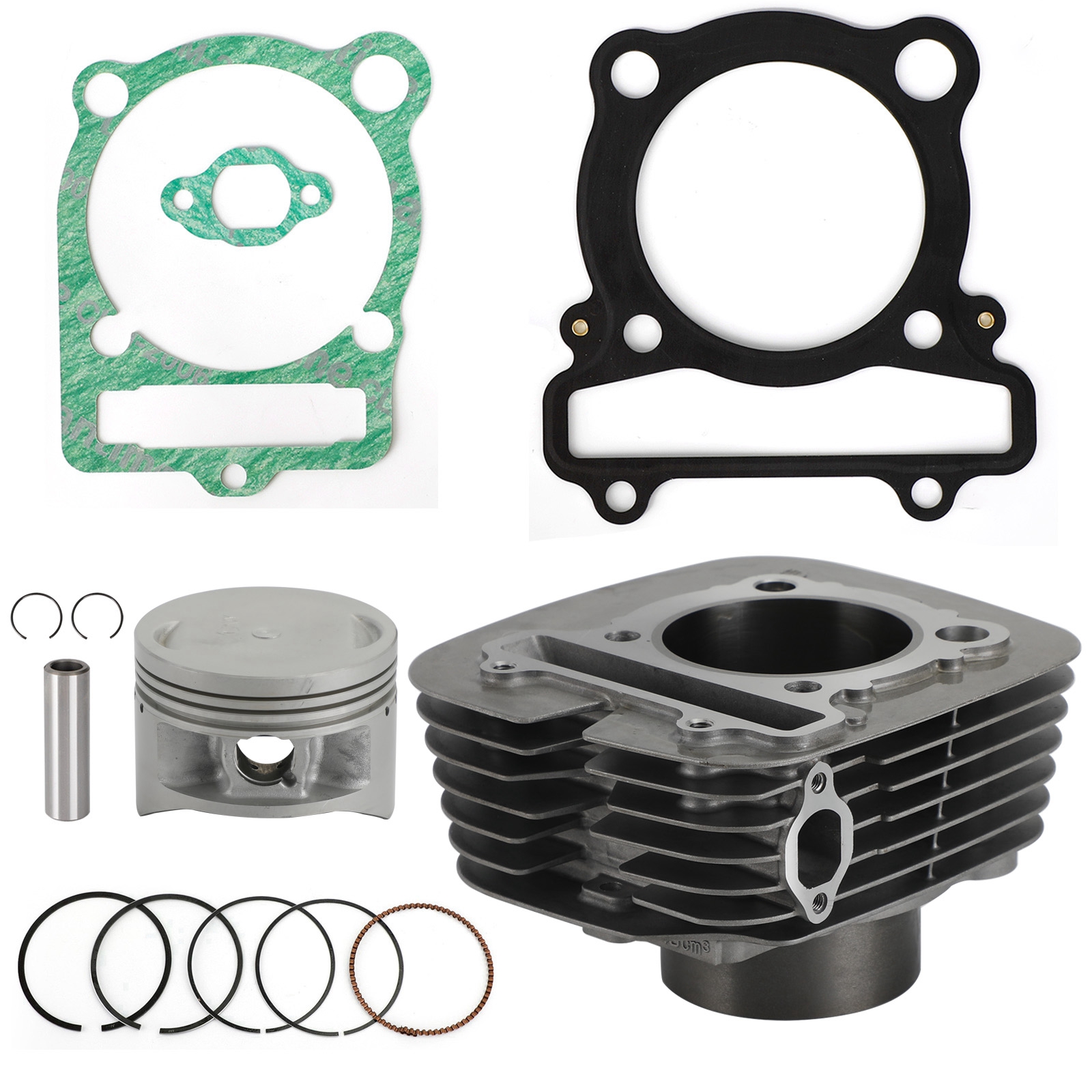

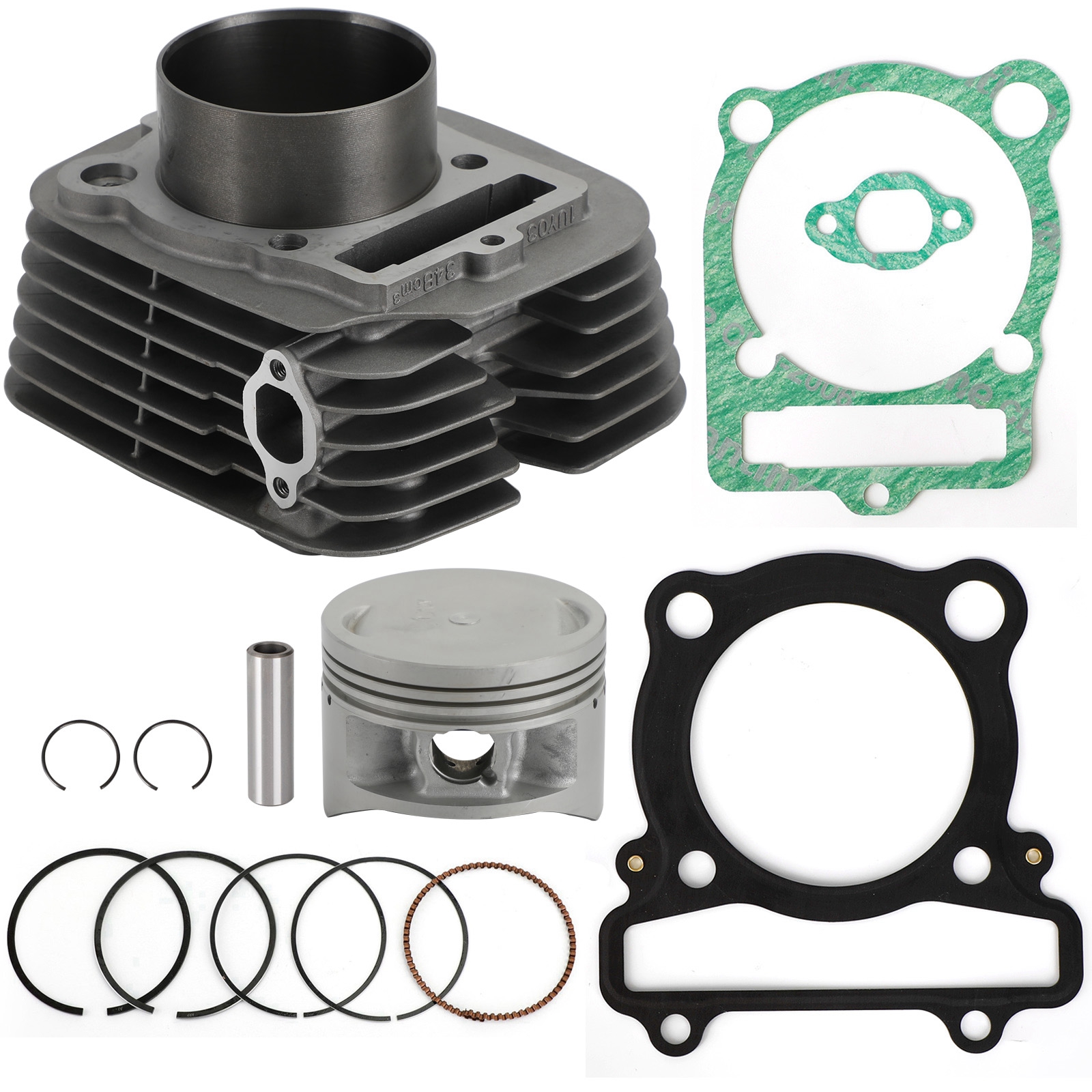

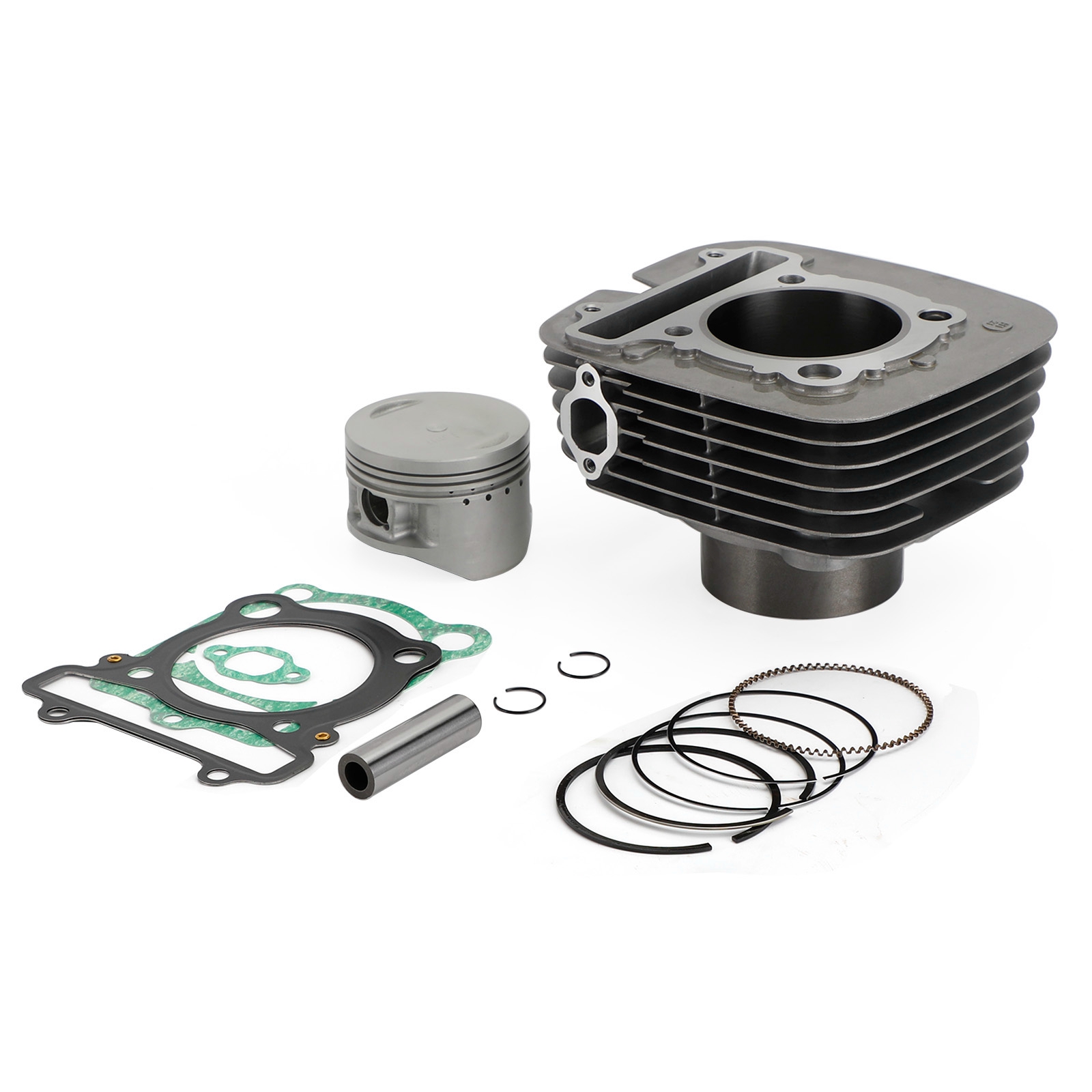

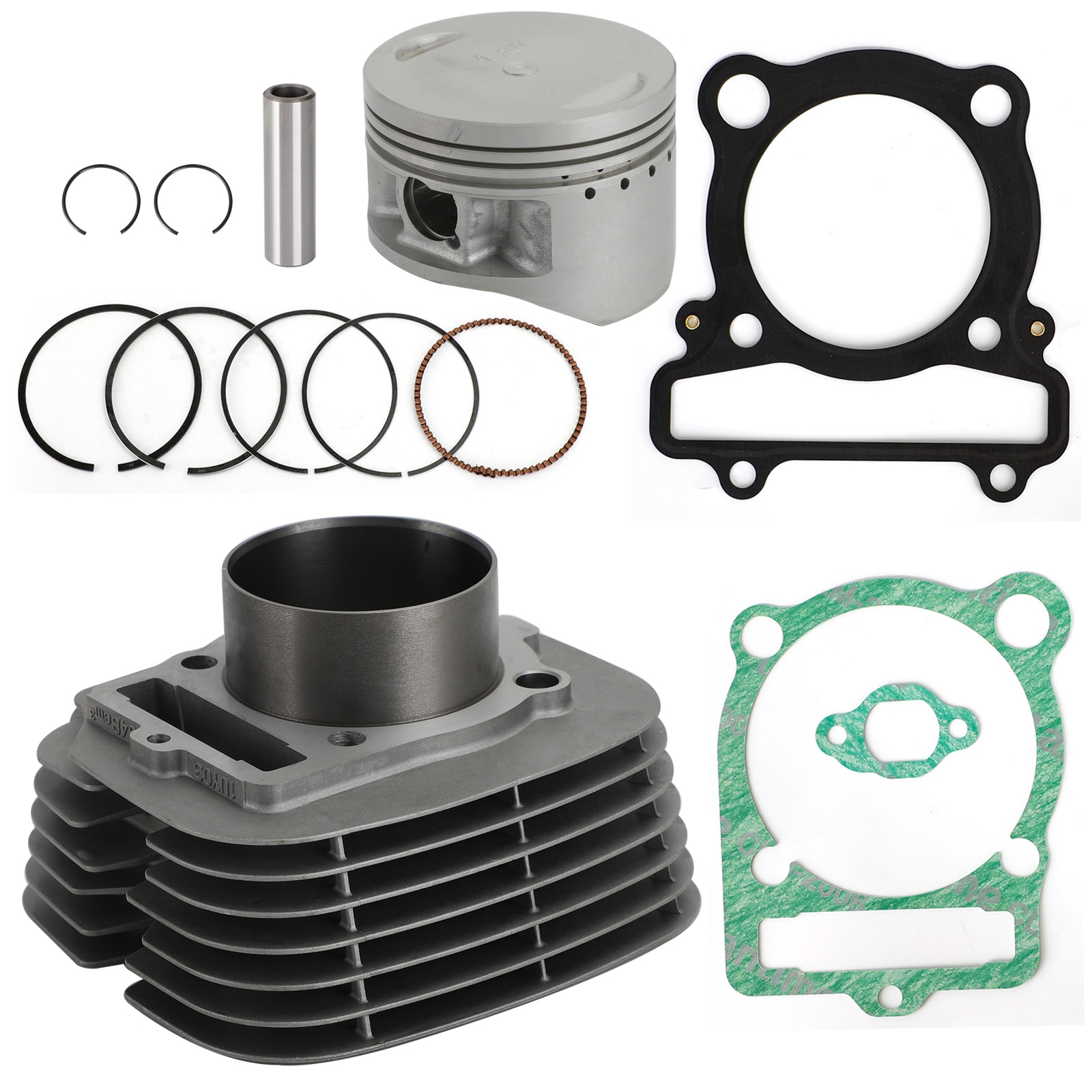

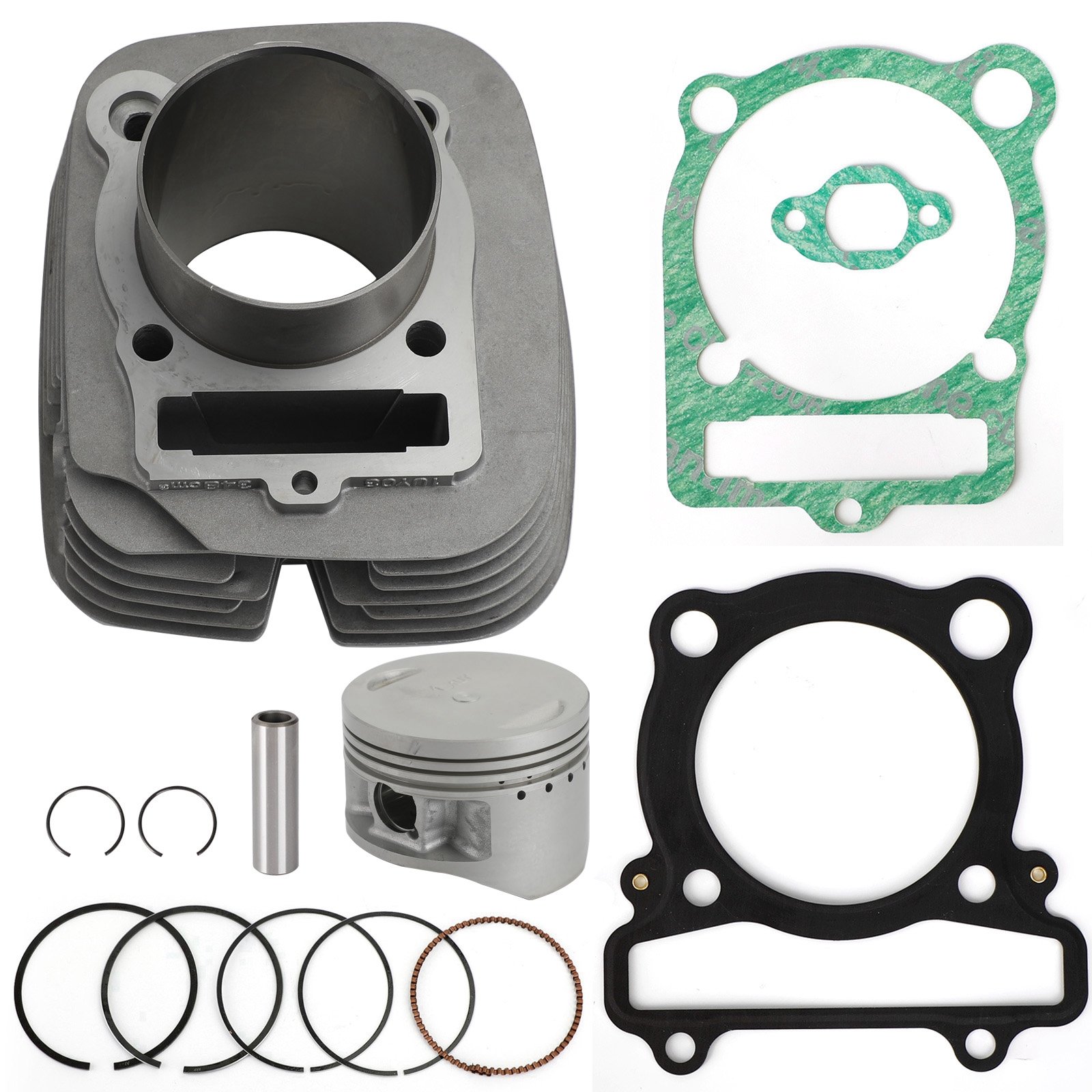

Package Includes:

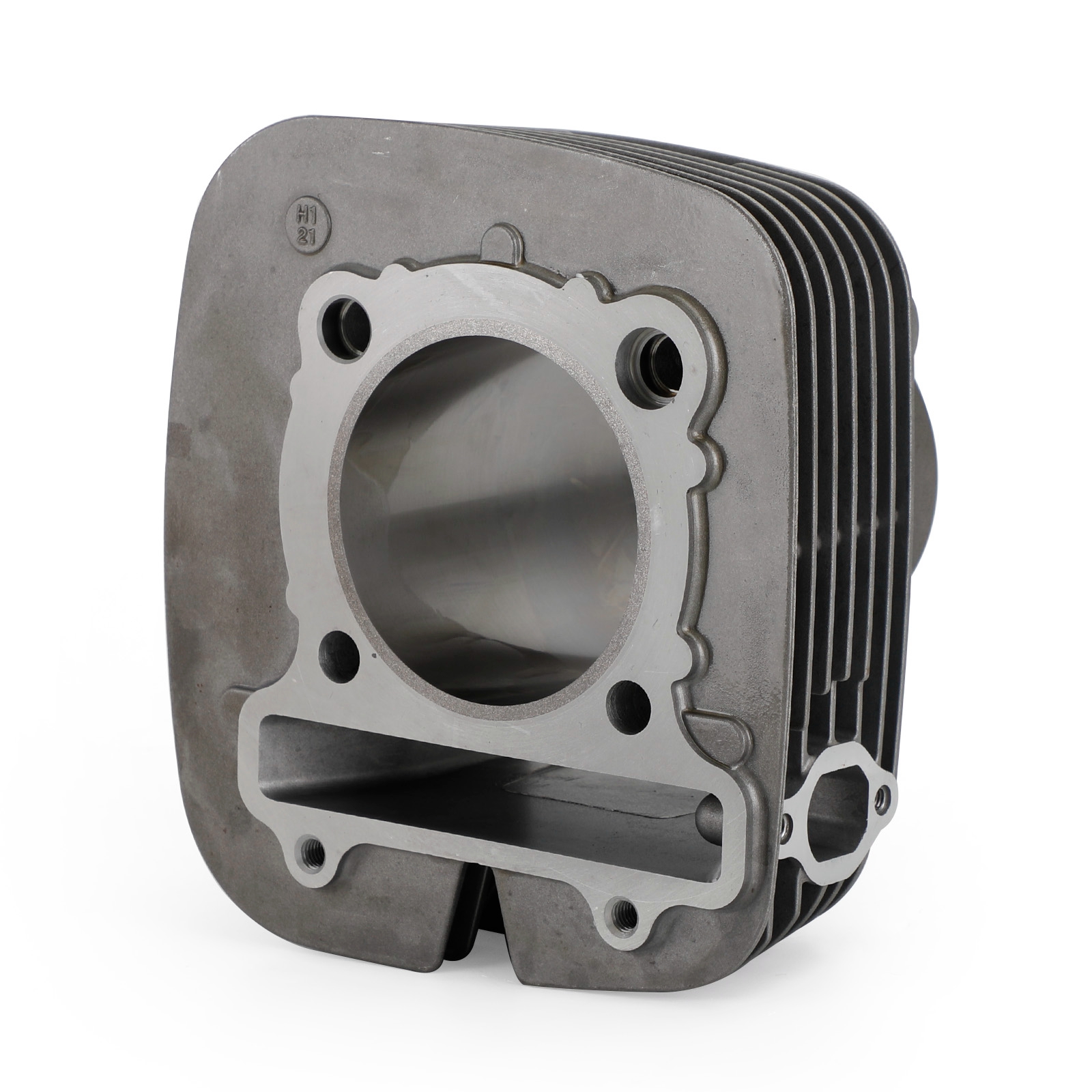

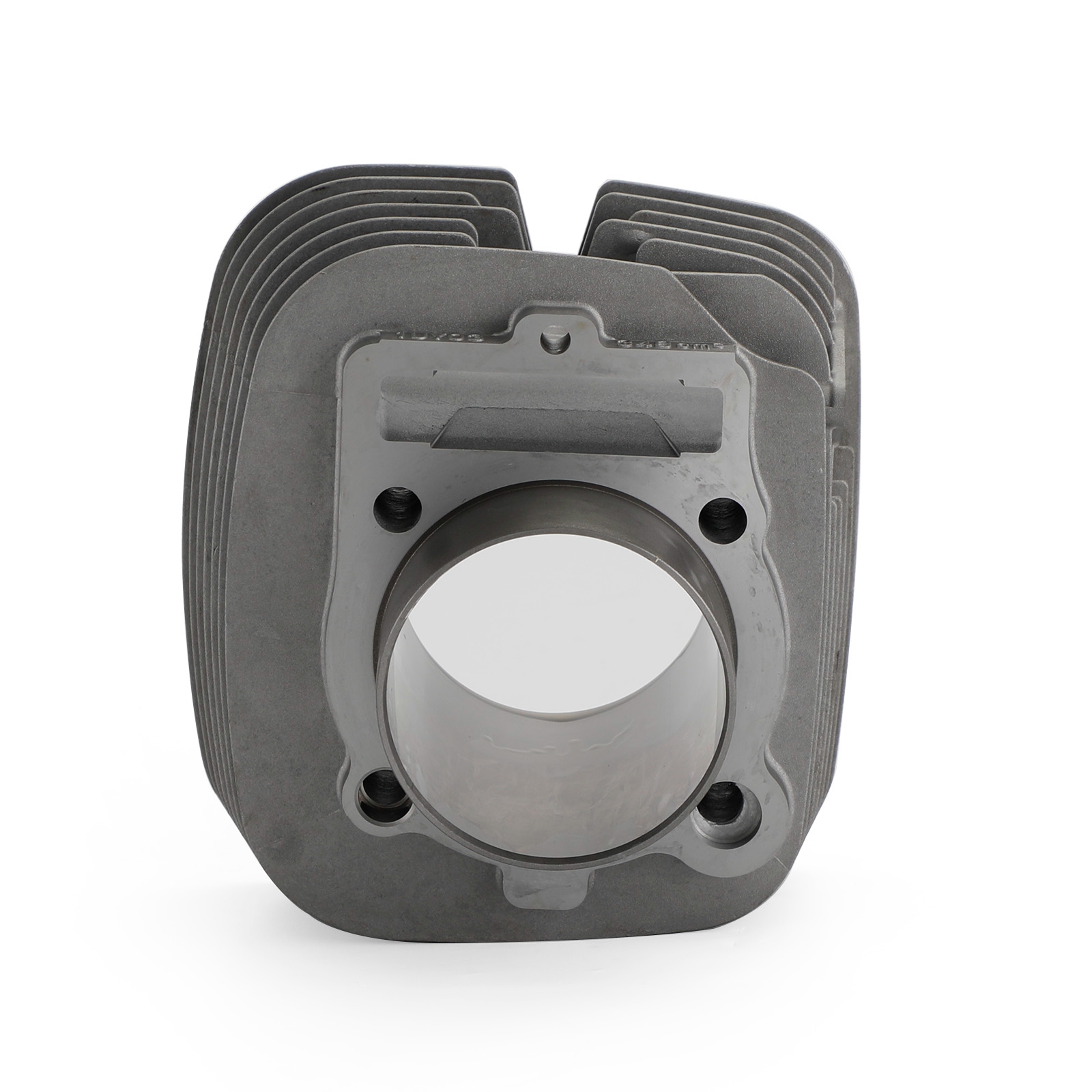

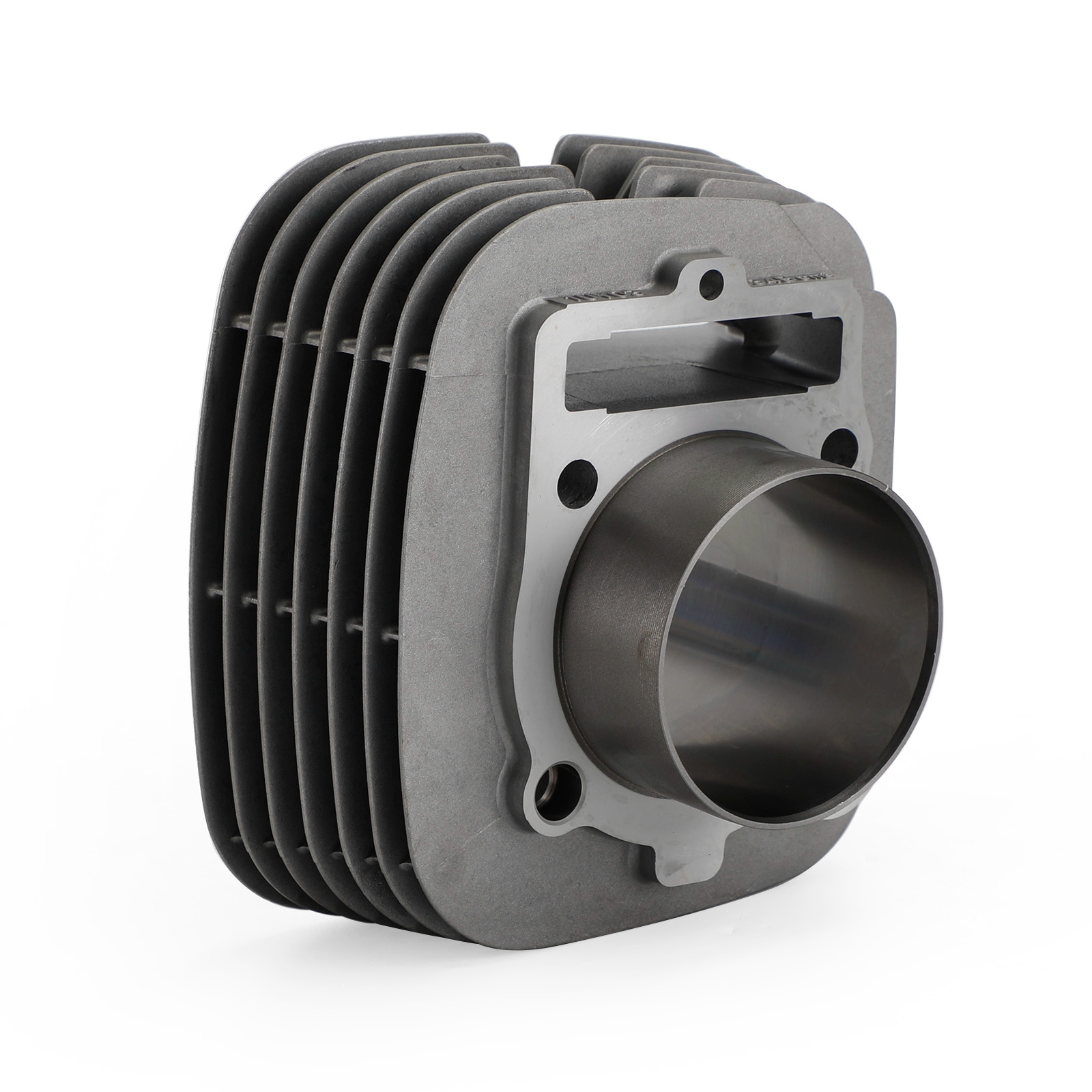

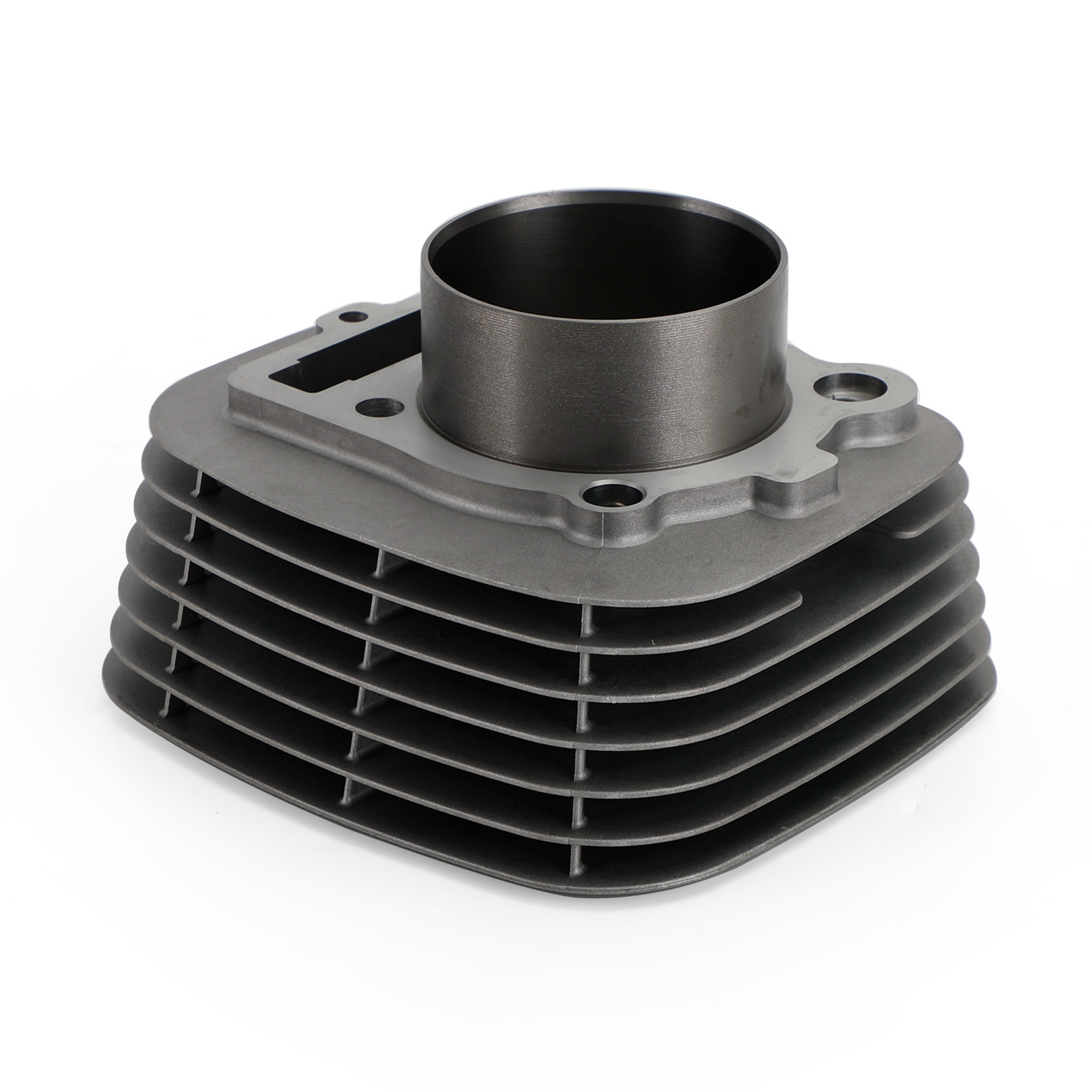

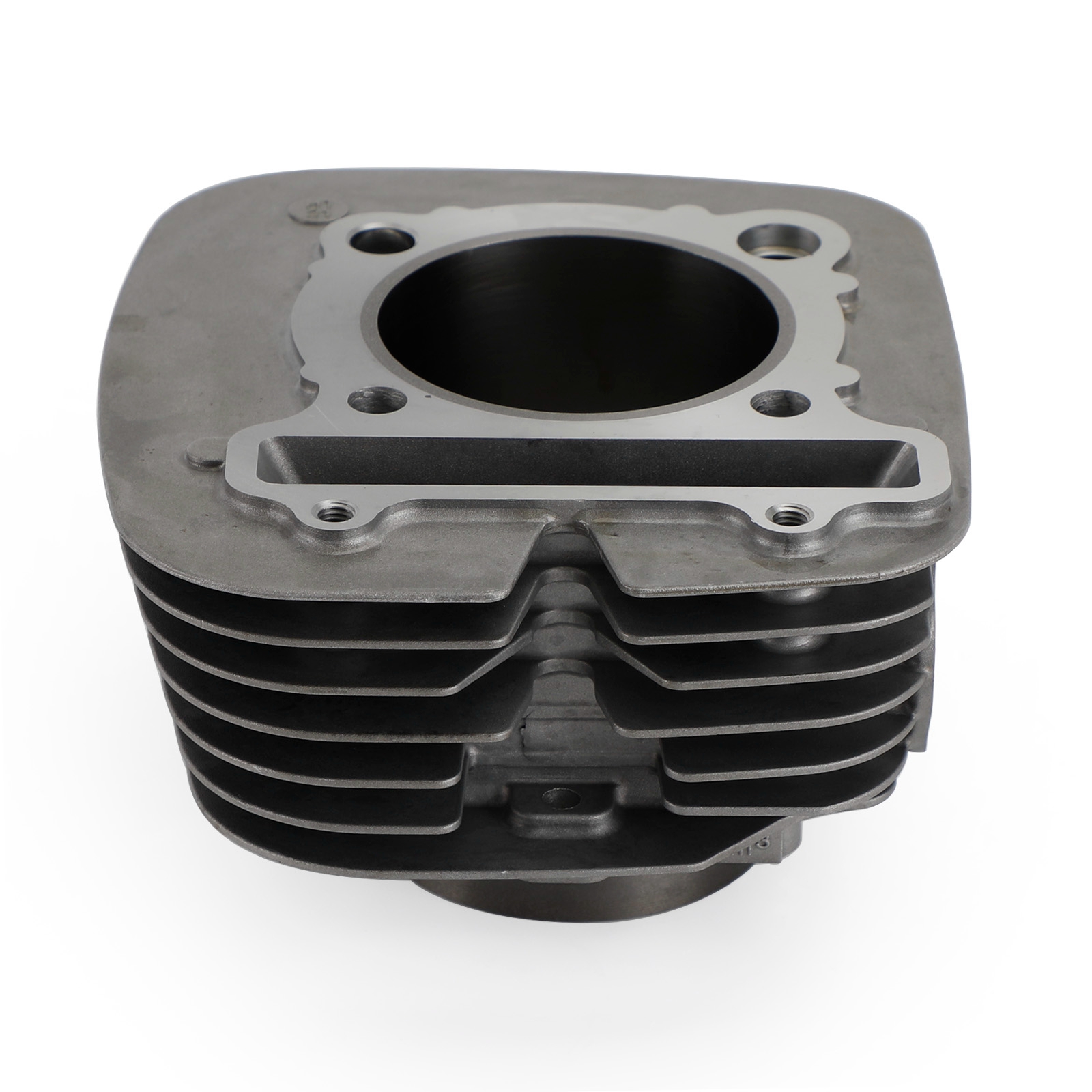

1x 83mm Cylinder

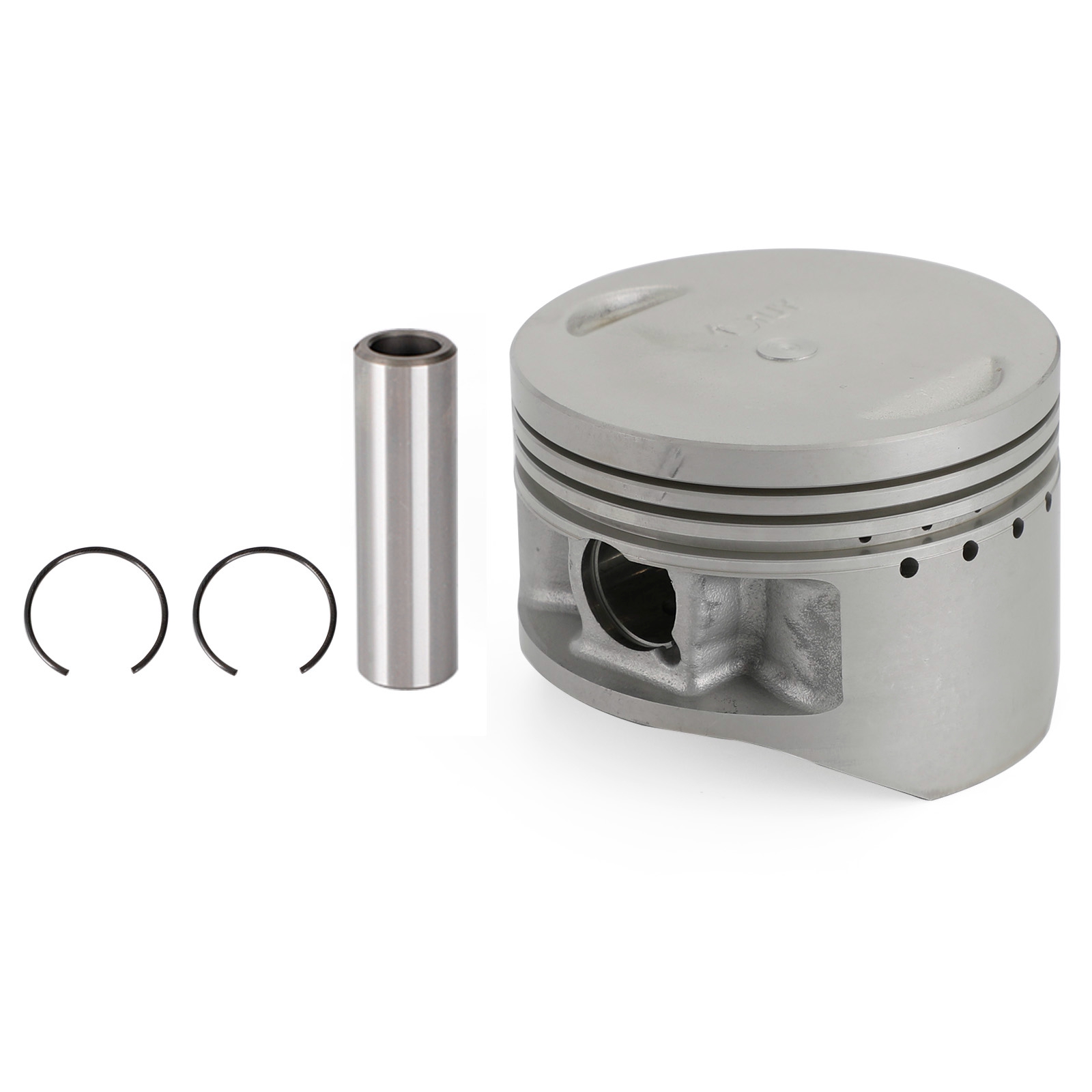

1x Piston(STD)

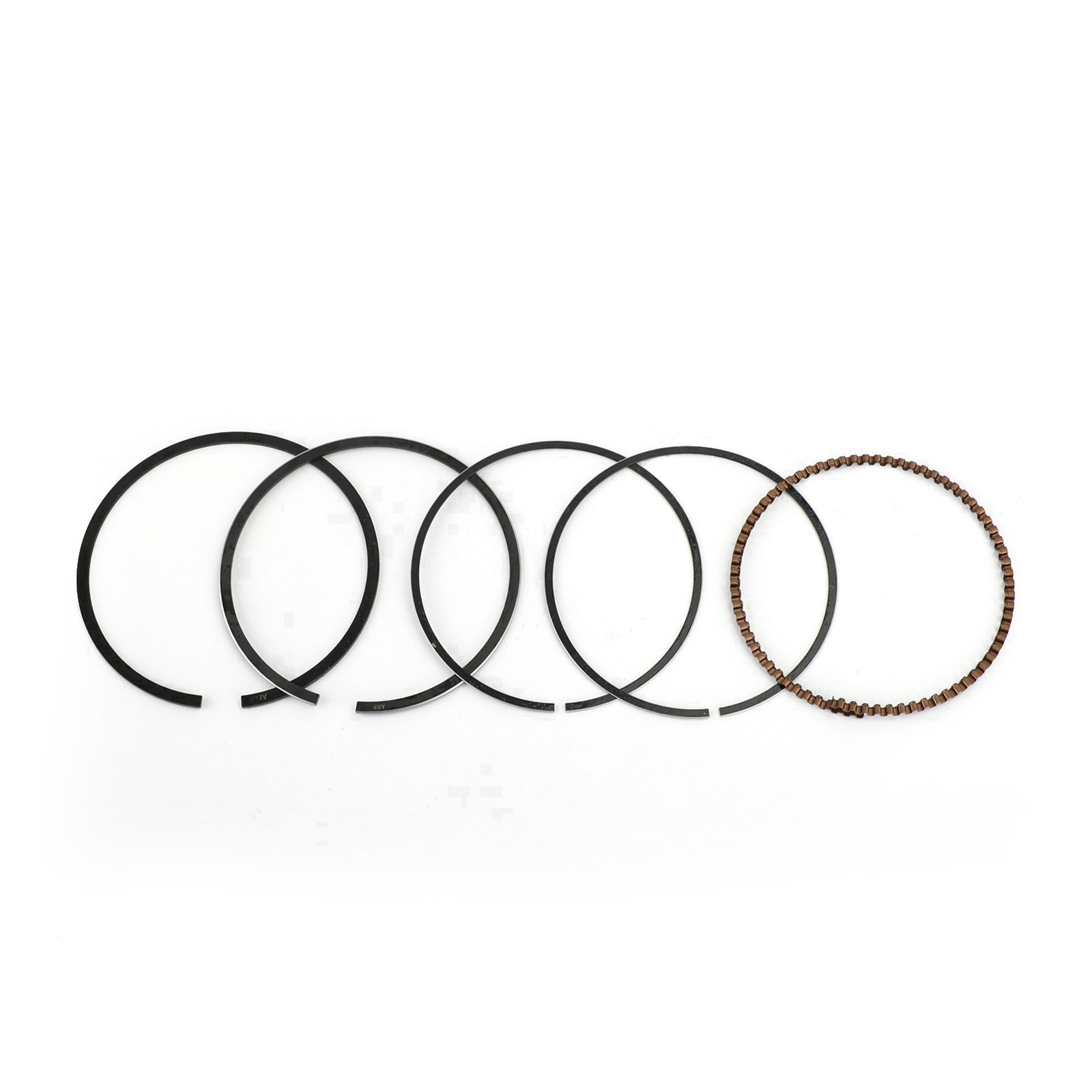

1x Piston Ring Set
1x Wristpin
1x Circlip(2)

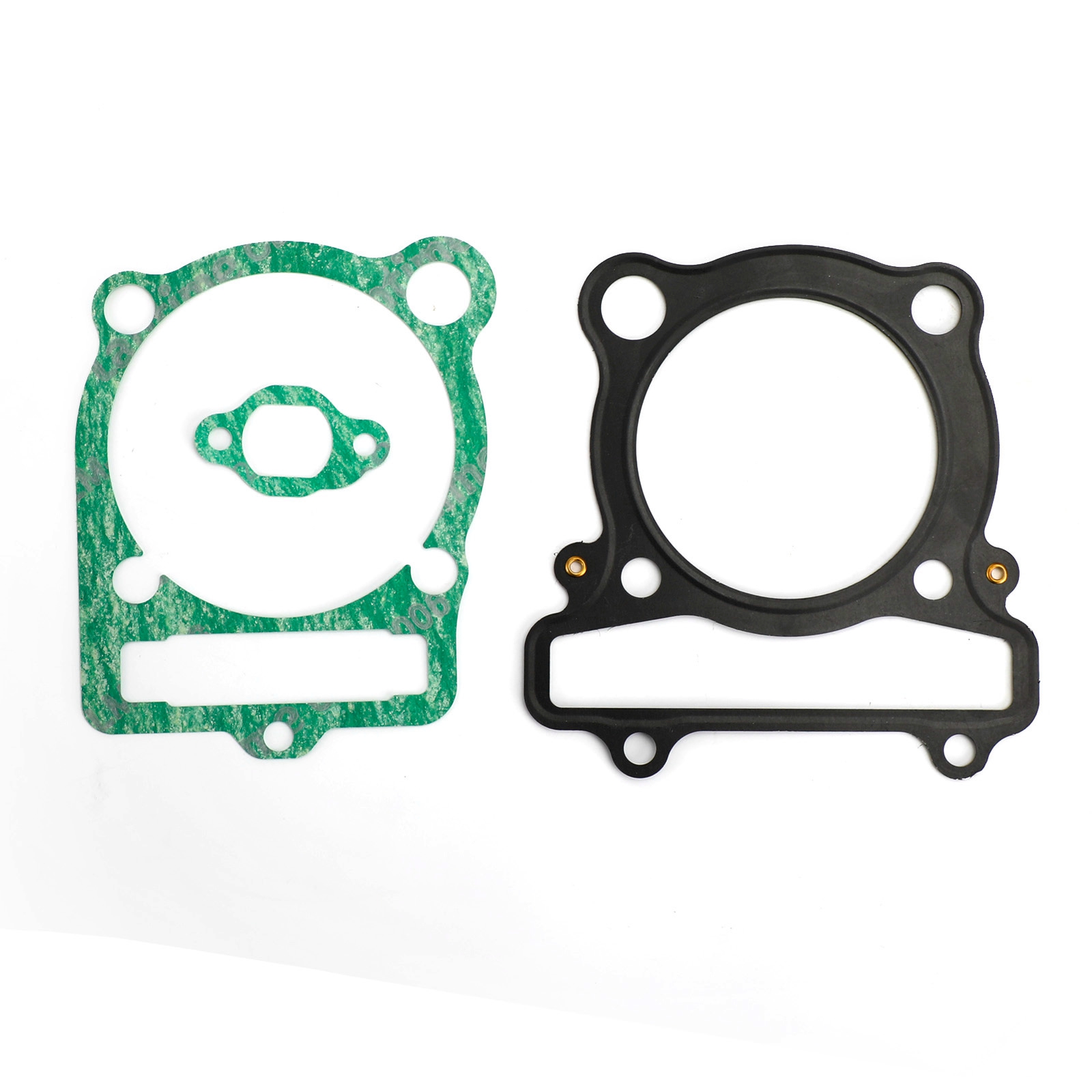

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
