Model 894328

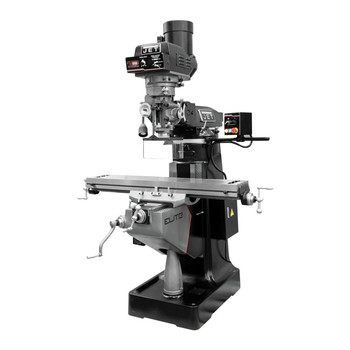

JET EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) Digital Readout and X, Y, Z-Axis JET Powerfeeds
Includes
- EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) Digital Readout and X, Y, Z-Axis JET Powerfeeds - 894328
DETAILS & SPECIFICATIONS
Features
- Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012 in.
- Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
- A patented vari-disc key provides upt to ten times the wear resistance than aluminum or brass keys
- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
- Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
- Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials
Specifications
| Power Source | Corded |
| Bluetooth Compatibility | No |
| Table Size | 9 in x 49 in |
| Spindle Taper | R-8 |
| Spindle Speed Range | 60 - 5000 |
| Motor Phase | 3 |
| PreWired Voltage | 230V |
| Horsepower | 3 |
| Motor Type | Brushed |
| Voltage | 230V |
| Amperage | 18 |
| Height | 84 in. |
| Width | 63 in. |
| CSA Safety | Yes |
| Wifi compatibility | No |
| Spindle to Table Distance | 18-3/4 in |
| No. of T-Slots | 3 |
| Quill Down Feed Rates | 0.0015 / 0.003 / 0.006 |
| Spindle Travel | 5 in |
| Quill Diameter | 3-3/8 in |
| Head Movement | 90 Degrees R/L 45 Degrees F/B |
| Weight | 2300 lbs. |
| Table Capacity (lbs.) | 550 lbs |
| Collet Capacity | 1/8 in - 7/8 in |
| Spindle Speeds | Variable |
| T-Slot Centers | 2-1/2 in |
| Length | 68 in. |
| T-Slot Size | 5/8 in |
| Ram Travel | 14 in |
