Product Description

Technical parameter：

Power supply：DC10V--30V

Standby current：40mA

Fingerprint capacity：200 pieces

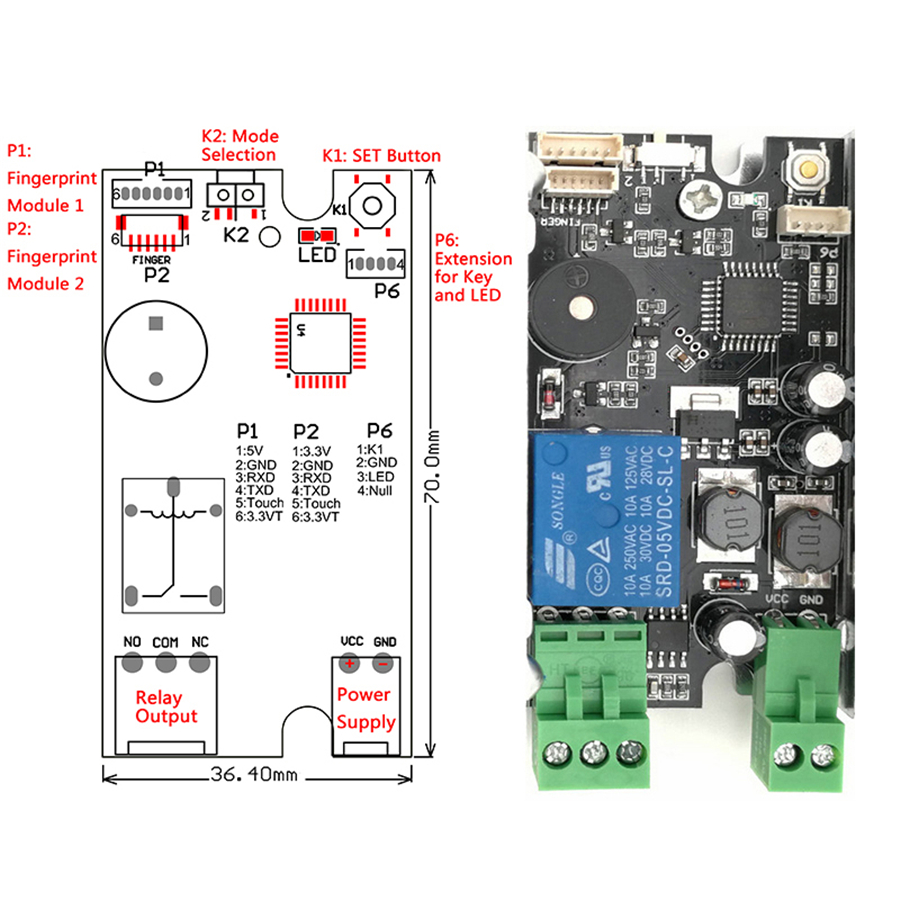

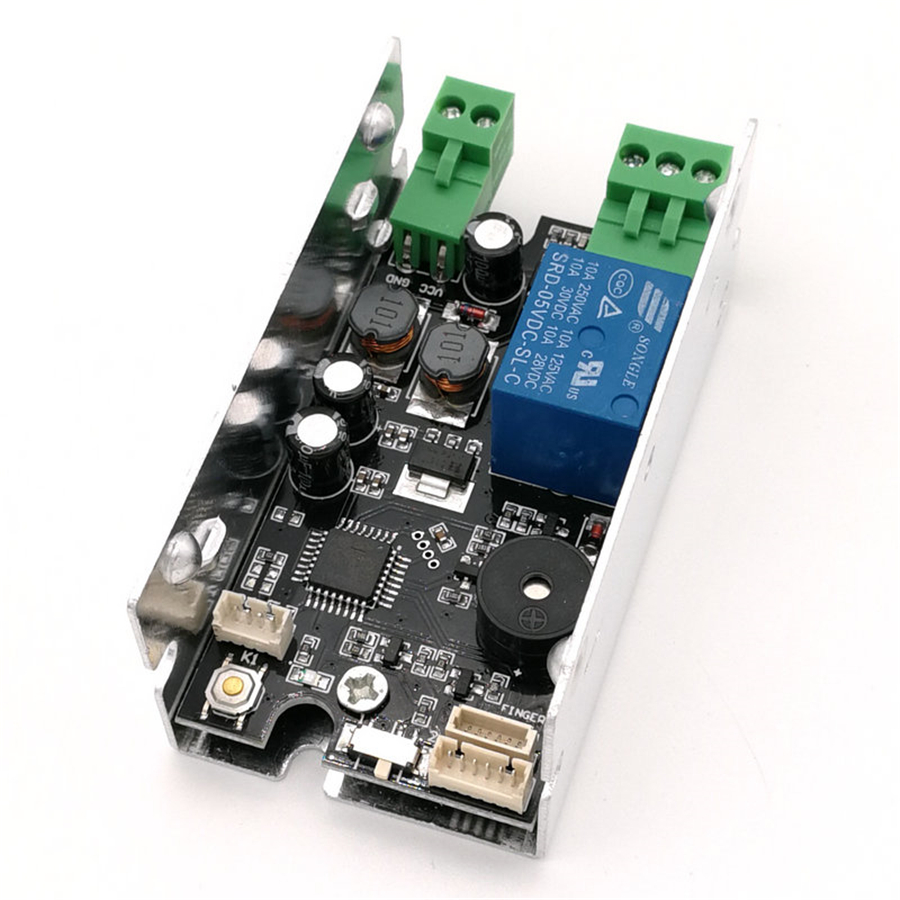

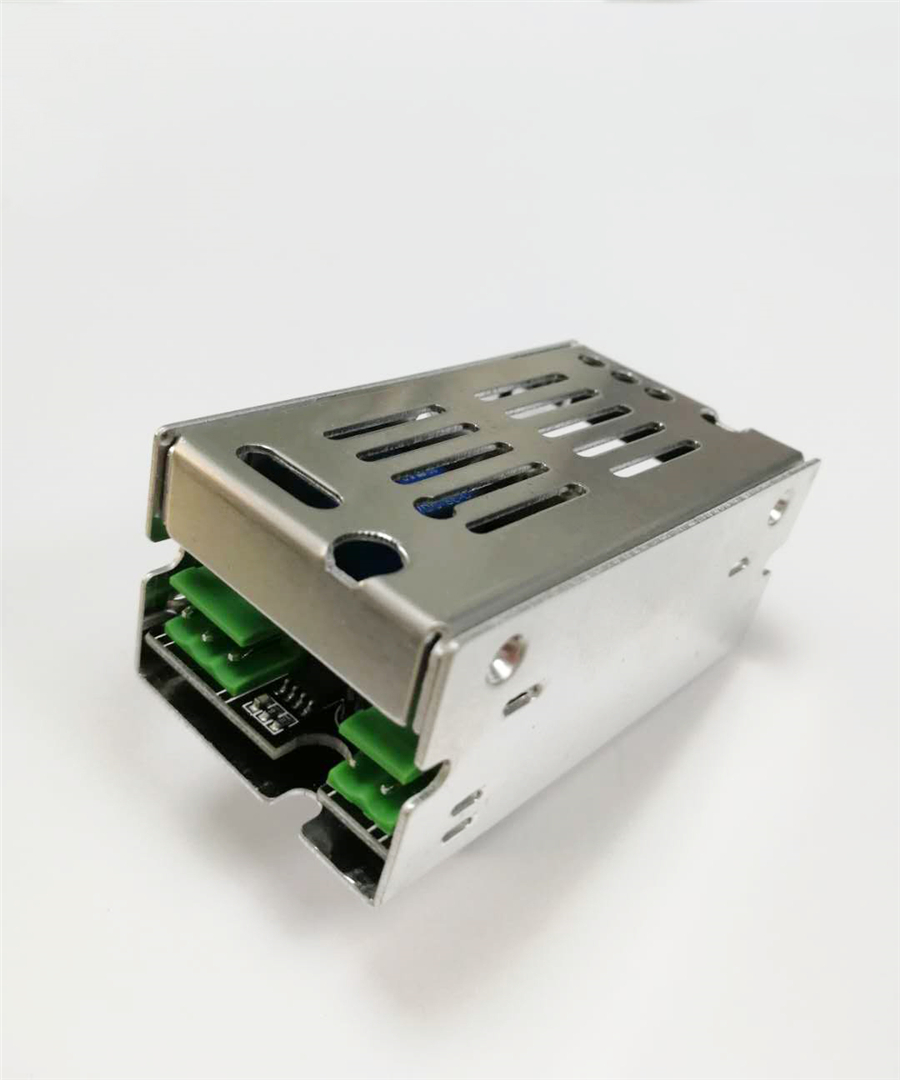

Instructions for K215-V1.2 control board：

1. Press Set button shortly, system in register state and indicator light flash fast, press two times for each fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.

2. When back to factory default, press SET button until hear “Di” long beep and music, this means initialization operation successful.

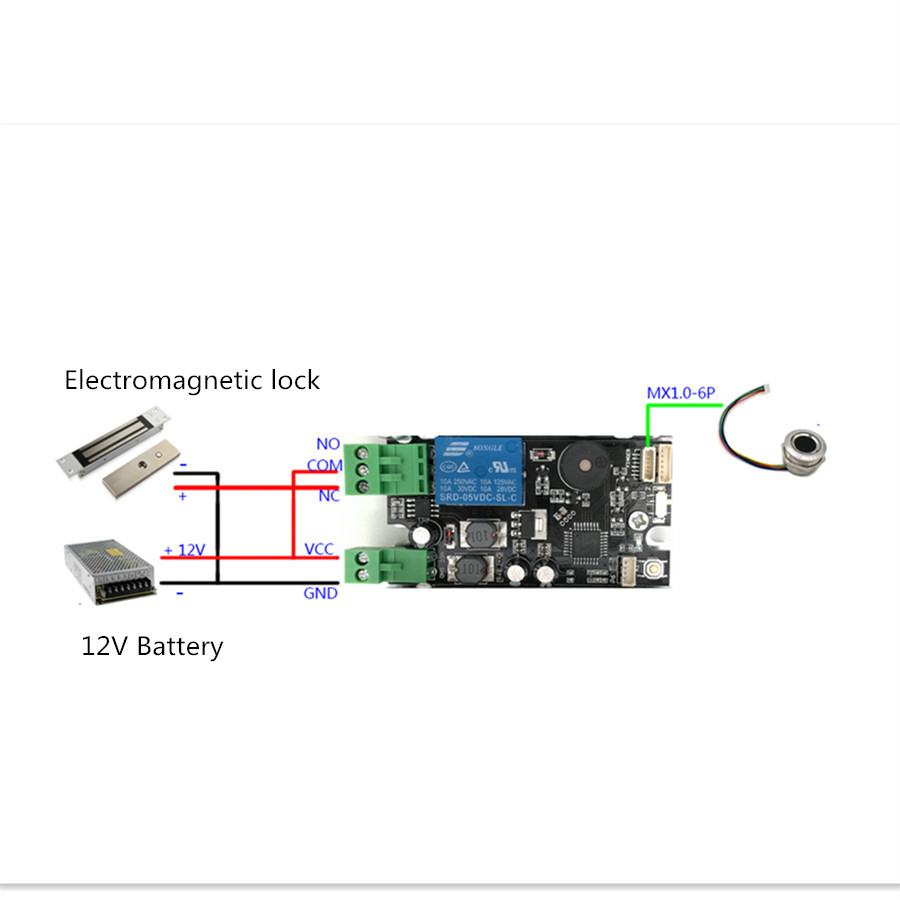

3. Function Set：When terminal 2, operating time of the relay is 1s after pass fingerprint. When terminal 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.

You can dowload K215-V1.2 user manual from the following website:

https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

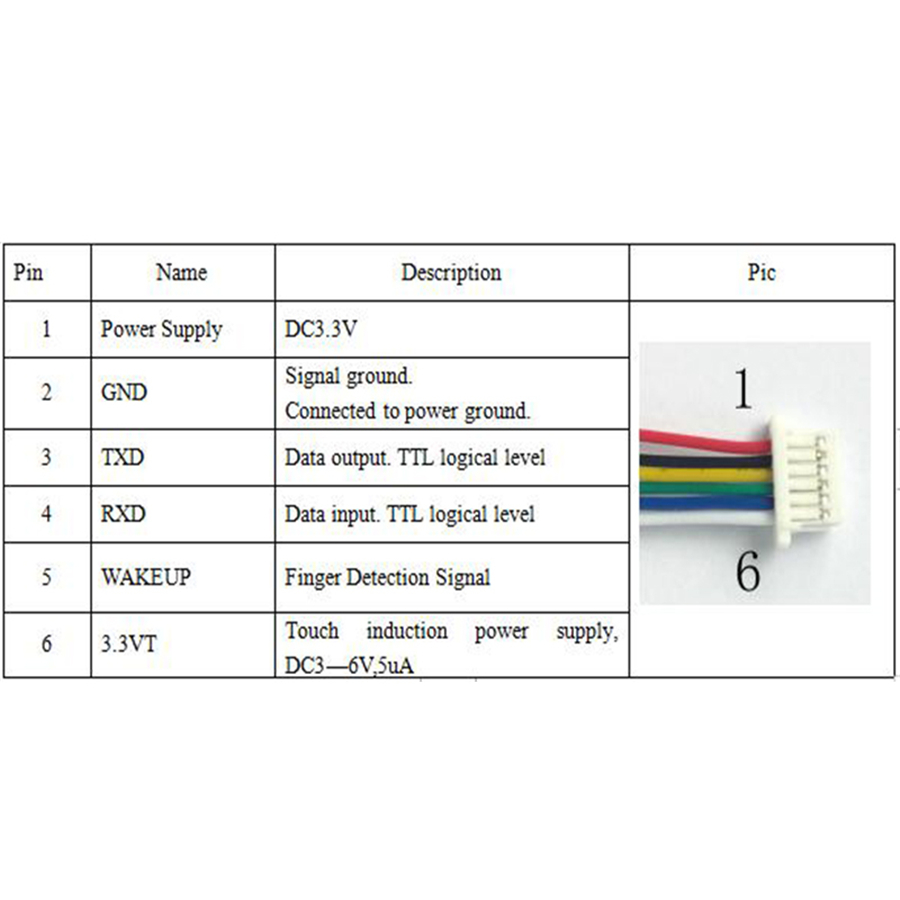

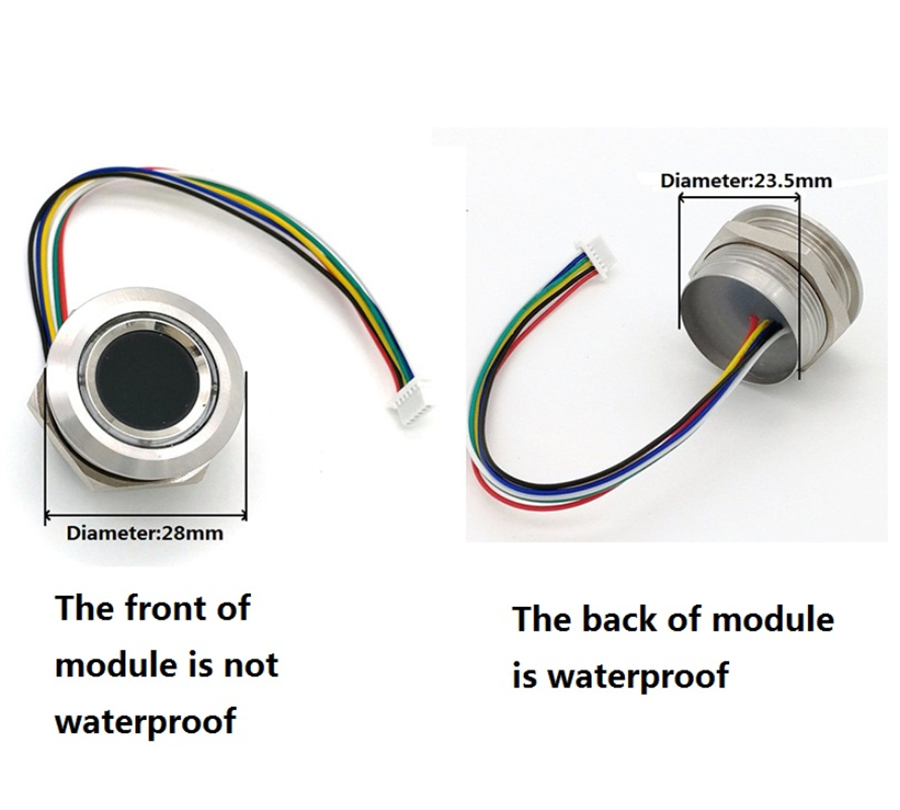

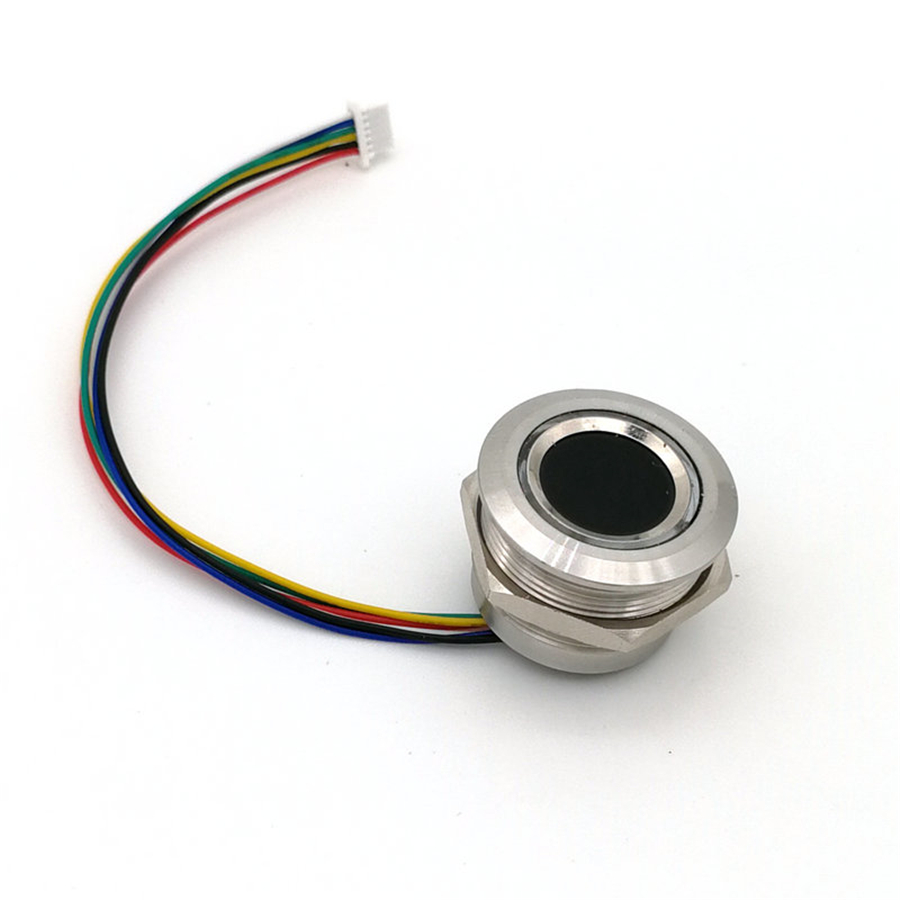

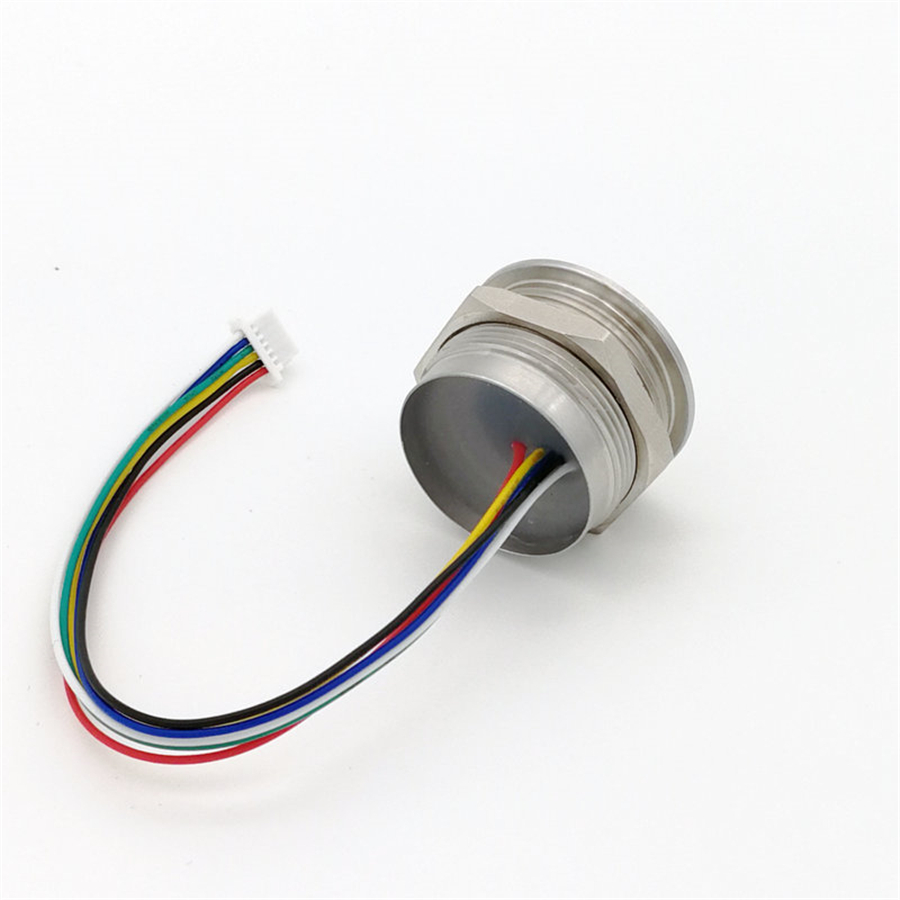

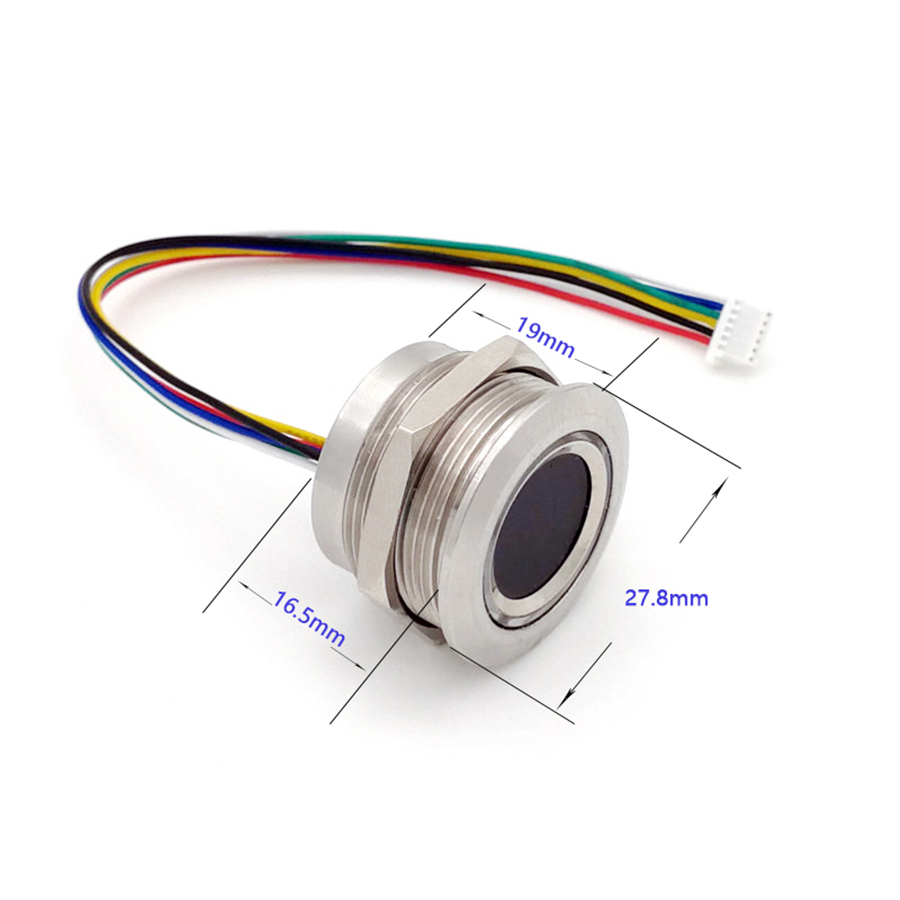

You can download the R503 user manual from this website link:

https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0

K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg

K215-V1.2+R503 relay mode operation video on Youtube:https://youtu.be/TjTcx-9hIT0

K215-V1.2+R503 register fingerprint video on Youtube: https://youtu.be/_kFsBPBsgU4

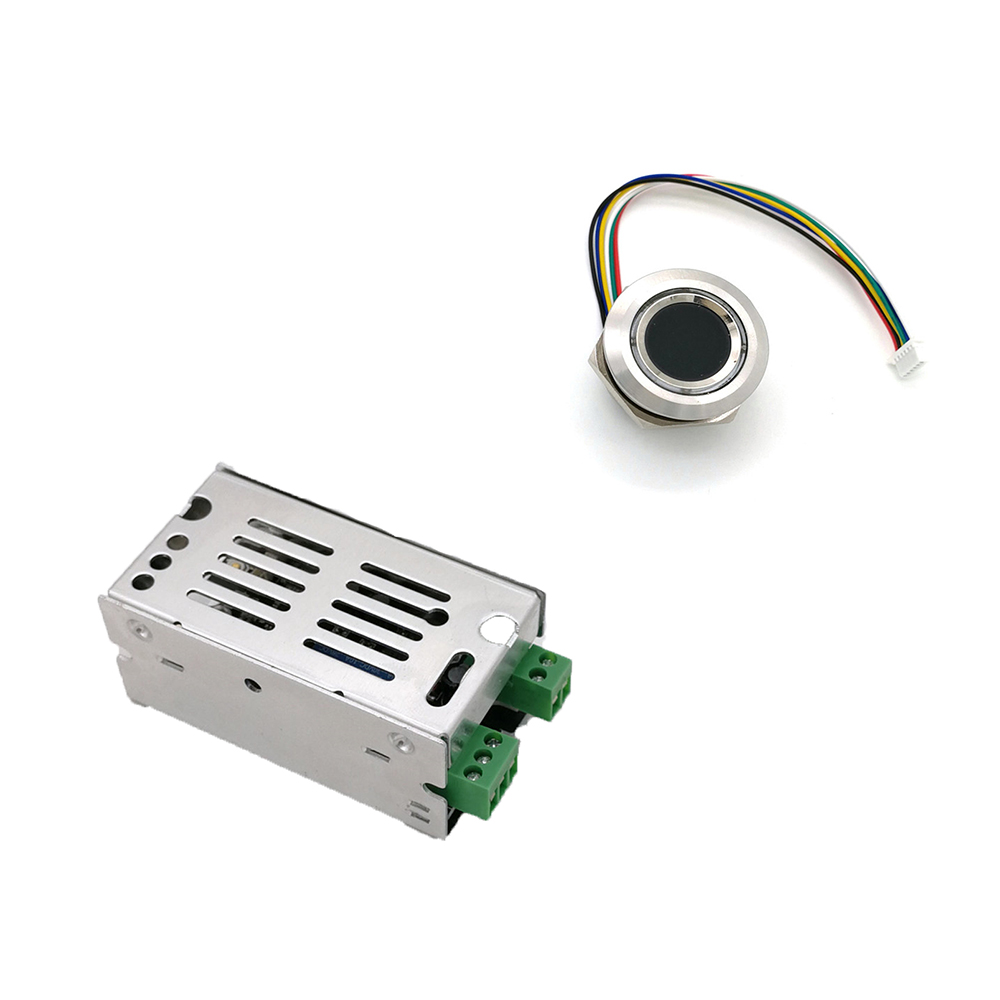

For shipping list, please see the following photo:

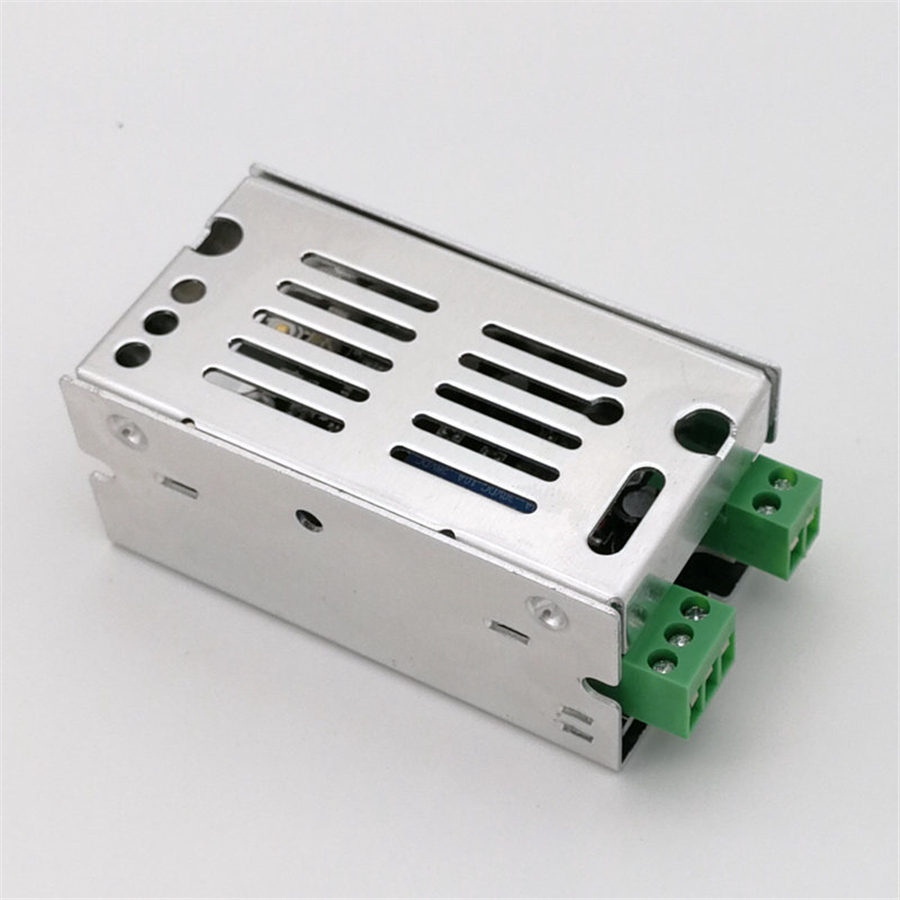

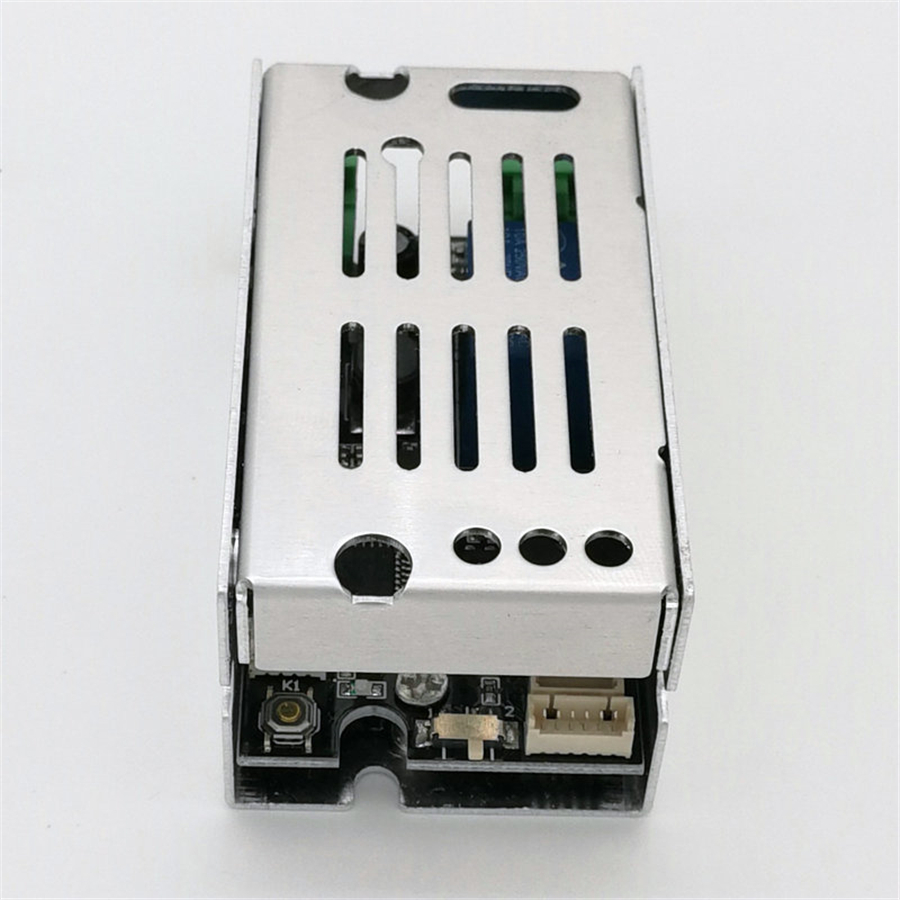

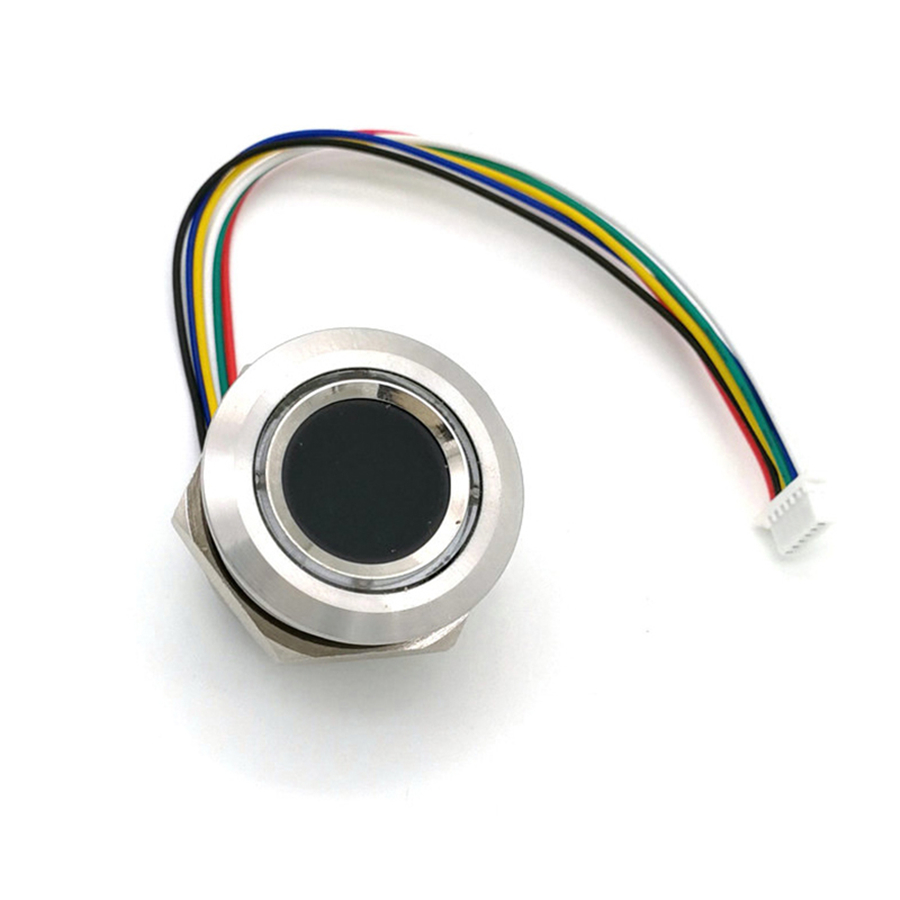

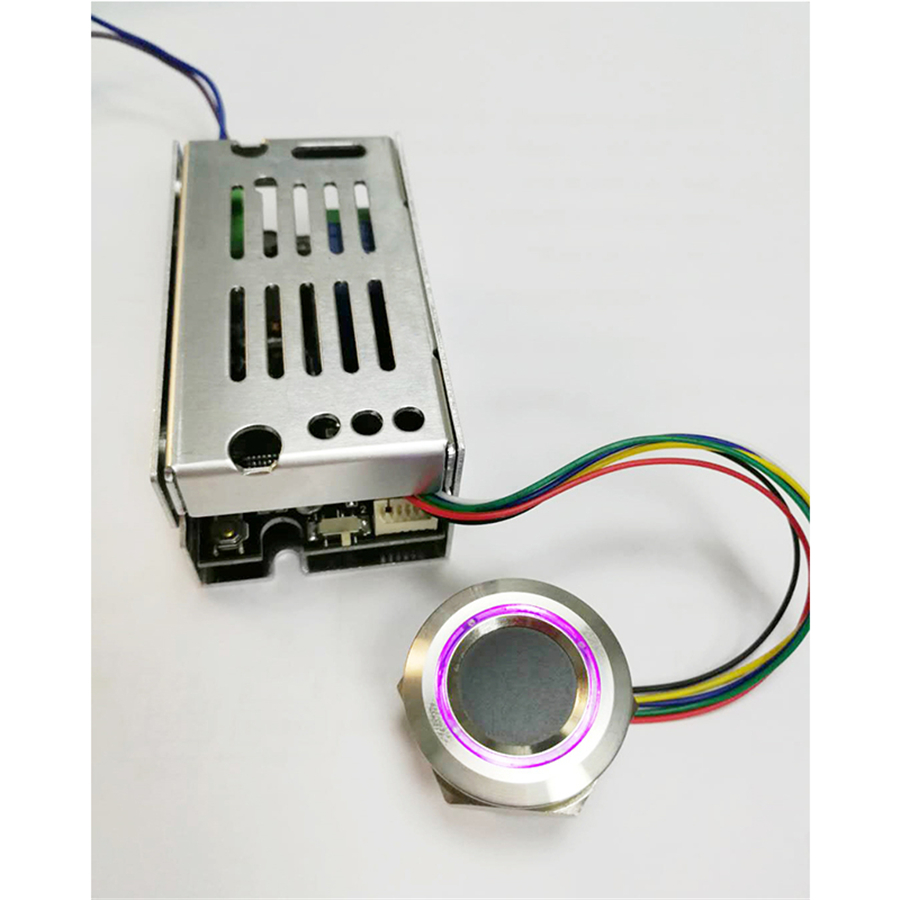

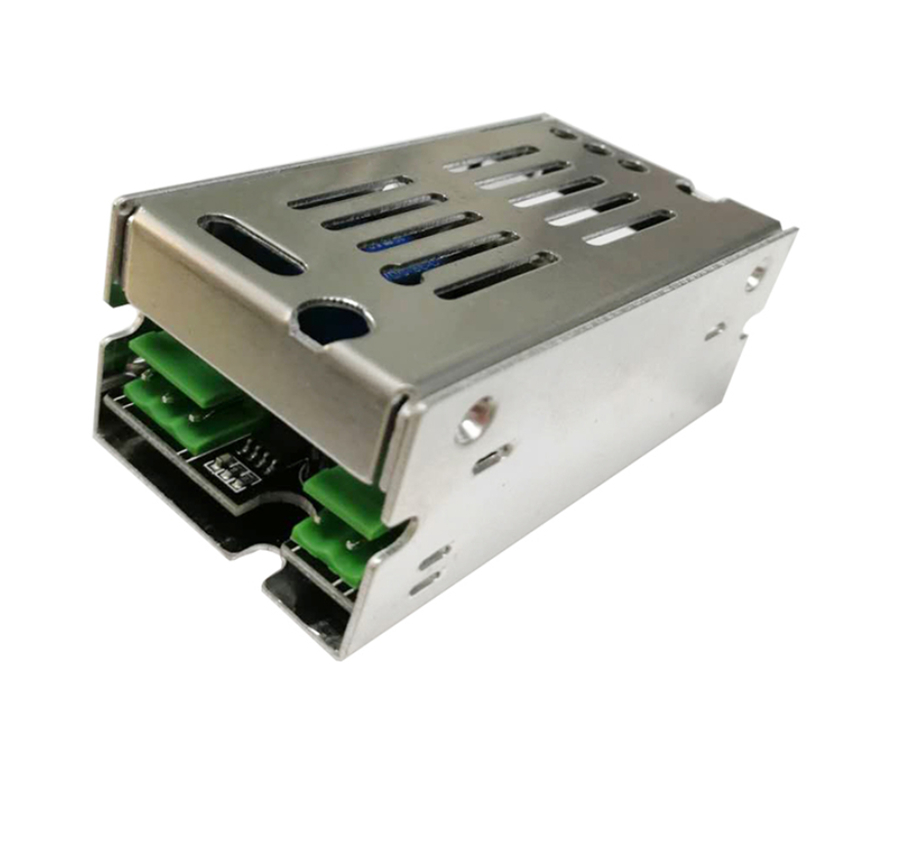

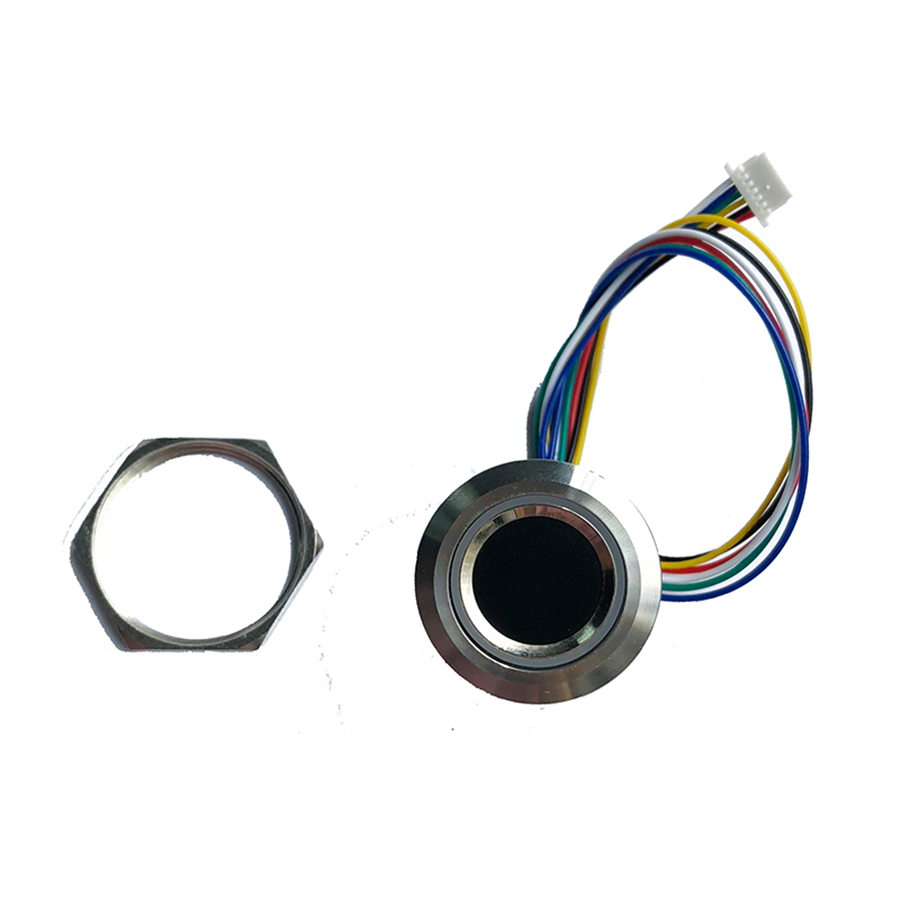

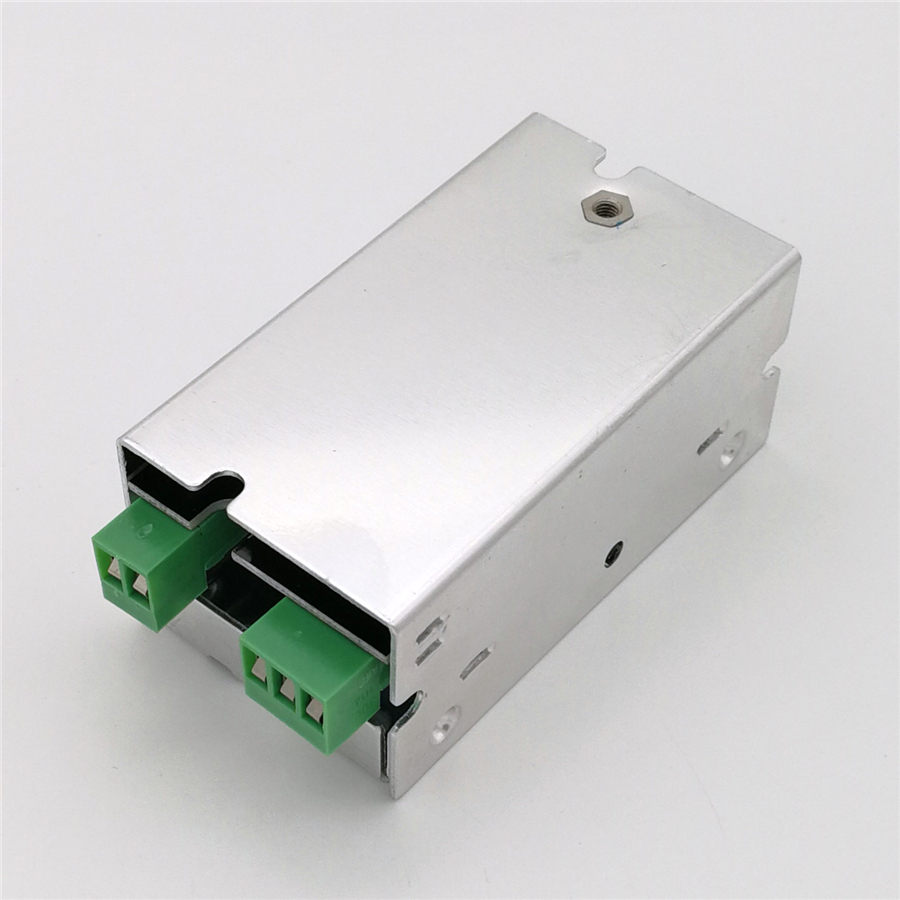

K215-V1.2 Fingerprint Control Board+R503 Fingerprint module+Nut
