LC filter is generally known as passive filter, which is a traditional DC power supply harmonic compensation device composed of inductor and capacitor, and can filter out harmonics in the power supply for single or multiple times to purify the DC power supply.
Common mode filtering can be used to suppress the problem of fast transient group pulse interference with a repetition frequency of several kilohertz at certain user sites.

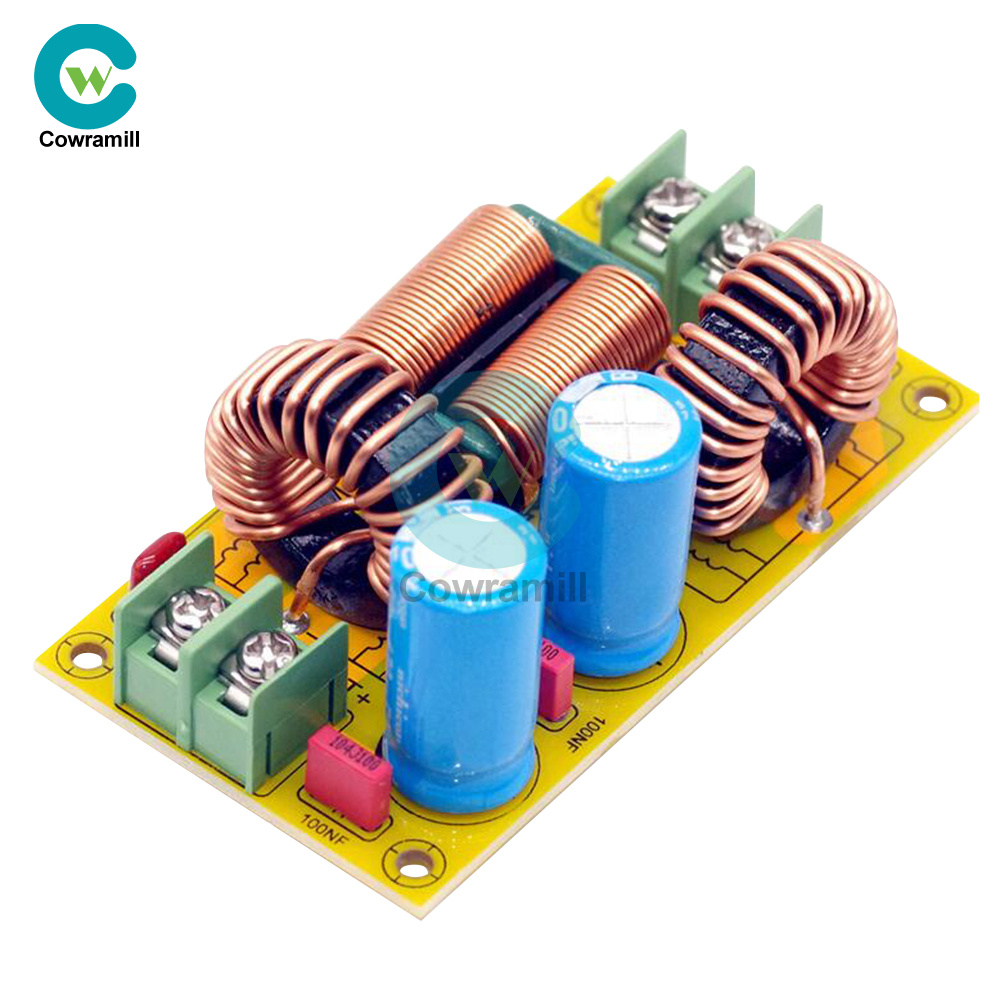

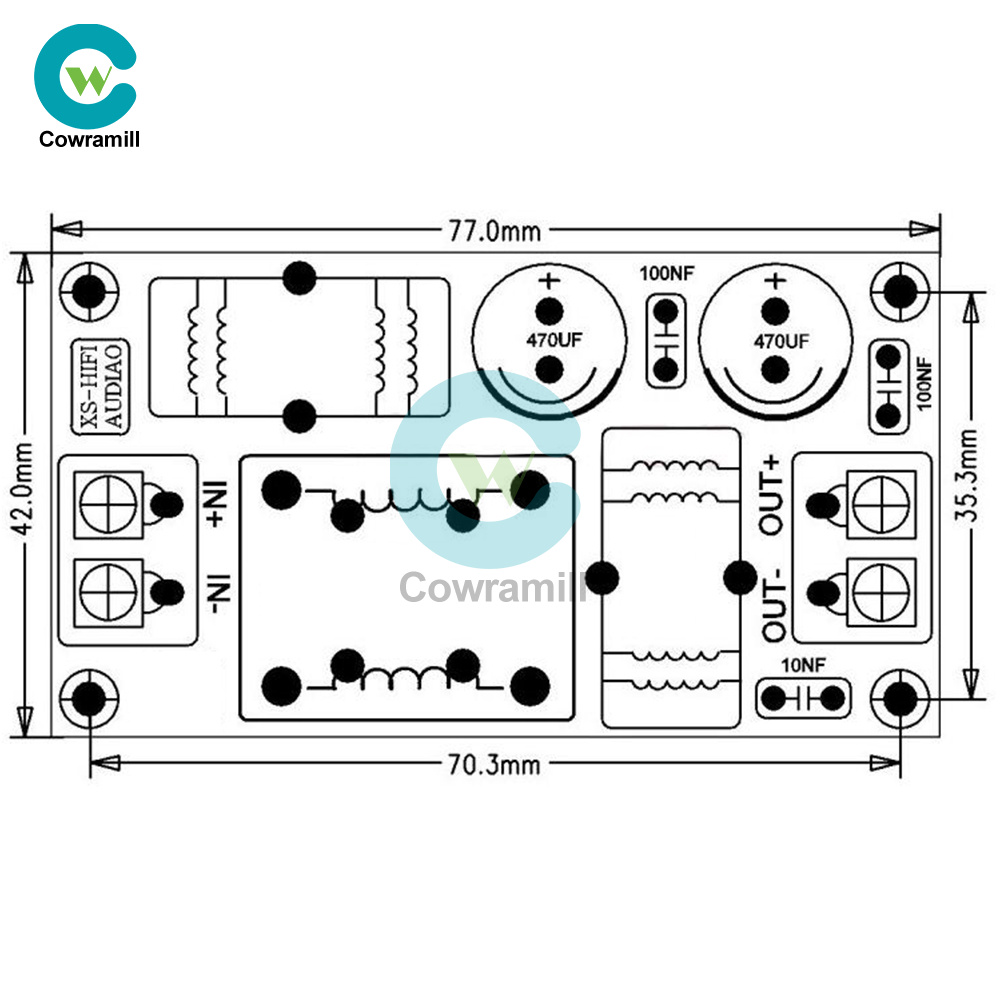

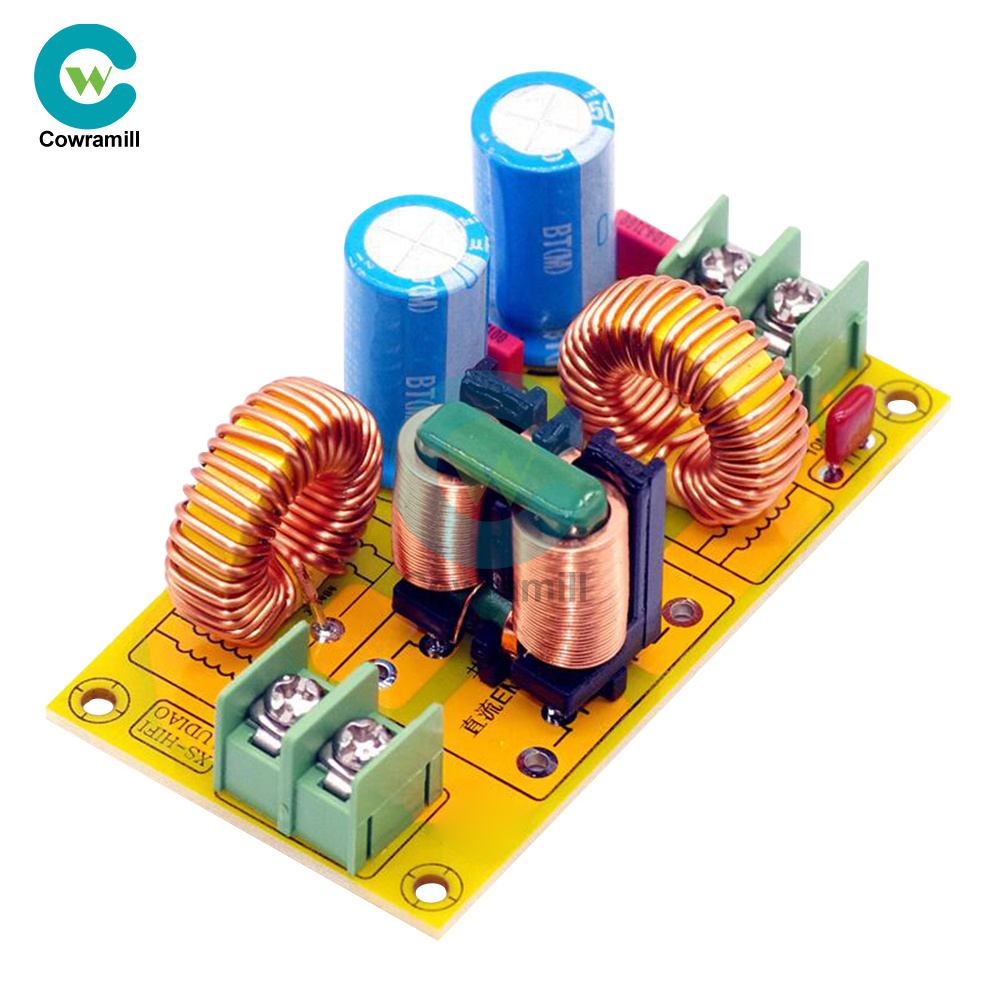

PCB specifications for FR4 42X77X1.6MM, high current line shortest design, short path, can withstand more current, less interference to the outside world.

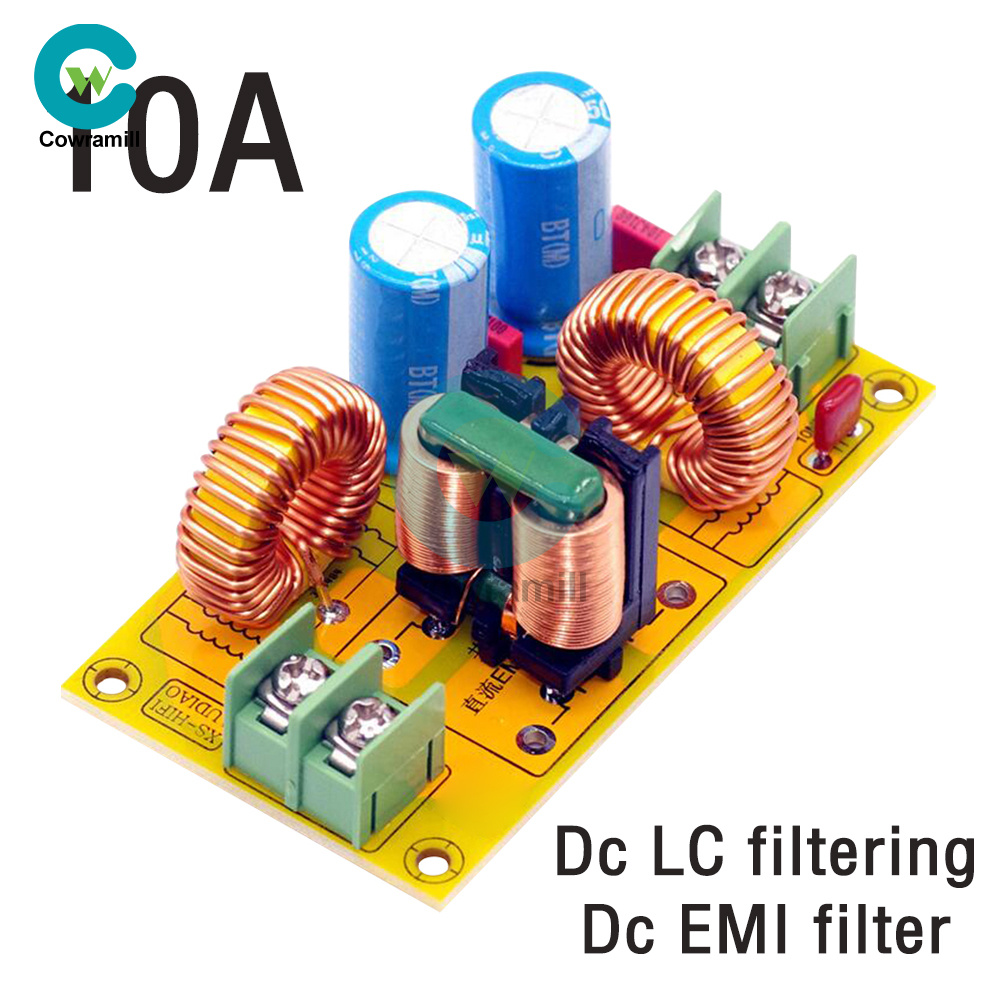

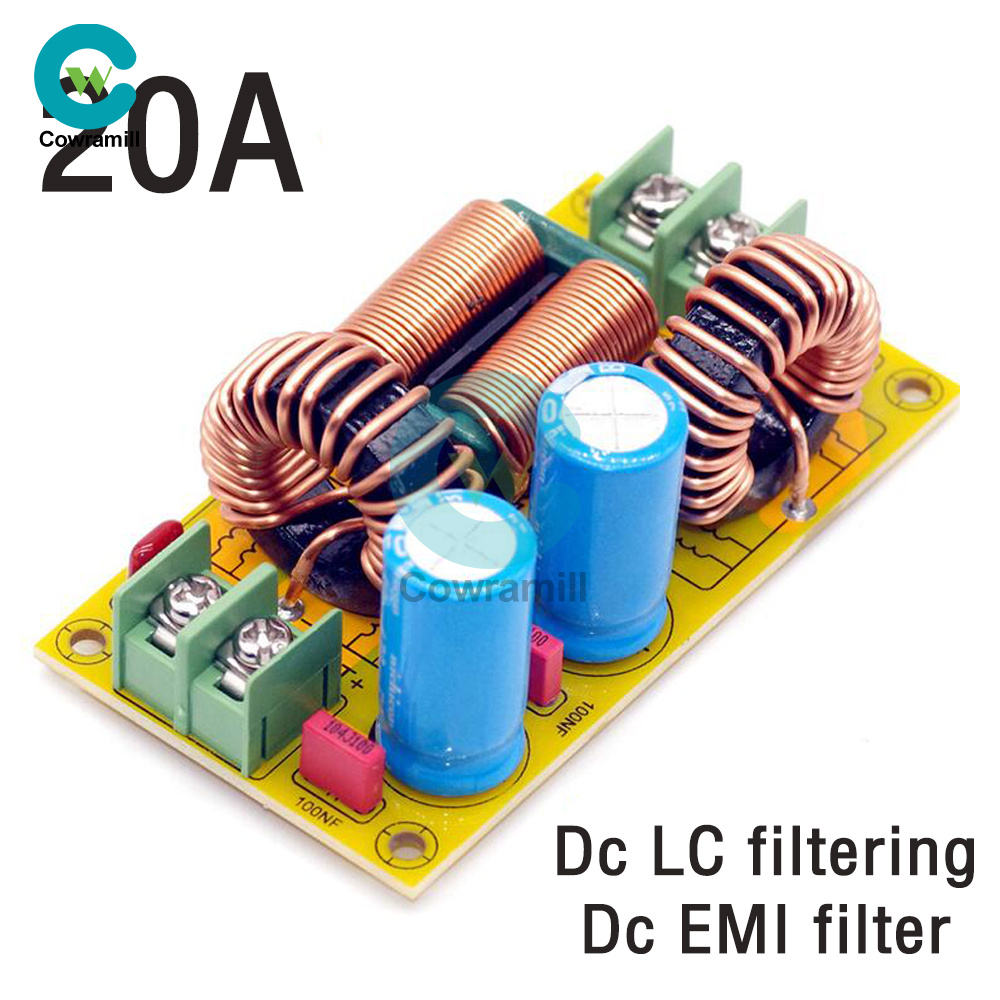

There are four specifications of 2A, 4A, 10A and 20A for the distribution inductance.
Input: DC not more than 50V (higher voltage can replace electrolytic capacitors to enhance)
Output: DC.
Current: 2A.4A.10A.20A on demand
Main parts specifications:
Line board : double-sided FR4 glass fiber board
Electrolytic capacitor: 50V 470UF 2 PCS
Film capacitor: 100NF 2PCS 470 PF 1PCS
Magnetic ring inductor: quantity 2PCS, (20A high current selection of iron-silicon aluminum)
Common mode inductor; quantity 1PCS, (20A high current selection of flat copper tape inductor)
Socket: 7.62 sockets 2PIN 3PIN 1PCS each
This module is suitable for the elimination of electromagnetic interference DC power use, can be applied in cars, motorcycles, electromagnetic interference is relatively strong DC circuit.
1x Filter Module
