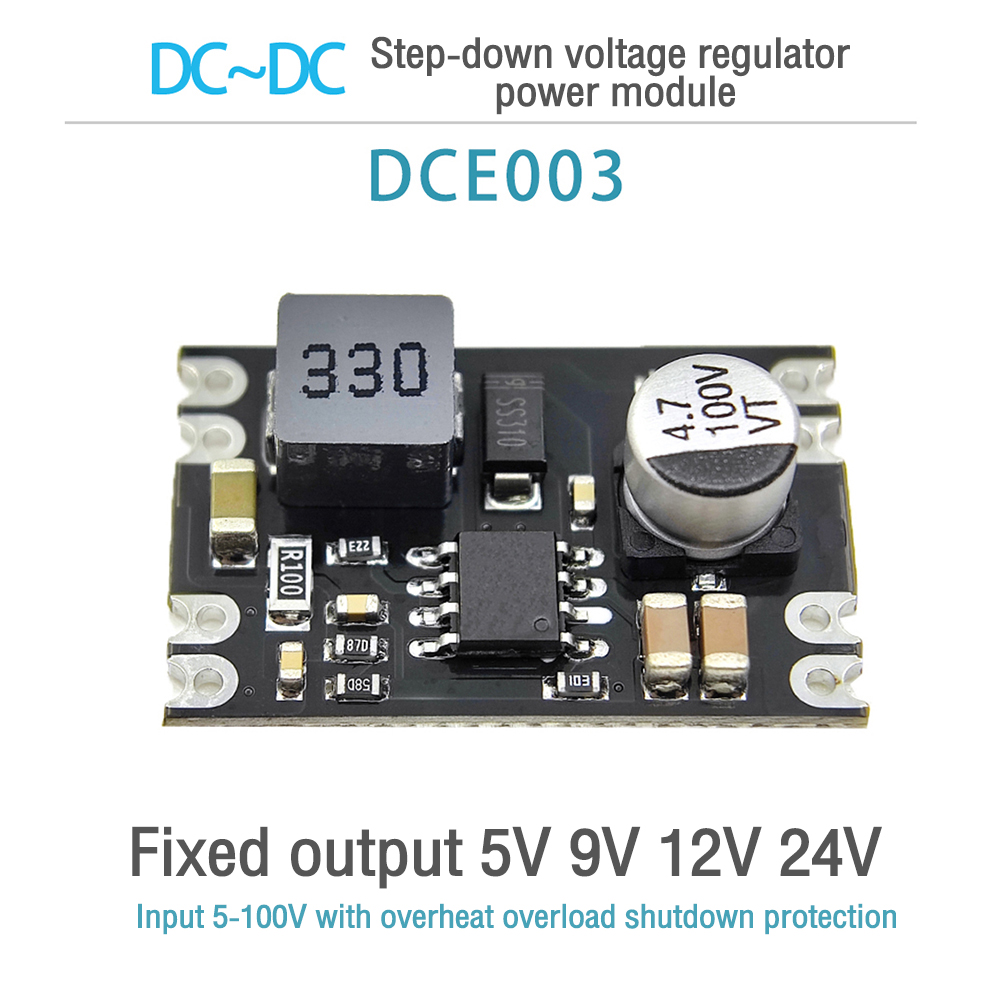

Fixed output 5V 9V 12V 24V,input 6-100V with overheat and overload shutdown protection

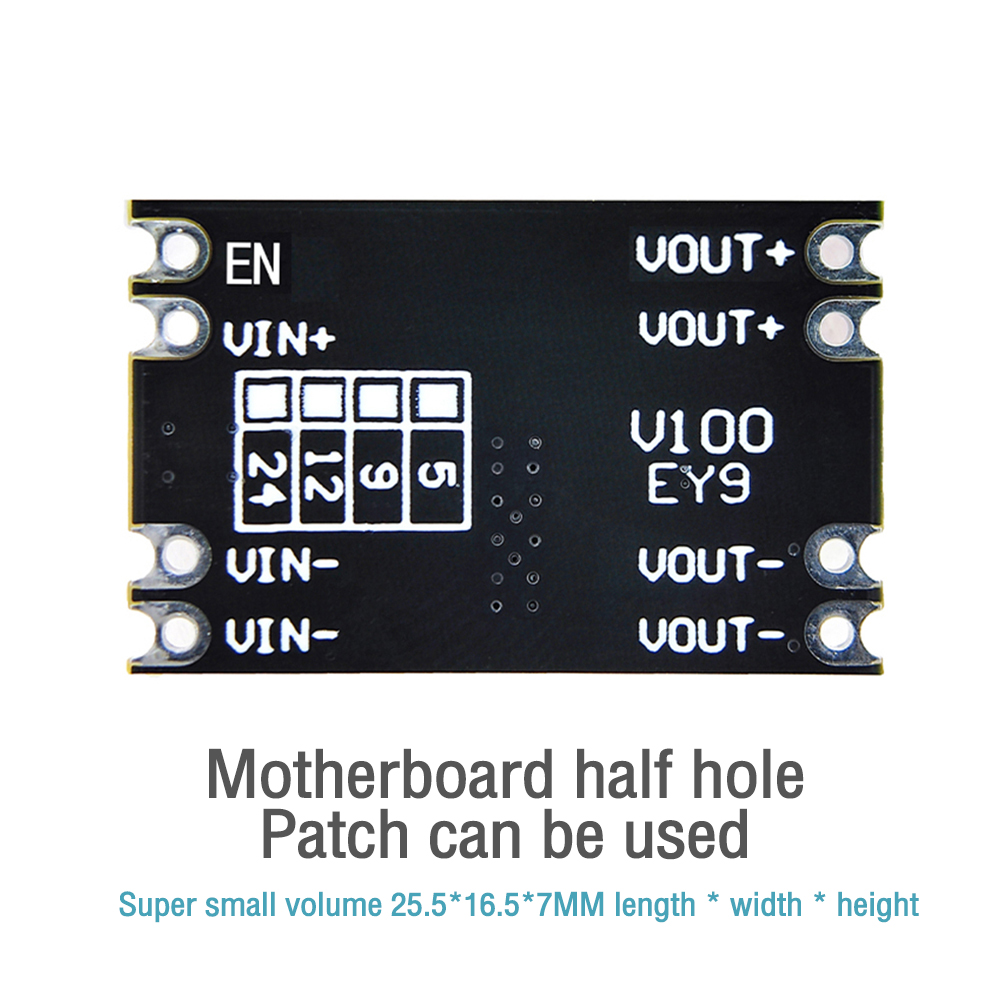

Main board half-hole, can be used in SMD, ultra-small size 25.5*16.5*7MM
DC-DC step-down module is a kind of device to convert high DC power into low voltage electrical energy, the input voltage must exceed the output voltage (with pressure difference), such as: 12V to 5V, 24V to 5V.
It adopts microelectronics technology and has high efficiency, small size.
It is easy to operate, easy to install, etc.

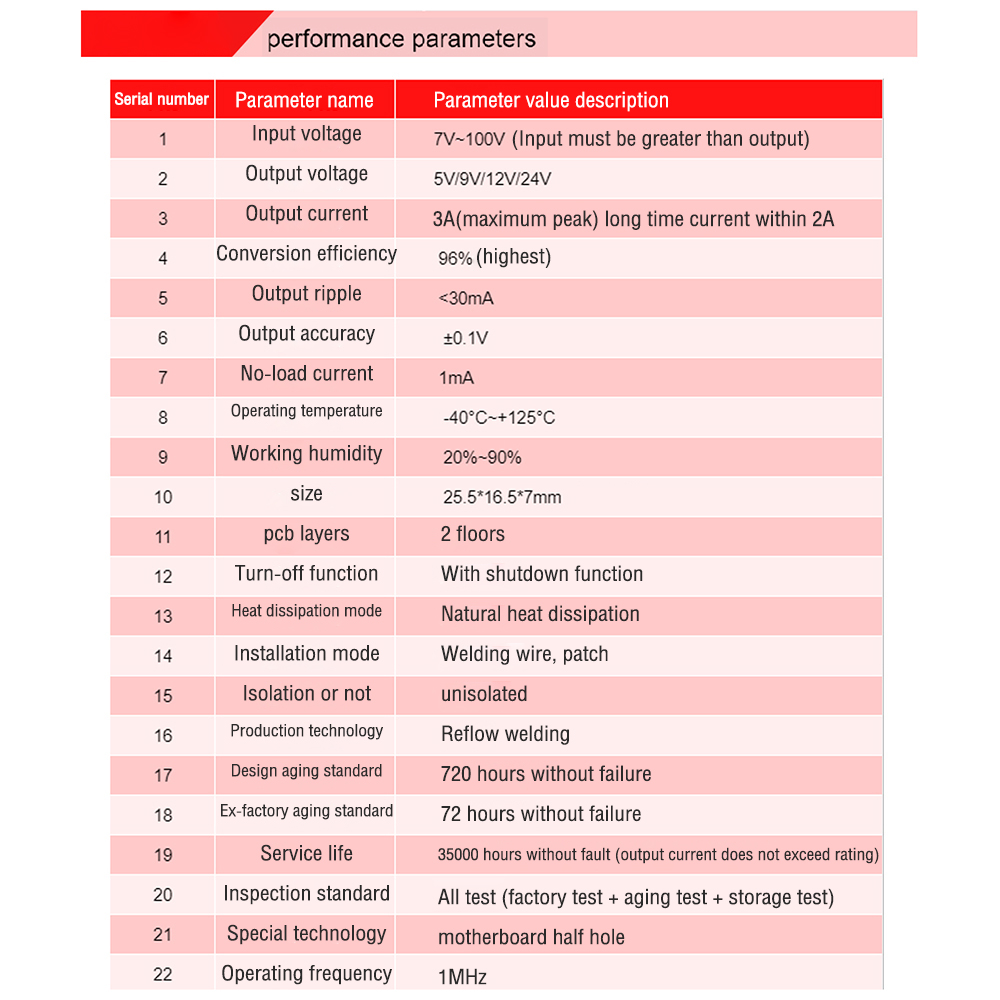

Input voltage: 6V~100V (input must be larger than output)
Output voltage: 5V/9V/12V/24V
Output current: 3A (maximum peak) long time current within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <30mA
Output accuracy: ±0.1V
No-load current: 1mA
Operating temperature: -40°℃~+125°℃
Working humidity: 20%~90%

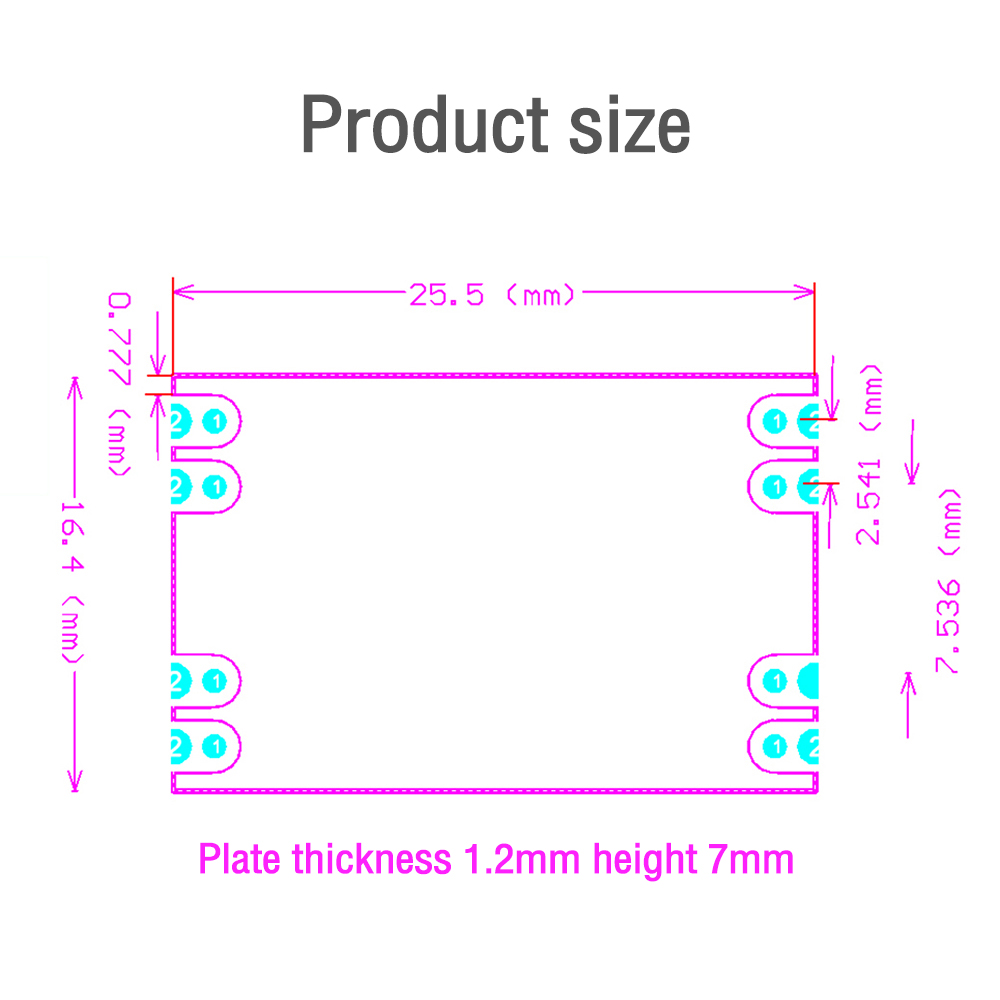

Size: 25.5*16.5*7mm(L*W*H)
Number of pcb layers: 2 layers

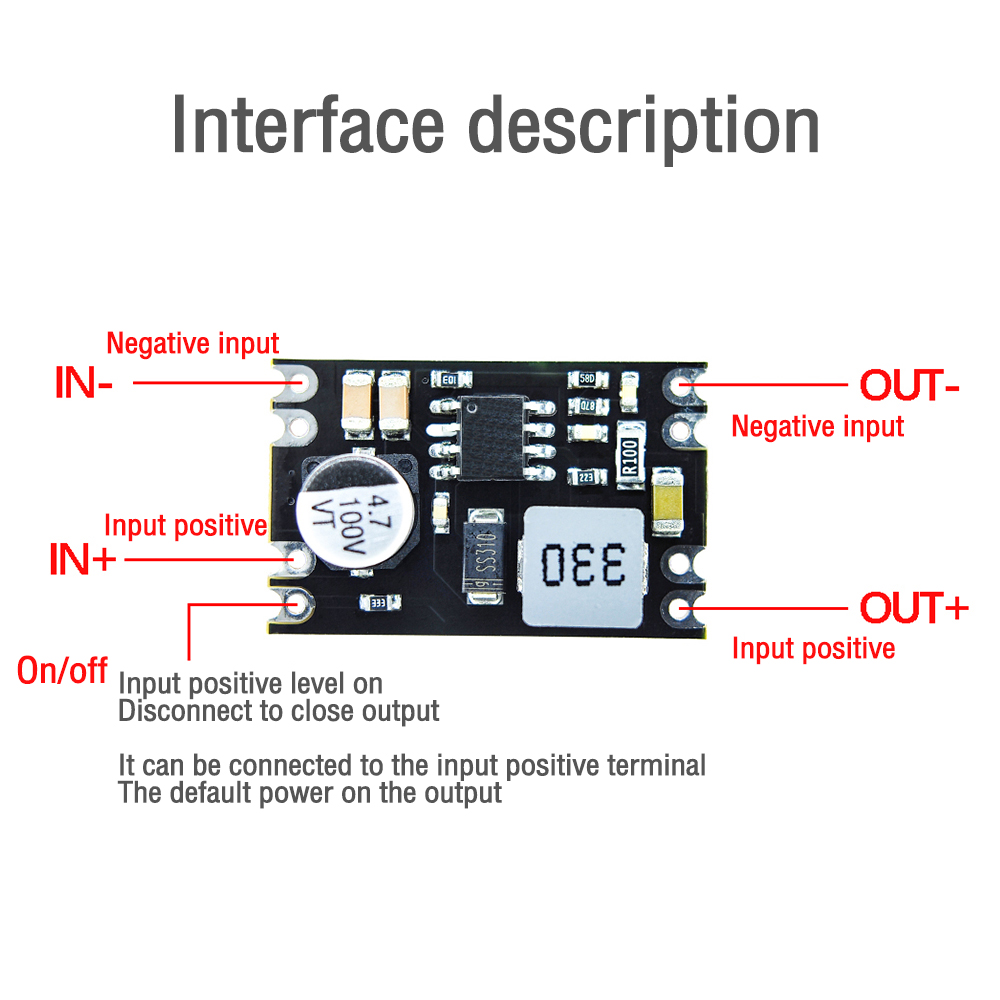

Shutdown function: with shutdown function
Heat dissipation mode: natural heat dissipation
Installation method: welded wire, SMD
Whether with isolation: without isolation
Production process: reflow soldering
Service life: 35000 hours without failure (output current does not exceed the rated value)
Special processes: half-hole motherboard
Operating frequency: 1MHz
1 x Module
