100-1000ml Mixing Liquid Soap Jam Sauce Filling Machine with Stiring Hopper

Product Description

GW-1 Support filling machine 100-1000ml

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Feature

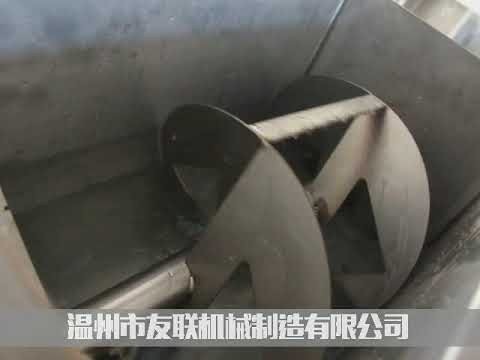

1.This machine is semi-automatic piston type filling machine, use of horizontal spiral mixer, fully mix the sauce evenly, make the filling more accurate.

2.The machine design is more reasonable with compact model, save the place.

3.Easy to operate, pneumatic parts adopt Taiwan AirTac pneumatic components.

4.Filling valve controlled by electromagnetic valve, with higher filling accuracy.

5.Filling volume an filling speed can be adjusted.

6.Use special steering valve, make stronger material filling.

7.Material touching parts using 304 stainless steel, if needed, we can also customized 316 stainless steel for you.

8.The machine can be customized as fully pneumatic , no powder and explosion-proof.

9.Filling nozzle can be seal in the bottom to prevent dripping, also it can lift to filling and the diameter can be replaced.

10.The hopper can be customized as double full sealed heat preservation.

Specifications

The structure of this filling machine is more simple and more reasonable, high precision, the operating is simple and convenient. It can be used to personal care products,food and other special industries, it is the most ideal filling equipment for the paste or viscous fluid.

Filling Range :5-100ml/20-300ml/50-500ml/100-1000ml/300-2000ml/500-3000ml/1000-5000ml

Parameter

Filling Volume Range

100 – 1000 mL (3.4 – 34 oz)

Filling Head

Single Head

Filling Speed

10 – 30 Bottles/min

Filling Accuracy

±1%

Hopper

40L (10.57 gal)

Filling Nozzle Diameter

25mm (63/64")

Power

0.26KW (0.35HP)

Power Supply

AC 110 ± 5V, 60Hz

Air Requirement

58 – 87 psi (0.4 - 0.6 MPa)

Inline Air Hose

25mm (63/64")

Application Temperature

Max. 104℉ (40℃)

Additional Information

Machine Size

46.06" × 14.96" × 14.17"

(1170 × 380 × 360mm)

Packing Size

Part1:

46.06" × 14.96" × 14.17"

(1170 × 380 × 360mm)

Part2:

35." × 14.56" × 17.71"

(900× 370× 450mm)

Machine Weight

127.86lb (58kg)

Packing Weight

132.27lb (60kg)

If your material have foam please contact us,we would advise another type machine for you(The Filling nozzle lifting when filling  )
