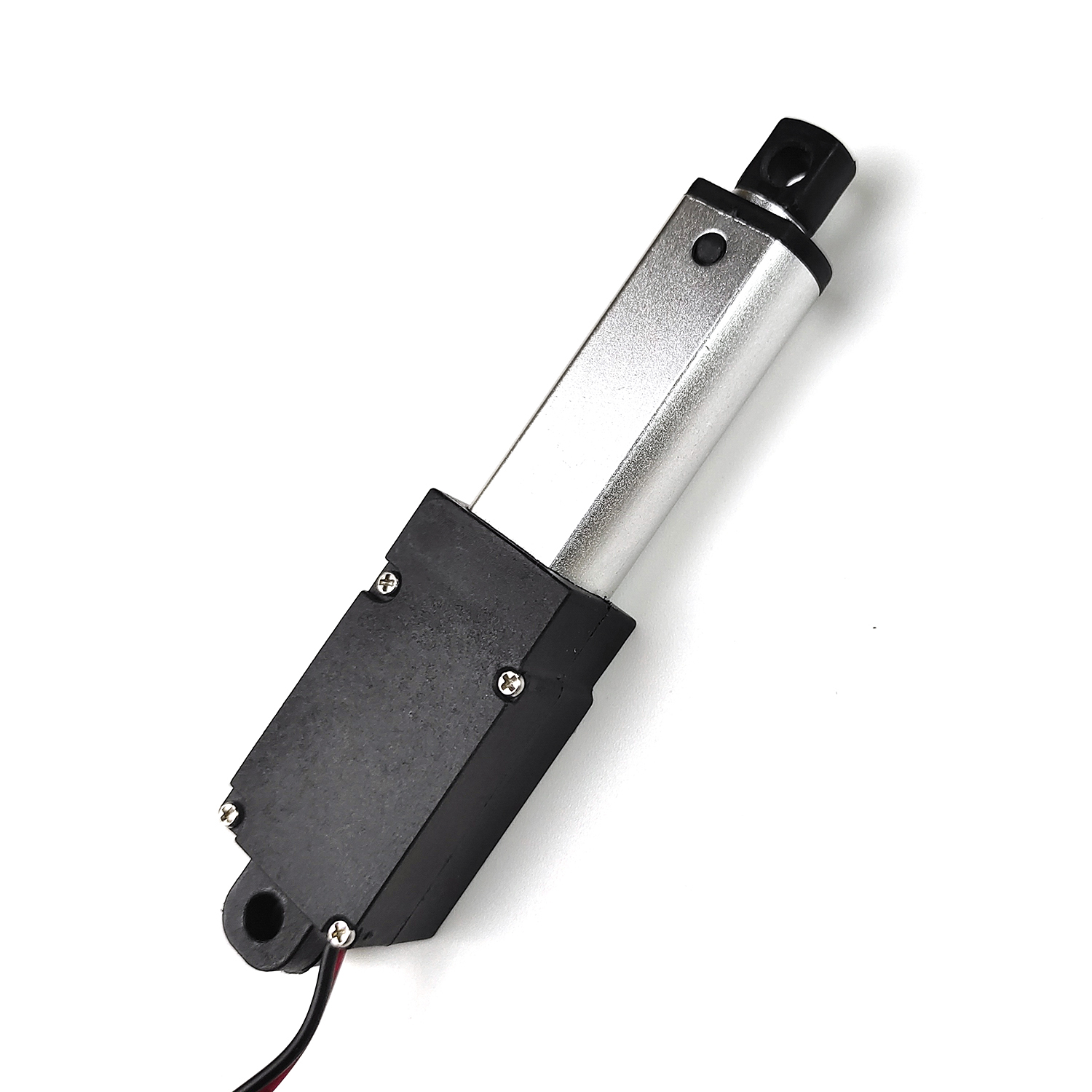

Mini Electric Linear Actuator Stroke 1"–6''Force 13.5 lbs–12V High-Speed 0.6"/s
Parameters
Stroke: 1-6" (25mm-150mm)
Force: 30N/6.75lb 60N/13.5lb
Speed: 15mm/s 8mm/s
Input Voltage: 12V DC
Duty Cycle: 10%
Noise: db<65
Protection class: IP65
Operational Temperature: +5ºC ~ +40ºC
Limit switches: Built-in; Non-adjustable
Housing Material: ABS and Aluminum
Inner Tube: Stainless Steel
Gear Box: All Metal
The actuators emit a low noise volume so it won't distract from the overall effect of your design. Rated IP65 so you can install it in a wide variety of environments without worry about damage from water or dust. Built-in limit switches with stall protection makes it easy to install and set up instantly.
Small electric linear actuators are convenient for creating customized automation in homes, offices, vehicles, yachts, RV's, aircraft, robotics, VR experience simulators, RC/radio control vehicles, multi-copter drones, as well as artistic installations, medical applications and more.
Whatever your design needs are, the micro linear actuator is streamlined for the perfect fit.

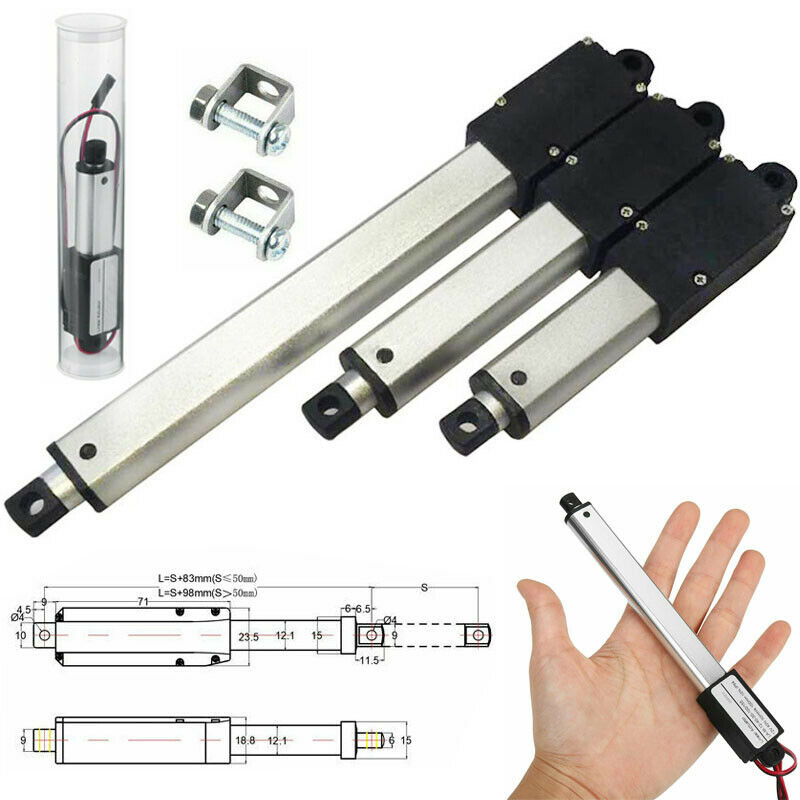

Dimension
| Stroke Length |
Shortest installation distance |
Longest installation distance |
|
| 25mm |
108mm |
133mm |
|
| 50mm |
133mm |
183mm |
|
| 75mm |
173mm |
248mm |
|
| 100mm |
198mm |
298mm |
|
| 150mm |
248mm |
398mm |
|
Package list
1*linear actuator
2*Brackets
