Complete Coilovers Suspension Kit for Toyota Celica 1.6 2.0 GTi VVTi T18 T20

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Application

For Toyota Celica GT GTS FWD 1989.10- 1993.11 (ST18#)

For Toyota Celica FWD 1993.11-1999.08 (ST20#)

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

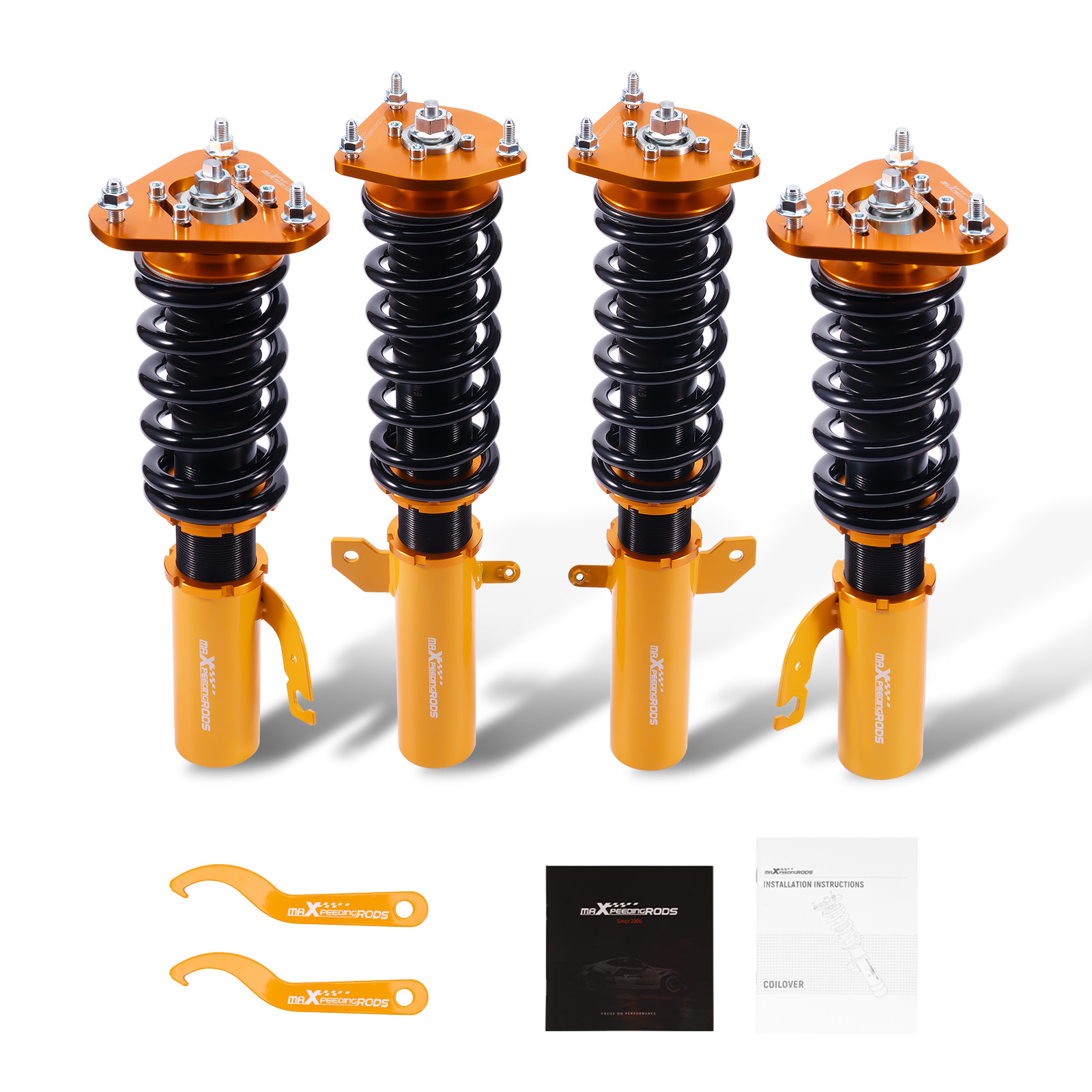

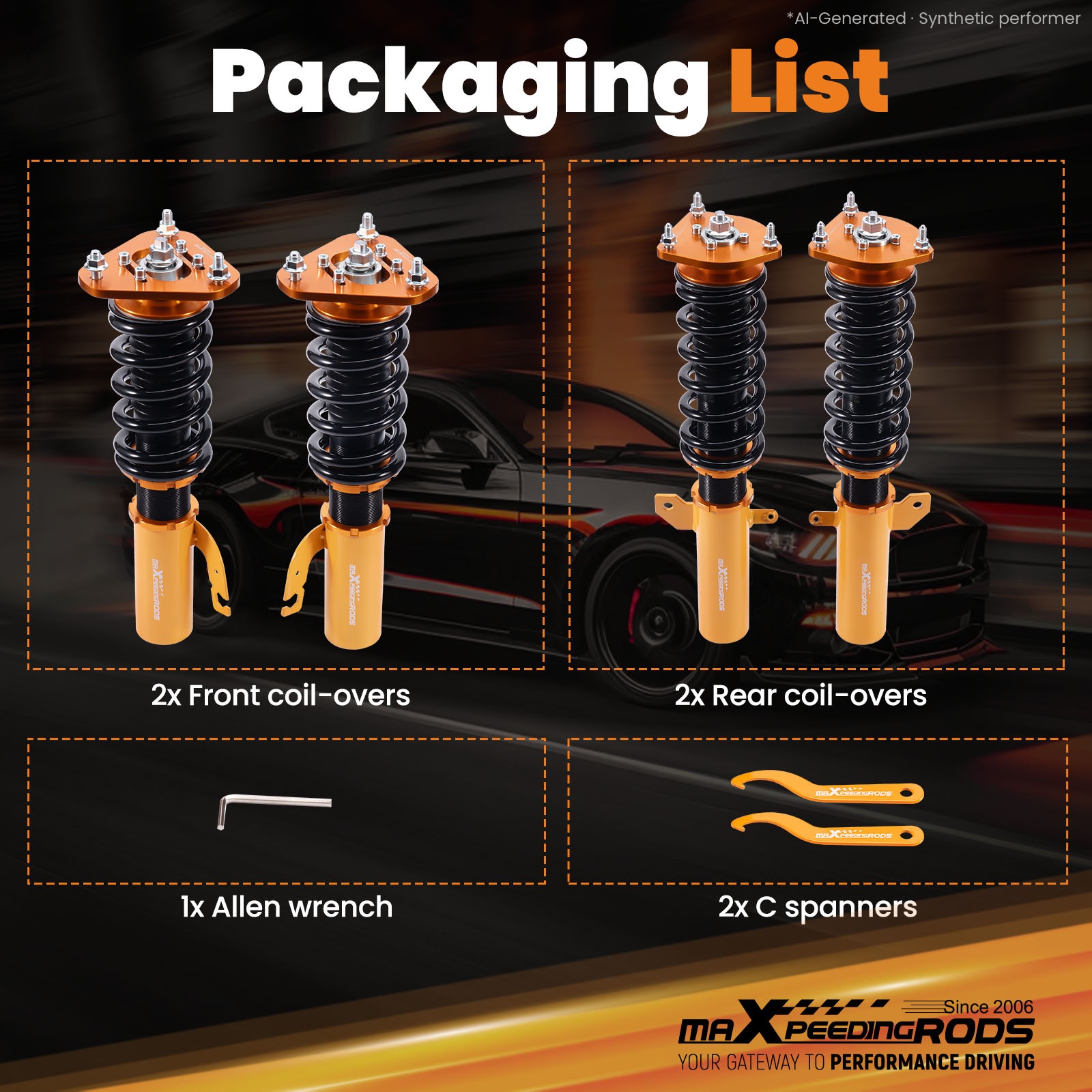

Package included

2x front coil-overs
2x rear coil-overs
2x C spanners

Specifications

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping : Not adjustable
Front top mounts: pillow ball bearing camber plate
Rear top mounts: pillow ball
Spring rate Front: 10 kg/mm (556 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 180 mm
Spring length Rear: 230 mm
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring Preload advised: 7-10 mm
Shock type: Twin tube

Feature

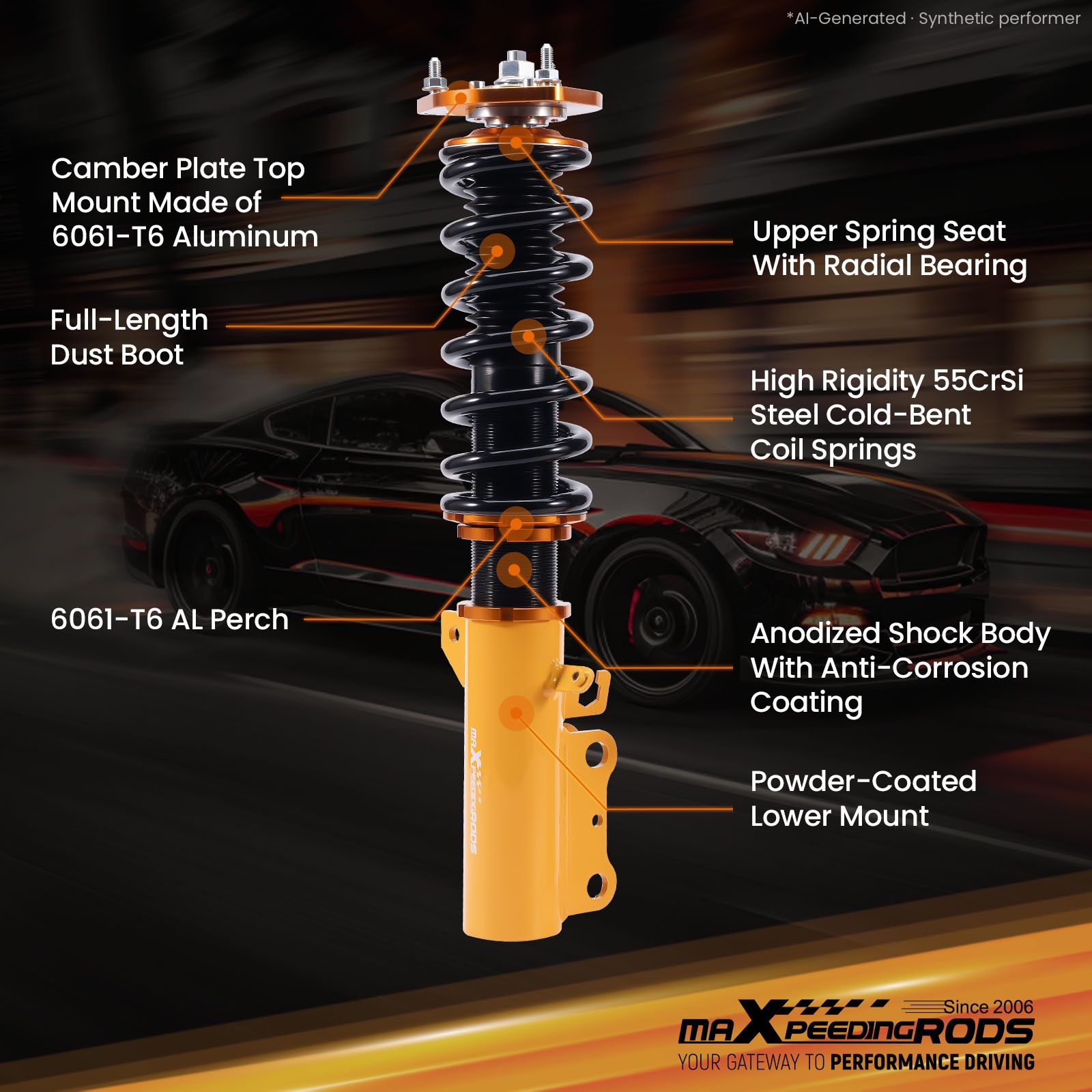

maXpeedingrods B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

►Height adjustment via bottom mount to retain full damper travel

►Pillowball upper mount

►Camber adjustable top mounts

►Aluminium top plates

►Dust boot to protect damper seals

►High Rigidity Spring

►Anodized Shock Body with special surface treatment to improve the durability.
