24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra
24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra 24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra 24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra 24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra 24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra
24 Ways Adjustable Damper Coilovers For Honda Civic EK4 CRX Delsol EG1 Integra

  • Most

    Competitive Price

  • Manufacturer

    We know our products

  • Easy Return

    Quick, Simple

  • Guaranteed Fitment

    Always the correct part

Description



Application


For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)



For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
(ED8\ED9\EE6\EE8\EF6\EF7\EF8)



For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)



For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only



For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)



For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only

For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only

Note: For some vehiles, you will need sleeves and washers that already included in our package.

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.






Specification

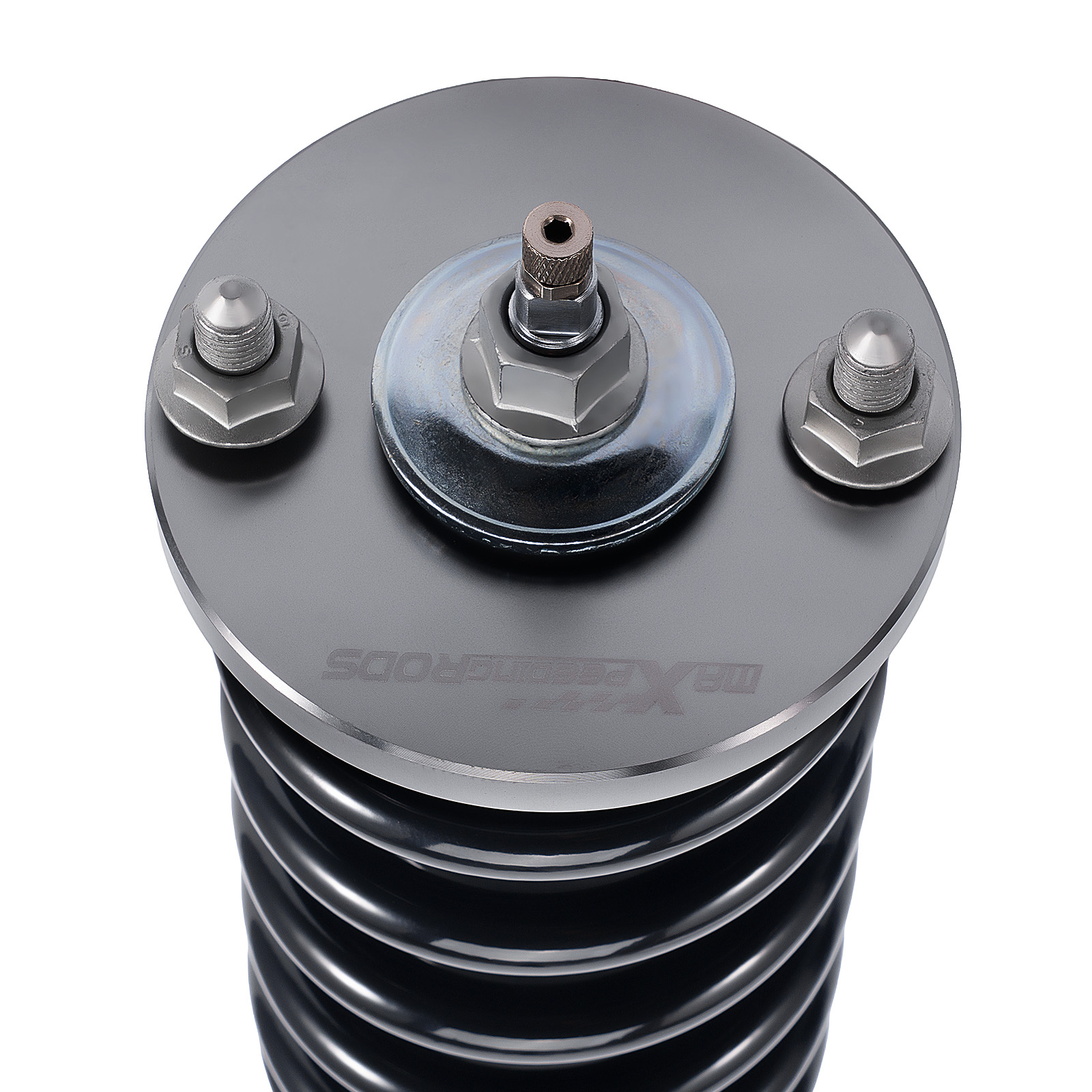

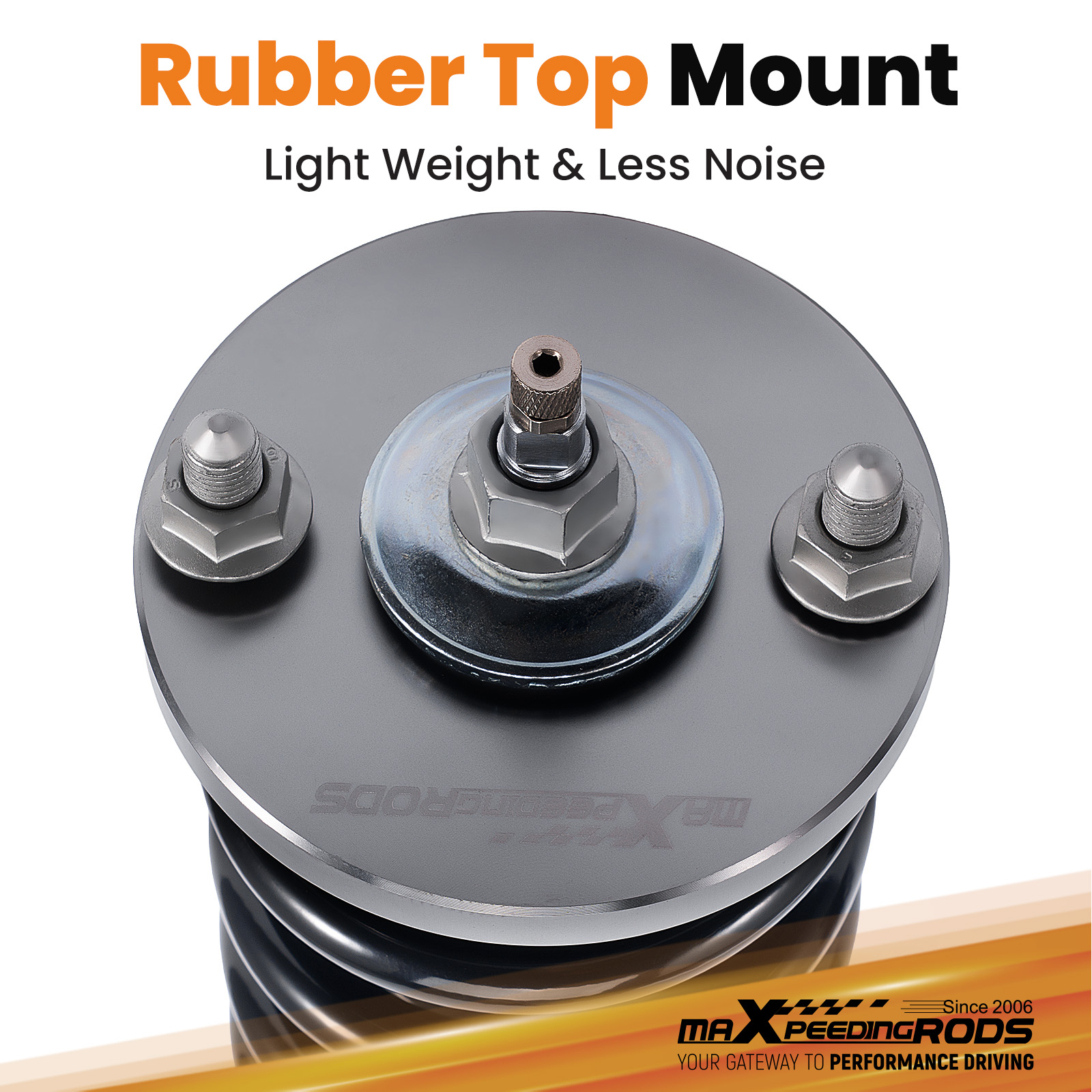

Front and Rear top mount: Standard rubber
Damping adjustable: Available, 24 levels of rebound damping force
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Camber adjustable: Not available
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 180 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Grey body with black spring

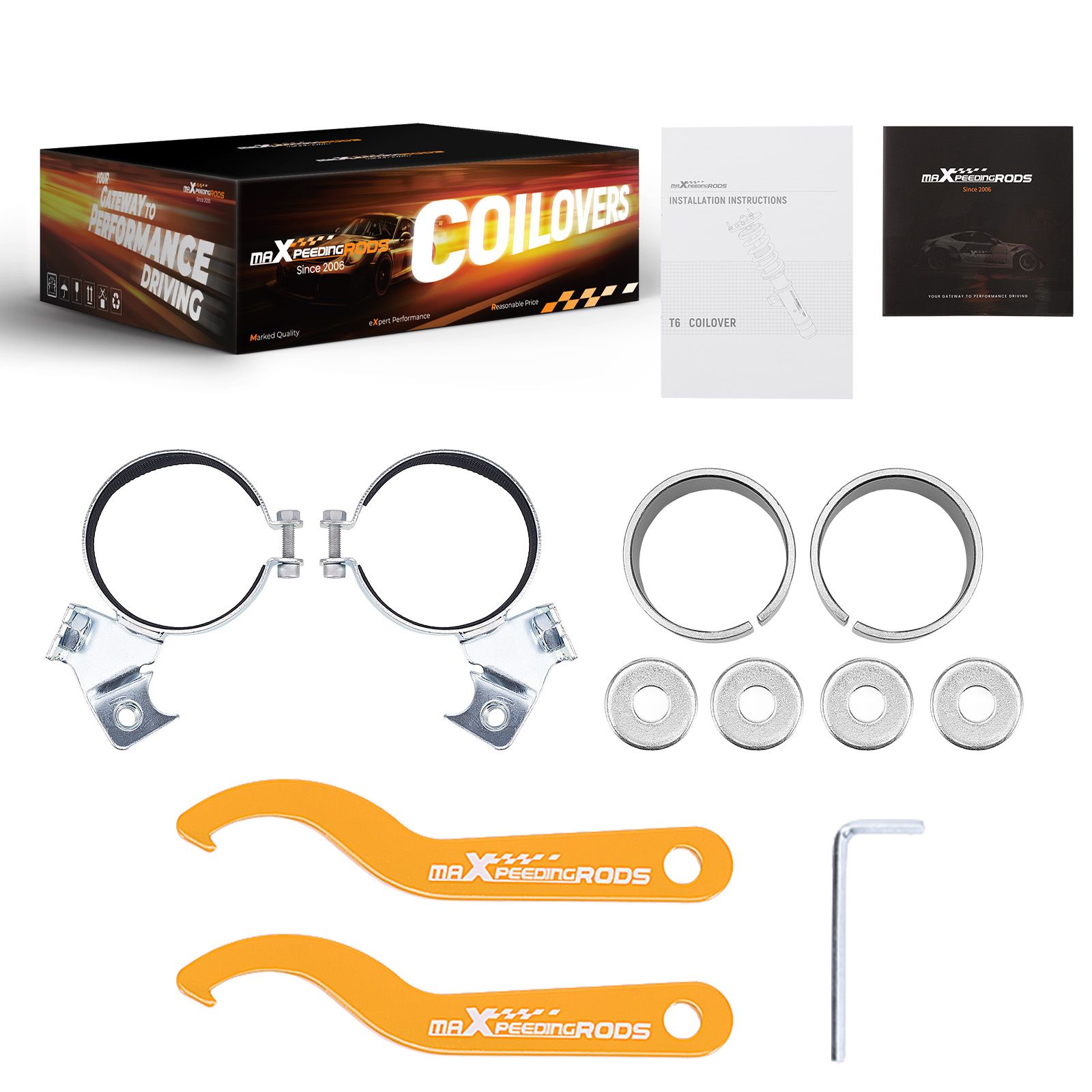

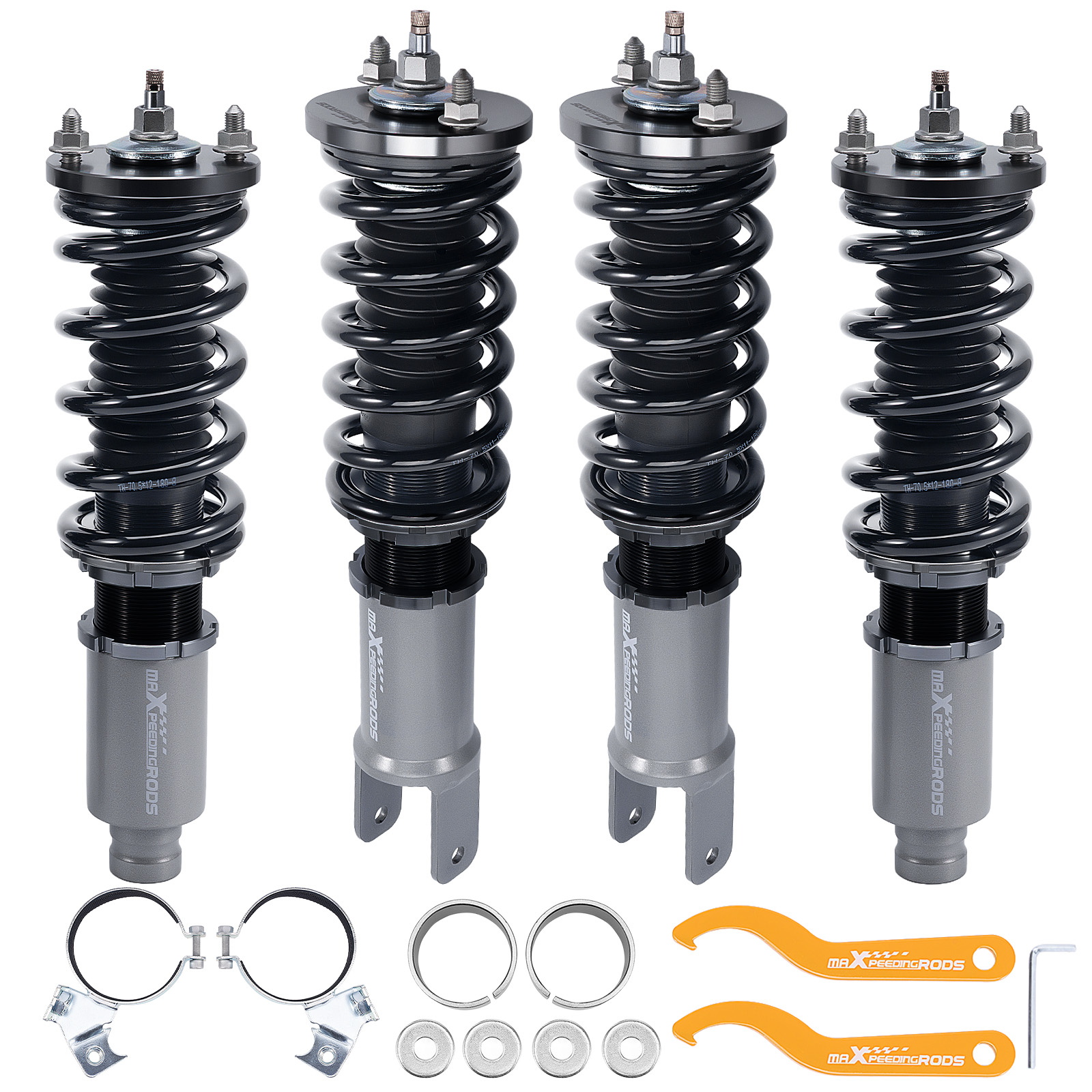

Package included

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners





Feature

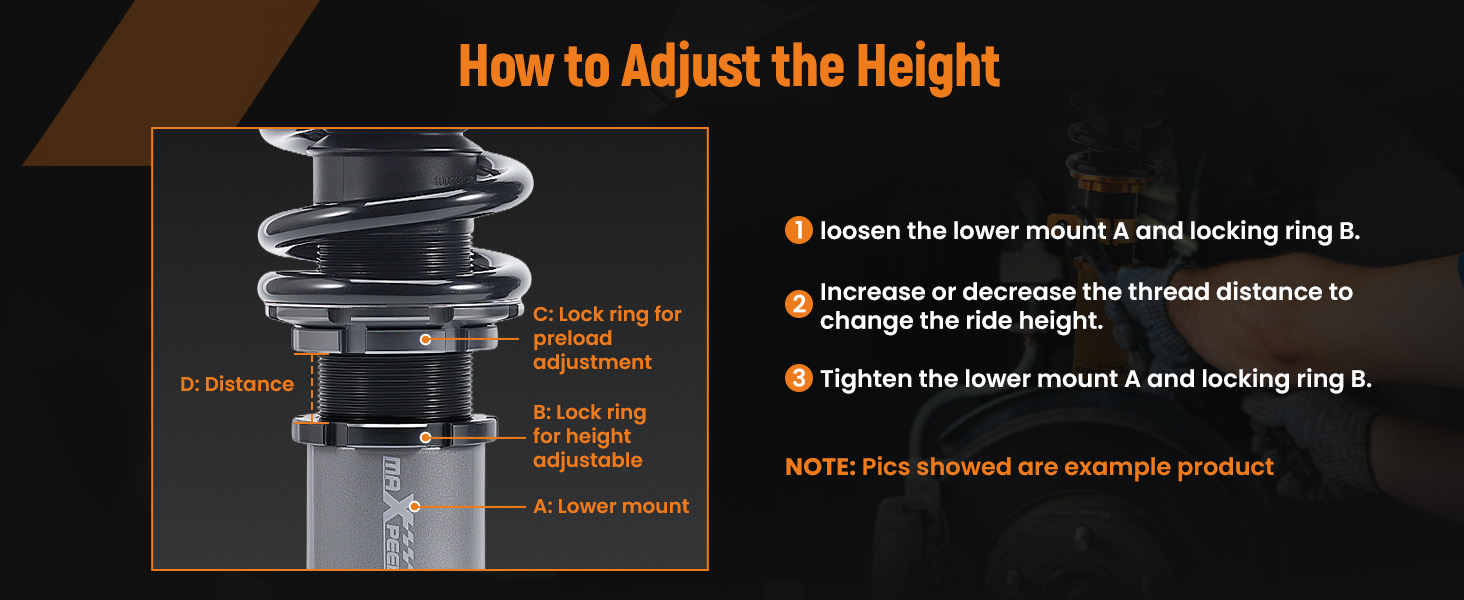

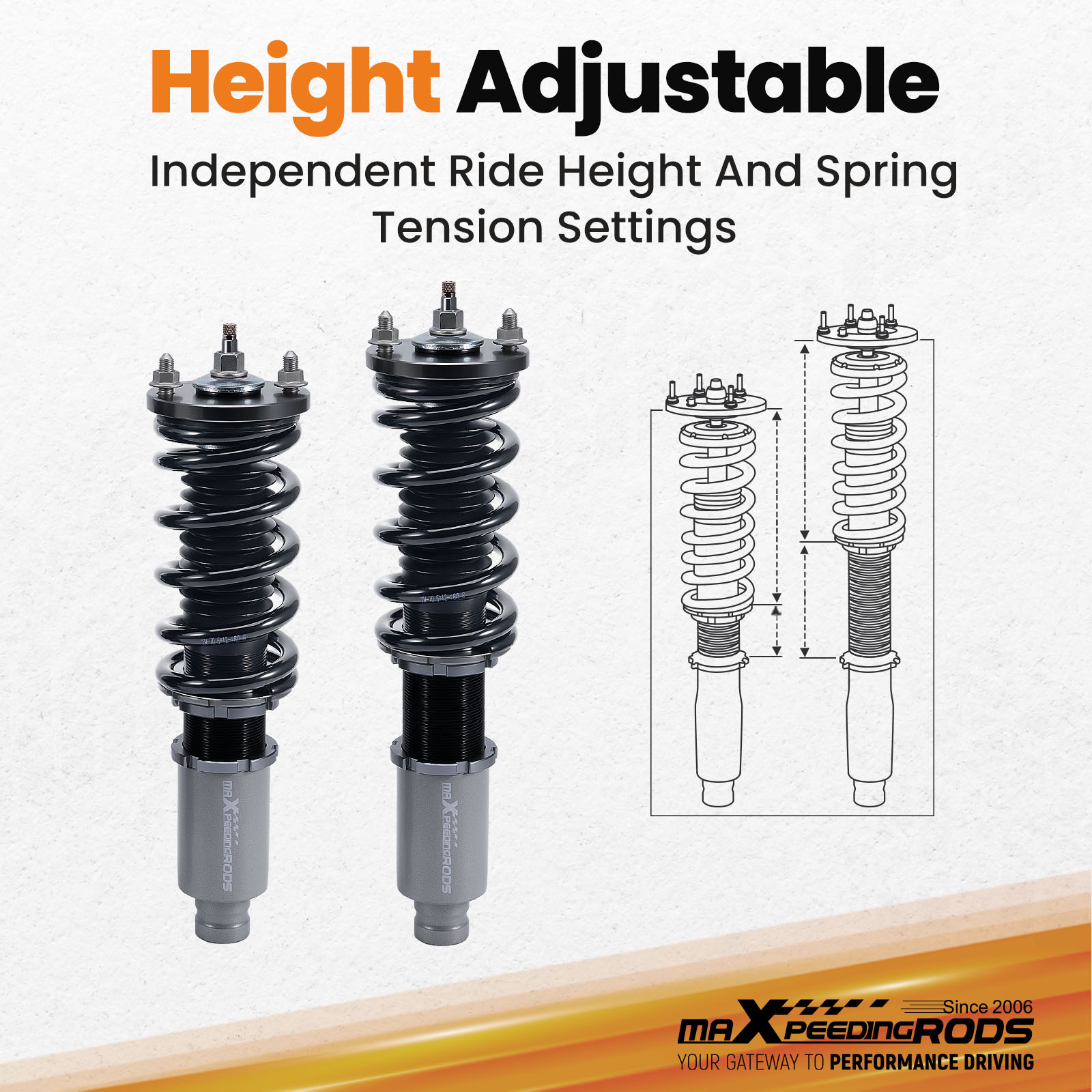

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

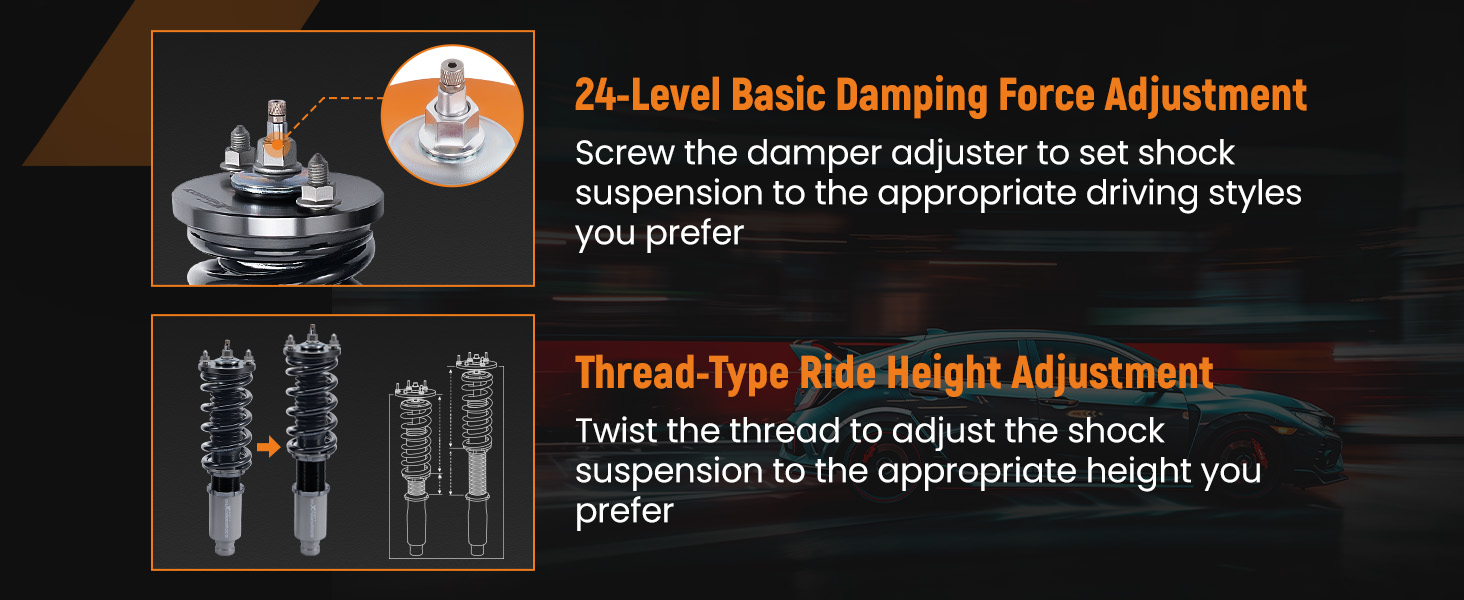

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

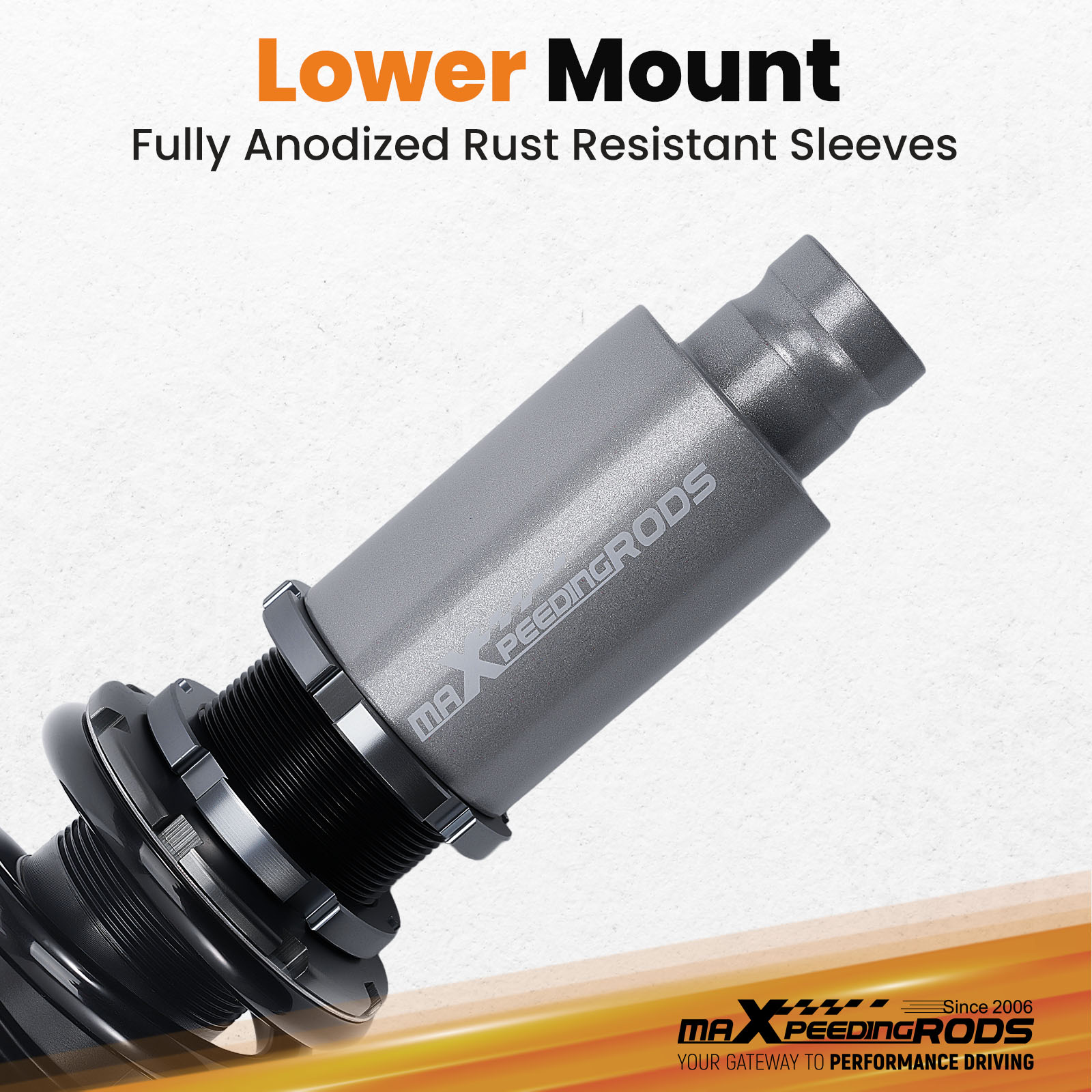

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

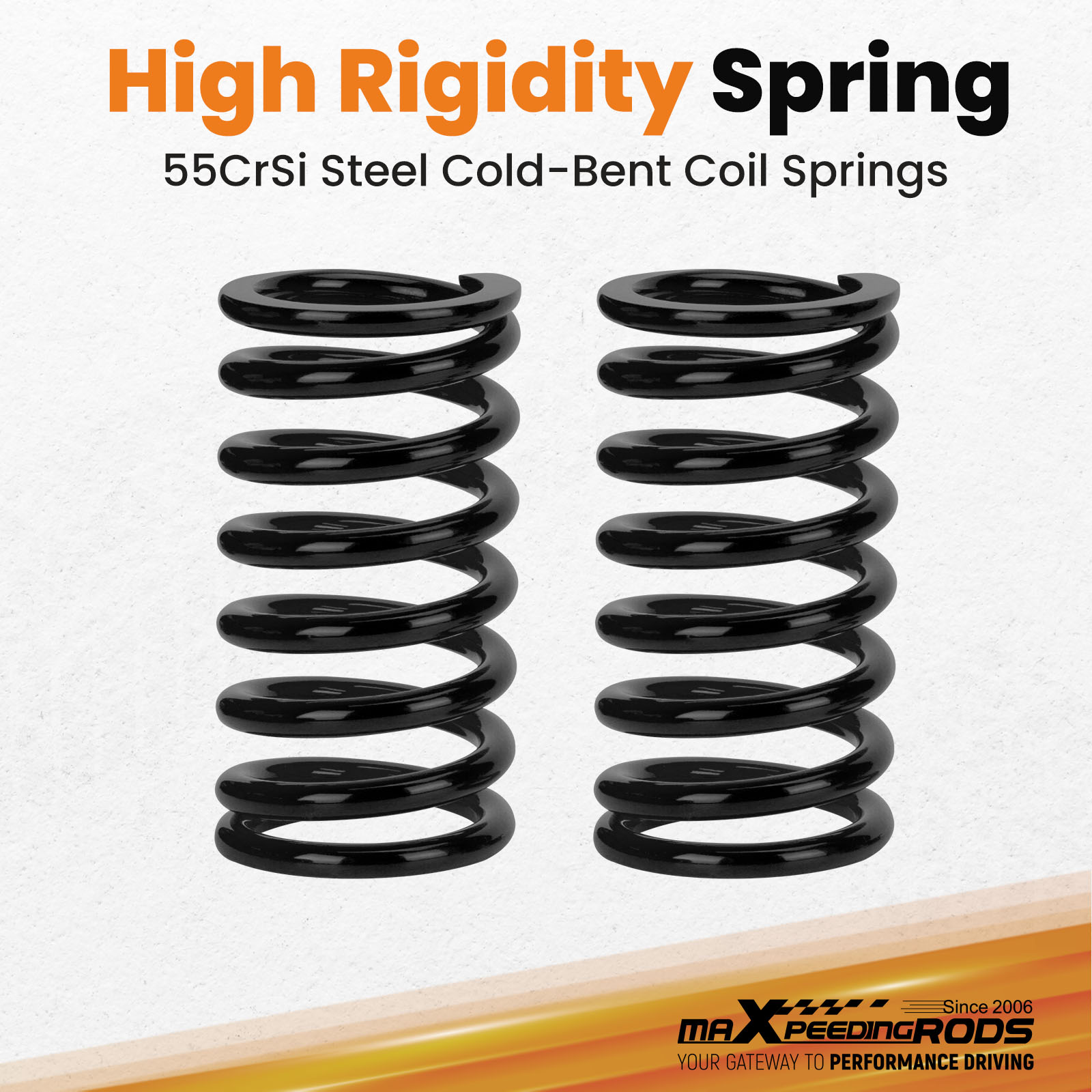

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts





Note



1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
