Adjustable Damper Coilover Kit For Toyota Corolla 2009-2017 E140/E160/E150/E170








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

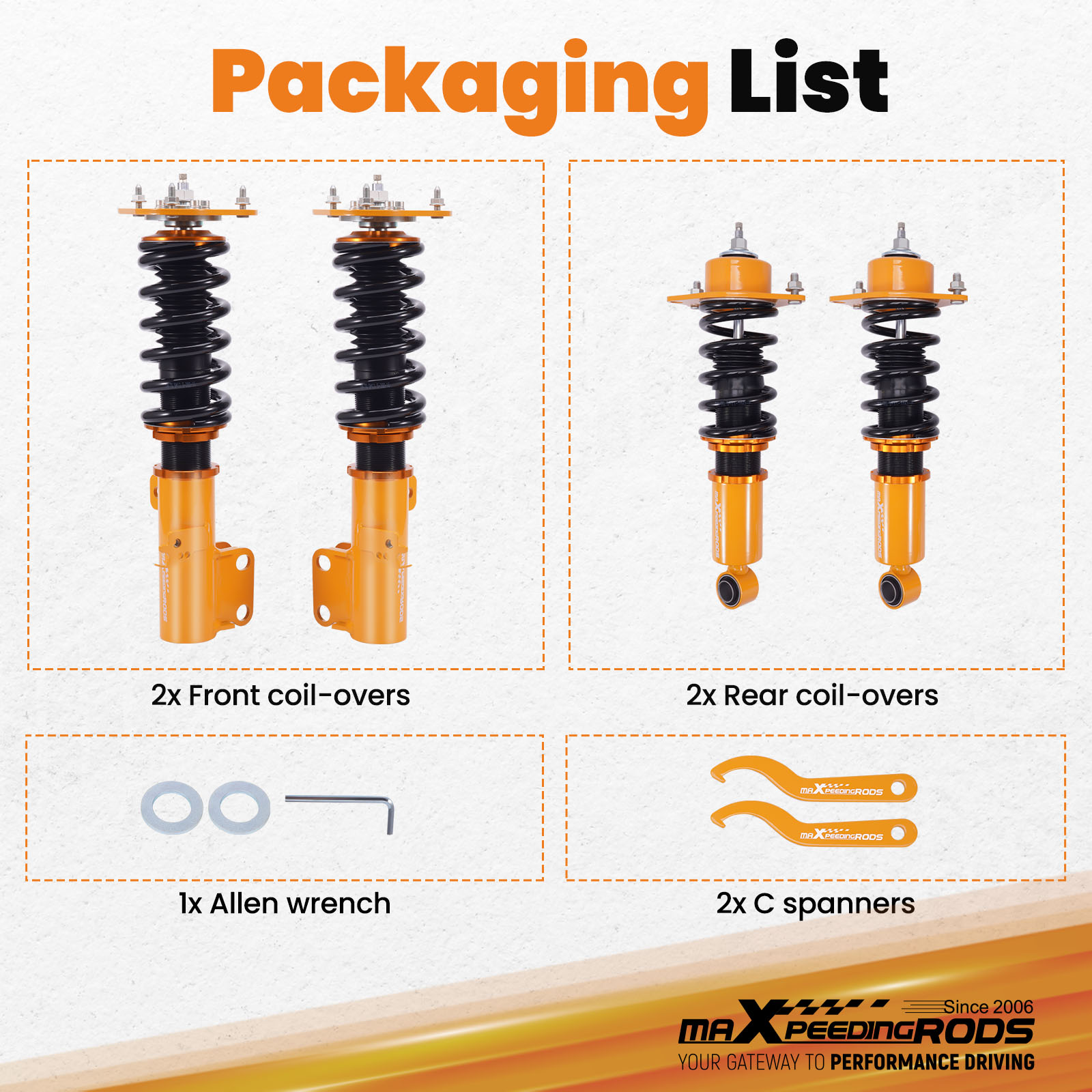

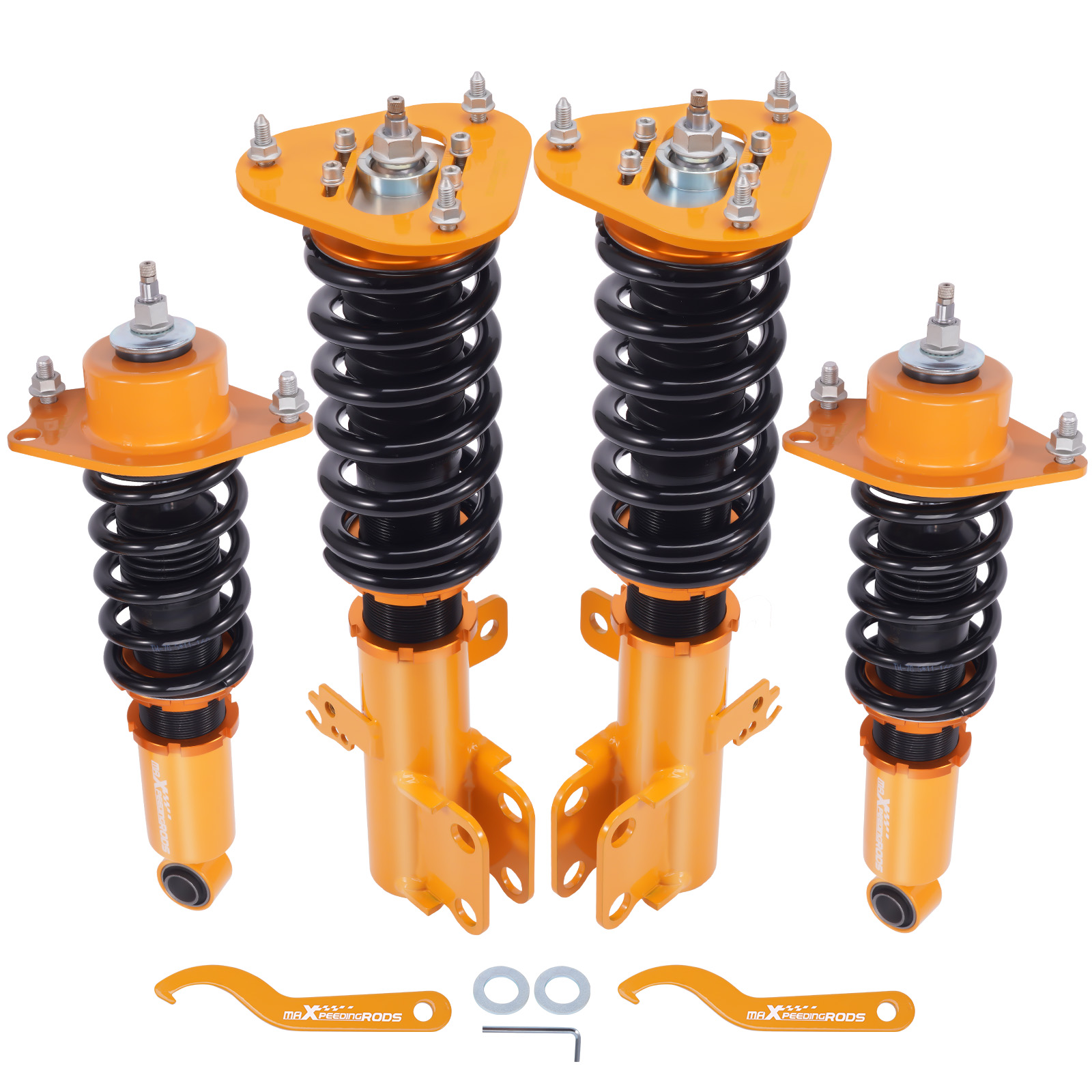

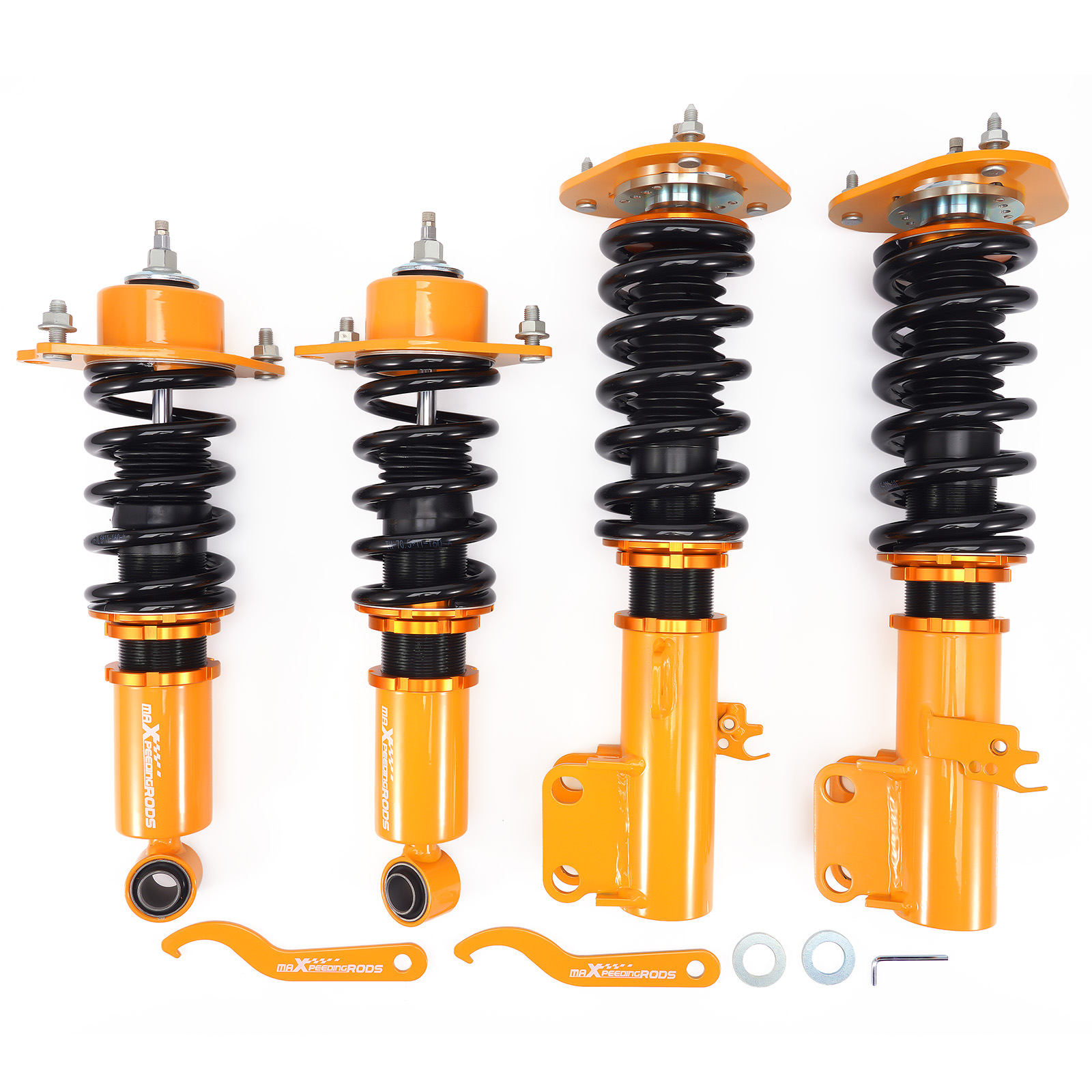

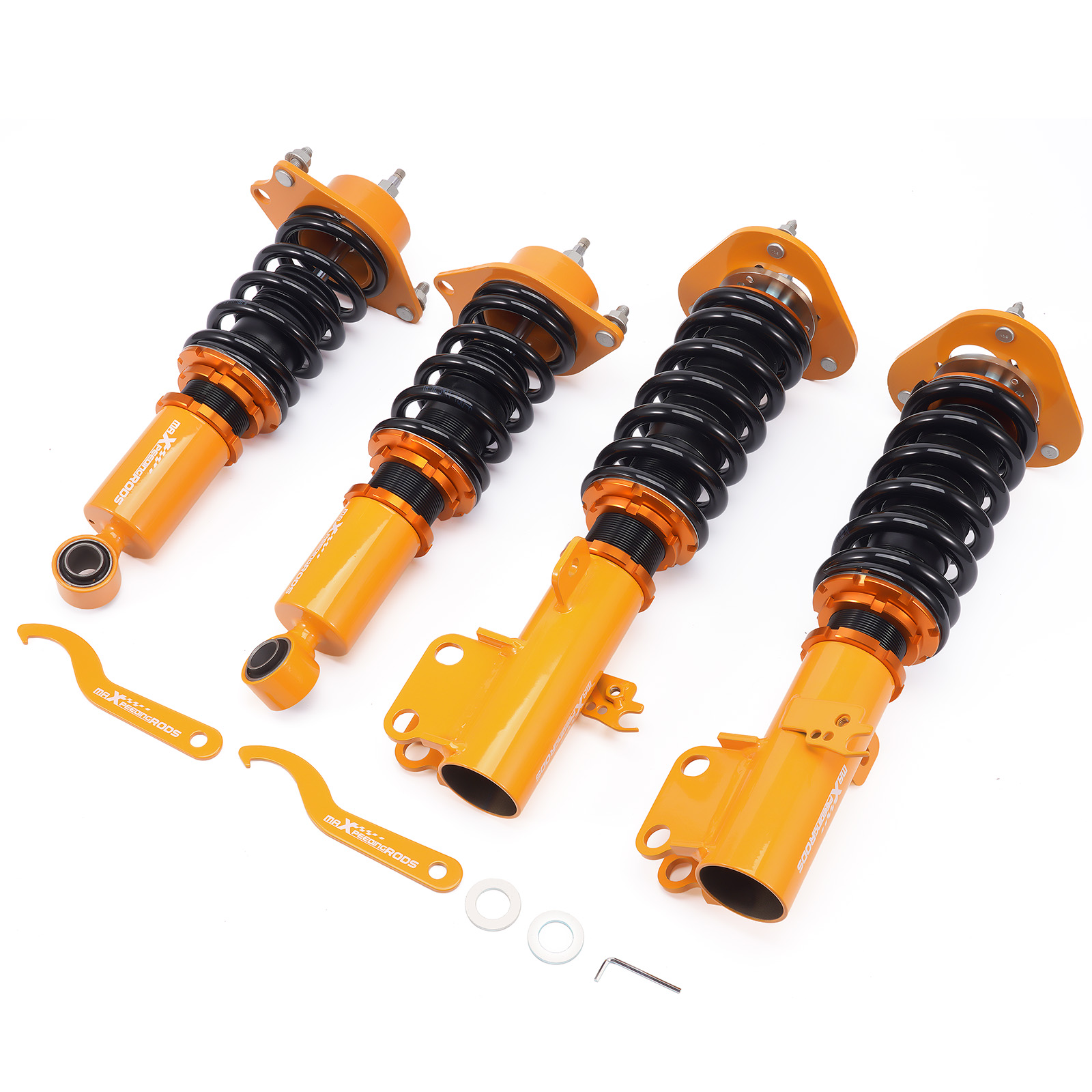

Package included
  • 2x Front coil-overs
  • 2x Rear coil-overs
  • 2x C spanners
  • 1x Allen wrench



Application

  • for TOYOTA COROLLA  (E140) AZE141L XRS 2009-2010
  • for TOYOTA COROLLA  (E140/E160) ZRE142L LE 2009-2013
  • for TOYOTA COROLLA  (E150/E170) ZRE172L all 2014-2019
  • for TOYOTA MATRIX (E140)  LE 2009-2014

Standard Technical Specifications


Front top mount Pillow ball with camber plate
Rear top mount Standard rubber
Damping adjustable Available, 24 levels of rebound damping force
Camber adjustable Available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models

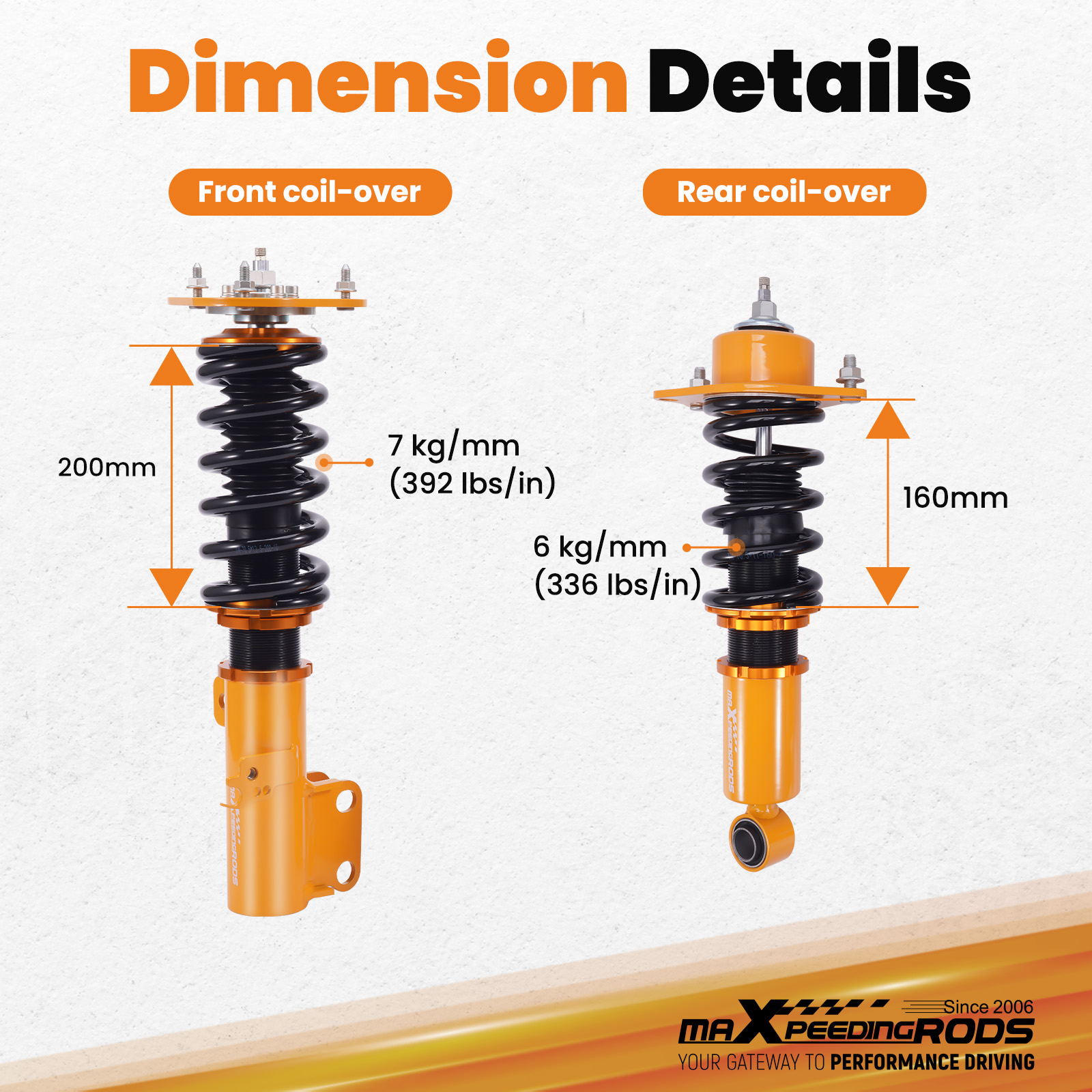

Spring rate Front 7 kg/mm (392 lbs/in)
Spring rate Rear 6 kg/mm (336 lbs/in)
Front spring inner diameter 70.5mm
Rear spring inner diameter 70.5mm
Spring length Front 200 mm
Spring length Rear 160 mm
Spring Preload advised 7-10 mm

Details

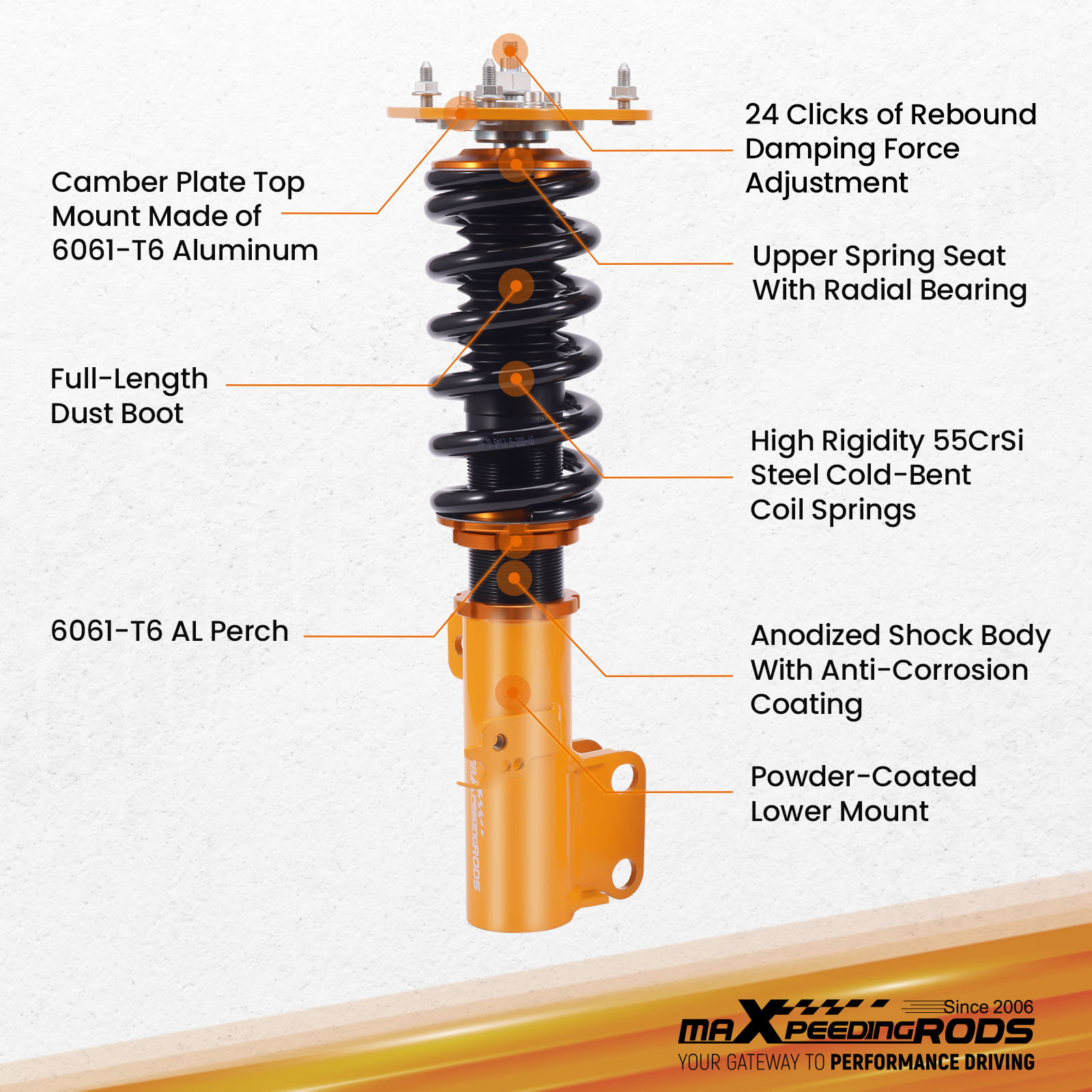

Feature

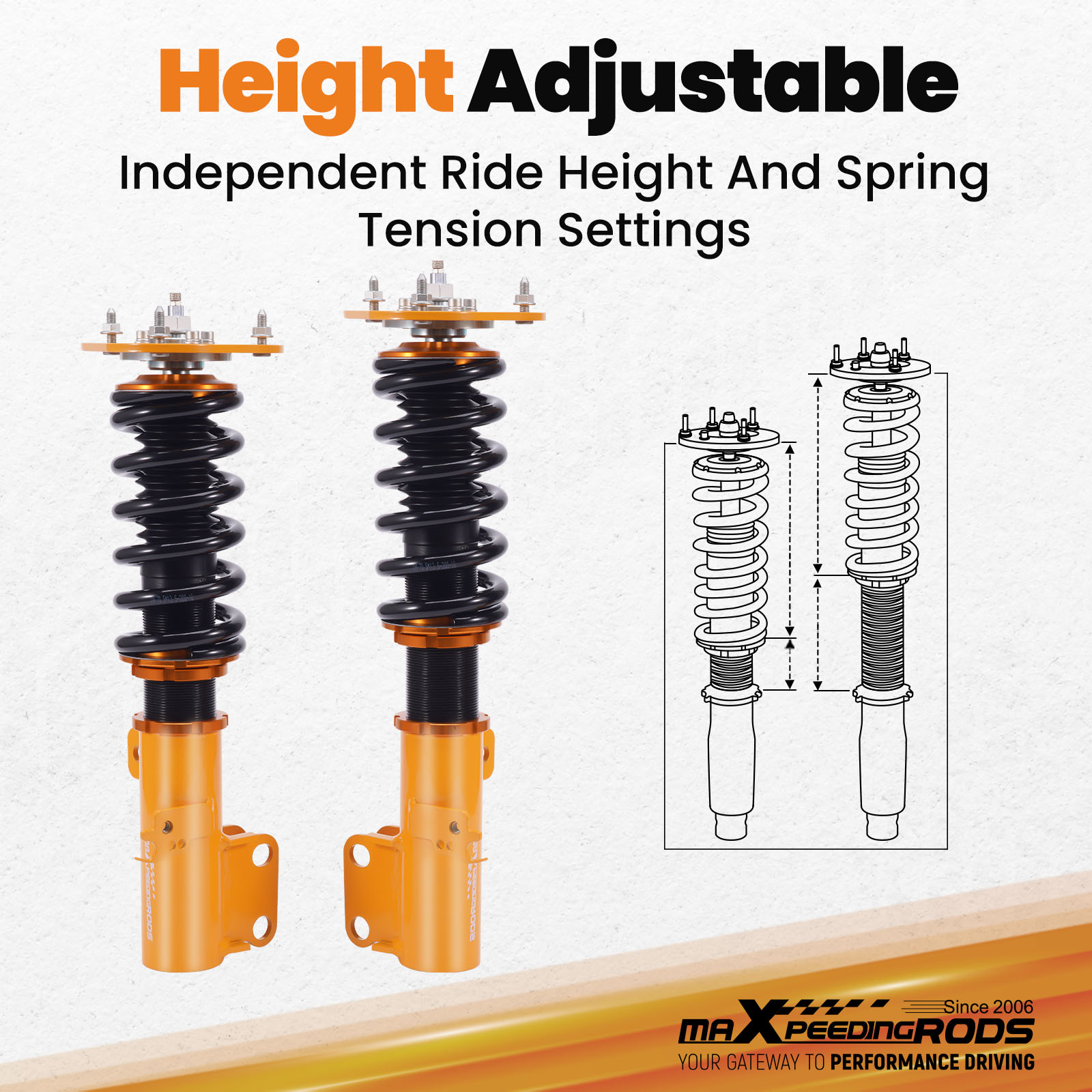

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

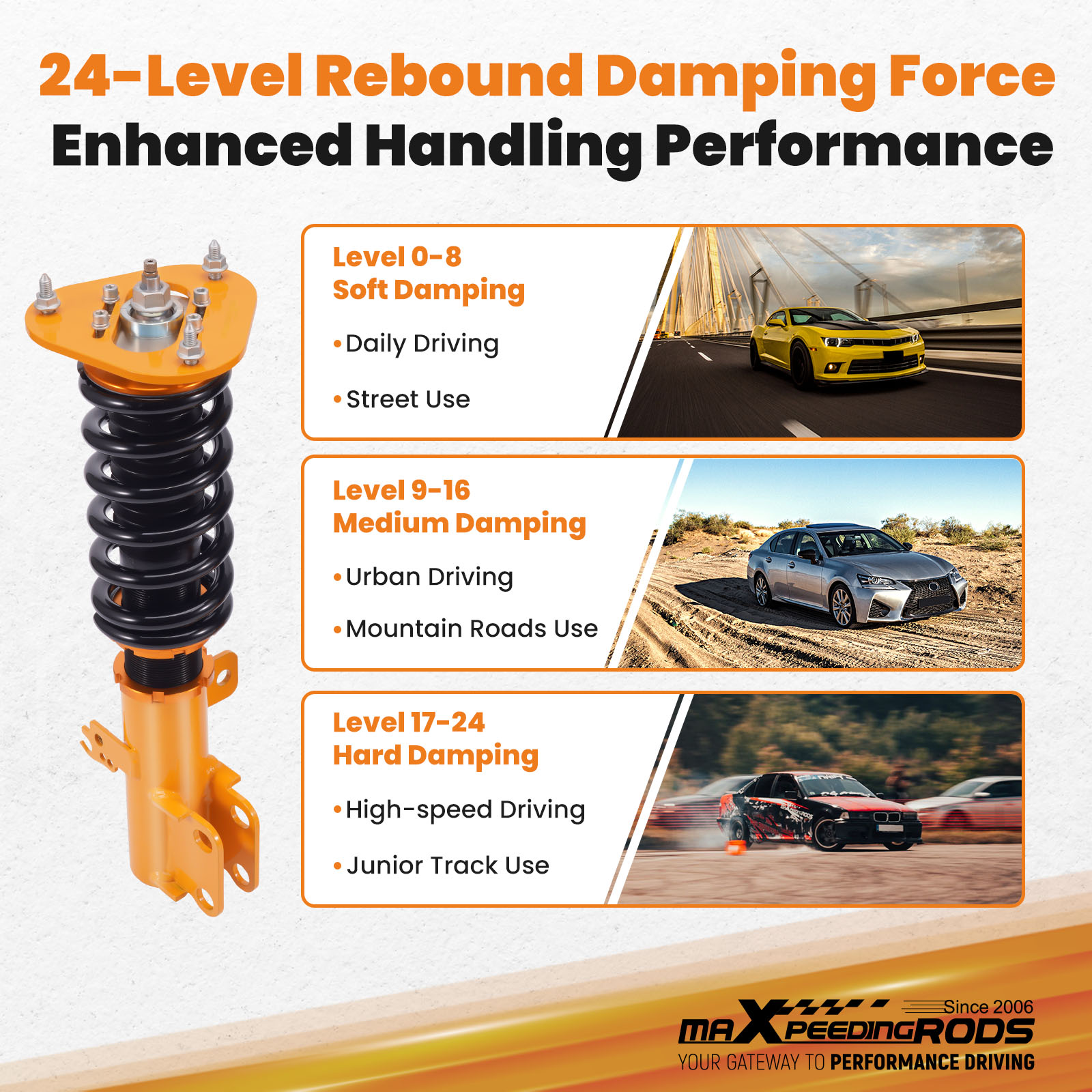

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

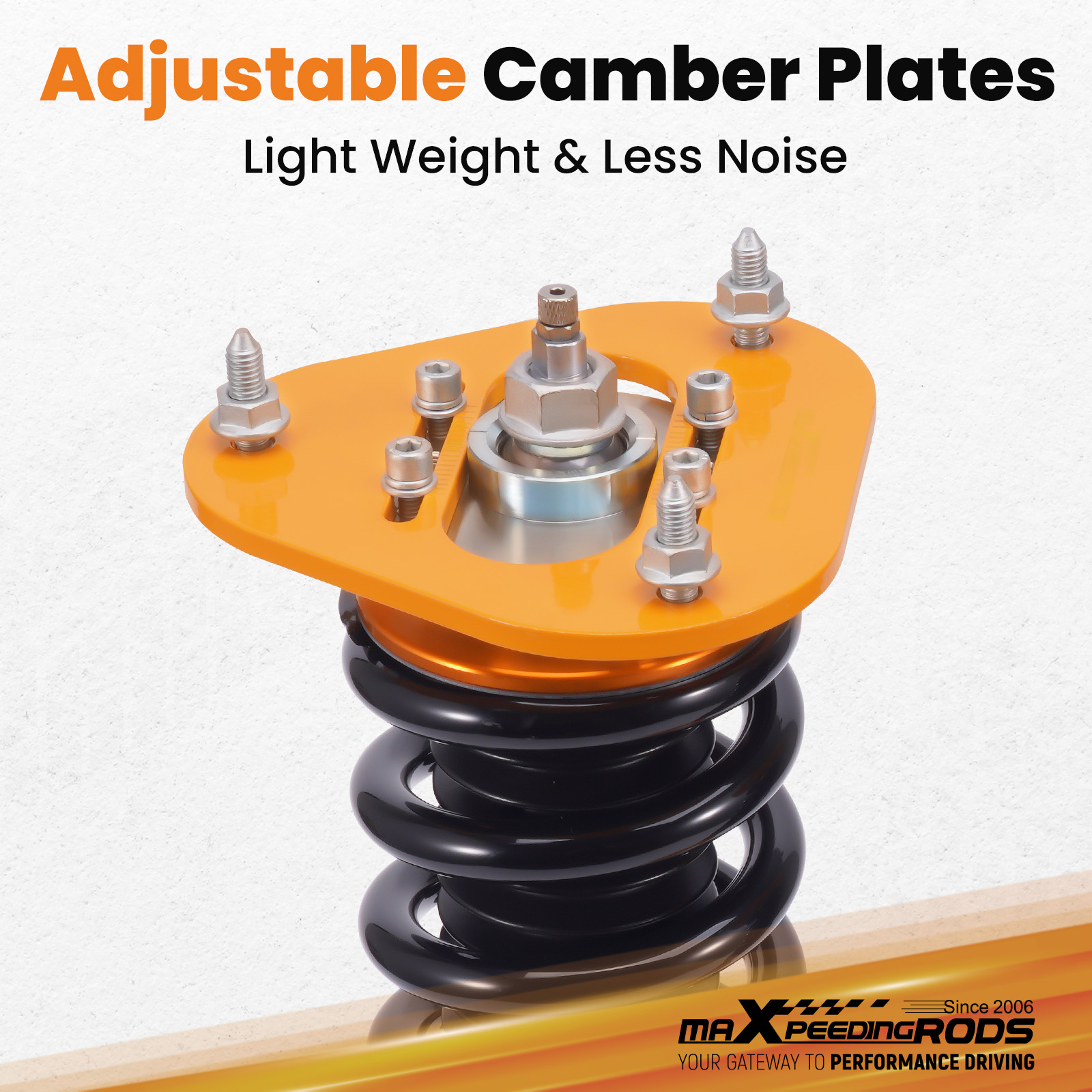

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

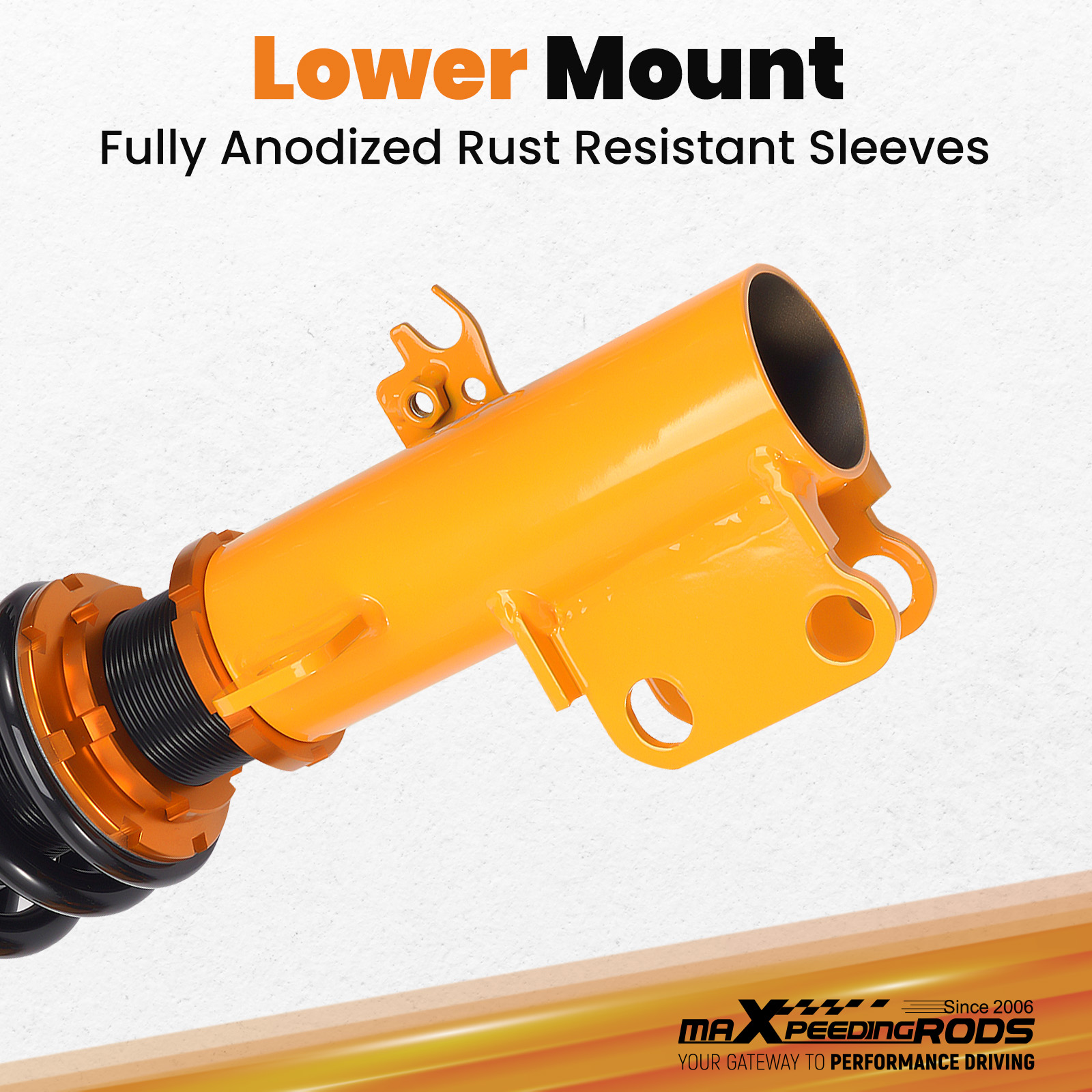

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

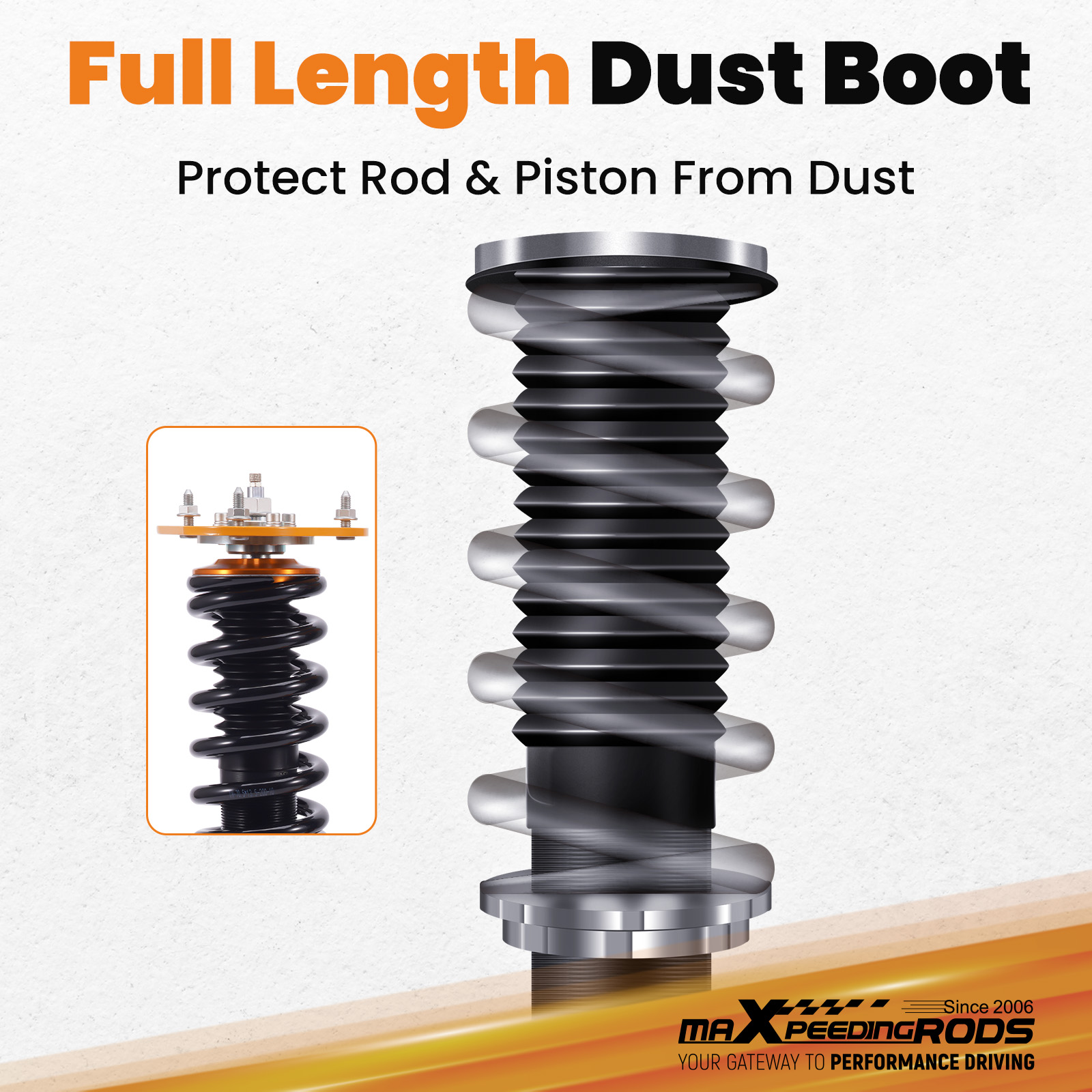

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
