QXAPK

Coilovers Struts For VW Golf MK4 IV 1J1 Seat Leon (1M1) FWD New Beetle 9C1, 1C1








Introduction



maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.



Package included
  • Springs and shocks for front and rear
  • No top mounts included



Application

  • FOR VW GOLF IV (1J1) FWD 08/1997-12/2007
  • FOR SEAT LEON (1M1) FWD 11/1999-06/2006
  • FOR VW NEW BEETLE (9C1, 1C1) FWD 01/1998-11/2010



Note:

  • Will not fit 4-MOTION (AWD), VW Golf MK4 R32, and Audi Quattro (AWD) models.

Standard Technical Specifications


Damping adjustable Not available
Camber adjustable Not available

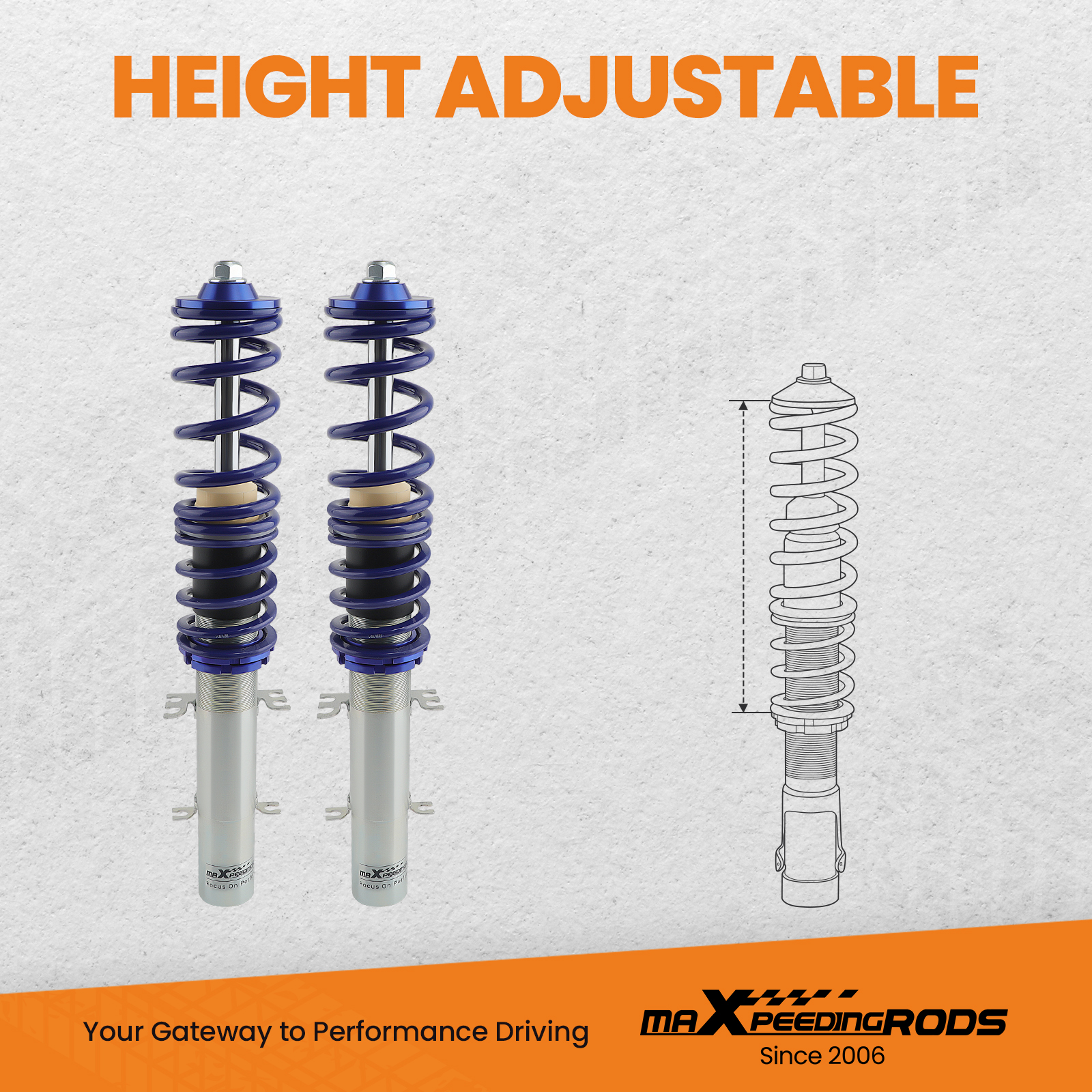

Height adjustable Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front 8 kg/mm (448 lbs/in)
Spring Rate Rear 6 kg/mm (336 lbs/in)
Spring length Front 170mm
Spring length Rear 275mm
Coilover overall length Front 370mm-540mm
Coilover overall length Rear 410mm-650mm

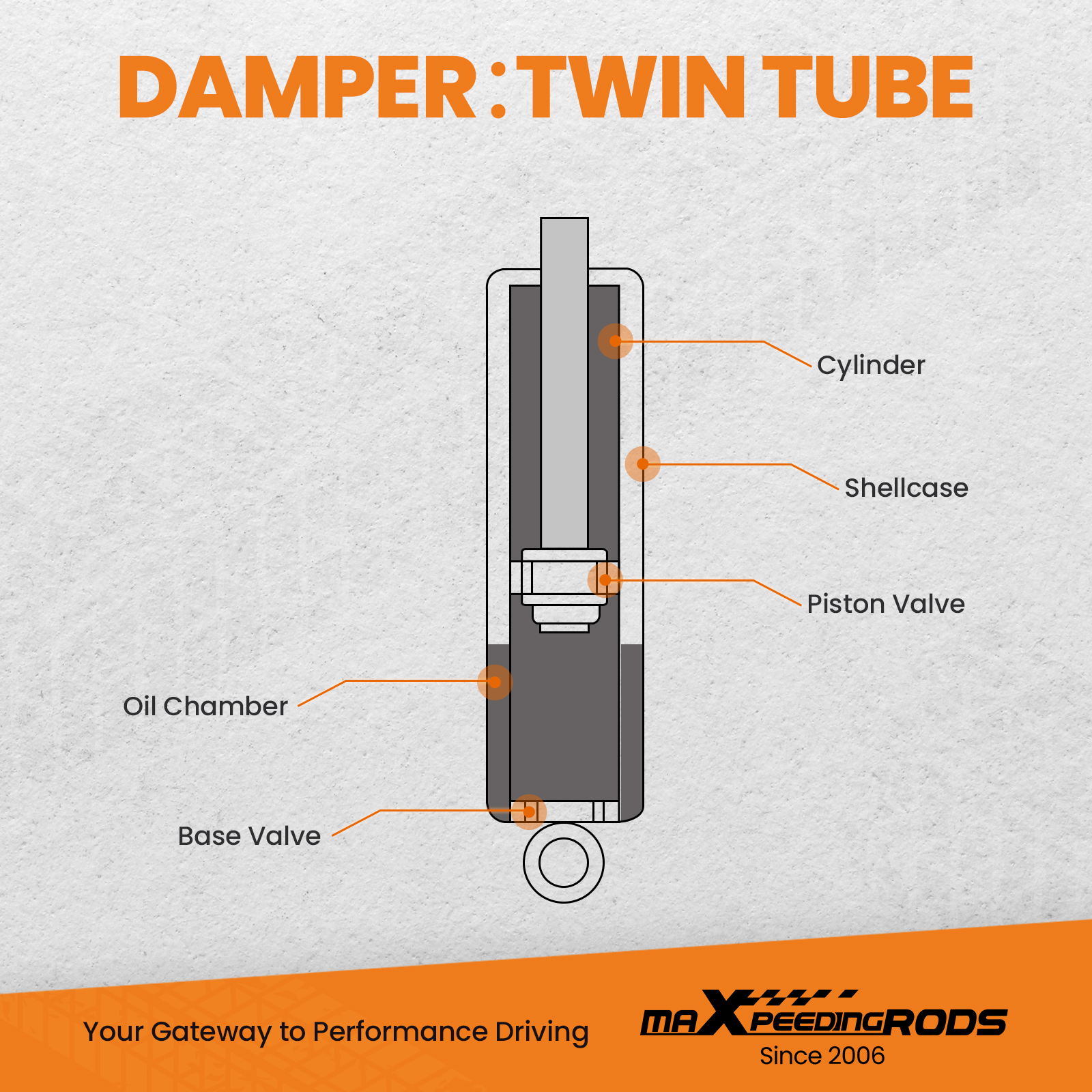

Shock type Twin tube




Feature

  1. 0-25mm(depends on vehicle models) lower height adjustable

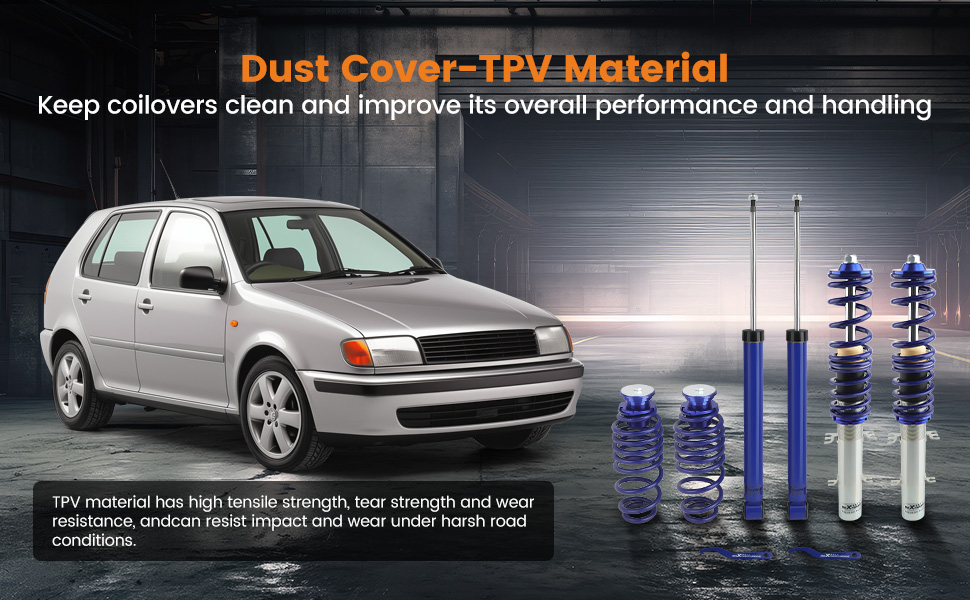

  2. Dust boot, solid rubber bump stops
  3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

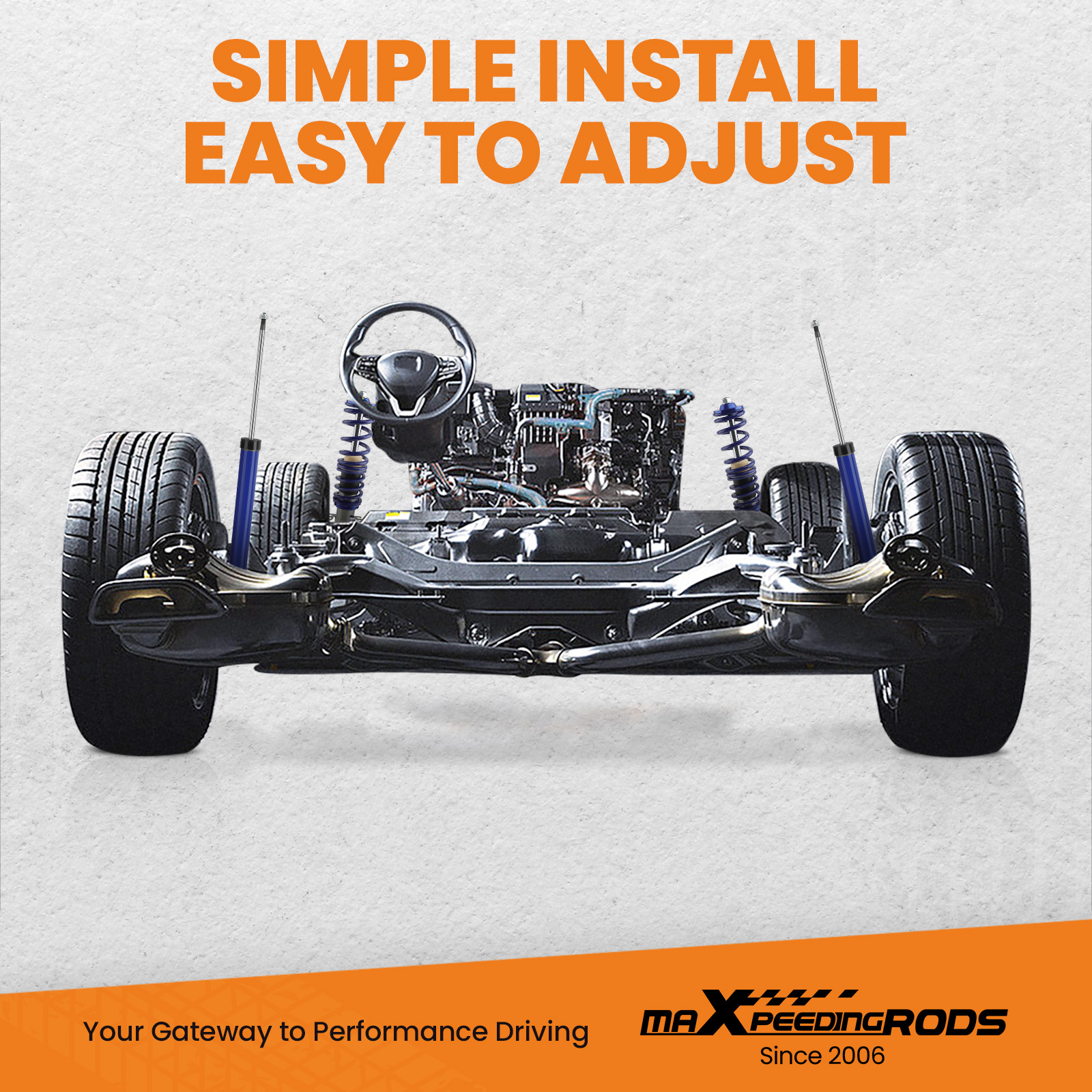

  4. Simple install,  Easy to adjust.
  5. Use the vehicle's original upper mounts (not included in our product kit).
