24 Way Adjustable Damper Coilover For Subaru Impreza WRX Limited Sedan 2008-2014








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

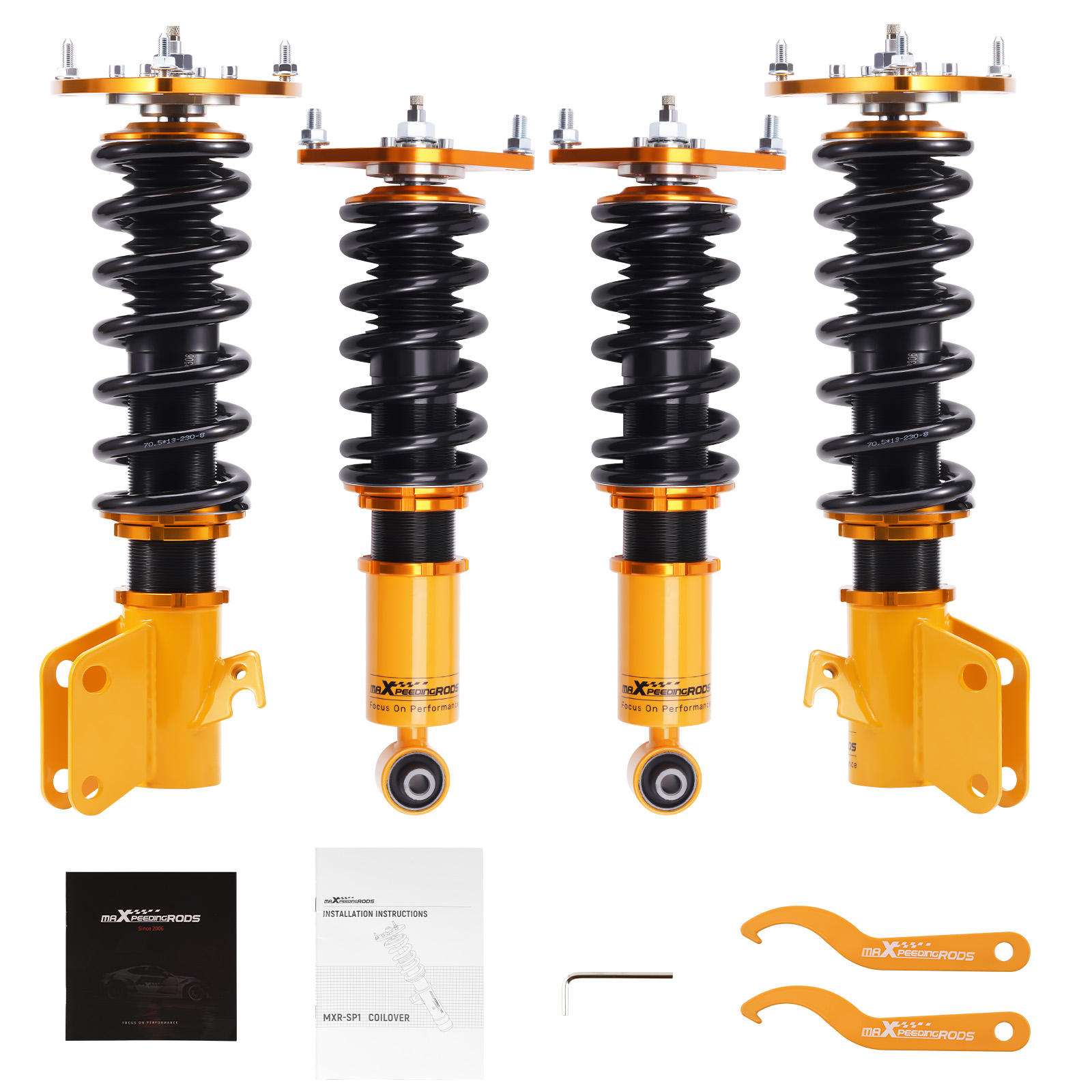

Package included
  • 2x Front coil-overs
  • 2x Rear coil-overs
  • 1x Allen wrench
  • 2x C spanners



Application

  • For Impreza WRX sedan/hatchback 2008-2014
  • For Impreza WRX Limited  sedan/hatchback 2008-2014
  • For Impreza WRX Premium  sedan/hatchback 2008-2014

Standard Technical Specifications


Front top mount Pillow ball with camber plate
Rear top mount Pillow ball
Damping adjustable Available, 24 levels of rebound damping force
Camber adjustable Available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front 8 kg/mm (448lbs/in)
Spring Rate Rear 7 kg/mm (392 lbs/in)
Spring Preload advised 7-10 mm
Spring length Front 230 mm
Spring length Rear 180 mm

Details

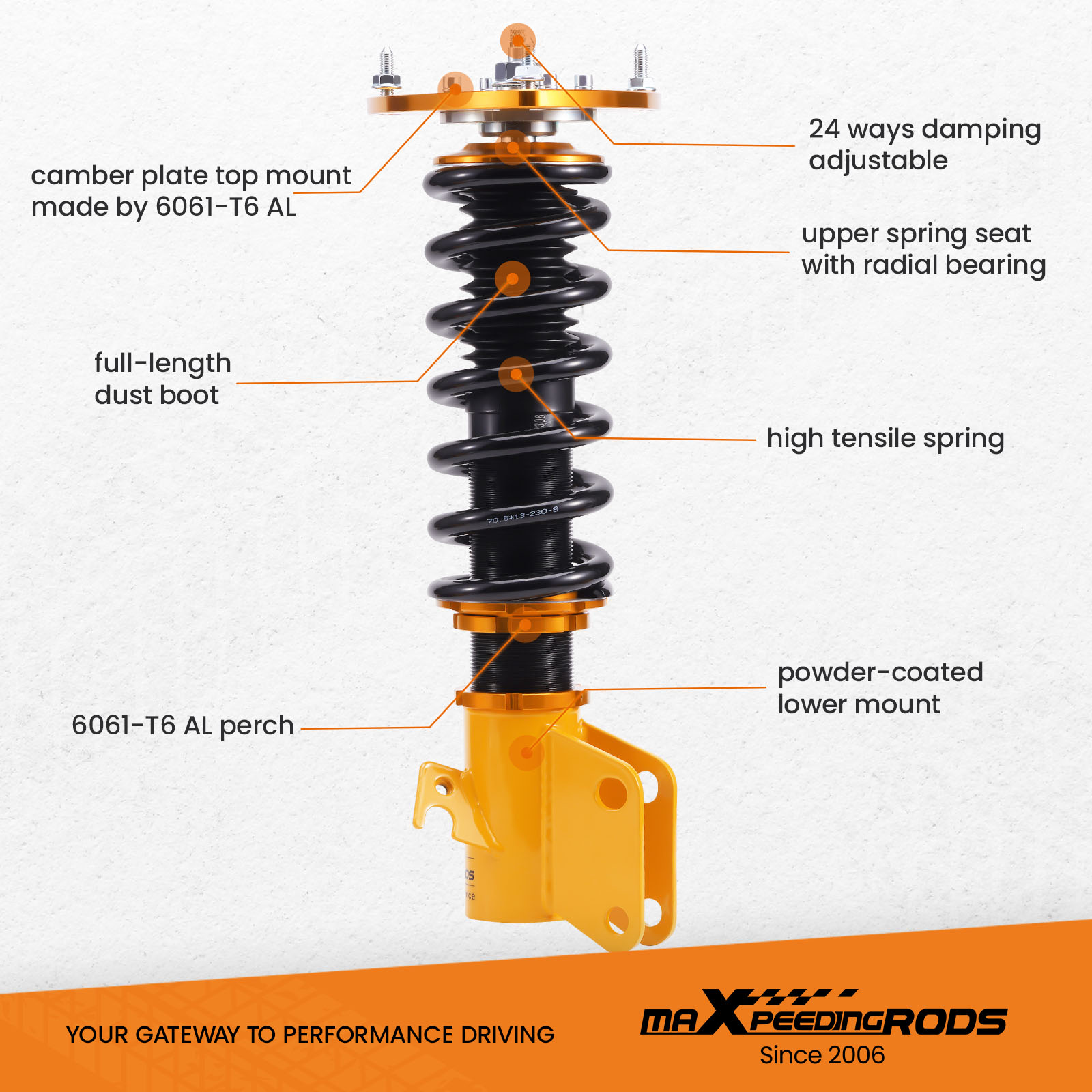

Feature

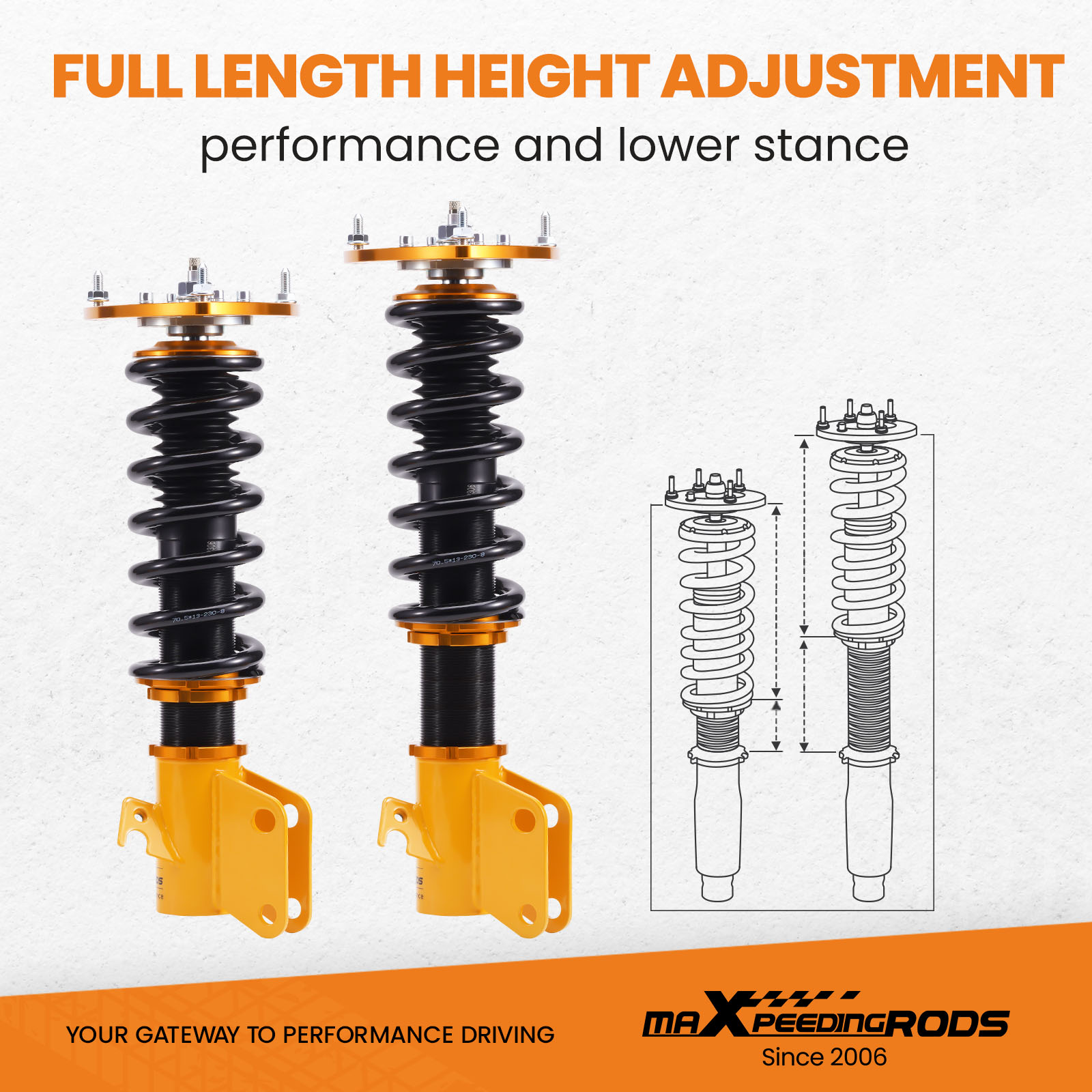

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

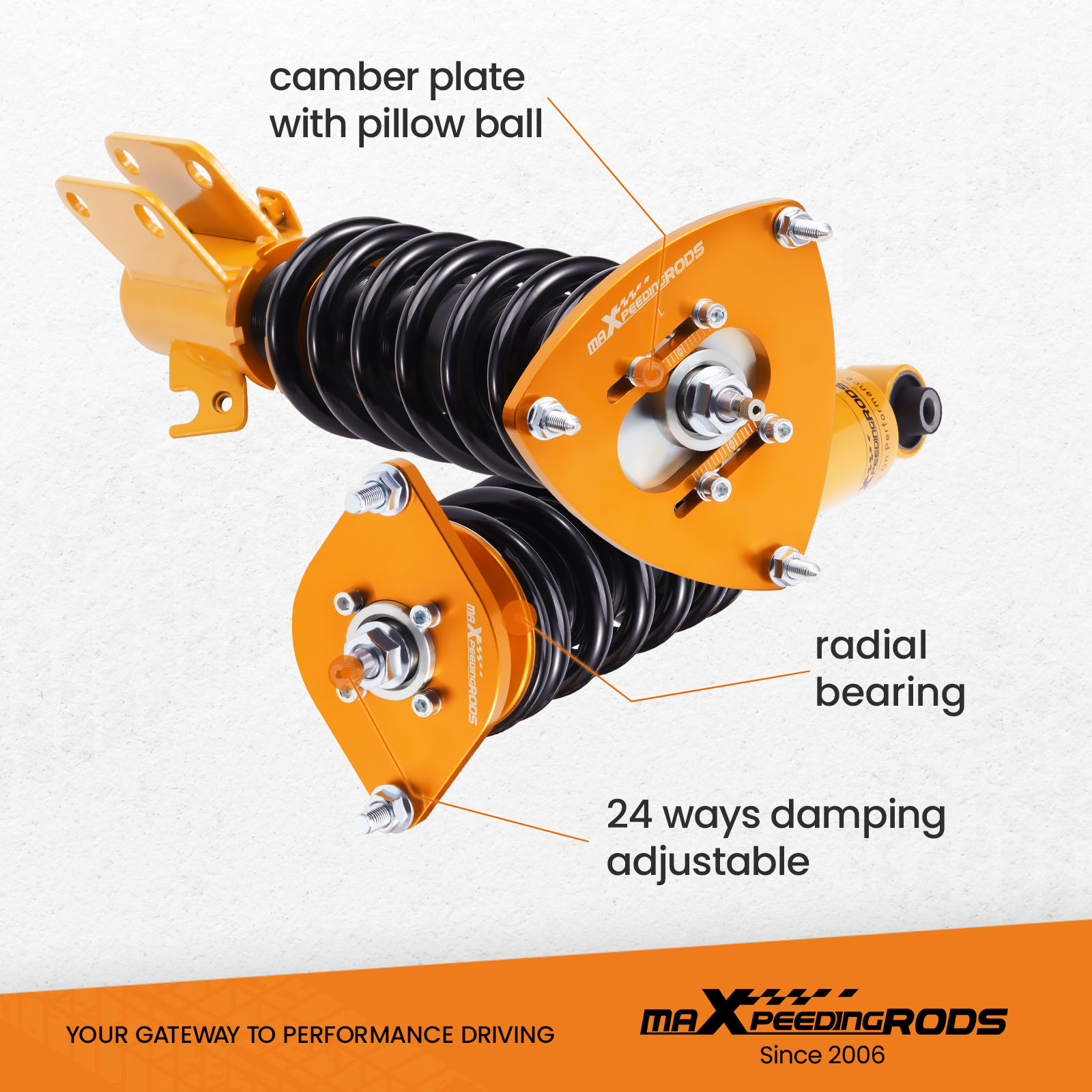

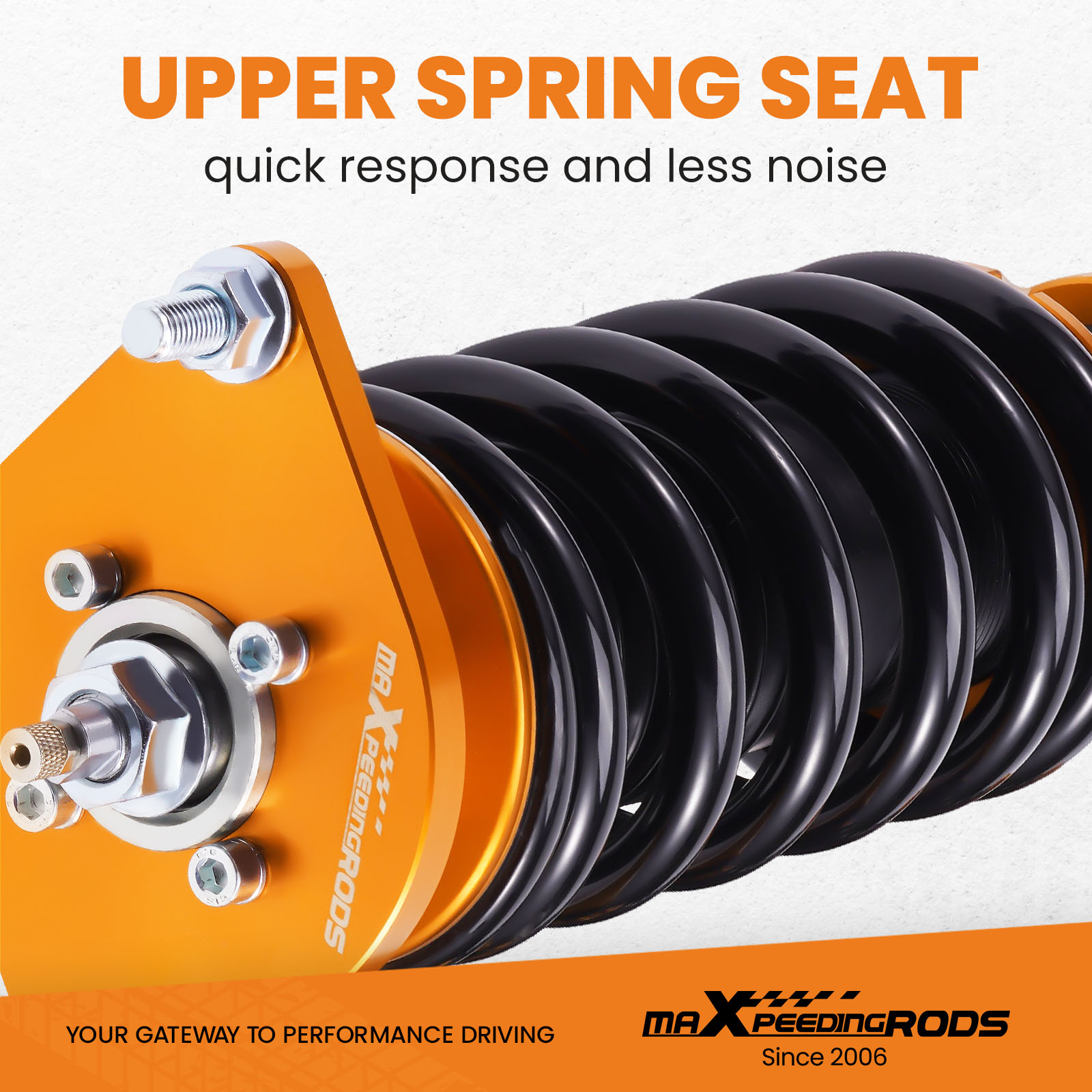

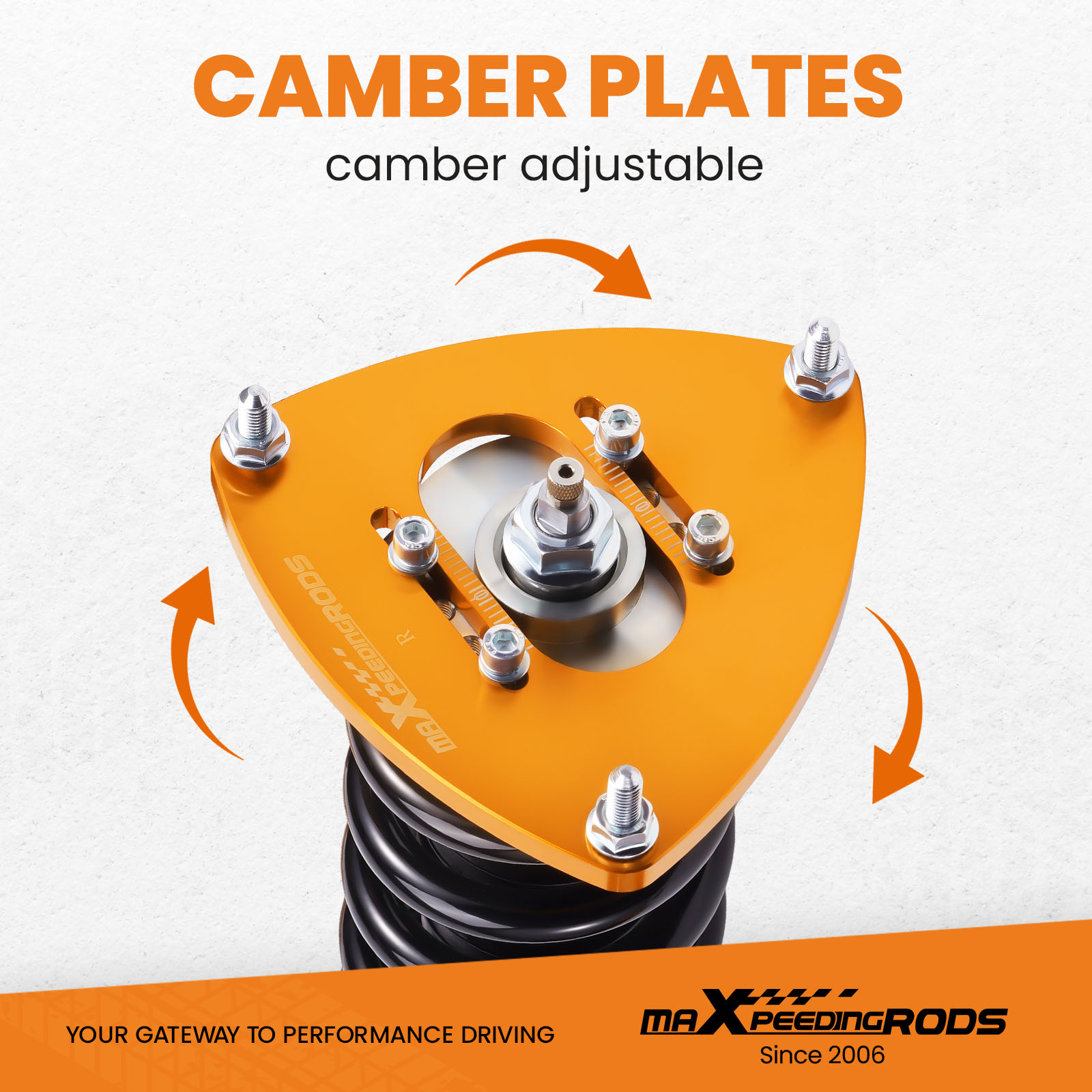

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

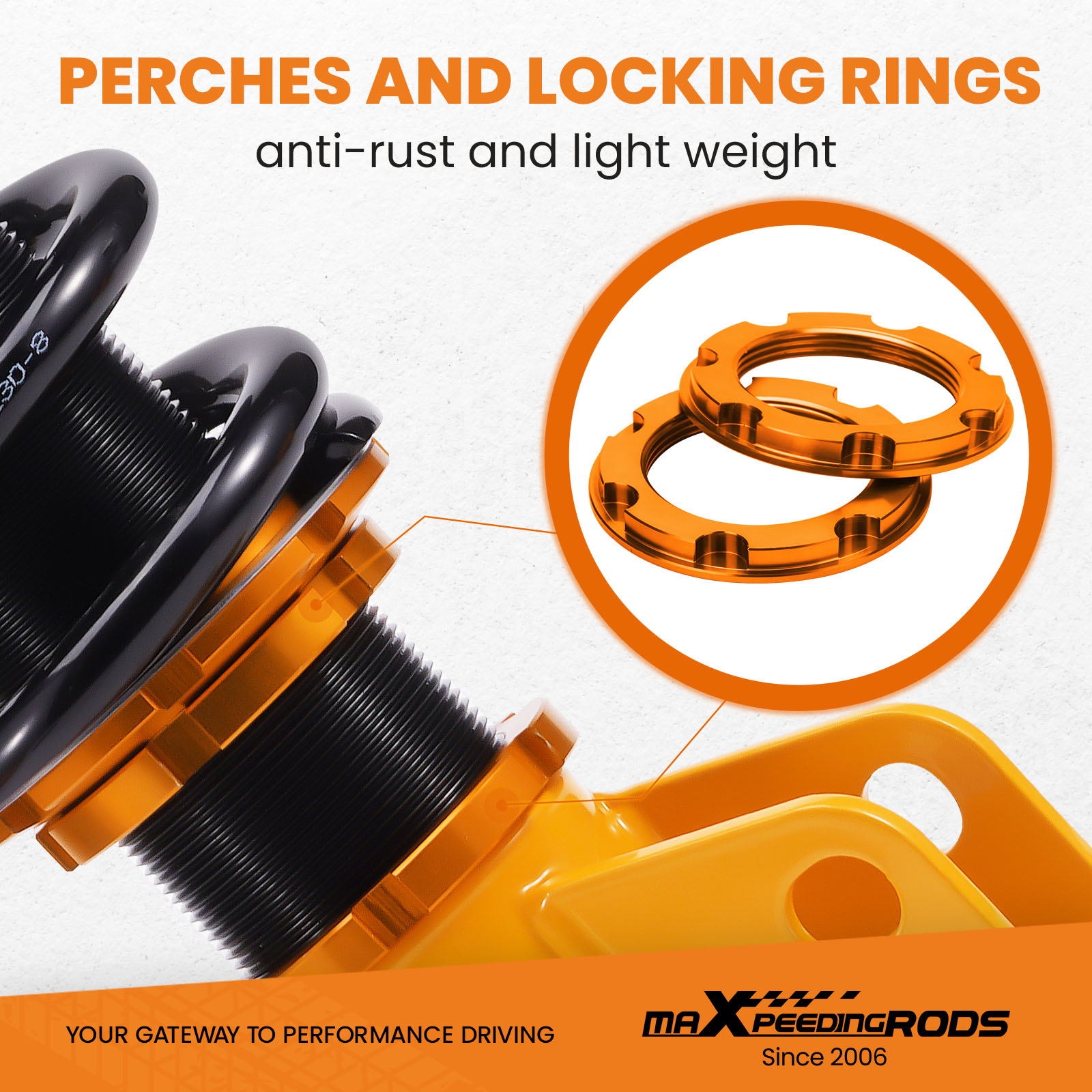

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

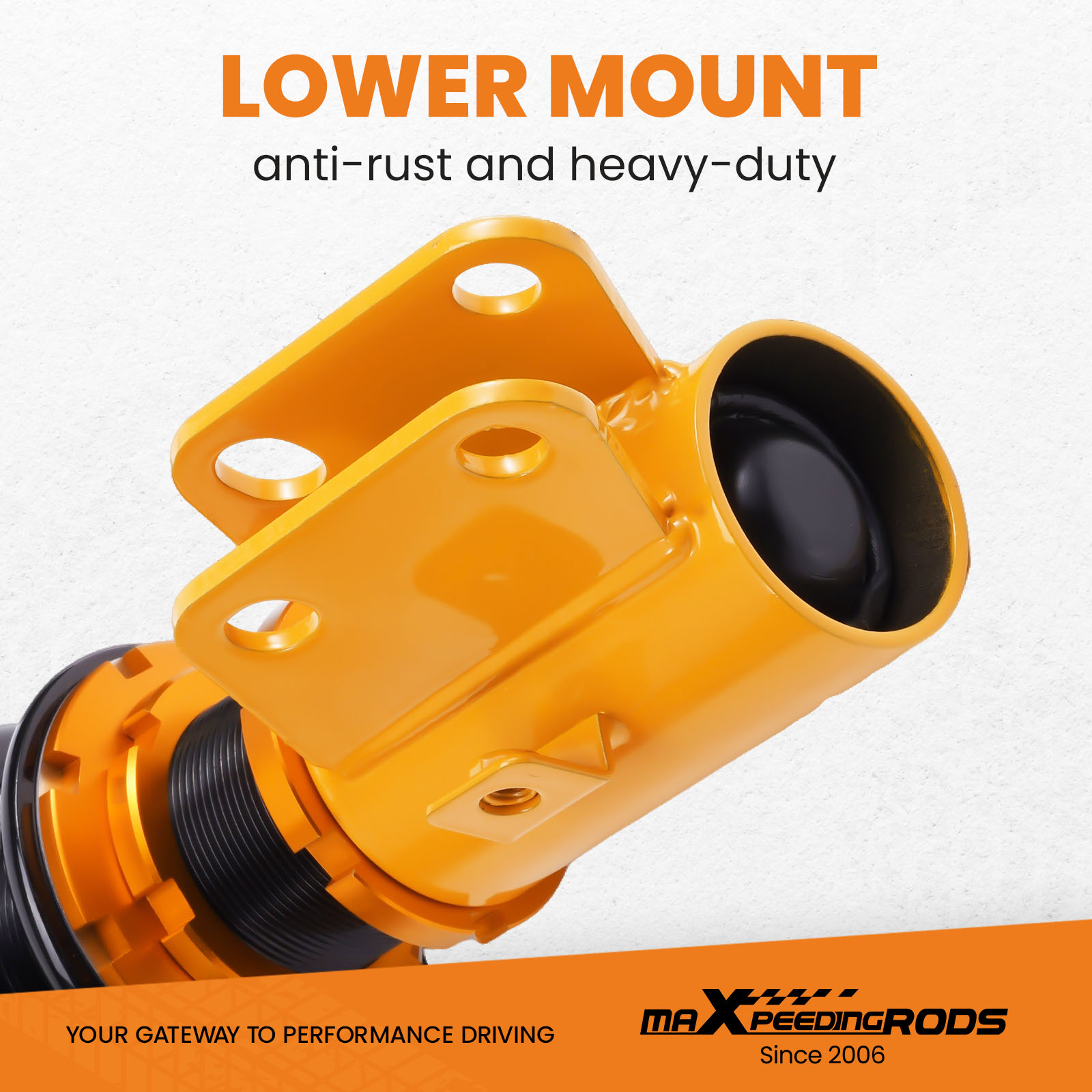

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

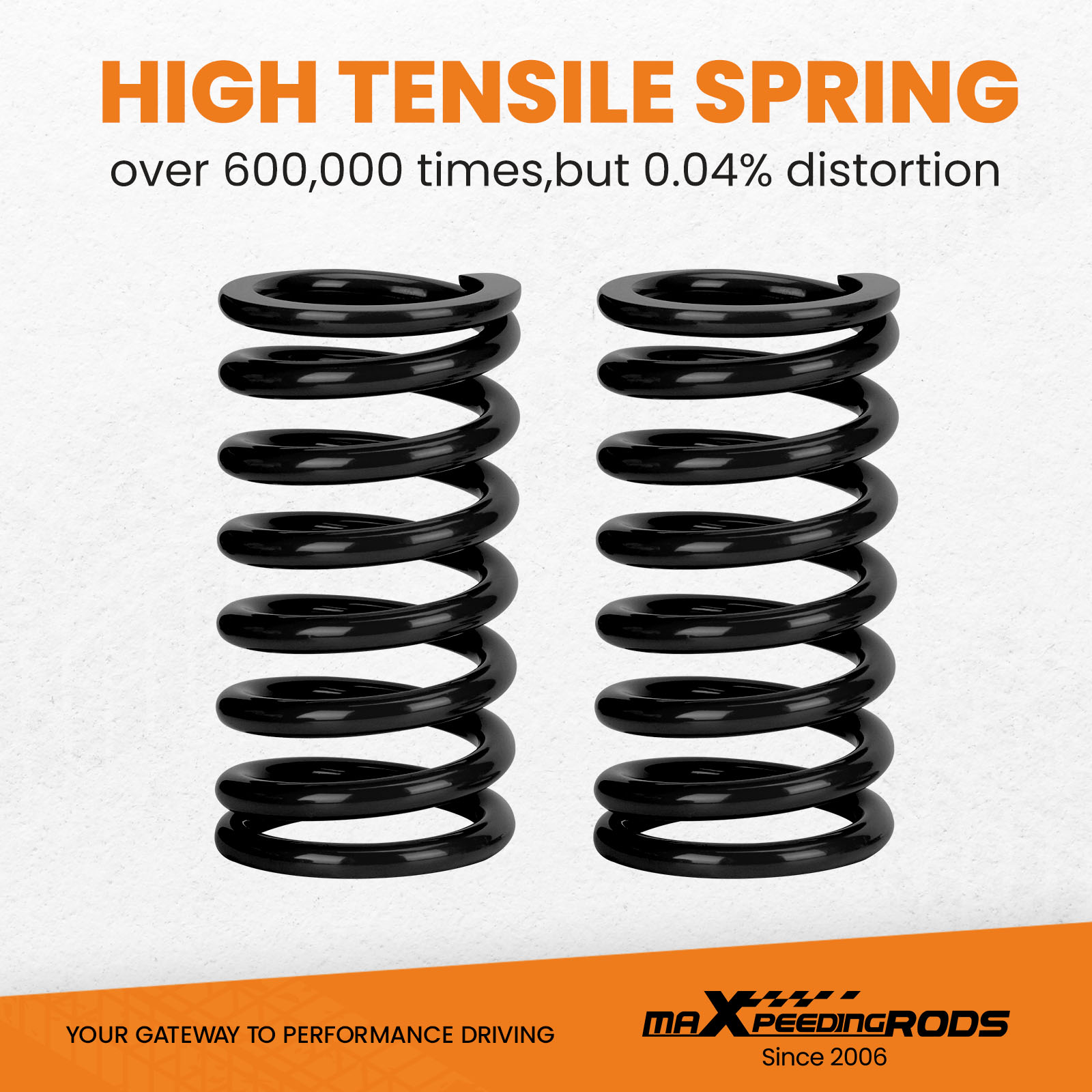

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

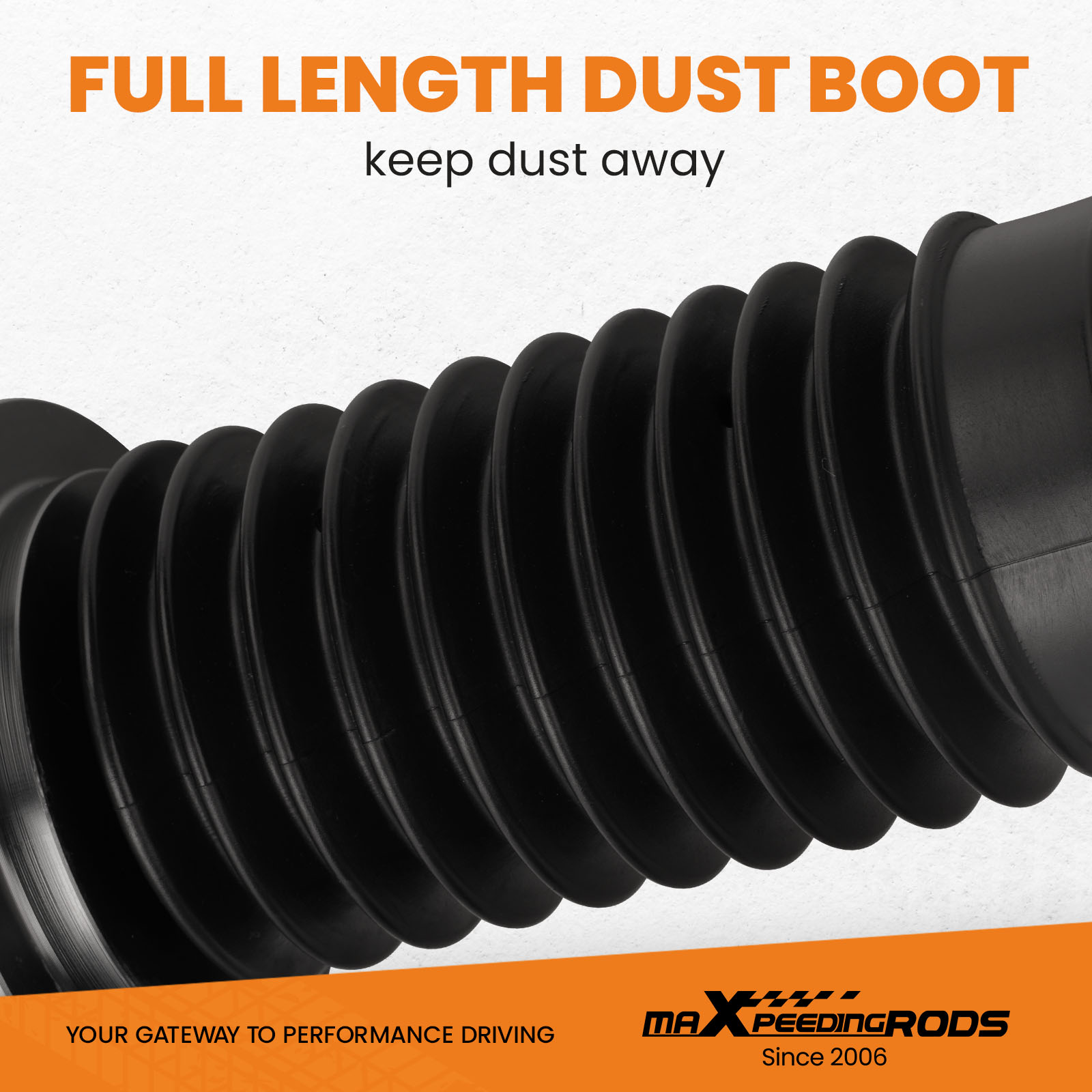

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
