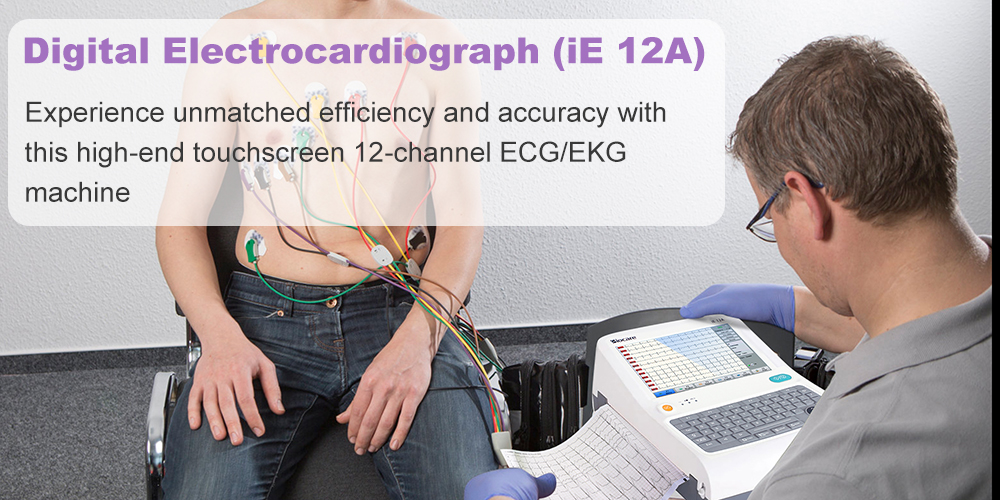

12-Channel ECG Sheet
View & print 12 channels of data at a time, highly efficient
Adults & Pediatrics
Support ECG tests and analysis for both adults & children
Advisory ECG Diagnosis
12-Lead ECG with interpretation for precise diagnosis
VCG Acquisition
Vectorcardiogram (VCG) acquisition for more advanced diagnosis
9-Inch Touchscreen
High-resolution color touchscreen interface for easy navigation
Easy Data Management
Multiple ports and formats for wireless ECG data transmission
Compact & Portable
With a built-in handle, easy to carry between healthcare settings
Technical Specifications
Physical Info
Device Dimensions：13.6" × 10.2" × 5.1" (345mm × 260mm × 128.5mm)
Weight：7.5 lb (3.4kg)
Display：8.9-inch TFT LCD with touch screen
Display Resolution：1280 × 768
Model：Biocare iE12A
Tech Spec
Acquisition Mode：Simultaneous standard 12-lead
Lead Mode：Standard 12 leads, Nehb, Cabrera, Frank
HRV：Heart Rate Variability acquisition and review
Patient Type：Adults (older than 12 years old)；Pediatrics (age: 29 days - 12 years old)；Neonates (infants born less than 28 days)
Auto Trigger Mode：Report will be automatically printed once the arrhythmia is detected
Heart Rate Range：30 bpm~300 bpm
Acquisition Time：10~24 seconds
Sampling Rate：8,000 samples/second/channel
Alarm Prompt：Lead-off detection, lead overflow, AC interference, baseline wander interference, EMG interference
A/D Conversion：24 bits
Common Mode Rejection Ratio (CMRR)：>110dB (AC filter on)；>100dB (AC filter off)
Frequency Response：0.05Hz～250Hz
ECG Interpretation：Biocare CardioPro ECG analysis program for adults and pediatrics
Waveform Freeze：Up to 300 seconds
Rhythm Analysis：
Single rhythm mode: 30-300 seconds；
Three rhythms mode: 30-100 seconds for each lead
Measurement Parameters：Ventricular Rate, PR Interval, QRS Time Limit, QT/QTC Interval, P/QRS/T Axis, RV5/SV1 Amplitude and RV5+SV1 Amplitude
Recording Paper：Z- fold paper, 210mm×140mm - 140P
Record Format：
Standard leads: 3×4, 3×4+1R, 3×4+3R, 6×2, 6×2+1R, 6×2+3R, 12×1Nehb lead: 6×1, 3×2;
VCG: 6×1+3, 3×2+3, 3×2+3+1R, 3×2+3+3R, Frank
Record Mode：Economic, Auto, Manual, Upload, Cycle, Trigger
Papwr Speed：(5, 6.25, 10, 12.5, 25, 50) mm/s ±5%
Power Supply
DC Power Supply：Rechargeable lithium battery, 14.8V, 4400mAh
Battery Running Time：3-hour continuous operating
Battery Charging Time：4 hours
AC Power Supply：100V-240V, 50Hz/60Hz, 80VA
Input & Output
Communication with Biocare ECG-1000 software on PC with Microsoft Windows XP/Win7/Win8/Win10 operating systems, Vista in 32/64 bits.
Input：Touch screen, Support external scanner
Data Storage：≥3000 ECG files (when the ECG acquisition time is 10 seconds ), support external SD card, USB 2.0 drive
Data Format：ECG, XML, JPEG, DICOM, PDF
loT：Support WIFI, Bluetooth, mobile network connection, TCP, FTP, HL7 protocol via WIFI or mobile network

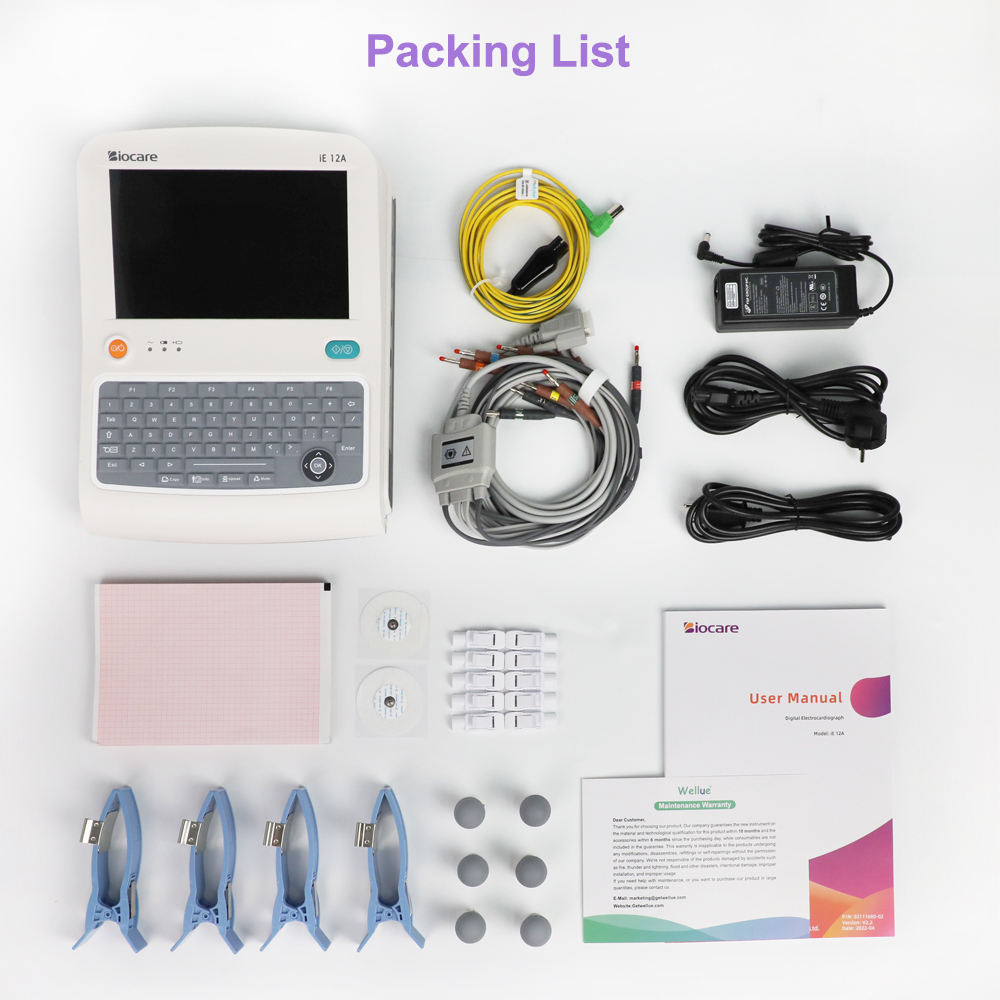

Packing List
Main ECG Unit
Patient Lead Wire (1 set)
Limb Clamp Clip (1 set)
Chest Suction Ball (1 set)
ECG Snap-Clip Adapters (10 pieces)
Disaposable Electrodes (10 pieces)
Power Cables (US & EU Standard)
AC Power Adapter
Equipotential Grounding Cable
Thermal Recording Grid Paper (z-fold paper)
User Manual
Qualified Certificate
Warranty Card
