Product Description

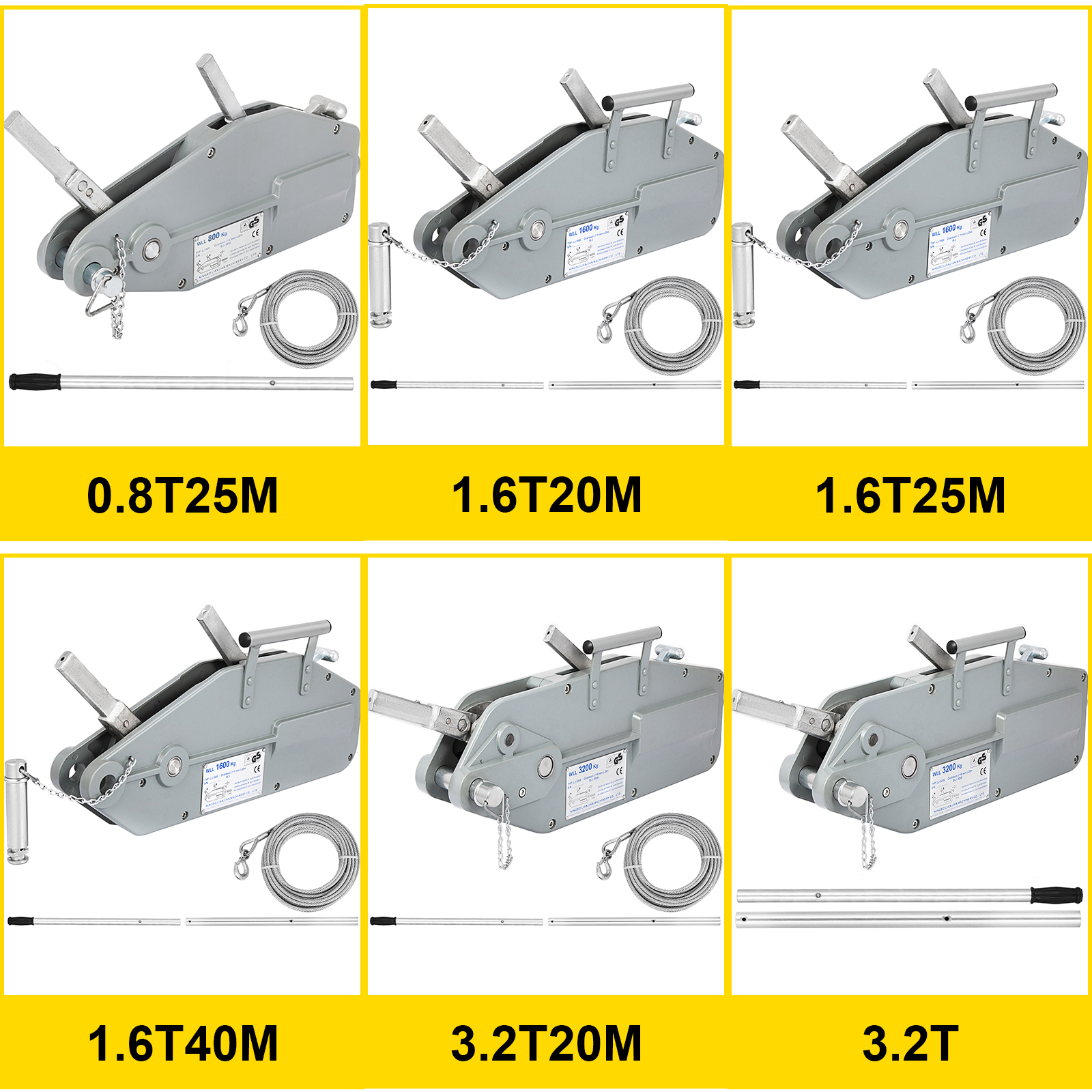

    Here we offer you 6 choices of hand winchs with or without ropes, including 0.8T/1760LBS Load Hand Winch with 25M/82Ft Rope,

    1.6T/3500LBS Load Hand Winch with 20M/65Ft Rope, 1.6T/3500LBS Load Hand Winch with 25M/82Ft Rope, 1.6T/3500LBS Load Hand Winch with 40M130Ft Rope, 3.2T/7000LBS Load Hand Winch with 20M/65Ft Rope, 3.2T/7000LBS Load Hand Winch.

    Wire rope pulling hoist, also known as wire rope traction machine, is a new, safe, efficient, and durable lifting machinery products which has three functions of lifting, traction, and tension. Used to manually move trees, stumps, vehicles or other loads that have to be moved. Especially suitable for narrow spaces or fields with no power. It features compact structure, high safety factor, and long service life. Except one rope traction machine, we also offer you a 25M long rope. Come and get one, our product is your best choice.

    • 【Rope Winch Hoist】- Rated Capacity: 800kg/1760lb, 1600kg/3500lb, 3200kg/7000lb.
    • 【Durable Material】- Aluminum alloy die casting housing, steel plate and shaft, designed for long-lasting use
    • 【Wire Rope】- Includes one 20m/65ft, 25m/82ft, or 40M/130Ft long steel rope with high breaking force and wear resistance
    • 【Overload Protection】- Overload protection with premium sheer pin, safety is ensured
    • 【Wide Use】- Perfect for narrow spaces or fields with no power
Feature
    • Durable and Stable
    Constructed of aluminum alloy die casting housing, steel plate and shaft, and 25m/82ft long steel rope, it has high breaking force and wear resistance.
    • High Quality Hooks
    Made of high strength alloy steel, hooks has high toughness after heat treatment. The hook will only deform but without brittle fracture even if the body is due to overload causing damage.
    • Easy Operation
    There' a forward handle, a backward handle and a detachable and extendable operating lever. Using 692-1200cm/22.7-39ft long operating lever, makes this work more easy.
    • Overload protection
    Overload protection ensures high personal safety when in operation.Specially built-in shear pins can be replaced without removing the load.
    • Anchor Pin
    Loads hook, wire rope and chain. Provides multifunctional linking modes for you. Tandem clamping system is safe and reliable.
    • Wide Application
    Field work, overhead work, artillery traction,communication erection, pipeline laying, power installation, tunnel and deep well operation, oil field and railway traction and all of no power locations in our life.
Specifications

    0.8T/1760LBS Load Hand Winch with 25M/82Ft Rope

    • Rated Capacity: 800kg/1760lb
    • Length of Wire Rope: 25m/82ft
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 341N
    • Rated Forward Travel(Sewing it front and backward): ≥52mm/2in
    • Rope Diameter: 8.3mm/0.3in
    • Wire Rope Safety Factor Load Capacity: 5
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 1200kg/2600lb
    • Net Weight: 6.4kg/14lb
    • Unit Size(LxWxH): 426x64x238cm/14x2x7.8ft

    1.6T/3500LBS Load Hand Winch with 20M/65Ft Rope

    • Rated Capacity: 1600kg/3500lb
    • Length of Wire Rope: 20m/65ft
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 438N
    • Rated Forward Travel(Sewing it front and backward): ≥55mm/2in
    • Rope Diameter: 11mm/0.4in
    • Wire Rope Safety Factor Load Capacity: 5
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 2400kg/5200lb
    • Net Weight: 12kg/26lb
    • Unit Size(LxWxH): 545x97x284cm/17.8x3x9.3ft

    1.6T/3500LBS Load Hand Winch with 25M/82Ft Rope

    • Rated Capacity: 1600kg/3500lb
    • Length of Wire Rope: 25m/82ft
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 438N
    • Rated Forward Travel(Sewing it front and backward): ≥55mm/2in
    • Rope Diameter: 11mm/0.4in
    • Wire Rope Safety Factor Load Capacity: 5
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 2400kg/5200lb
    • Net Weight: 12kg/26lb
    • Unit Size(LxWxH): 545x97x284cm/17.8x3x9.3ft

    1.6T/3500LBS Load Hand Winch with 40M/130Ft Rope

    • Rated Capacity: 1600kg/3500lb
    • Length of Wire Rope: 40m/130ft
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 438N
    • Rated Forward Travel(Sewing it front and backward): ≥55mm/2in
    • Rope Diameter: 11mm/0.4in
    • Wire Rope Safety Factor Load Capacity: 5
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 2400kg/5200lb
    • Net Weight: 12kg/26lb
    • Unit Size(LxWxH): 545x97x284cm/17.8x3x9.3ft

    3.2T/7000LBS Load Hand Winch with 20M/65Ft Rope

    • Rated Capacity: 3200kg/7000lb
    • Length of Wire Rope: 20m/65ft
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 438N
    • Rated Forward Travel(Sewing it front and backward): ≥28mm/1.1in
    • Rope Diameter: 16mm/0.63in
    • Wire Rope Safety Factor Load Capacity: 5
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 4000kg/9200lb
    • Net Weight: 23kg/50lb
    • Unit Size(LxWxH): 660x116x325cm/21x3.8x10ft

    3.2T/7000LBS Load Hand Winch

    • Rated Capacity: 3200kg/7000lb
    • Length of Operating Lever: 692-1200cm/22.7-39ft
    • Rated Forward Handpower: 438N
    • Rated Forward Travel(Sewing it front and backward): ≥28mm/1.1in
    • Safety Factor & Static Load Capacity: 4
    • Max Traveling Load: 4000kg/9200lb
    • Packing Weight: 26kg/58lb
    • Unit Size(LxWxH): 660x116x325cm/21x3.8x10ft
Package Content
    • 1 x 0.8T/1760LBS Load Hand Winch with 25M/82Ft Rope
    • 1 x 1.6T/3500LBS Load Hand Winch with 20M/65Ft Rope
    • 1 x 1.6T/3500LBS Load Hand Winch with 25M/82Ft Rope
    • 1 x 1.6T/3500LBS Load Hand Winch with 40M/130Ft Rope
    • 1 x 3.2T/7000LBS Load Hand Winch with 20M/65Ft Rope
    • 1 x 3.2T/7000LBS Load Hand Winch
