24-Ways Adjustable Coilover Spring Shocks for BMW E36 316i; 318i 323i; 325i 328








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

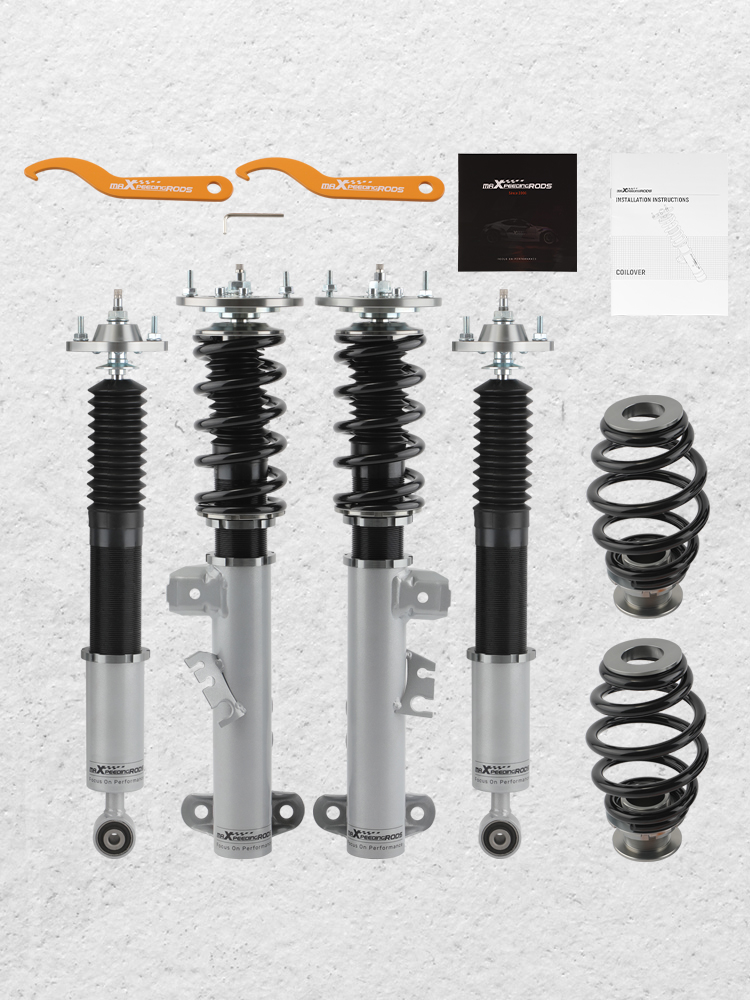

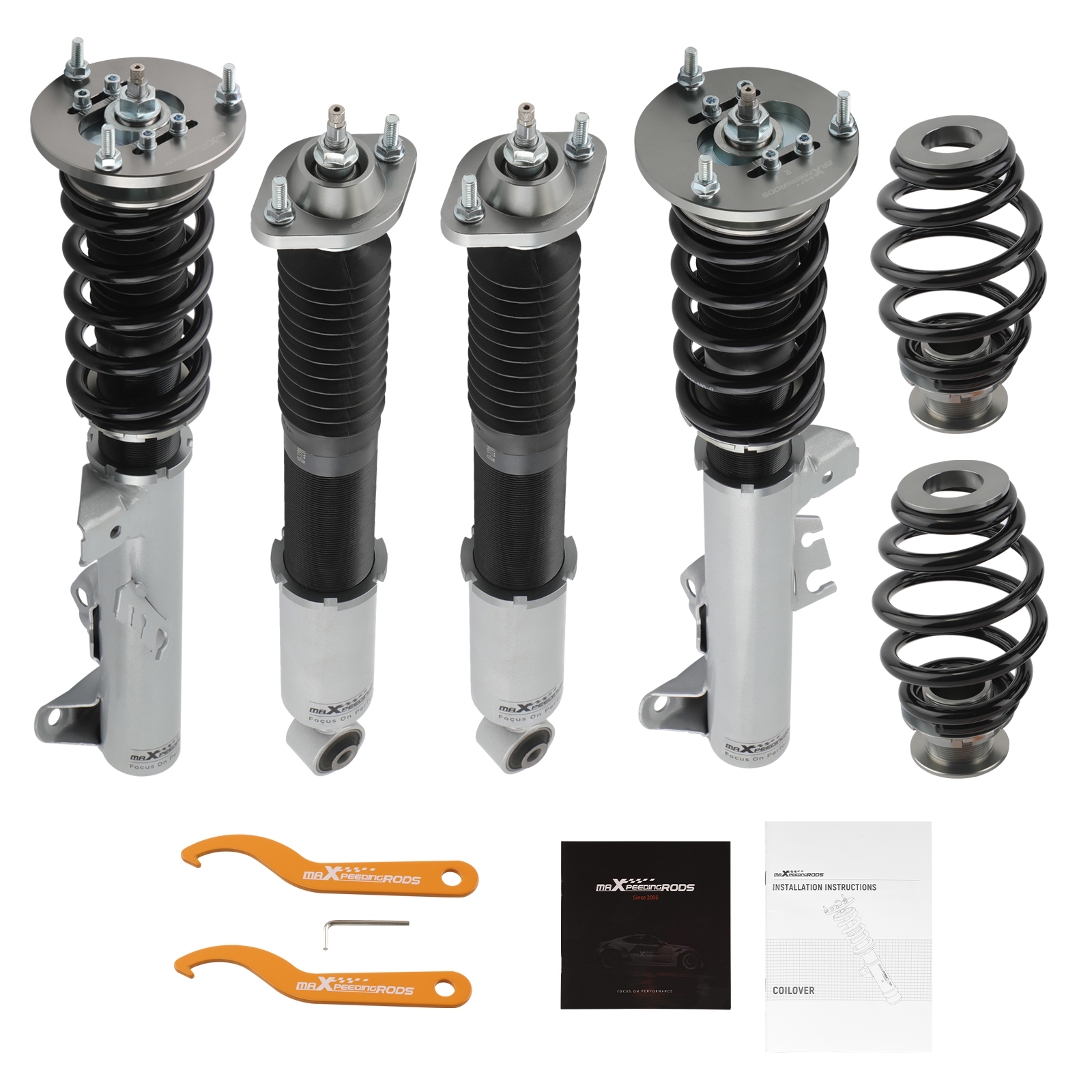

Package included
  • 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
  • 1 x Pair of wrenches for height adjustment



Application

  • For BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; M3 (09/1990-12/1998)
  • For BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; M3 (09/1991-04/1999)
  • For BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; M3 (03/1993-04/1999)
  • For BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

Standard Technical Specifications


Front top mount Pillow ball top mount with camber plate
Rear top mount Pillow ball top mount

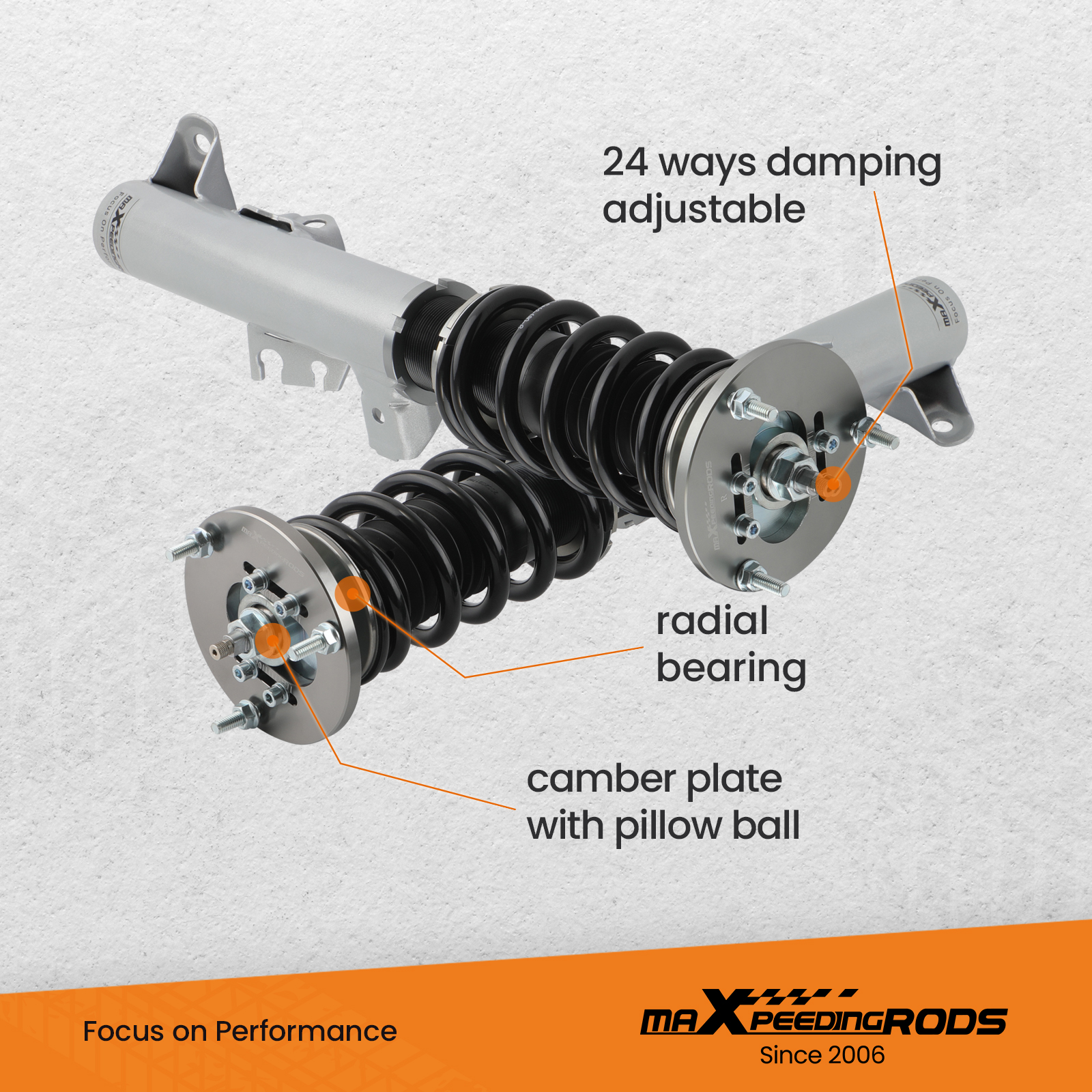

Damping adjustable Available, 24 levels of rebound damping force
Camber adjustable Available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Shock structure type twin -tube
Spring length Front 180mm
Spring length Rear 183mm
Spring rate Front 8 kg/mm (448 lbs/in)
Spring rate Rear 7 kg/mm (392 lbs/in)
Spring Preload advised 7-10 mm
Coilover overall length Front 560mm-683mm
Coilover overall length Rear 520mm-615mm

Details

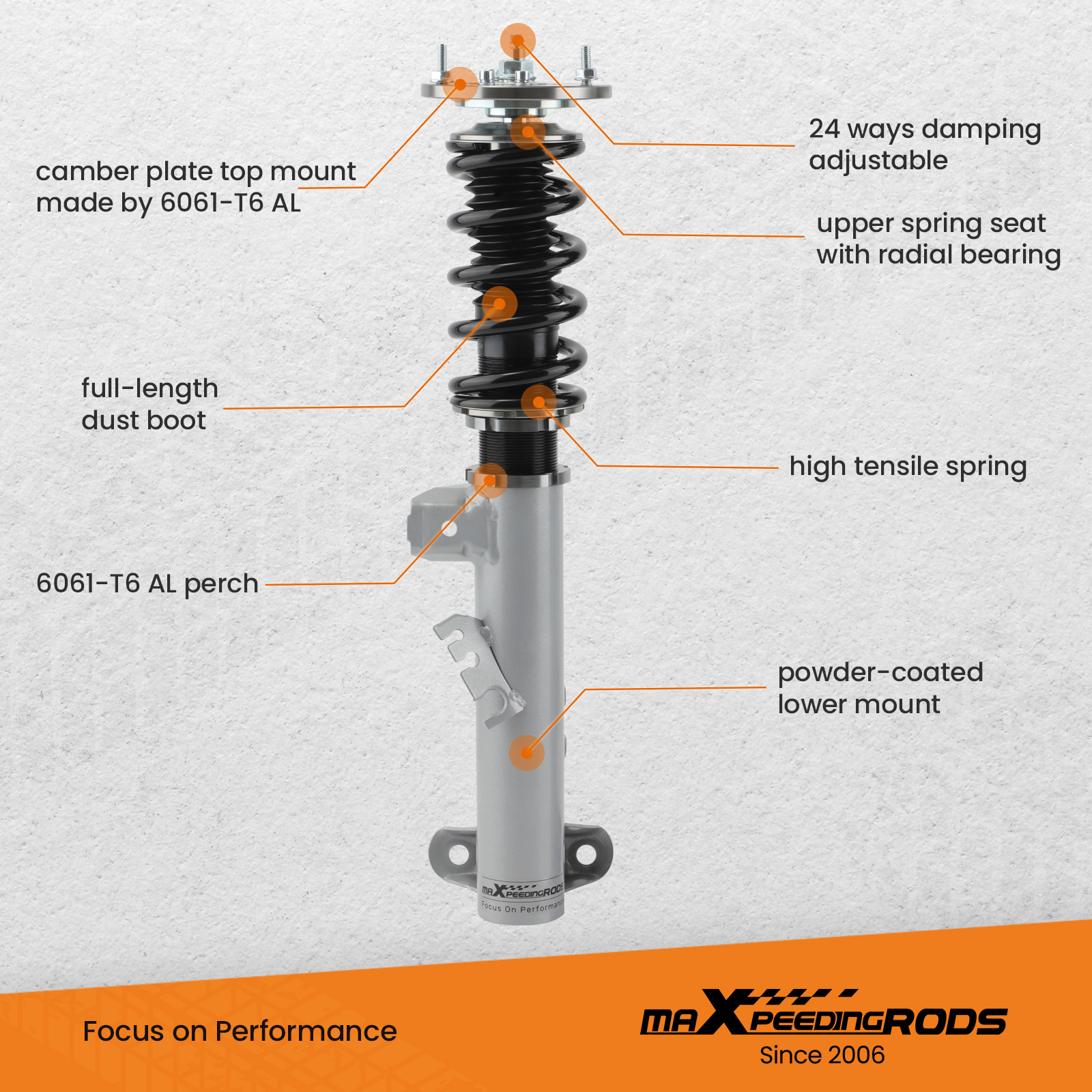

Feature

  1. Lowered height adjustment from 25-75mm which allow lower center of gravity and also add a more aggressive stance
  2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
  3. Twin-Tube structure allows sufficient stroke within the shock absorber
  4. Separate height adjustment does not affect damper stroke

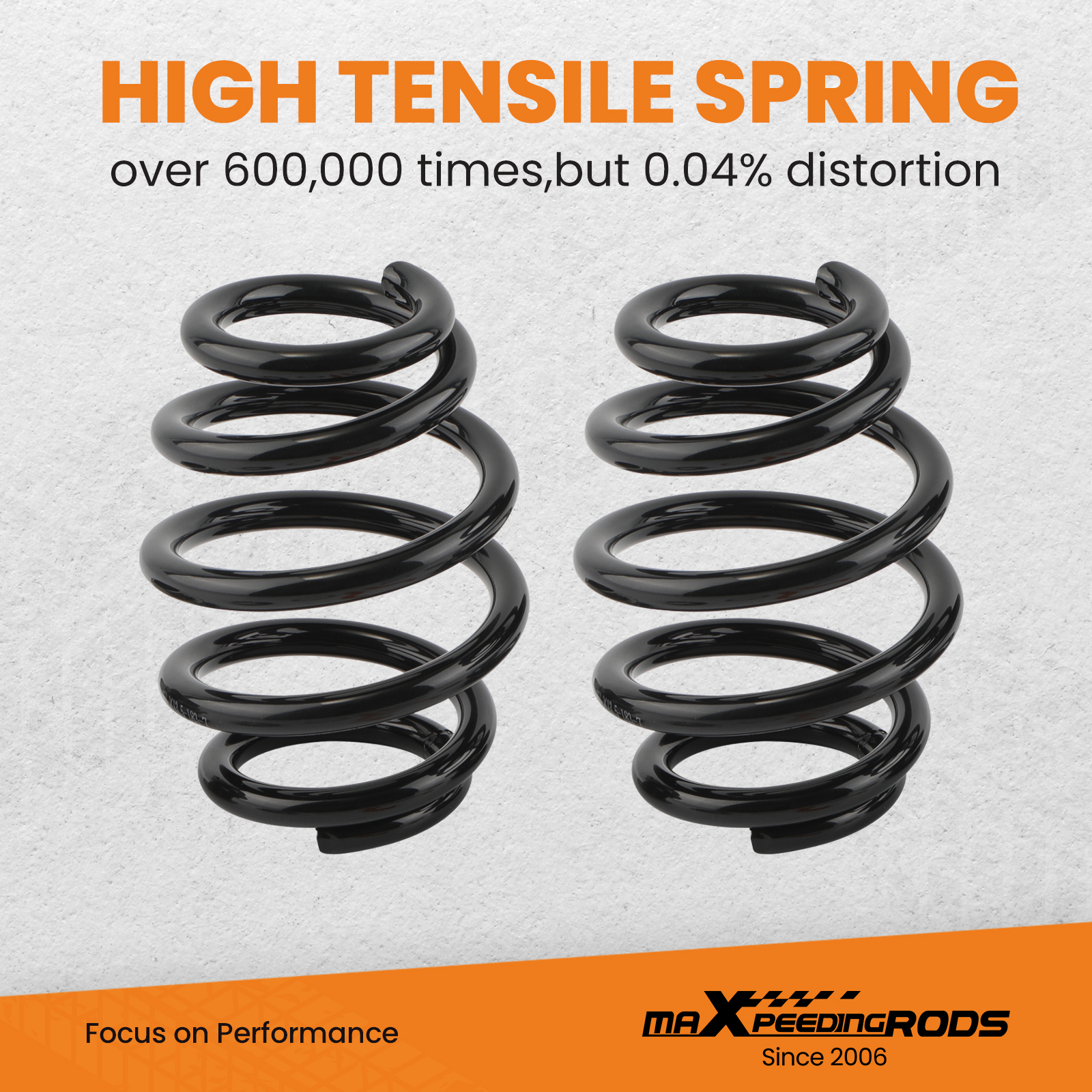

  5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
  6. Height Adjustment tools included

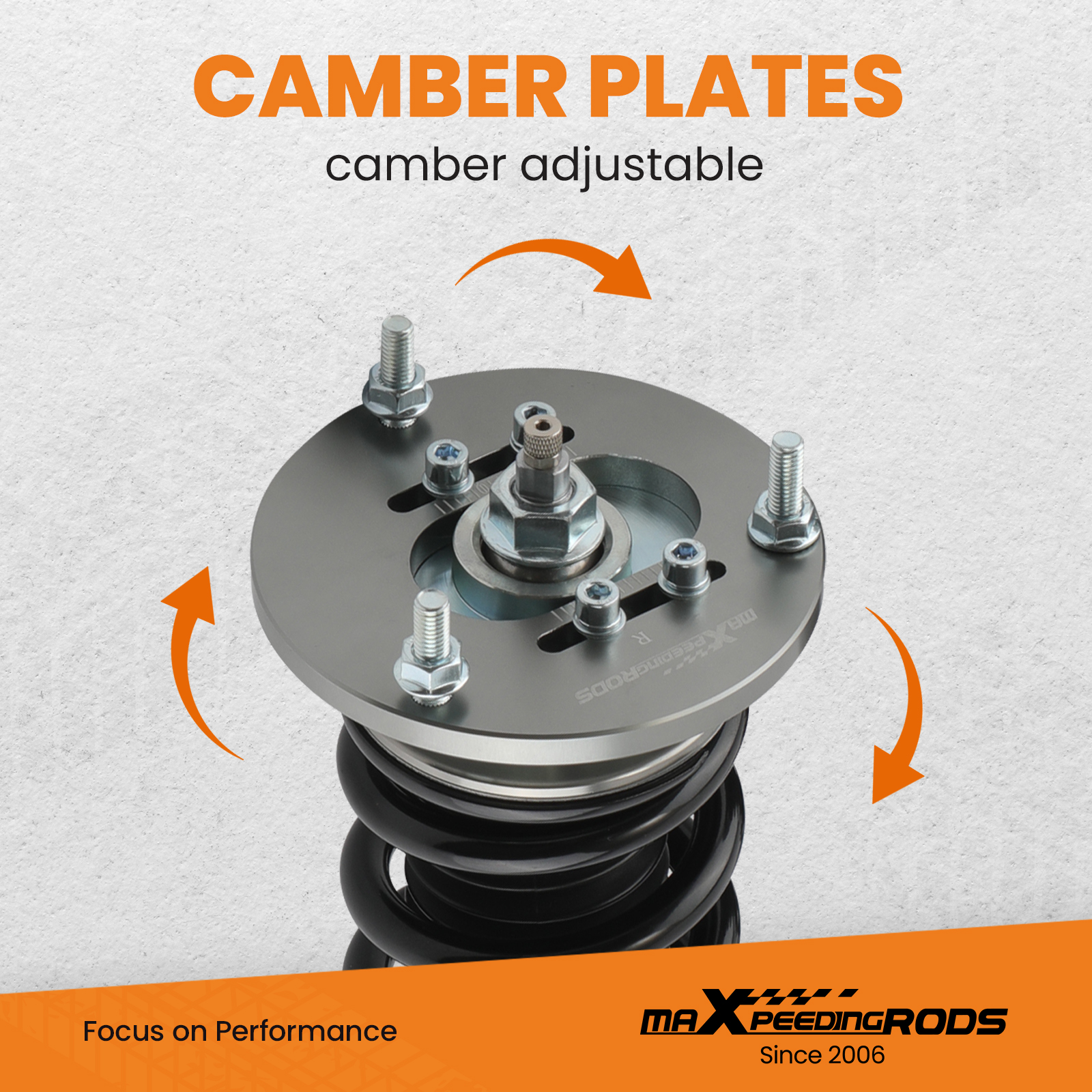

  7. Camber plate top mounts help to eliminate the need for a separate camber kit
  8. Pillow ball top mount - It improves the steering feel and response

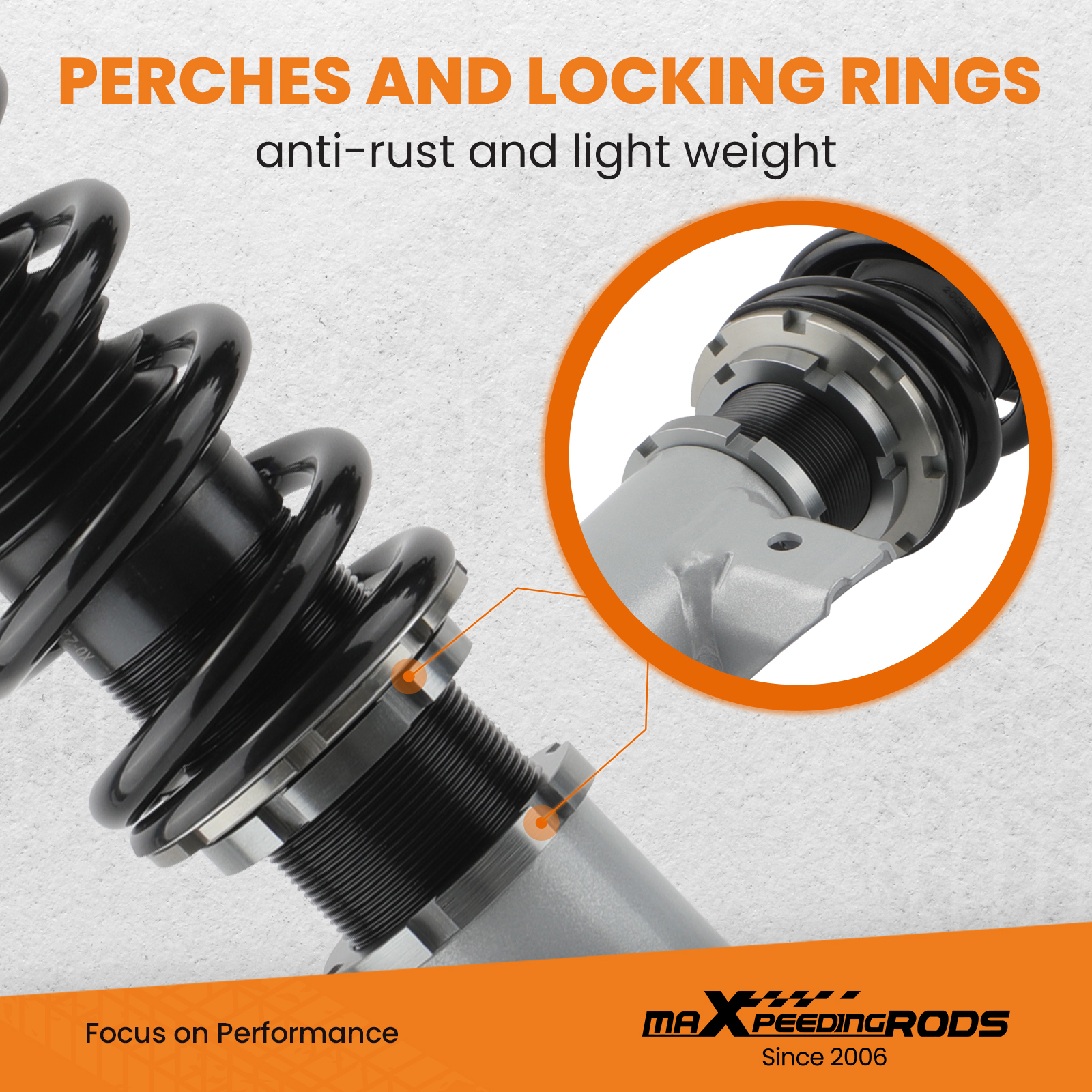

  9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
  10. Full rebuildable


Other items you might also like

  • Coilovers Strut Kit Fit For Honda Civic Si FD1 FD2 FD7 FA1 FG1 Coupe Sedan 06-11 Coilovers Strut Kit Fit For Honda Civic Si FD1 FD2 FD7 FA1 FG1 Coupe Sedan 06-11
  • Coilovers Suspension Kit for VW Golf MK2 MK3 Hatchback 1991-2000 Jetta II 84-92 Coilovers Suspension Kit for VW Golf MK2 MK3 Hatchback 1991-2000 Jetta II 84-92
  • Adjustable Damper Coilovers for Acura RSX Type-S for for Honda Integra DC5 01-06 Adjustable Damper Coilovers for Acura RSX Type-S for for Honda Integra DC5 01-06
  • Adjustable Damper Coilover Kit For Toyota Corolla 2009-2017 E140/E160/E150/E170 Adjustable Damper Coilover Kit For Toyota Corolla 2009-2017 E140/E160/E150/E170
  • Coilover Suspension Kit Fit For Infiniti G35x 2003-2008 AWD / G37x 2008-2013 AWD Coilover Suspension Kit Fit For Infiniti G35x 2003-2008 AWD / G37x 2008-2013 AWD
  • Coilover Spring & Shock Kit For BMW 3-Series E90 E91 335i 330i RWD 2004-2011 Coilover Spring & Shock Kit For BMW 3-Series E90 E91 335i 330i RWD 2004-2011
  • Coilovers Kit Shock Spring For BMW E60 525xi 535xi 528i Xdrive AWD 2004-2010 Coilovers Kit Shock Spring For BMW E60 525xi 535xi 528i Xdrive AWD 2004-2010
  • 24 Damping Levels Coilover Shocks For Mazda MX5 Miata MX-5 NA I NB II 1989-2005 24 Damping Levels Coilover Shocks For Mazda MX5 Miata MX-5 NA I NB II 1989-2005
  • Coilovers Shocks For Honda Civic EJ EG EH EK 1992-2000 Complete Suspension Kit Coilovers Shocks For Honda Civic EJ EG EH EK 1992-2000 Complete Suspension Kit

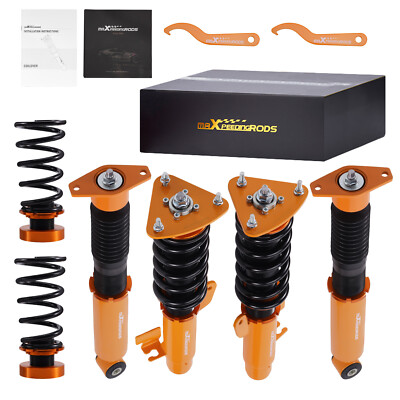

  • Street Coilovers Shock Absorber For Mazda 3 Mazdaspeed3 2003–2009 2010-2013 Street Coilovers Shock Absorber For Mazda 3 Mazdaspeed3 2003–2009 2010-2013
