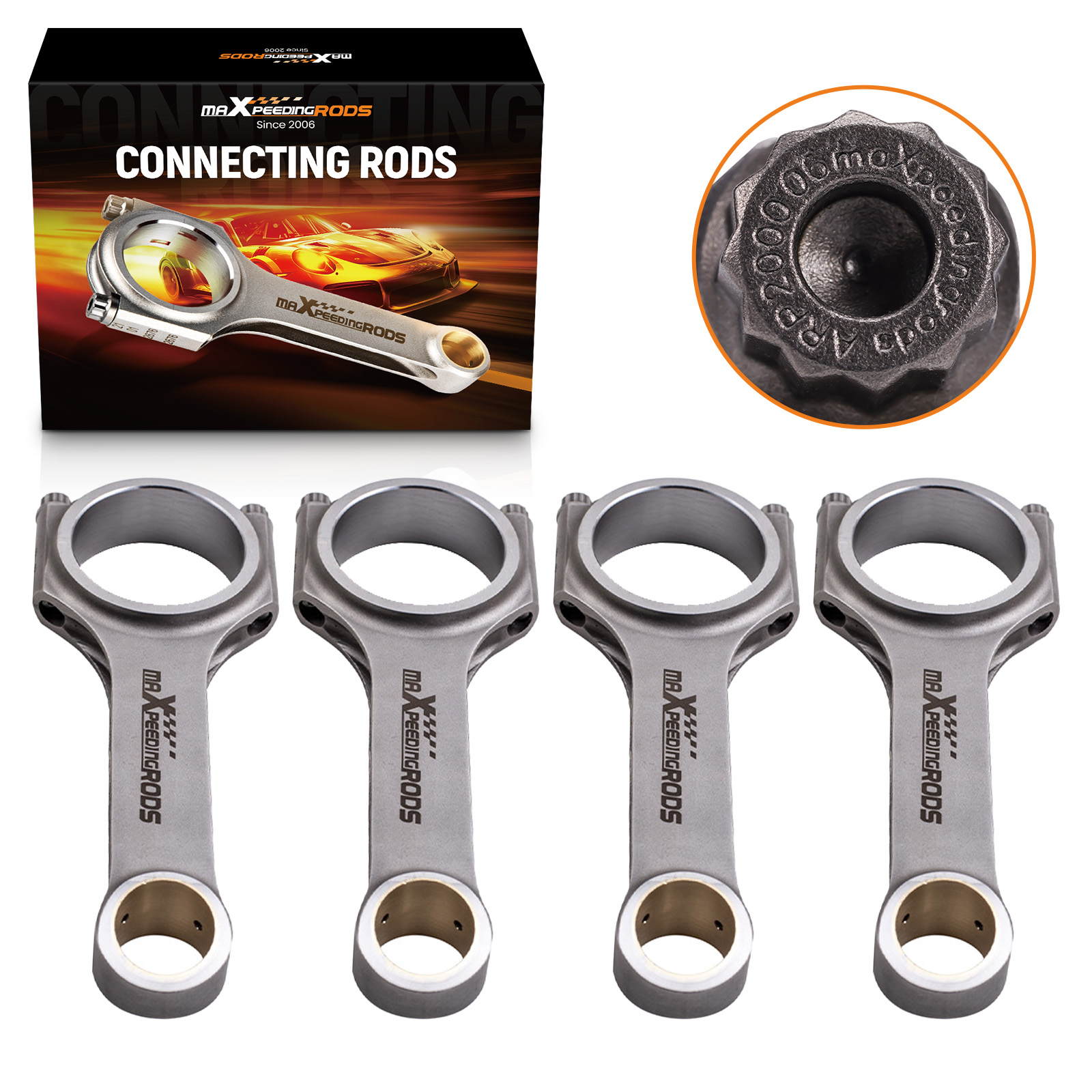

Performance Conrod Connecting Rods For Audi S3 1.8T 20vT APY AMK 1999–2001 20mm

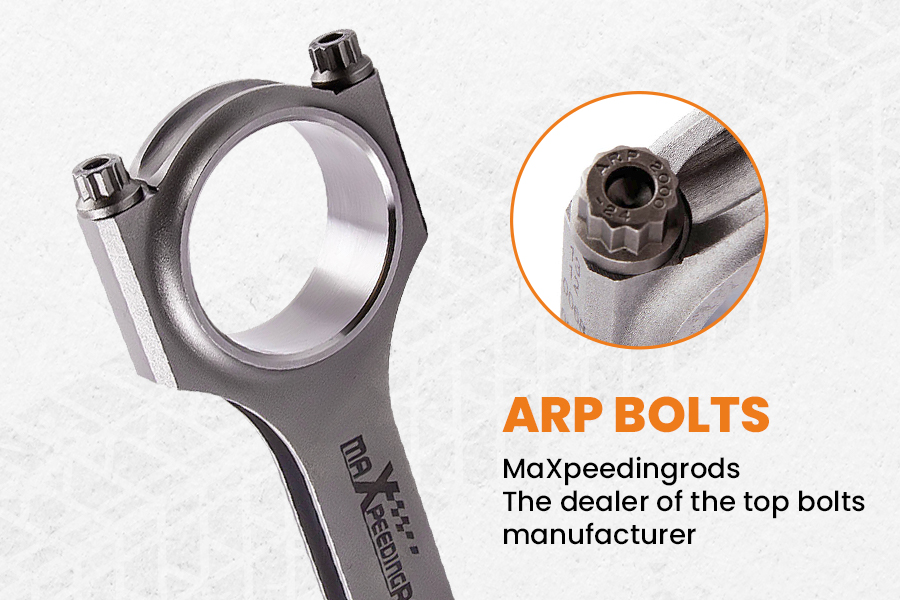

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

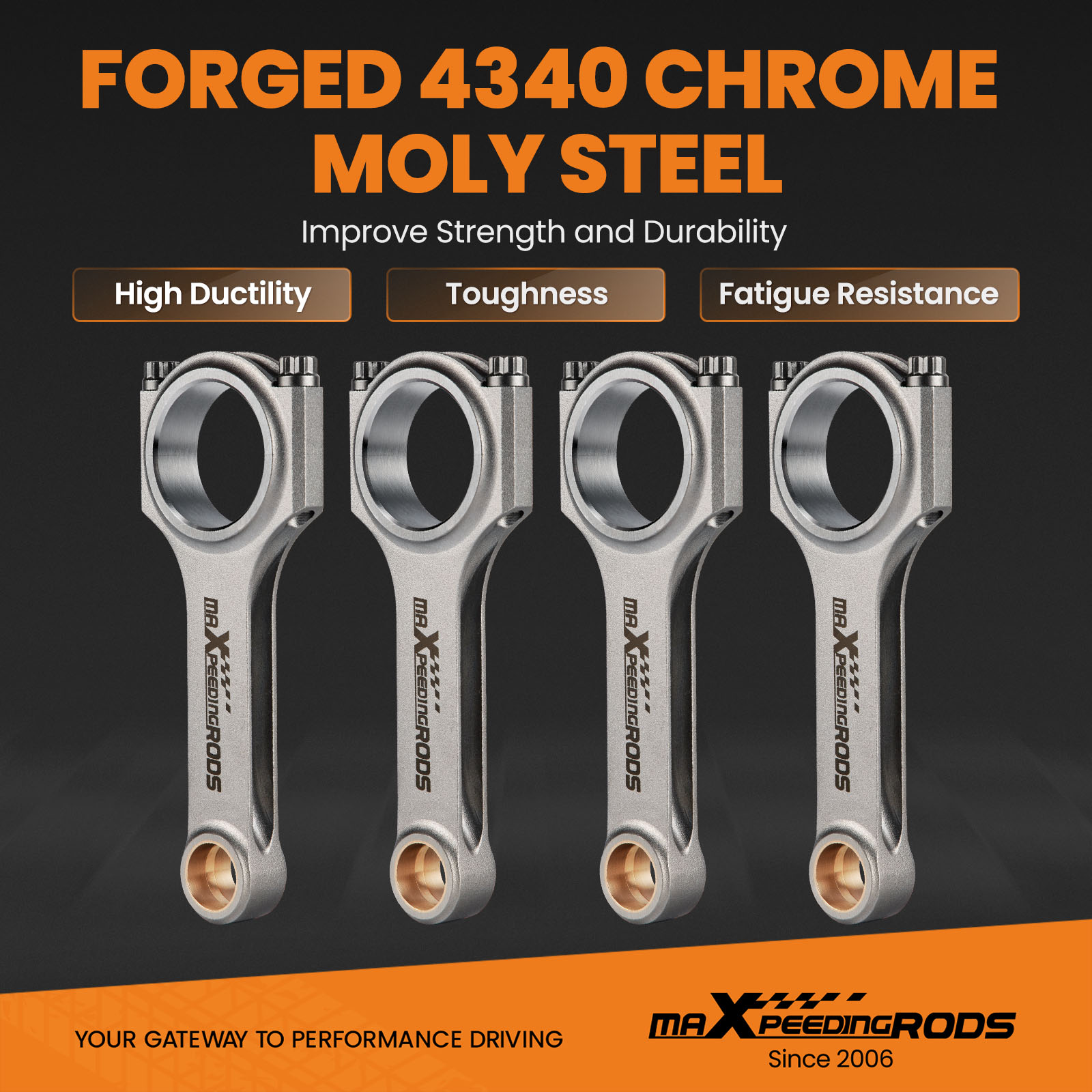

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

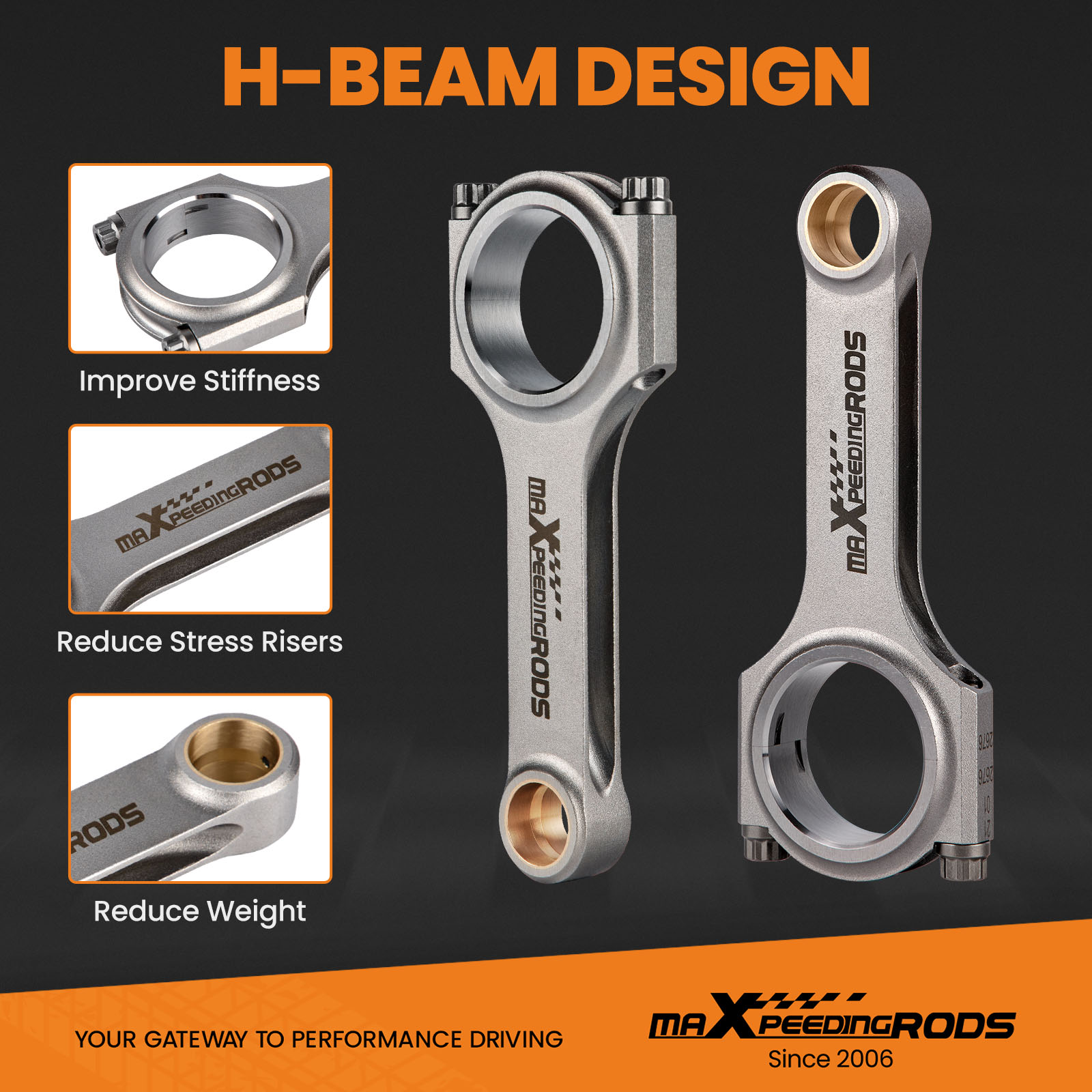

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

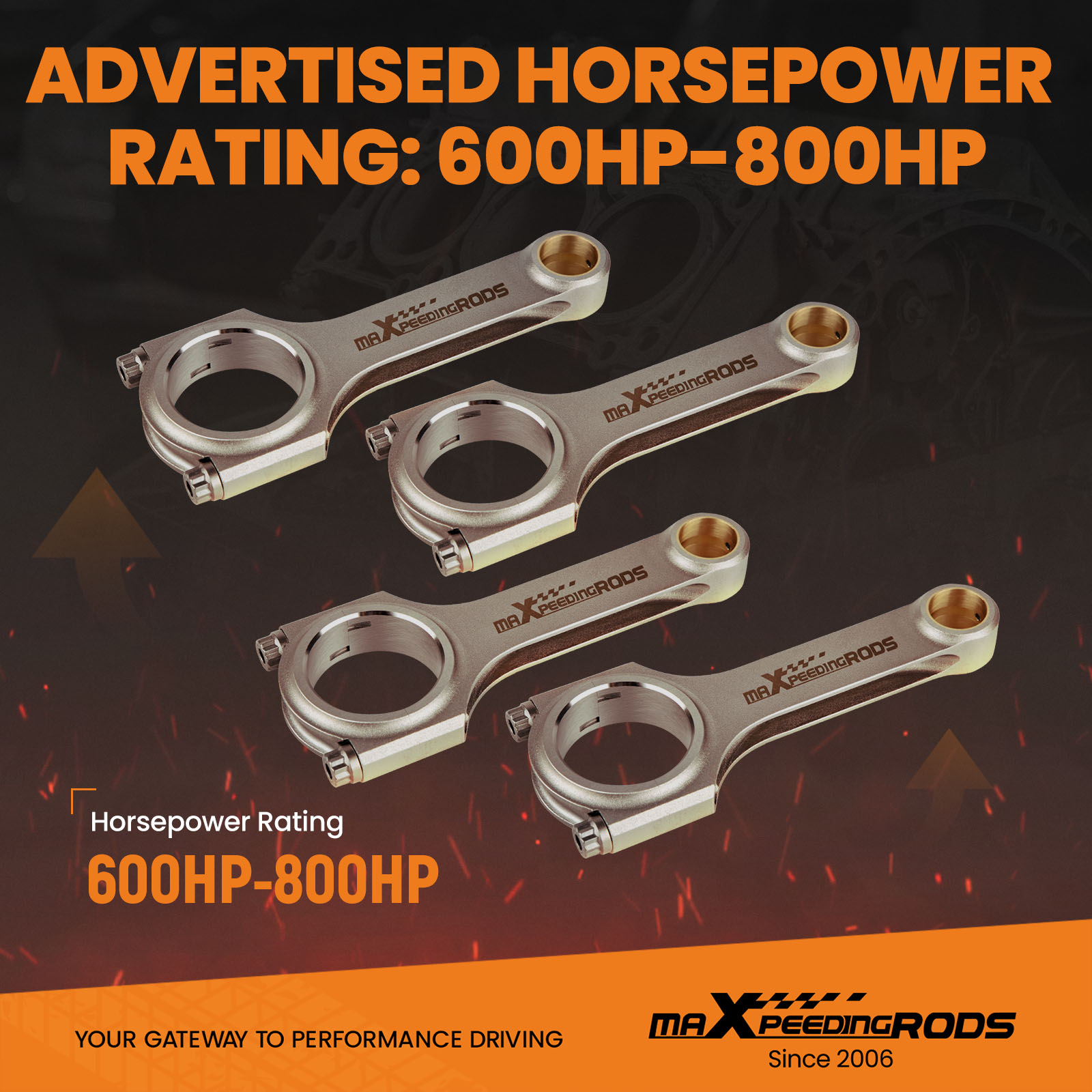

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

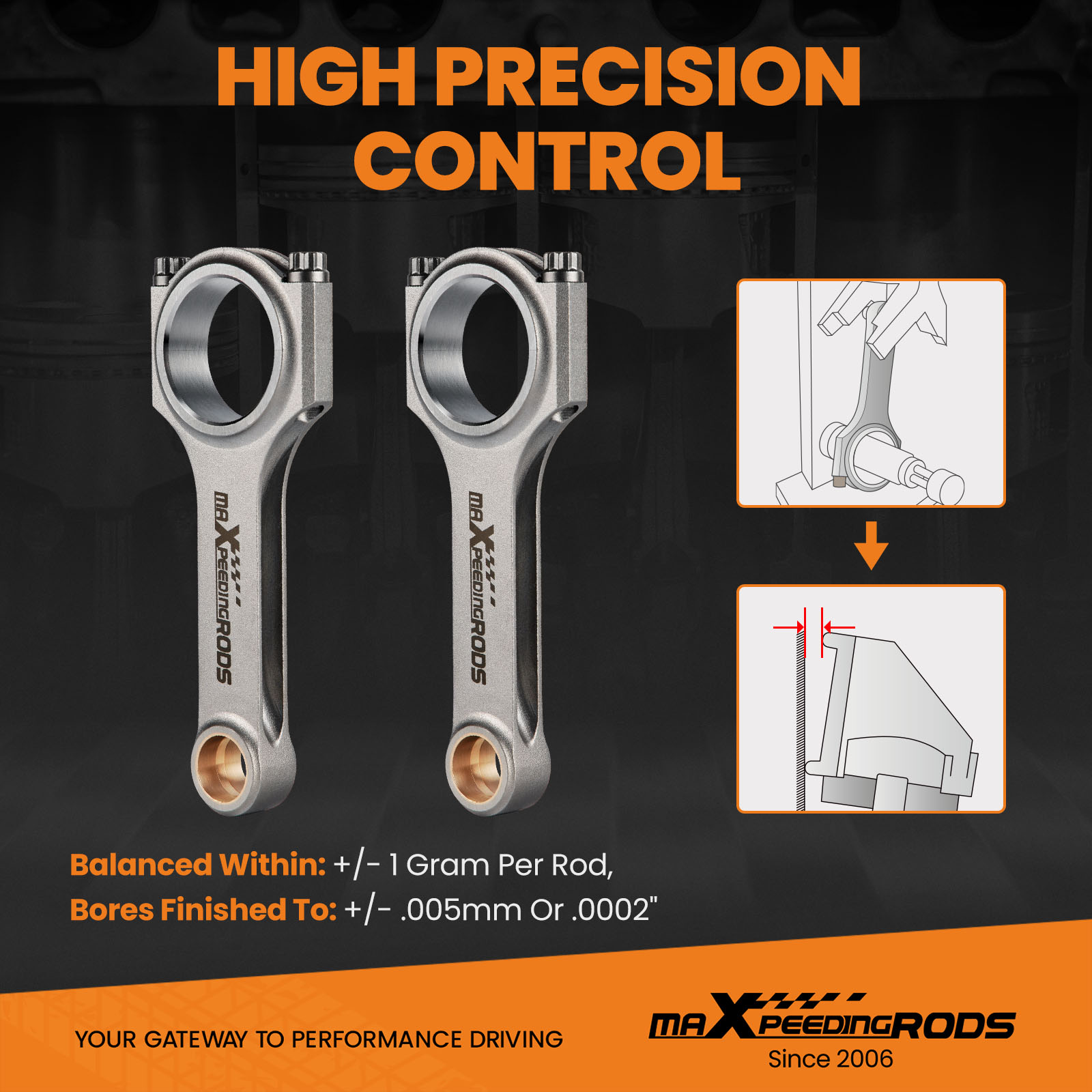

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

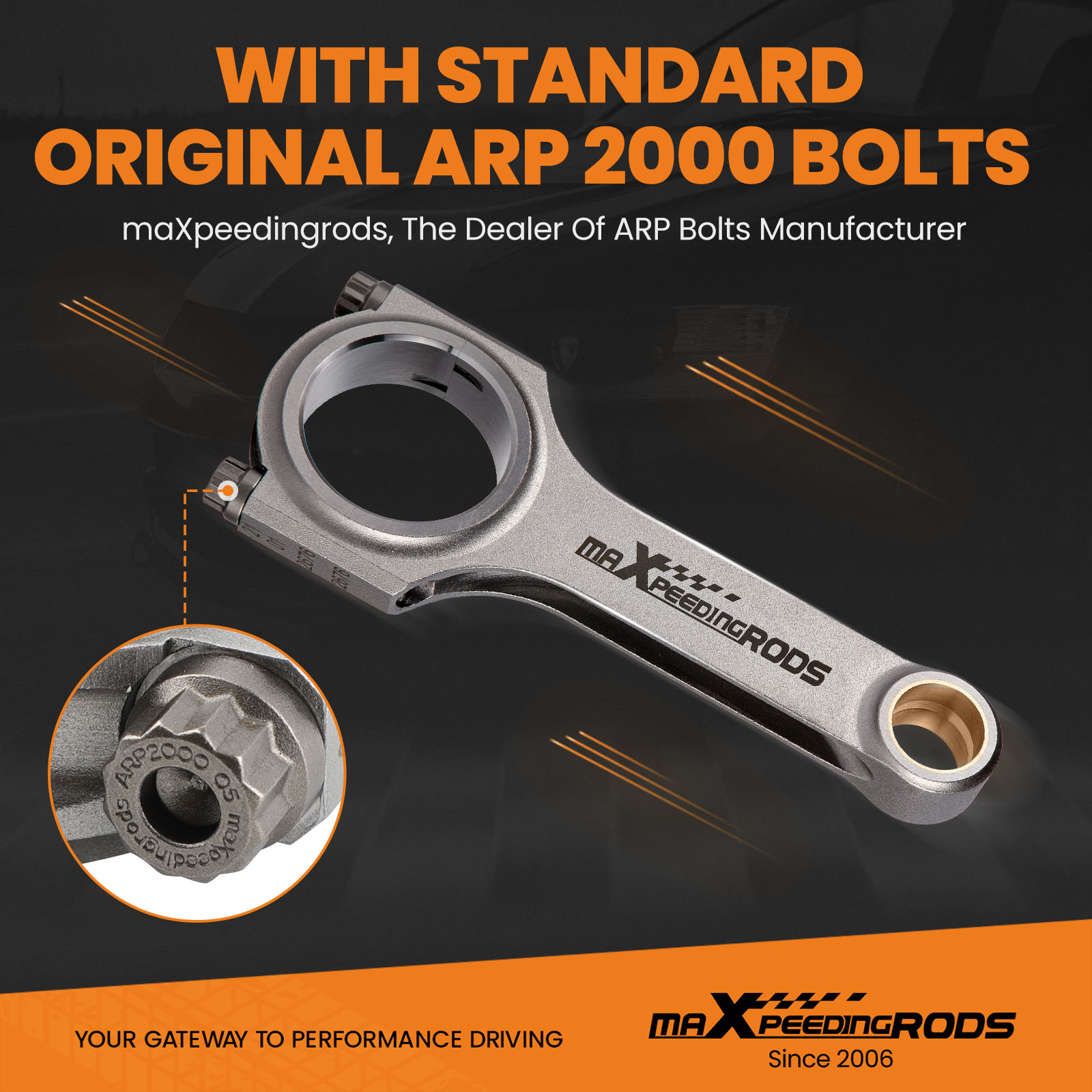

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

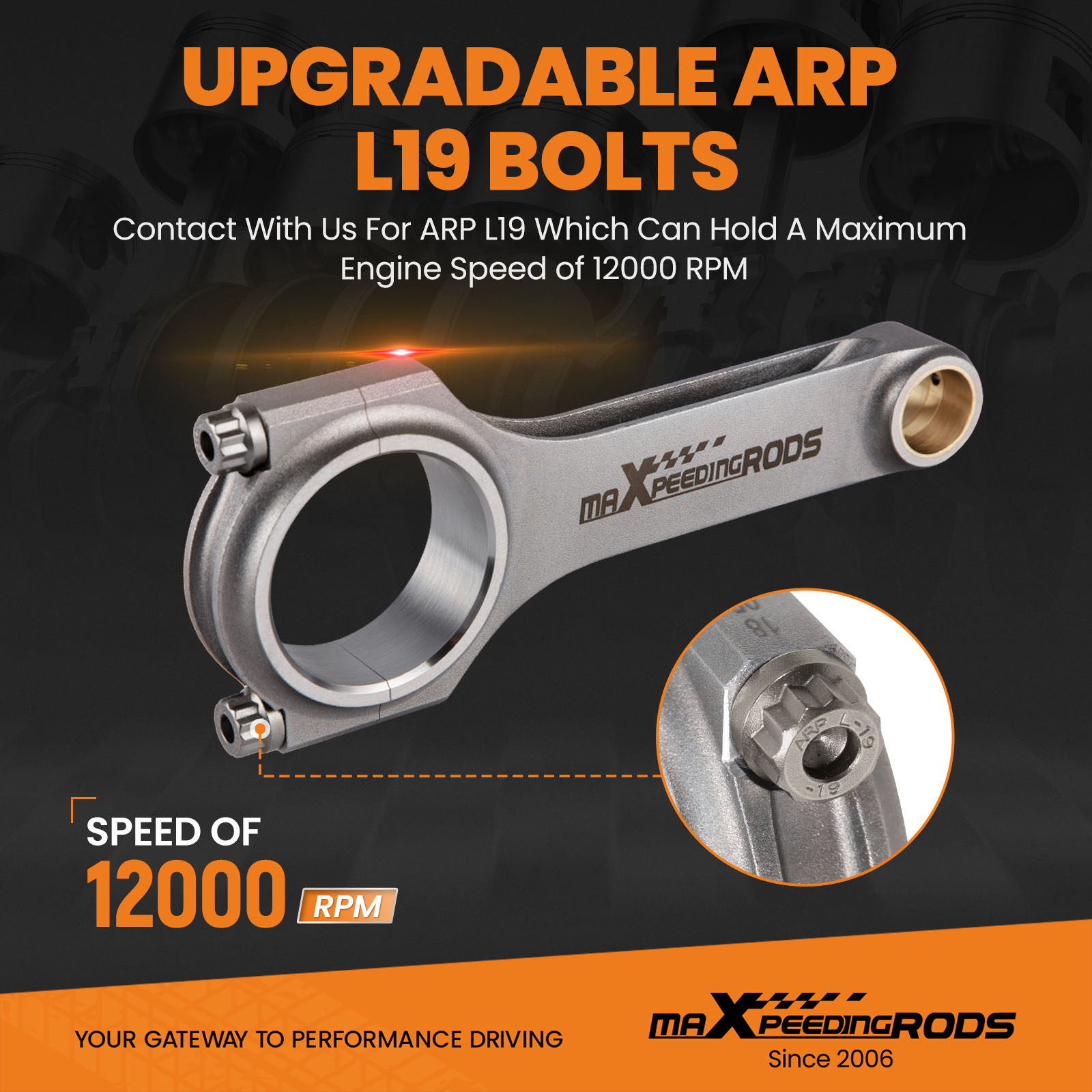

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

For Audi / Volkswagen	1.8L 20V DOHC Turbo Engine
Engine Family	EA113 1.8T (1781cc Inline 4)
Compatible Engine Codes	For AEB, AGU, ARZ, AUM, APY, AMK, BAM, ANB, ATW, AVC
For Audi	A3 1.8 20vT AGU/ARZ/ARX/AUM/AQA 1996–2003
For Audi	S3 1.8 20vT APY AMK 1999–2001
For Audi	S3 1.8 20vT BAM AEB 2001–2003
For Audi	A4/A6 1.8 20vT (AEB ANB APU ARK)
For Audi	TT Quattro 1.8T BAM AEB
For VW	Golf 1.8T (GTi AGU ARZ)
For VW	Jetta New Beetle 2001–present
For VW	Passat 1.8T (AEB ANB ATW)
For VW	Beetle 1.8T (AVC)
For VW	Bora 1.8T (AGU)
For Seat	Ibiza 1.8T (AYP AQX)

Dimension

Connecting Rod Length Center to Center	144.00mm / 5.669in
Approximate Connecting Rod Weight	623g
Big End Bore Diameter	50.60mm / 1.992in
Pin End Bore Diameter	20.00mm / 0.787in
Big End Width	24.90mm / 0.980in
Small end width	24.90mm / 0.980in

Specification

Beam Design: H-Beam Street & Track Spec
Material: 4340 Chromoly Steel
Surface Finish: Shot Peened
Gudgeon Pin Type: Floating
Stroker Clearance Ready: Yes
Cap Fastening Design: Through-Bolt
Conrod Bolt Brand: ARP
Conrod Bolt Diameter: 3/8"
Conrod Bolt Material: Alloy Steel
Fastener Yield Strength: 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) – Optional
Bolt Head Type: 12-Point
CNC Machining: High Precision
Rod Cap Location: Precision Dowelled
Bore Machining Tolerance: ±0.005 mm
Balancing Tolerance: ±1 gram per rod
Weight Matched Set: Supplied As Standard
Remanufactured Item: No
Quality Testing: Magnaflux Tested, X-Ray Inspected, Ultrasonic Tested
Heat Treated: Yes

Performance Ratings

Power Rating: 200 HP Per Conrod
Max Rated RPM: 9,000 RPM

Packaging

Quantity: Sold as a set of 4
Package Dimensions: 28CM × 20CM × 10CM

	See Details	See Details	See Details
Beam Type	H-Beam	I-Beam	H-Beam

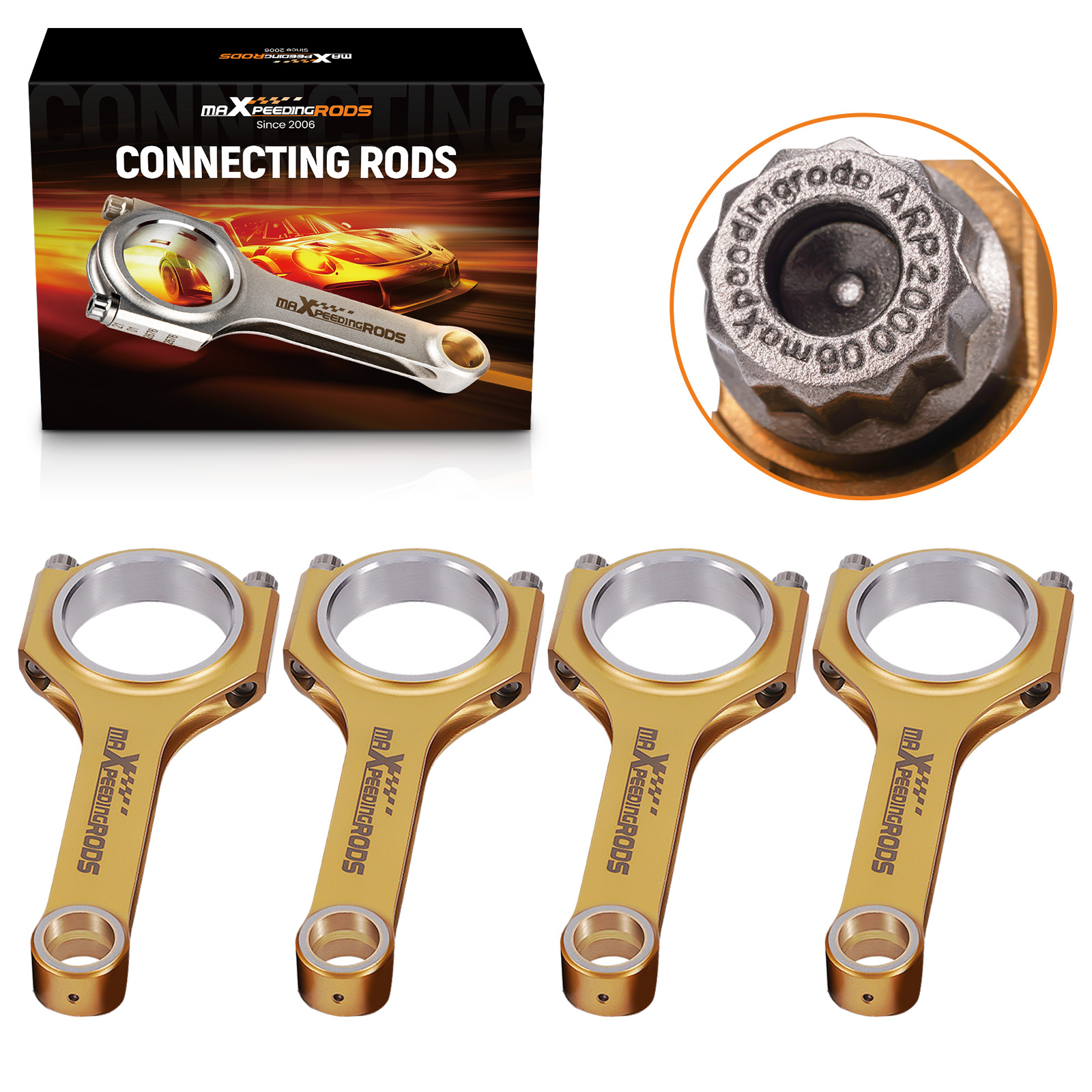

Material	Forged 4340 Chrome Moly Steel	Forged 4340 Chrome Moly Steel	Titanizing Forged 4340 Chrome Moly Steel
Application	For Audi VW 1.8T 20V 1.4L TFSI	For Audi VW Golf Gti 1.8T 2.0L 16V 20V 4Cyl	For Audi VW Golf Gti 1.8T 2.0L 16V 20V 4Cyl
C-C Length	144mm / 5.670"	144mm / 5.670"	144mm / 5.670"
Big end diameter	50.6mm / 1.992"	50.6mm / 1.992"	50.6mm / 1.992"
Small end diameter	19mm / 0.748" (tapered small end)	20mm / 0.787"	20mm / 0.787"
Big end width	19.9mm / 0.784"	24.9mm / 0.980"	24.9mm / 0.980"
Small end width	19.9mm / 0.784"	24.9mm / 0.980"	24.9mm / 0.980"
