Description



Application


For BMW 5 series (E60)2004-2010 Sedan AWD

Model: 525xi, 528xi, 530xd, 530xi, 535xi, 525xd, 530xd, 535xd


Note:

- Will not fit models with air suspension.
- The front damper knuckle insert diameter is 56.8mm.
- Please verify the model and dimensions before purchasing to ensure compatibility.





Specification



Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Front top mount: Pillow ball
Rear top mount: Standard rubber
Damping adjustable: Not available
Camber adjustable: Not available
Spring Rate Front: 10 kg/mm(560lbs/in)
Spring Rate Rear: 7 kg/mm(392lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 200 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Shock type: twin tube

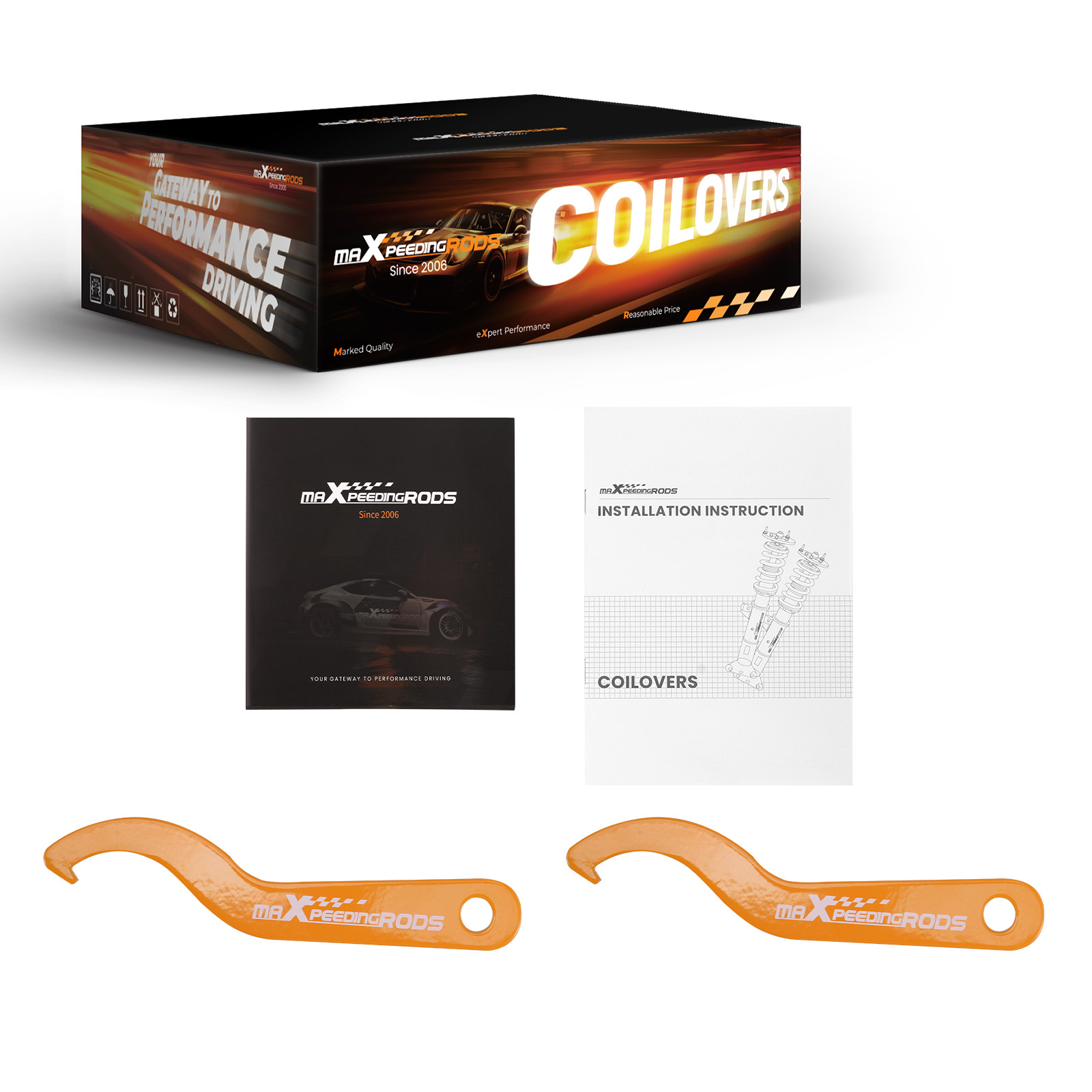

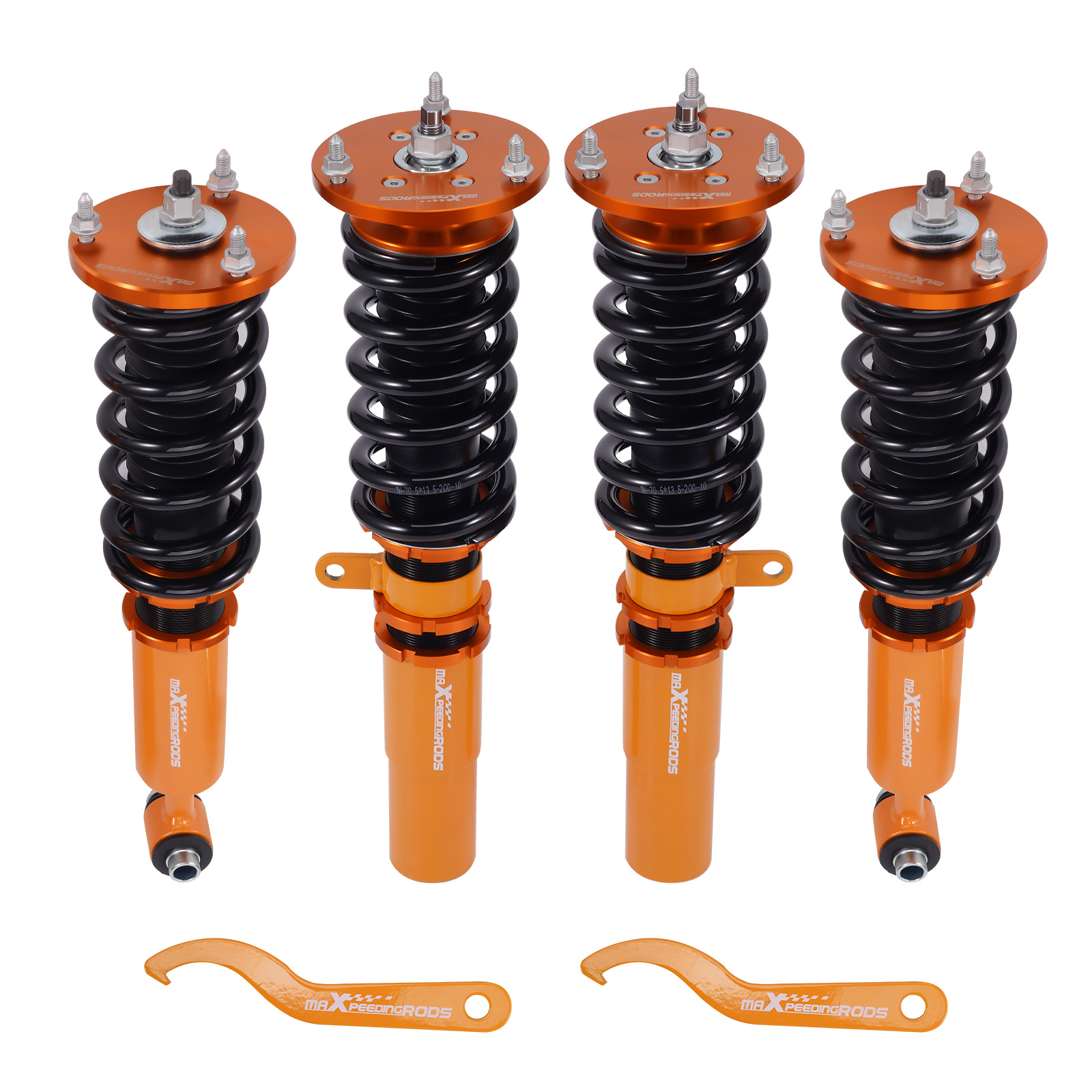

Package included



2x Front coil-overs
2x Rear coil-overs
2x C spanners




Feature



1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts




Note



1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.



We will ship your order in one business day once the payment is cleared.

Tracking number will be uploaded to eBay within 24 hours after shipment.


Notice:

1. We only ship the item to PayPal verified shipping address. Please make sure your shipping address is the same as PayPal.

2. Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.

3. We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .


All products have 2 years warranty (unless otherwise stated ). If you have a problem with our product, please contact us via eBay messages first Full details of warranty are as follows:


If Goods become faulty during the period of the warranty for reasons unconnected with your acts, omissions or misuse of the Goods, you must notify us in writing and/or by completing a warranty claim form (including a description of the fault) and return such Goods to us. Such Goods shall be followed the return procedure and returned to the manufacturer for review, testing and examination, and the manufacturer will not arrange collection for the product. Based on the manufacturers' opinion, we will be afforded reasonable opportunity and facilities to investigate any claims made under the Warranty.


The above warranty is given by us subject to you having no liability in respect of any defect arising from wear and tear, willful damage, negligence, tampering of the Goods, incorrect fitting of the Goods by you and/or a third party, abnormal working conditions, failure to follow our and/or the Goods' manufacturers' instructions (whether oral or in writing), misuse or alteration or repair of the Goods without our approval.
