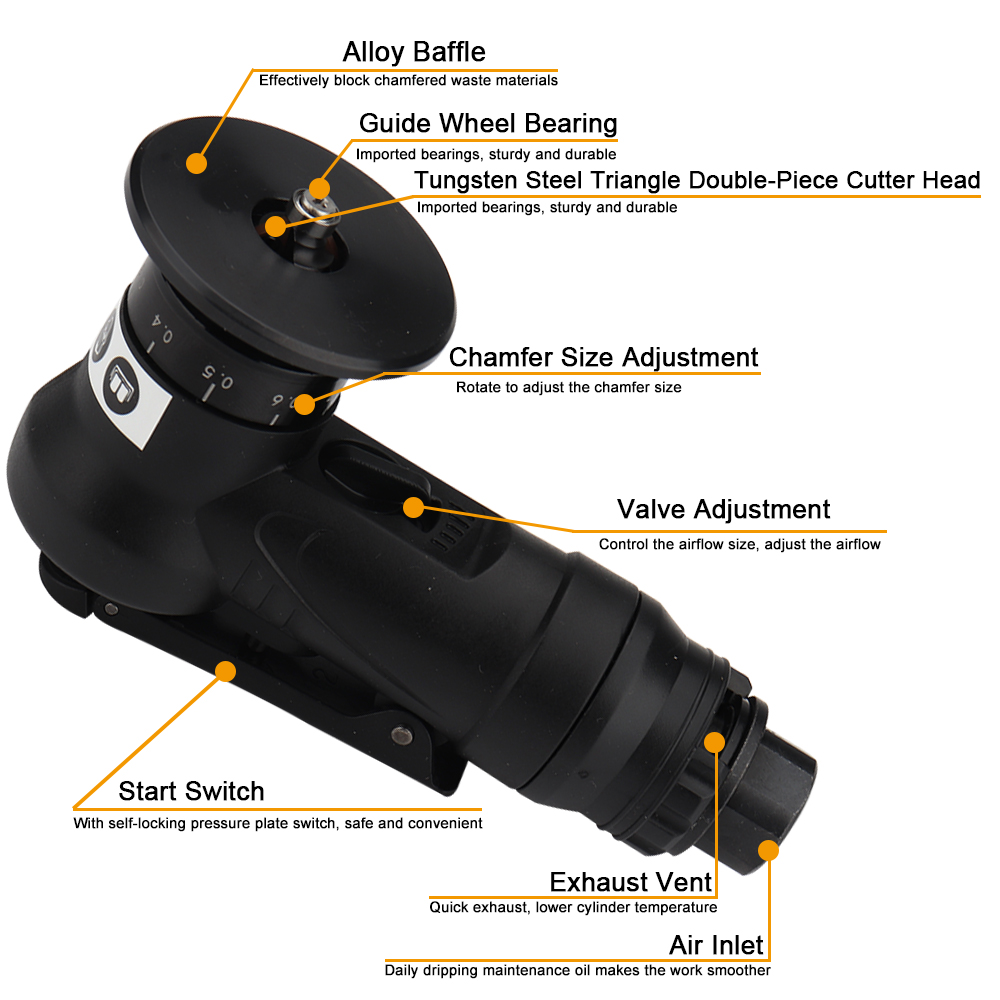

Features:

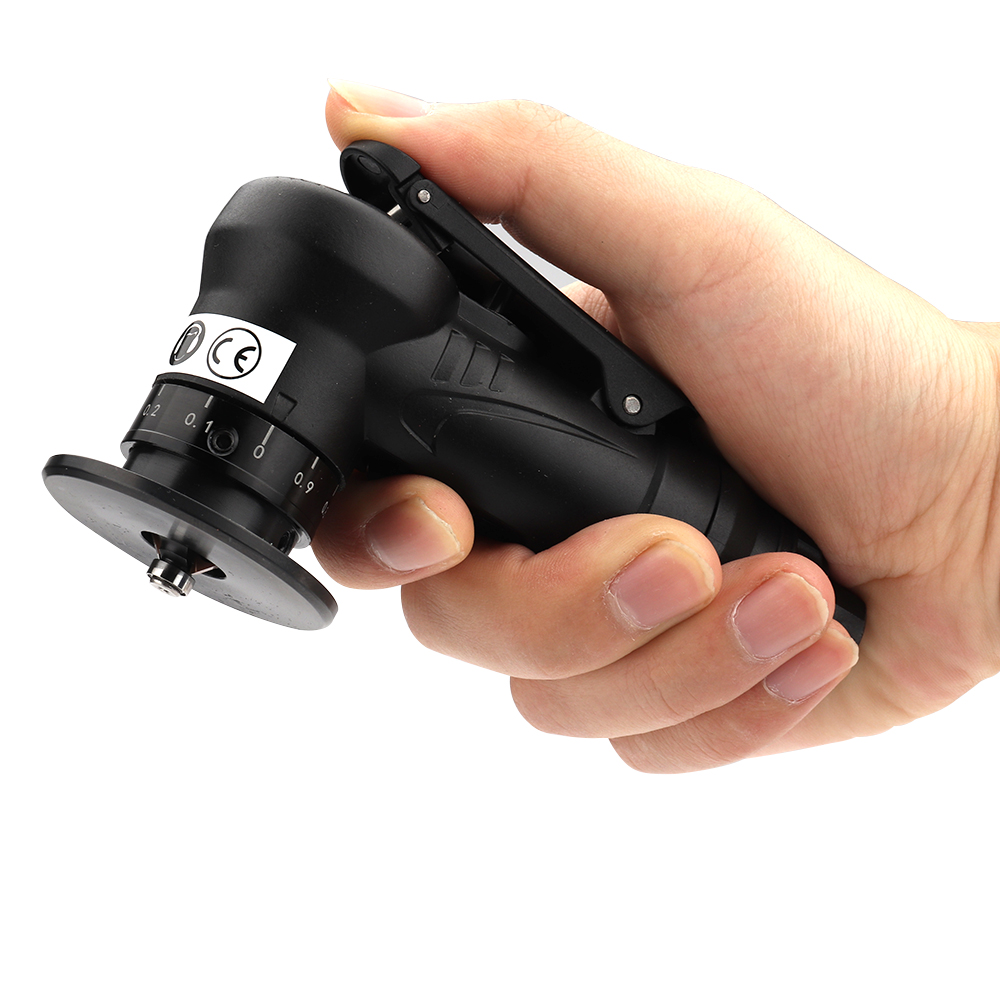

-Mini pneumatic chamfering machine portable 45 Degree adjustable depth chamfer machine ,easy operation with one hand, fast cutting right and round corners.
-Double head design,it can adjust the depth by itself,automatically clamp the fixed screw firmly and not easy to fall off.
-Smooth chamfering, no ripple, no noise, no heating after long-term use, stable operation and long service life.
-Five-speed intake air volume adjustment, speed change to improve blade lifeand the air intake can be adjusted freely,make the operation simple and convenient.

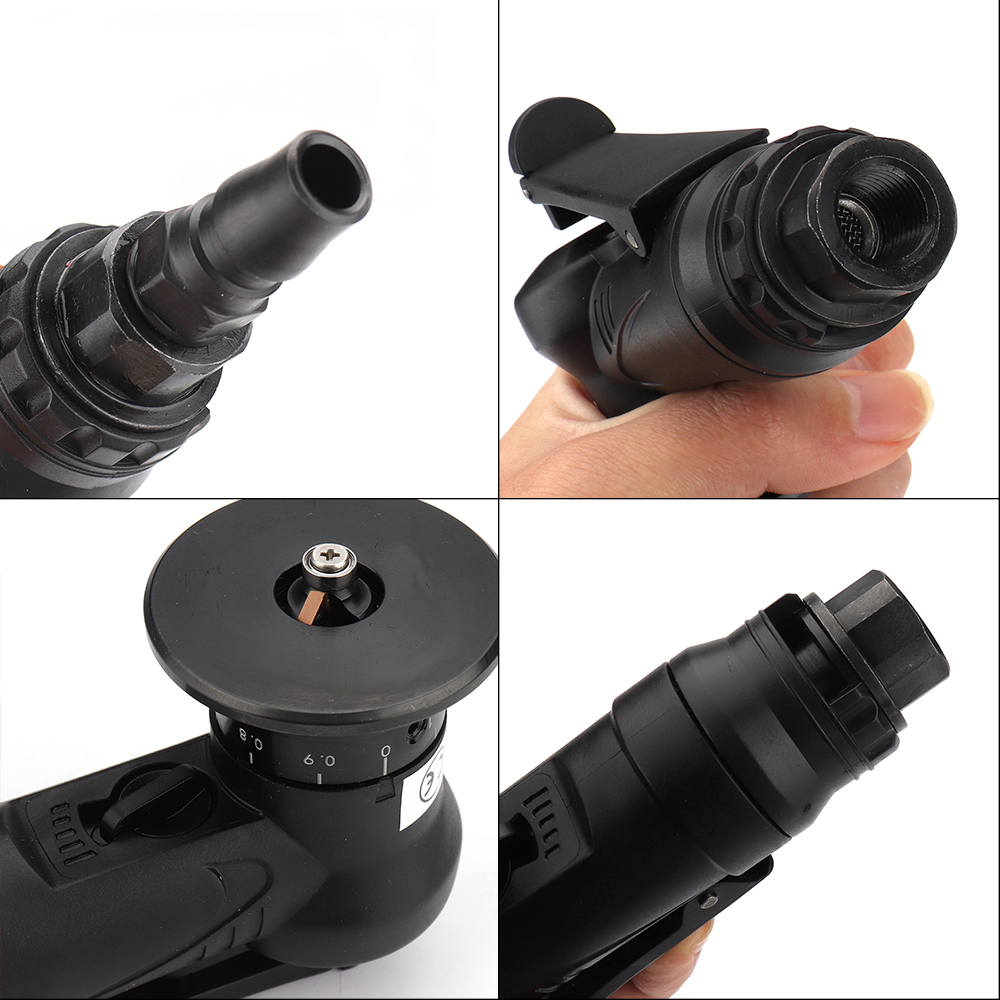

-The 1/4 inch with metal filter can prevent the burr and foreign matters from entering the air inlet and damaging the machine.
-Pressure plate type safety protection switch can reduce unnecessary injuries.
-Use a hexagon wrench to loosen the plum screw,remove the baffle plate, remove the blade screw with a ring wrench,remove the old blade,and replace it with a new one.

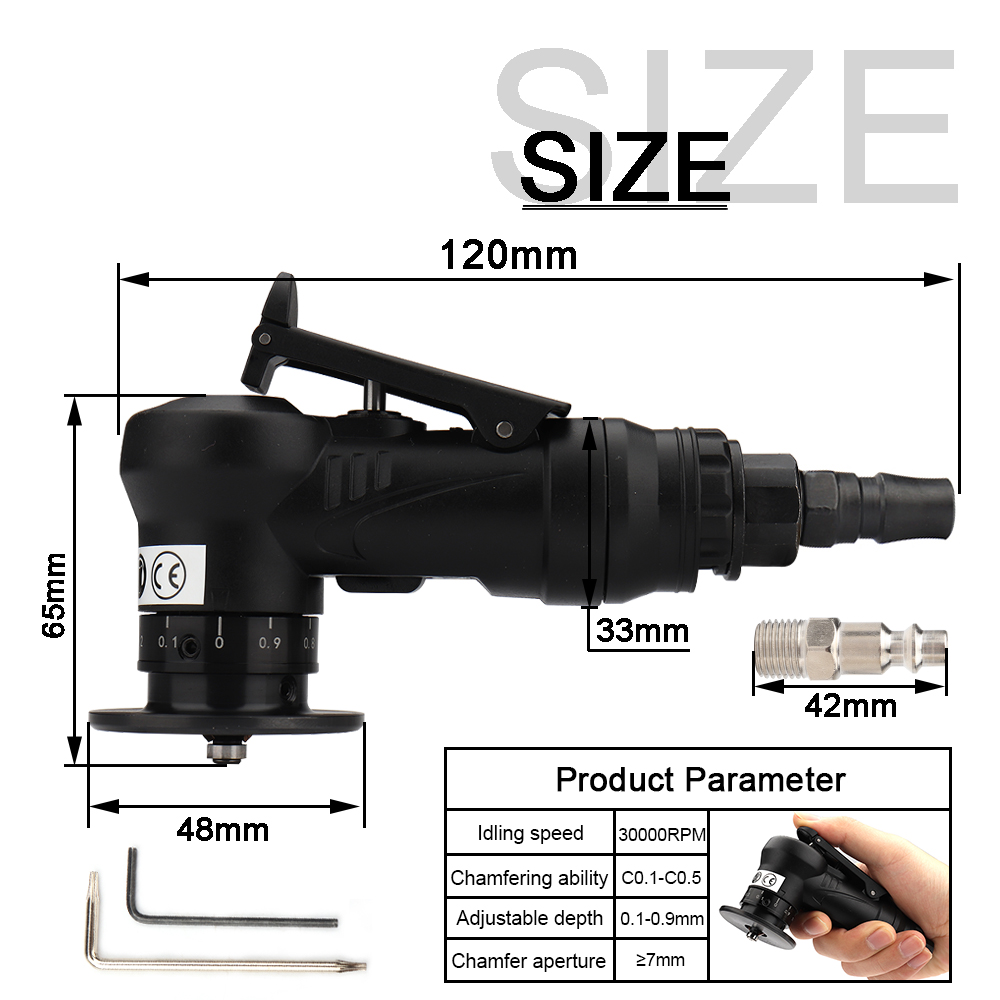

Specification:
Color: as the picture show
Chamfer Angle: 45°
Chamfering Ability: 0-1.5mm

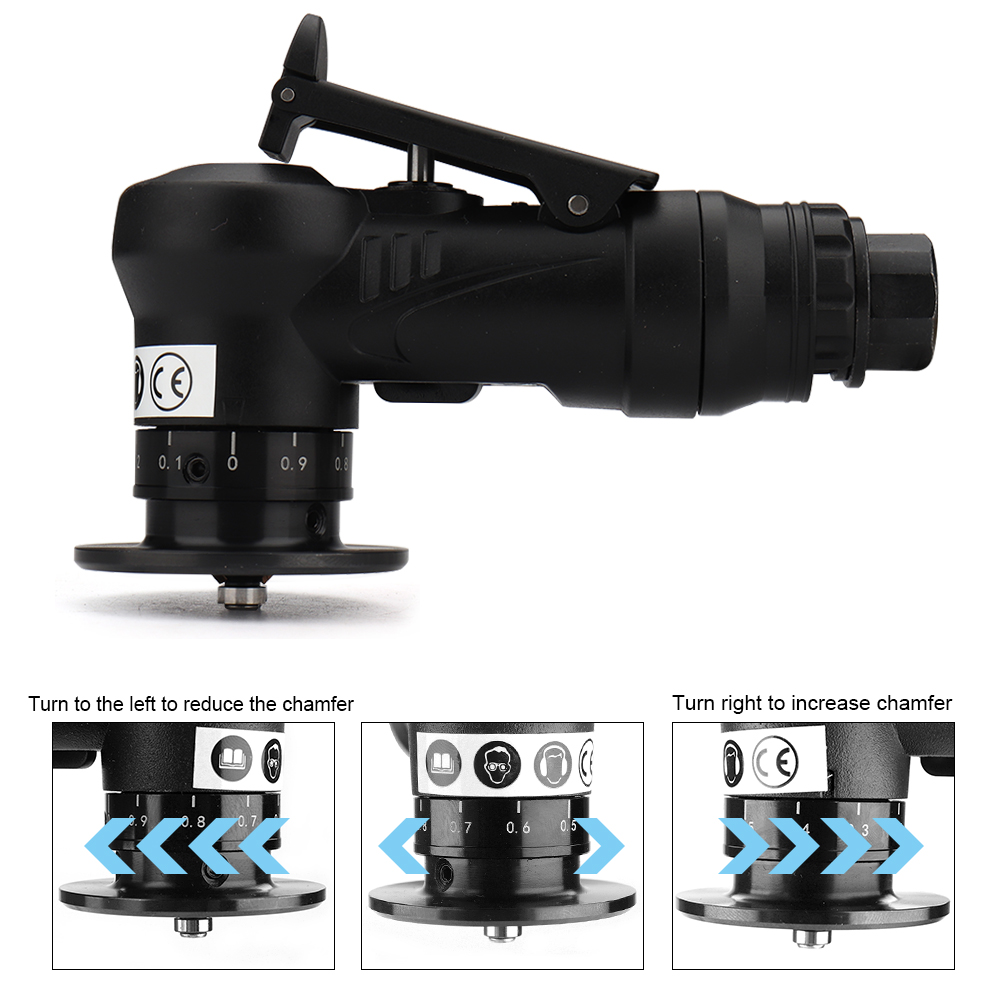

Adjustable Depth: 0.1-0.9mm
Working Pressure: 0.6MPA
Max Speed: 30000RPM
Air consumption: 0.4 m3/min
Finish: N5 (international standard)
Chamfer Aperture: >8mm
Chamfer Plate Thickness: >3mm
Counterbore Hole Depth: >5mm

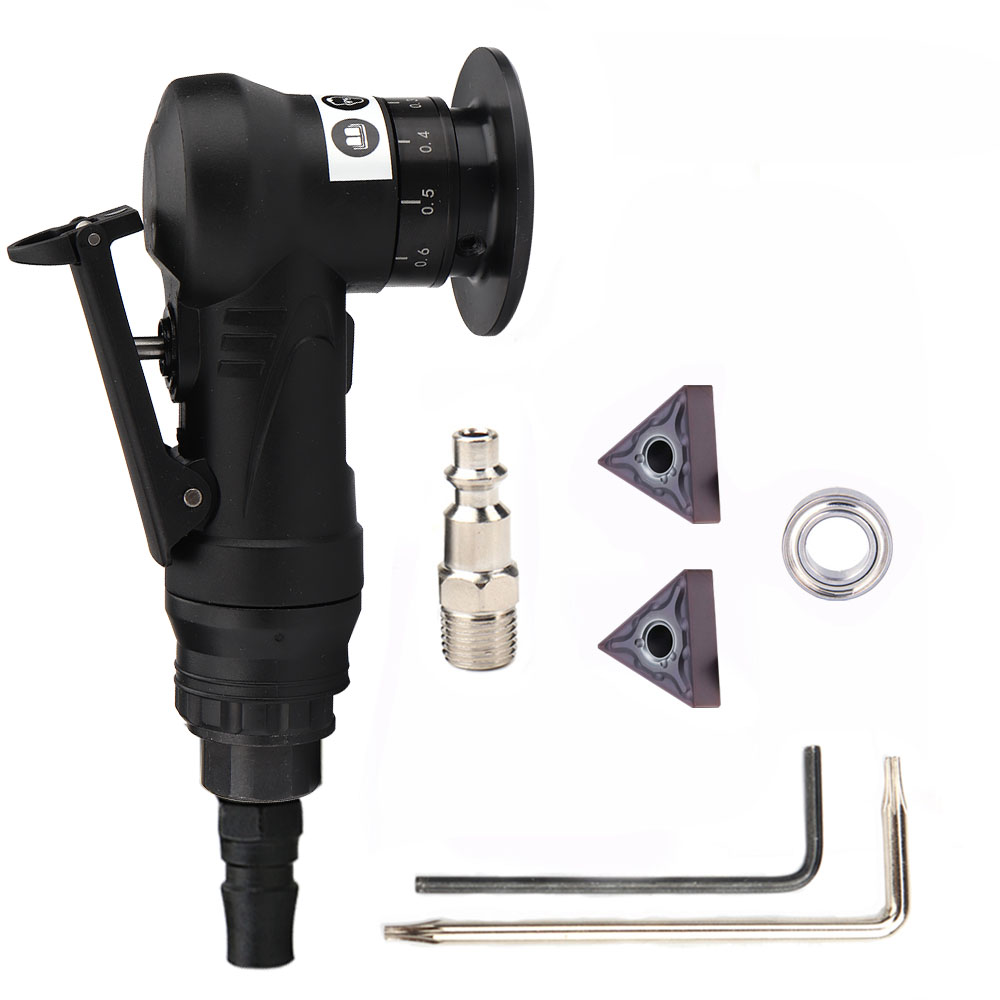

Package Included:
Set1:1 x Chamfering Machine Set
Set2:1 x Chamfering Machine Set 2Pcs Replacement blade
Set3:4Pc blade
Set4:4Pc bearing
Set5:5Pcs blade +5cs bearing
Note:
Please allow 1-2mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
