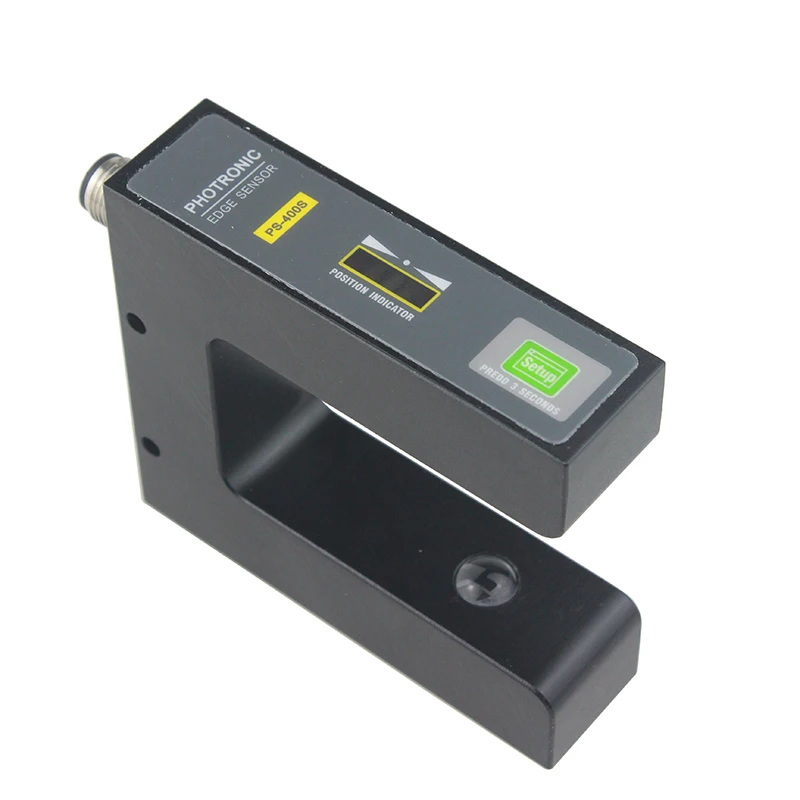

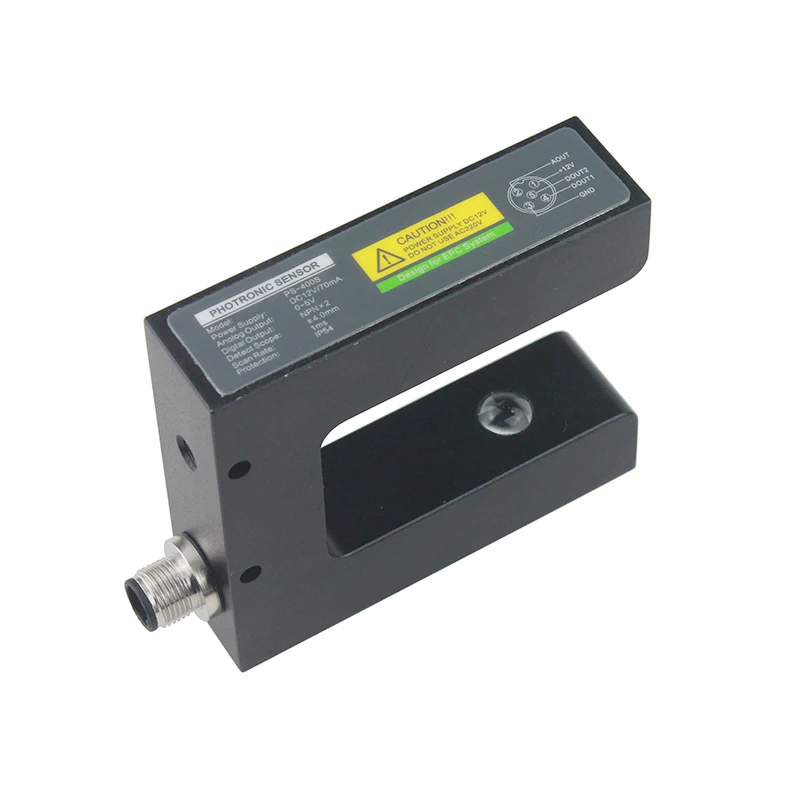

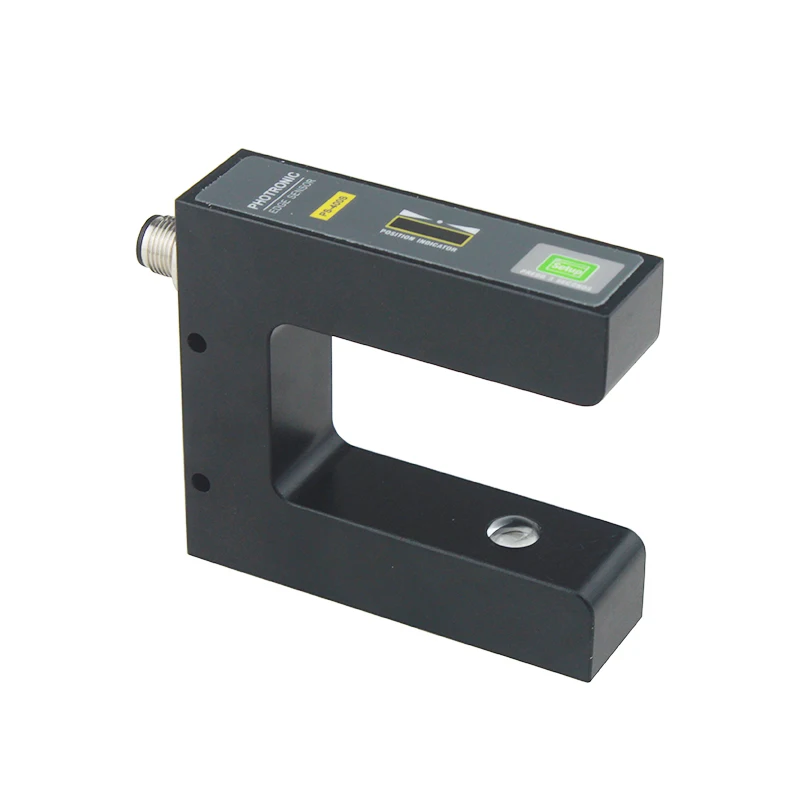

High Quality  EPC Web Guide sensor , Photoelectric reflection Sesnor

Photoelectric Web guide sensor Analog quantity high sensitivity breathable material suitable for non-woven fabric

Photoelectric reflection Sesnordetects the edge position of coiled material by applying the principle of high-frequency ultrasonic linear transmission. Comparing with the photoelectric transducer, it will not be affected by the transparency of materials. Thus there is no need to adjust when using. It is applicable for the edge-following (transparent materials such as cloth, non-woven cloth) of non-transparent materials (such as plastic thin film, paper, etc.)

Ultrasonic Sensor Technical parameters :

Color sensor
Power supply	DC-12V
Power Output	DC 0-5V
Detective range	8mm
detective accuracy	0.1mm
detector methods	Photoelectric reflection
Frequencty	100KHZ
Shell material	Aluminumn alloy

Features:

1. support the output of analog quantity/switch value, can match with EPC-A10 and EPC-D12 Deviation Rectification Controller

2. applicable for the edge-following of non-transparent materials, transparent materials, ultra-transparent thin film

3. no need to perform the manual adjustment

4. 200K ultrasonic exposure

5. 1ms responding time

6. detective range: 5mm, detective accuracy :0.1mm

7. offset display attached
