Coilovers Kit For BMW E46 3-Series 320i 330i 325i 328i Sedan Coupe Convertible

Coilover

Introduction

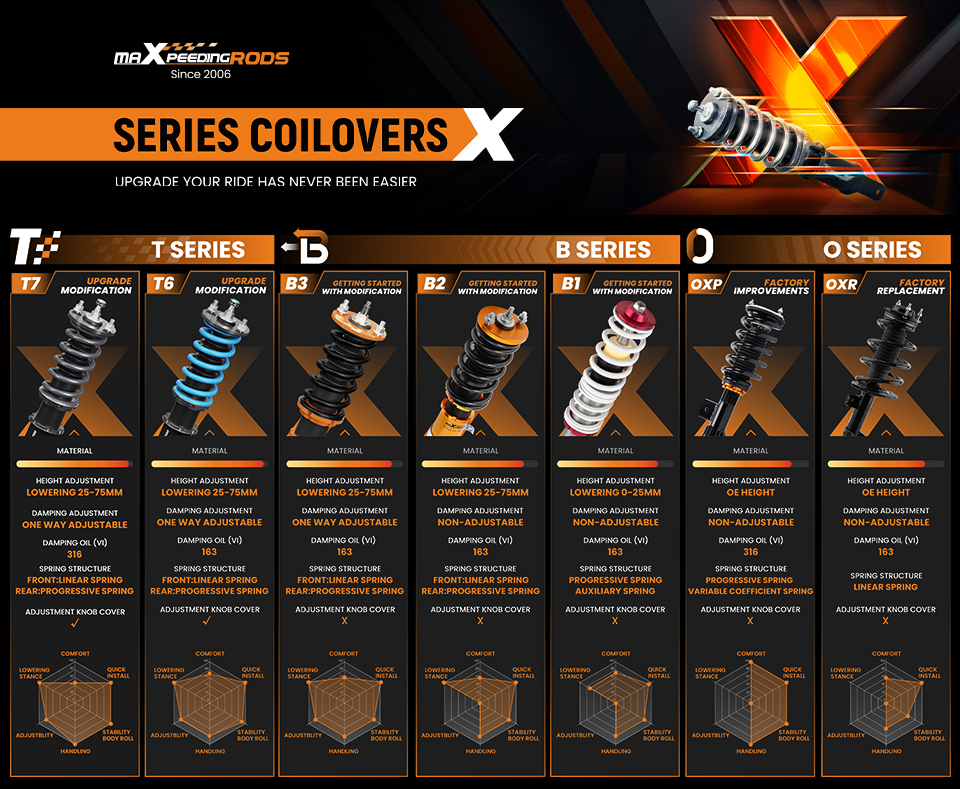

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

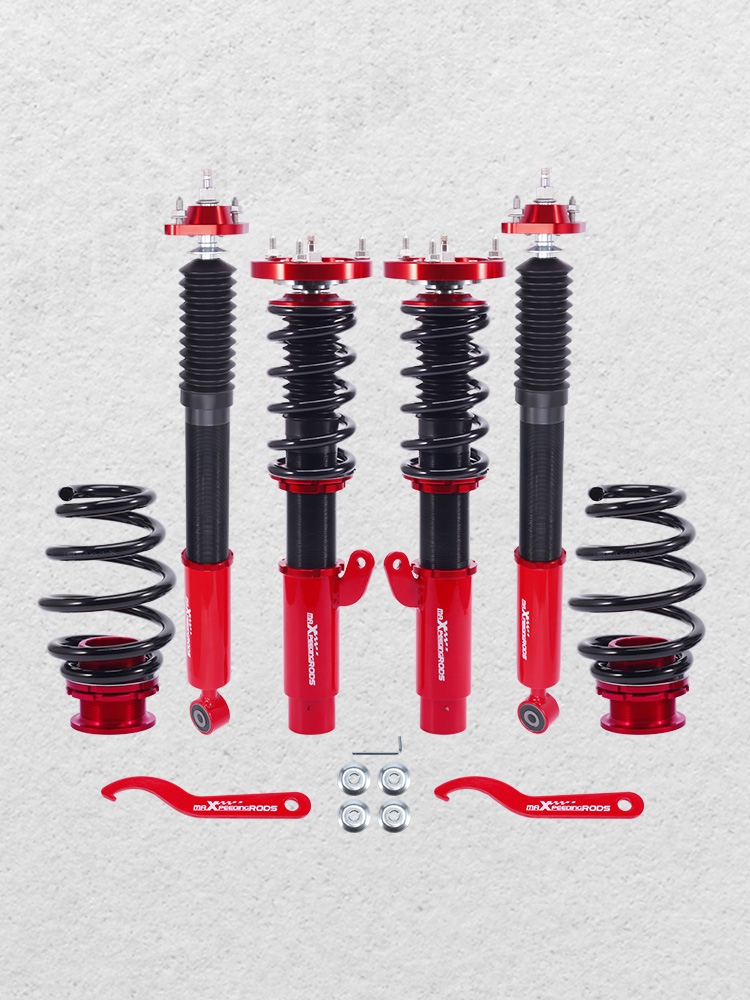

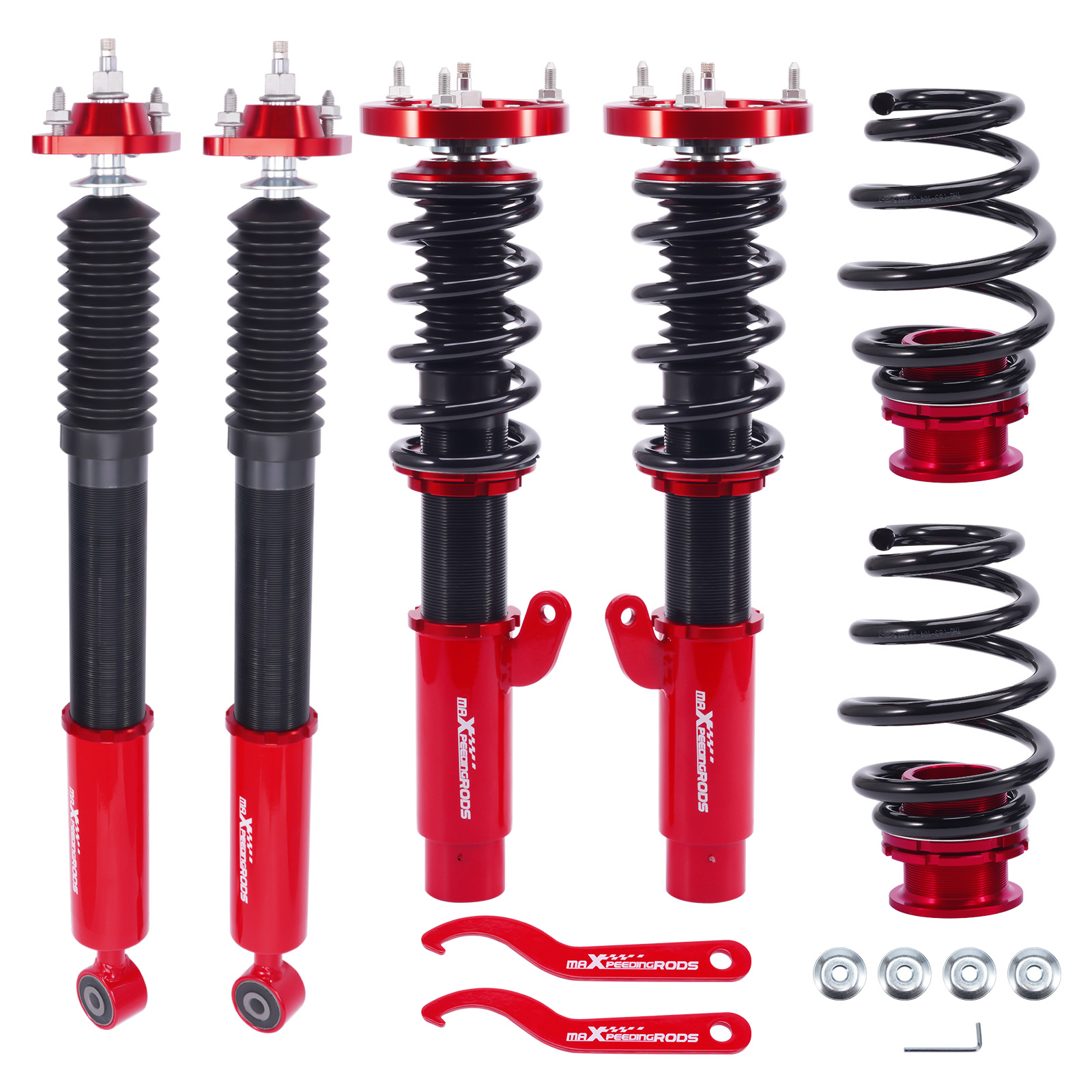

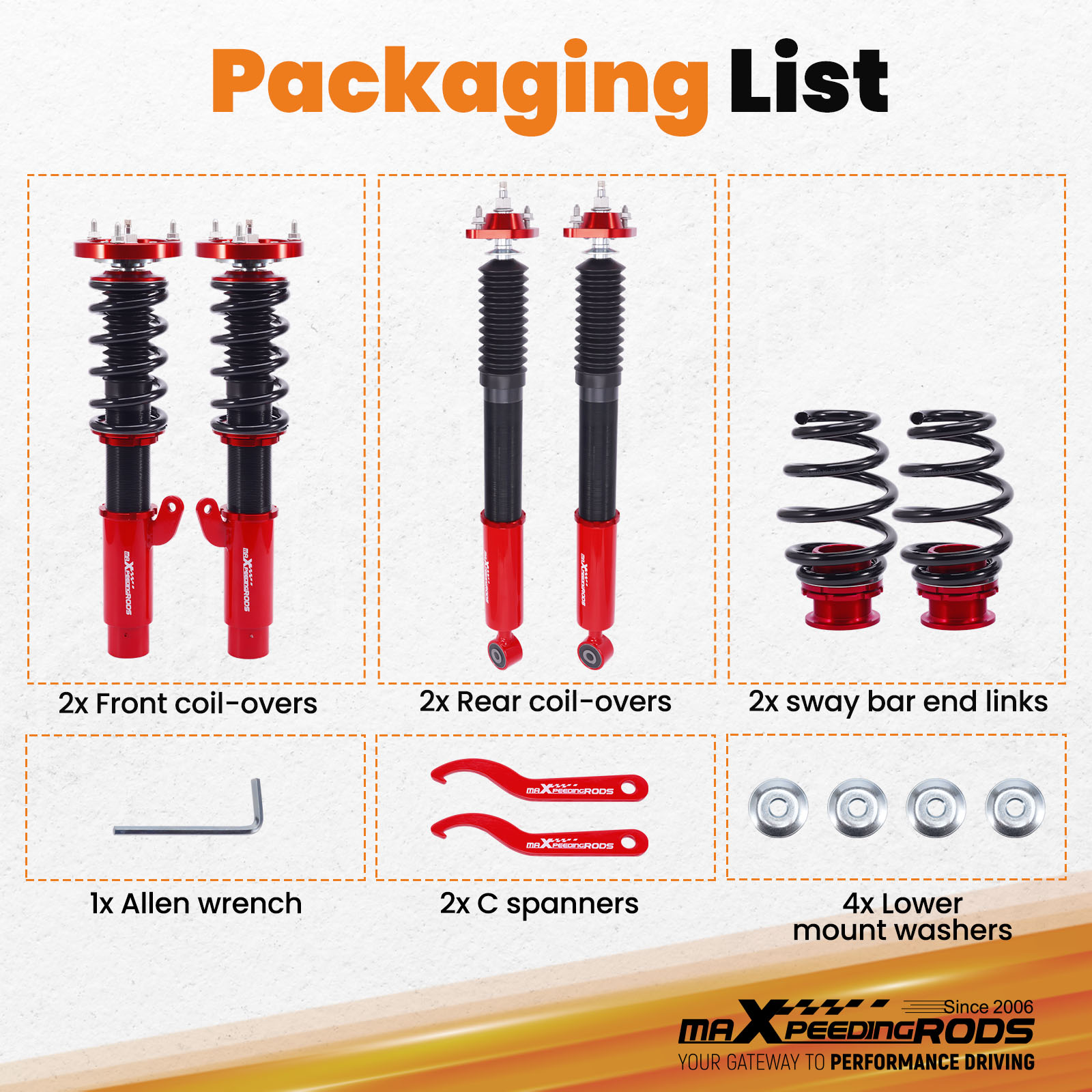

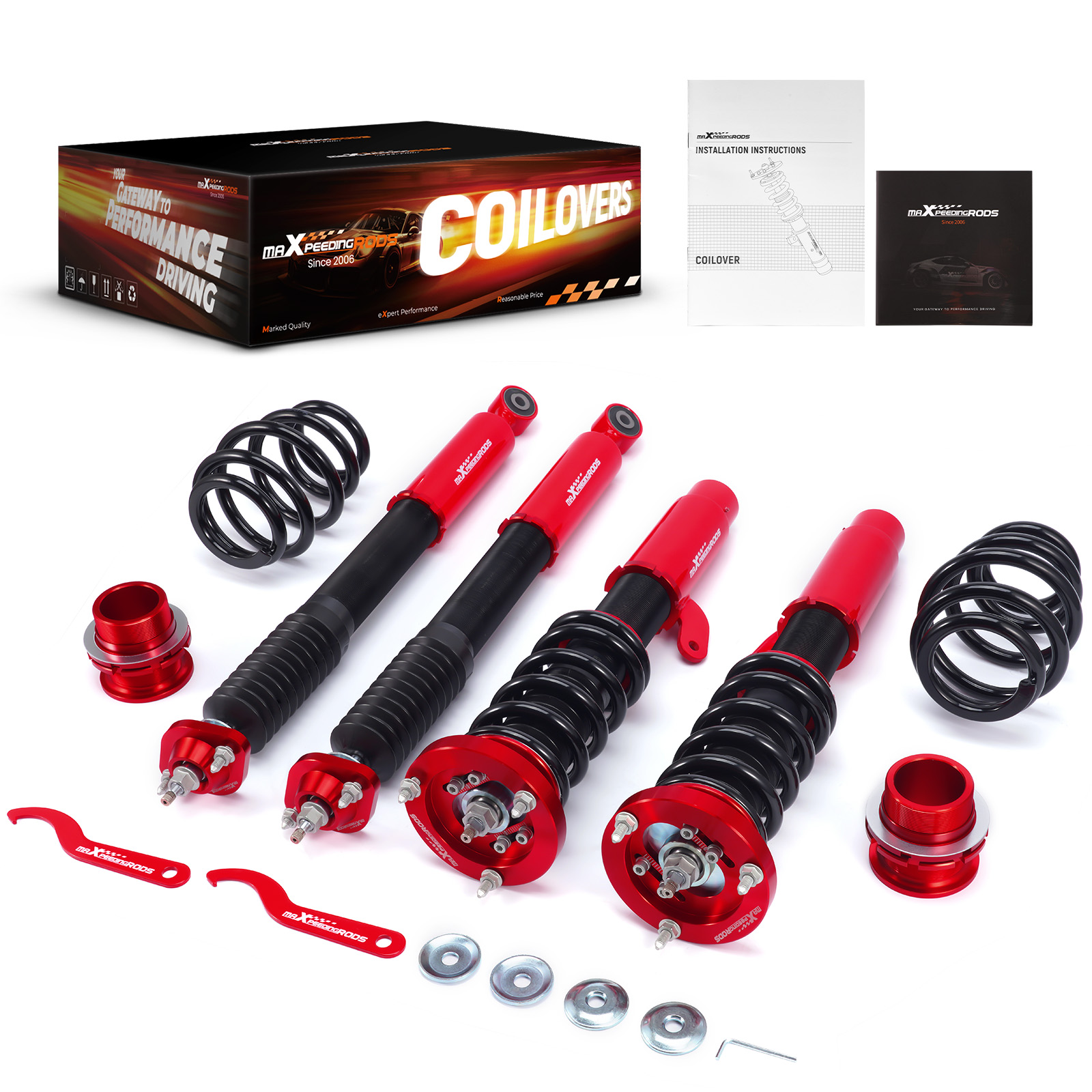

Package included

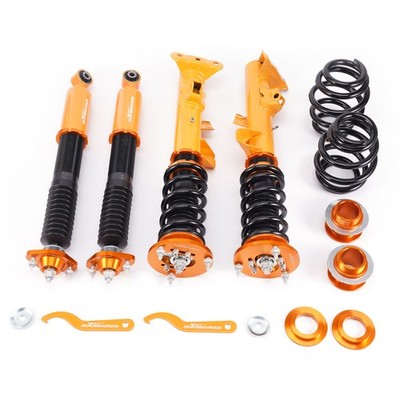

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench

Application

For BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
For BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
For BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
For BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

Note:

Not for Xi/xd 4 wheel drive, not for M3 model either

Specification

Front top mounts	Pillow ball with camber plate
Rear top mounts	Pillow ball
Damping adjustable	Available, 24 levels of rebound damping force
Camber adjustable	Not available
Height adjustable	Yes, lowering 25-75mm depending on the vehicle models

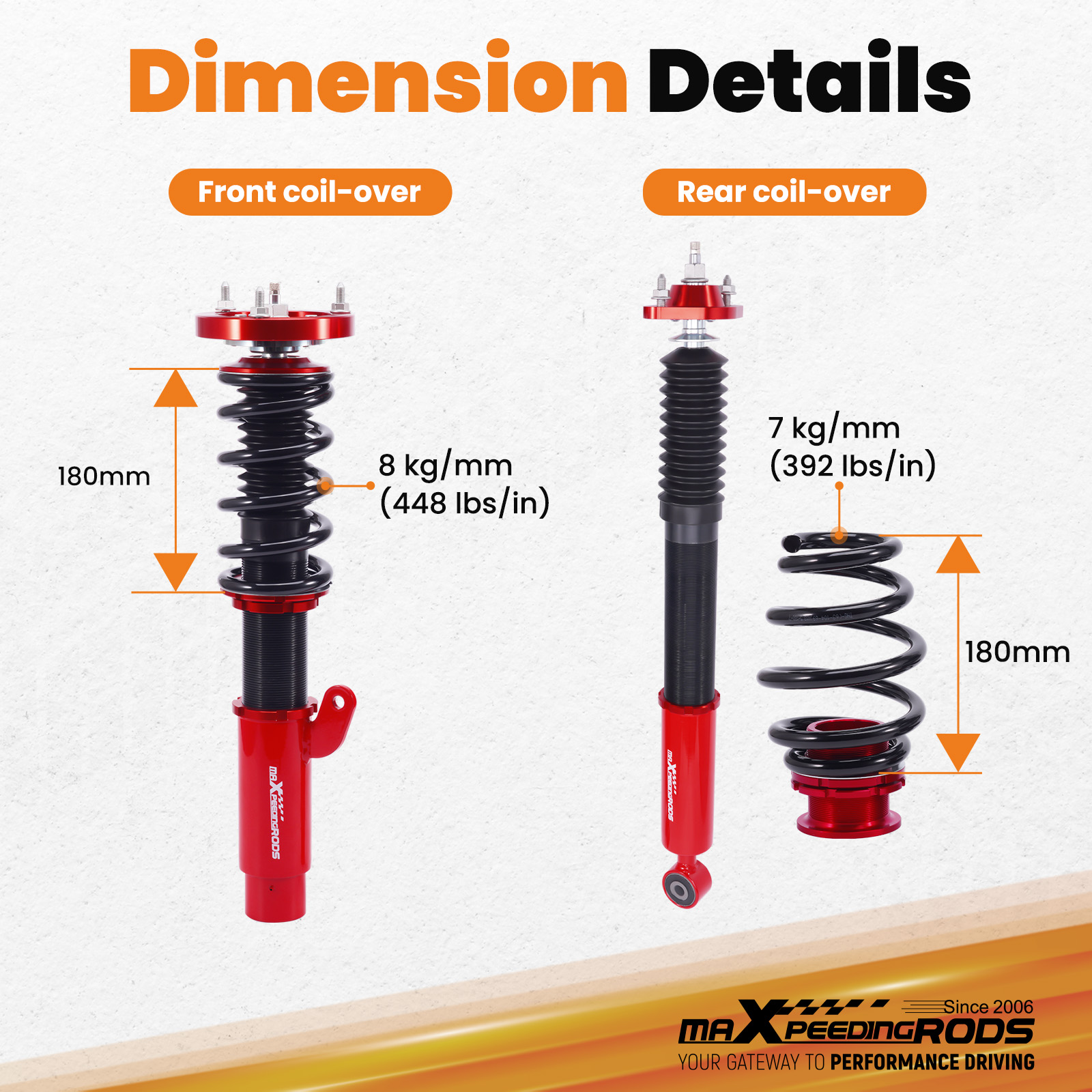

Spring rate Front	8 kg/mm (448 lbs/in)

Spring rate Rear	7 kg/mm (392 in/lbs)
Front spring inner diameter	70.5 mm
Rear spring inner diameter	63-69 mm
Spring length Front	180 mm
Spring length Rear	180 mm
Spring Preload advised	7-10 mm

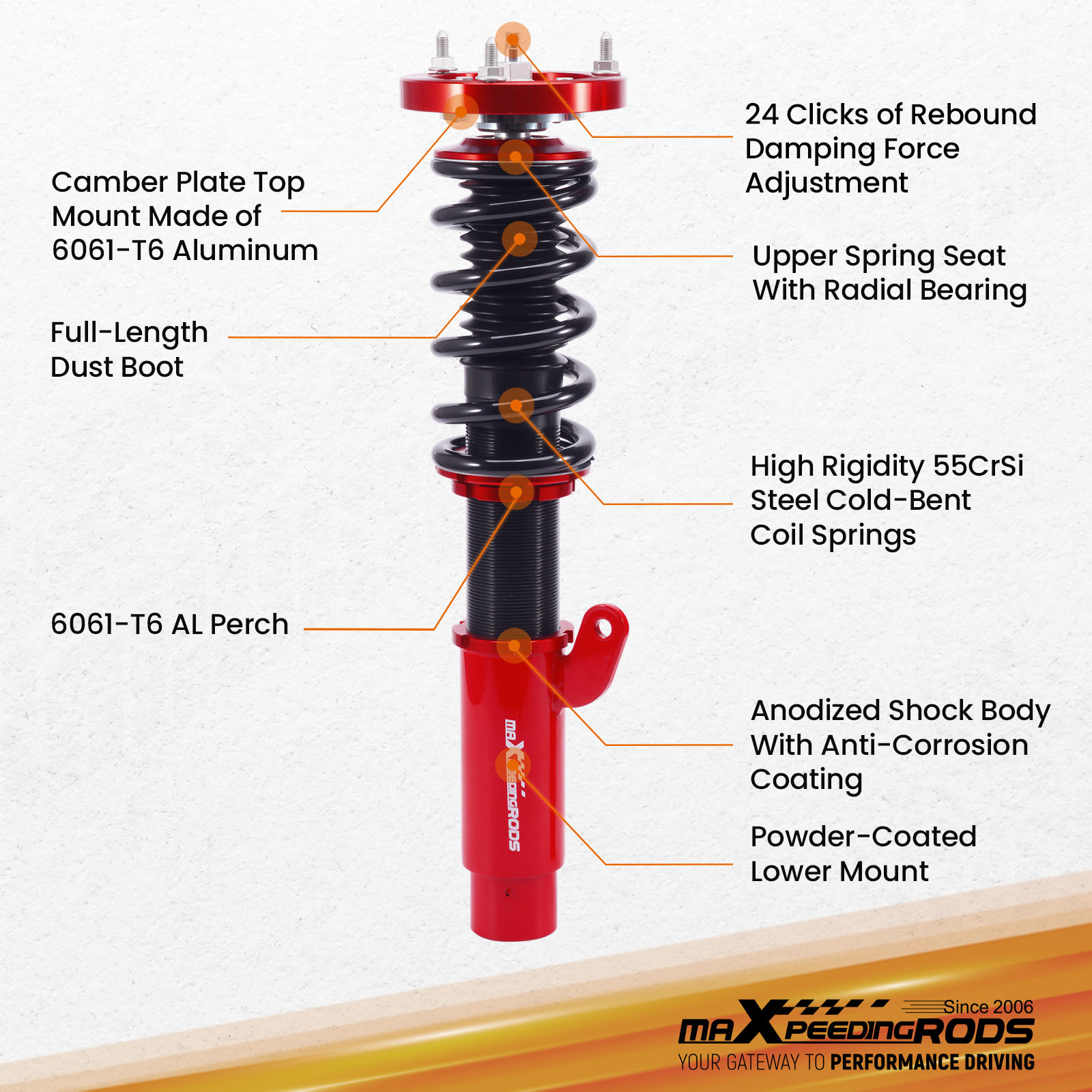

Details

Feature

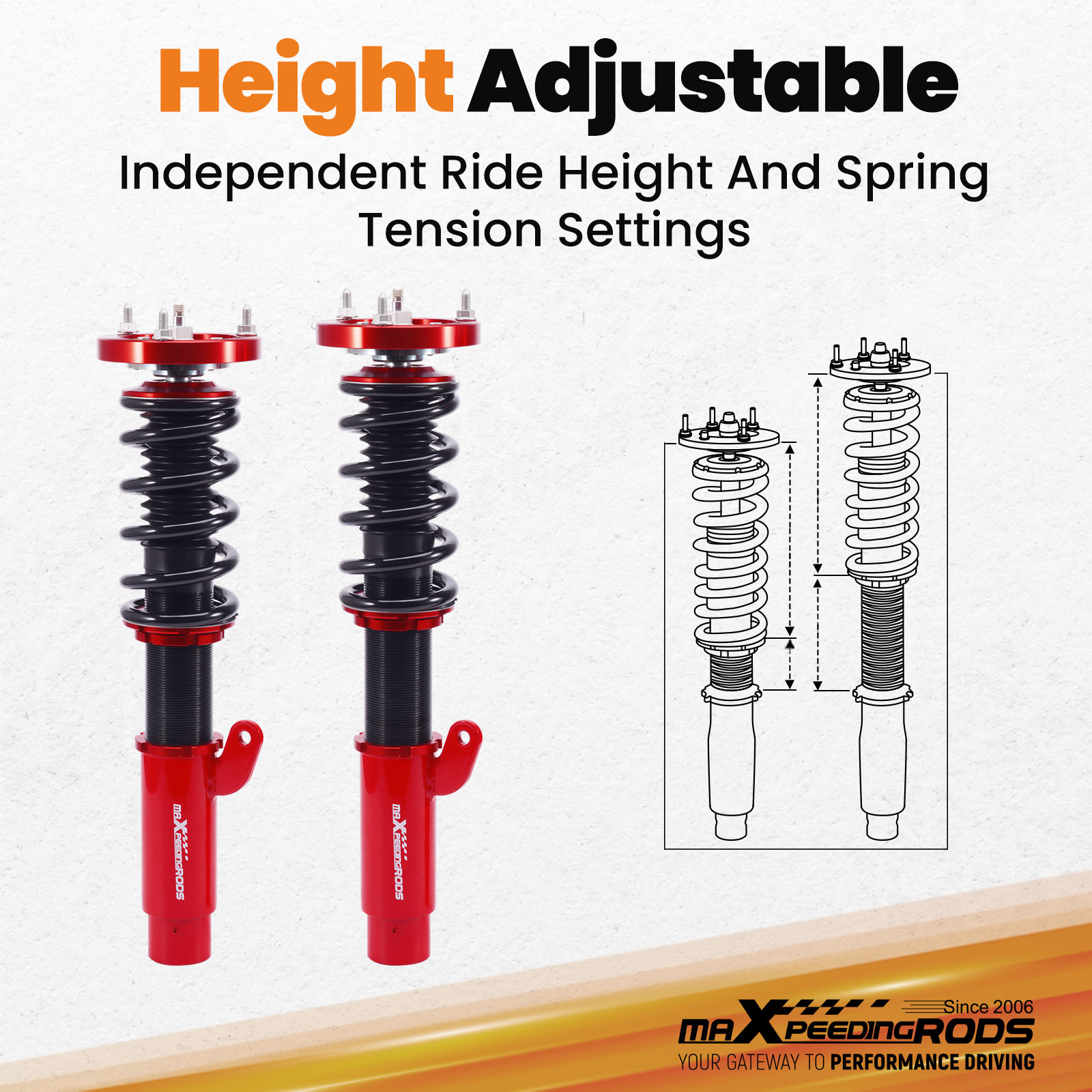

Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

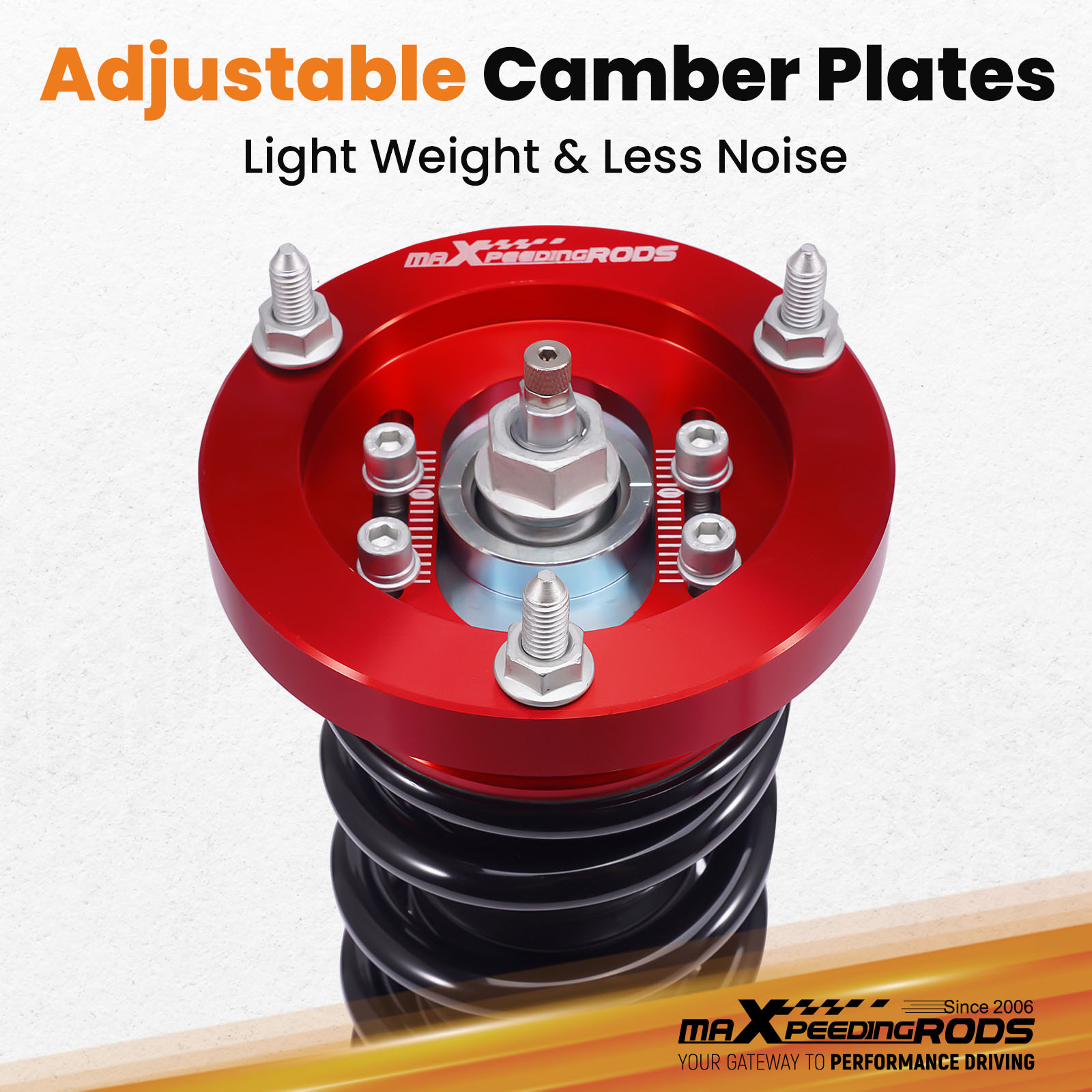

Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

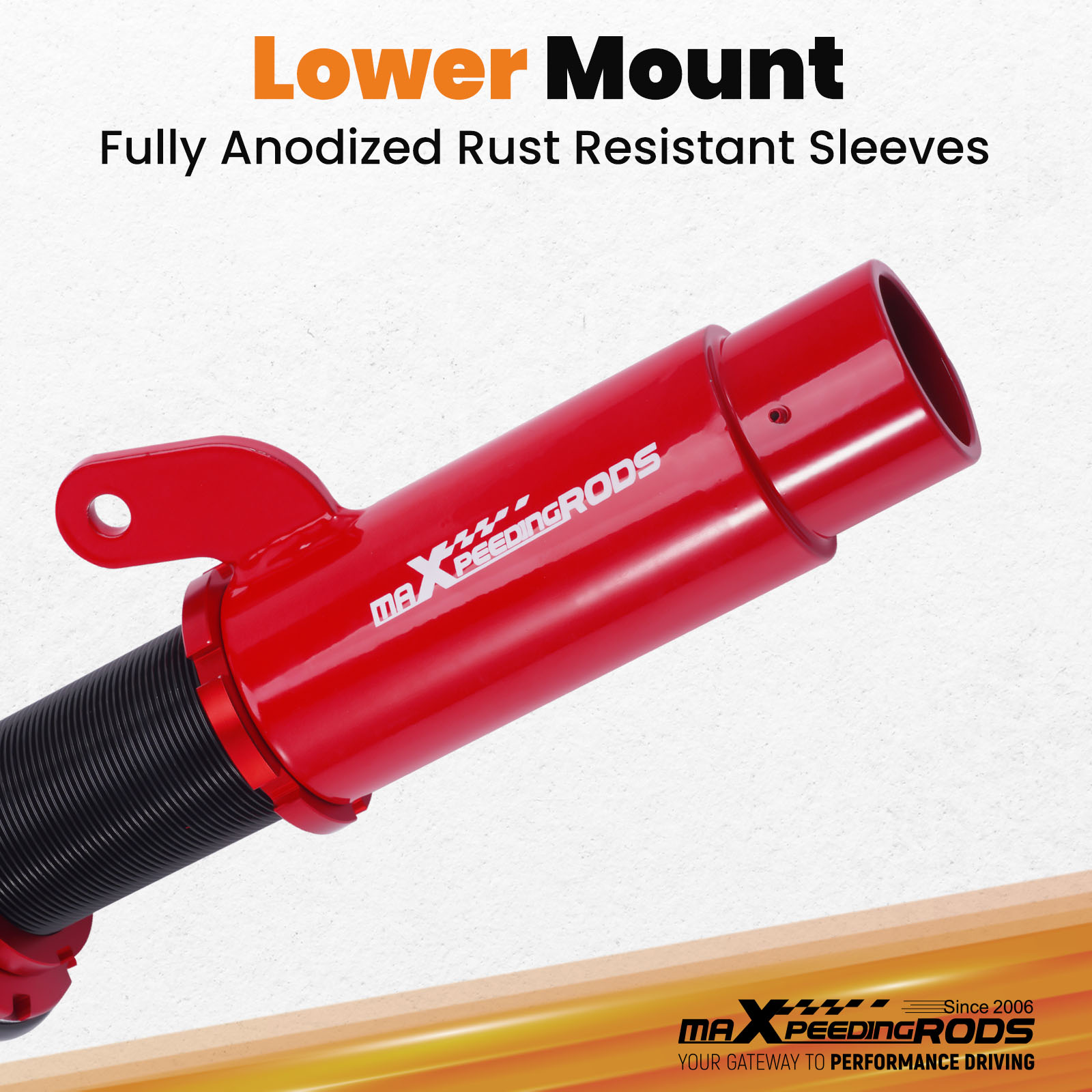

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

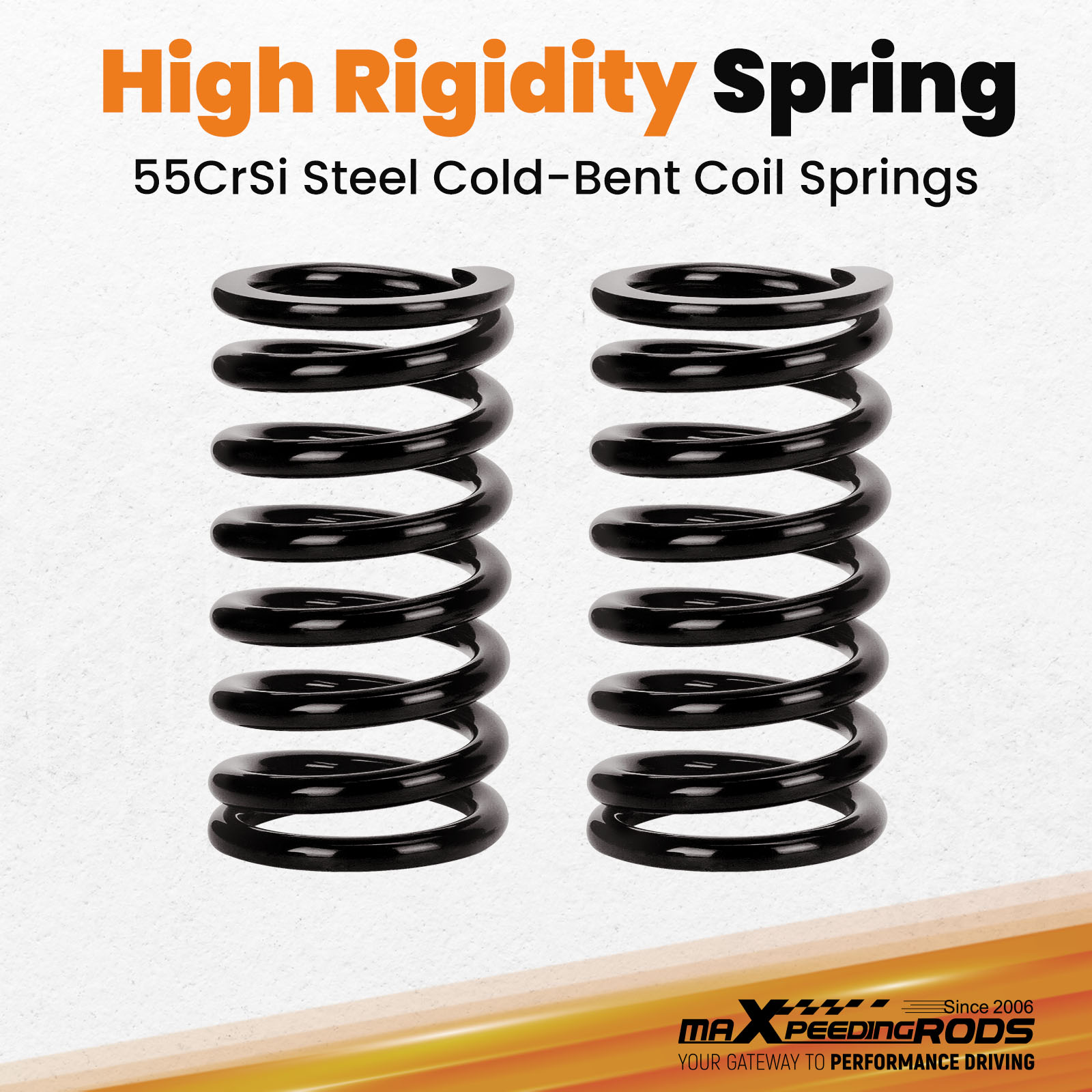

High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

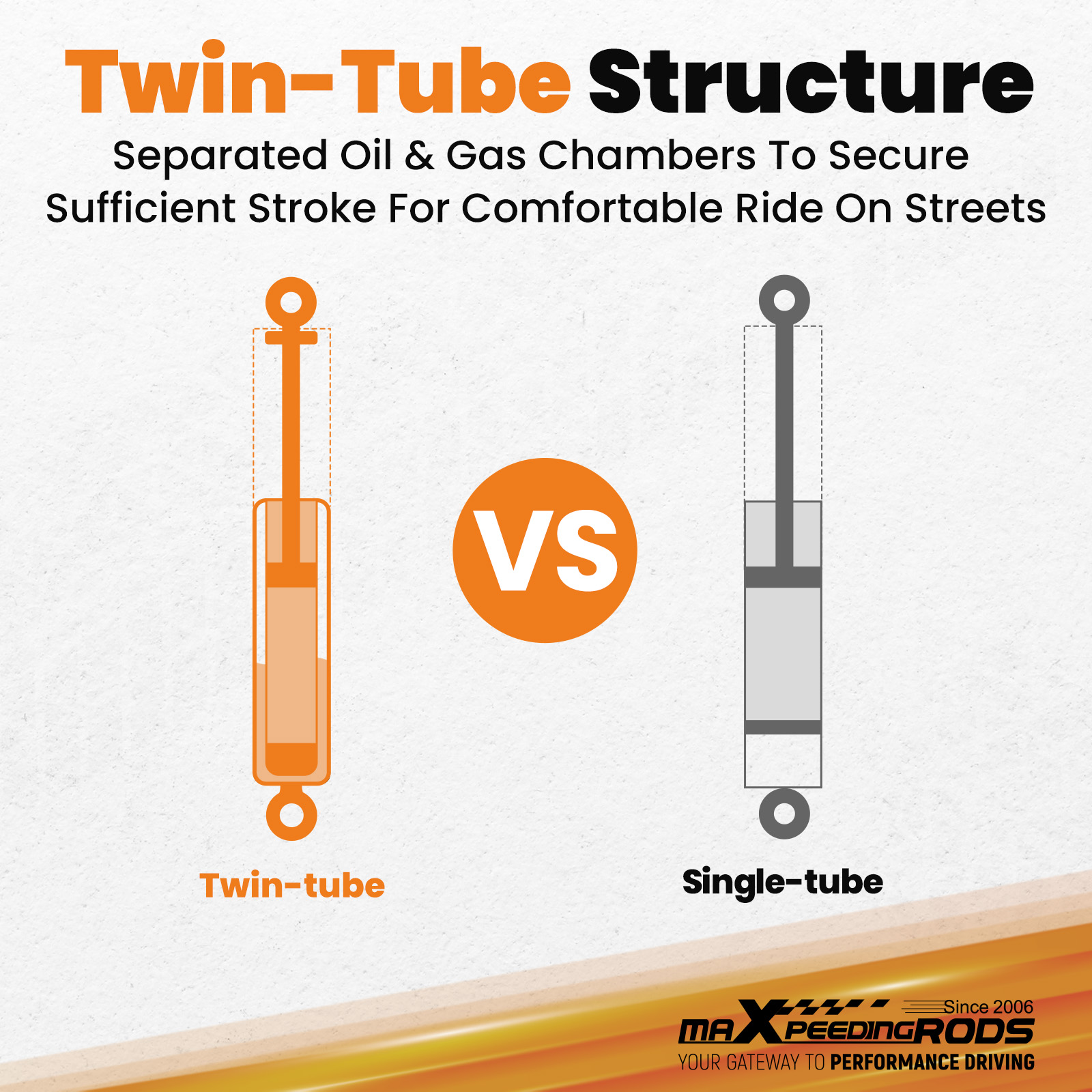

Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
