Note:
1. The re-solder point is normal in led strip , not any quality problem , it may solder by every 0.5m.
2.This product is similar to the WS2812B protocol, and plenty of code is available for Arduino and other platforms. and it can be controlled by 5V WS2811/WS2812B controller.
White (6000-7000k)
Warm White (2700-3000k)
Natural White (4000-4500k)
RGBW = RGB + White (6000-7000k)
RGBWW= RGB + Warm White (2700-3000k)
RGBNW= RGB + Natural White (4000-4500k)
WWA = White + Warm White + Amber
IP21: Non- waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in Silicon Tube
30Led=30leds/m
60Led=60leds/m
96Led=96leds/m
144Led=144leds/m
Power:
30LEDs/meter ---------max 9W / Meter
60LEDs/meter ---------max18W / Meter
96LEDs/meter --------- max 29W / Meter
144LEDs/meter -------max 43.2W / Meter
Specification:
LED source :5050SMD RGBW/RGBWW/WWA/White built-in SK6812 chip
Voltage(DC):5V
LED type :SMD5050
PCB Color: White PCB/Black PCB
IC type :SK6812(similar to WS2812B)
Grey Grade: 256

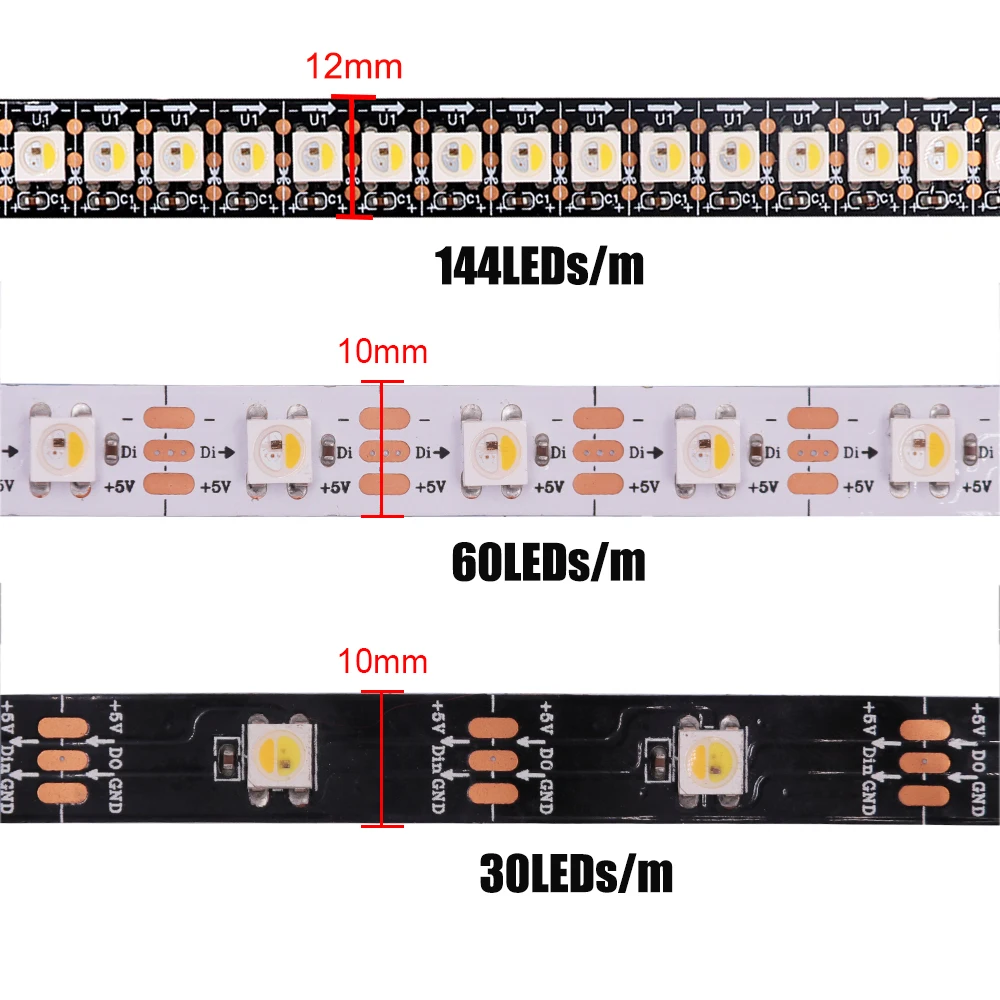

FPC width : 10mm width(30, 60leds/M) , 12mm width(96, 144leds/M)
LED/per meter: 30, 60,144leds/Meter (each LED is separately controlled)
IC/per meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)
Pixel /per meter :30, 60,144Pixels/Meter
IP21,IP65 ,There is a 3M self-adhesive tape at the back side. You can install easily
Application:
1.Applicable for automobile and bicycle decoration, border or contour lighting
2.Widely used for home decoration use, hotels, clubs, shopping malls
3.Architectural decorative lighting, boutique atmosphere lighting
4.Extensively applied in Backlighting, concealed lighting, channel letter lighting
5.Emergency & security lighting, advertisement sign lighting
6.Decorative lights for holiday, event, show exhibition
Package included:
LED Strip Light( Do not Include Power Supply and Connnector)
SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
144Leds/m:
60Leds/m:
30Leds/m:
