All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Notice:

Pick up service is not available.

This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing.

Application
Perfect for all 1.5L to 2.5L  any 4/6 cylinder engine up to 400+ HP
Cooling Type: Oil Cooled

Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

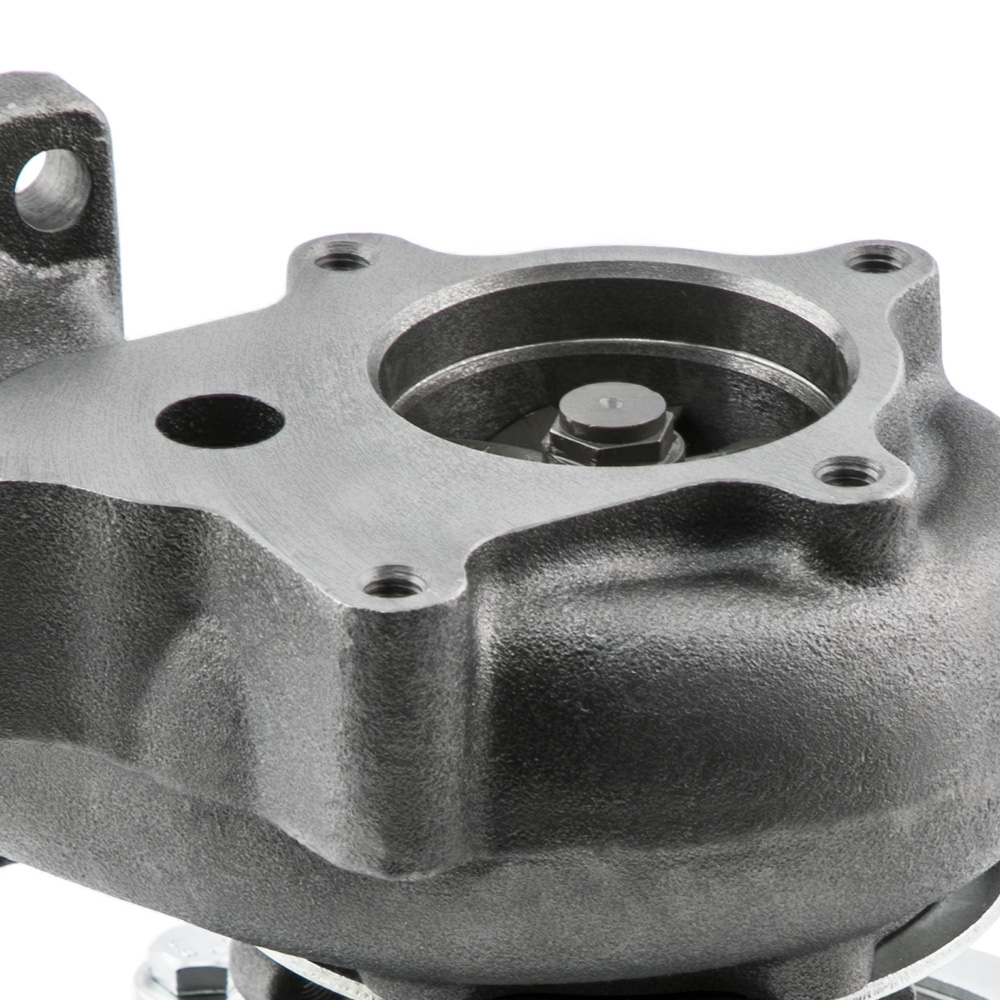

Exhaust Outlet (downspout) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63


Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing

Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Wastegate: W/O Wastegate
Thrust Bearing: 270 degrees
Horse Power: Up to 400 HP
Finish: Matte
Actuator Type: W/O Actuator

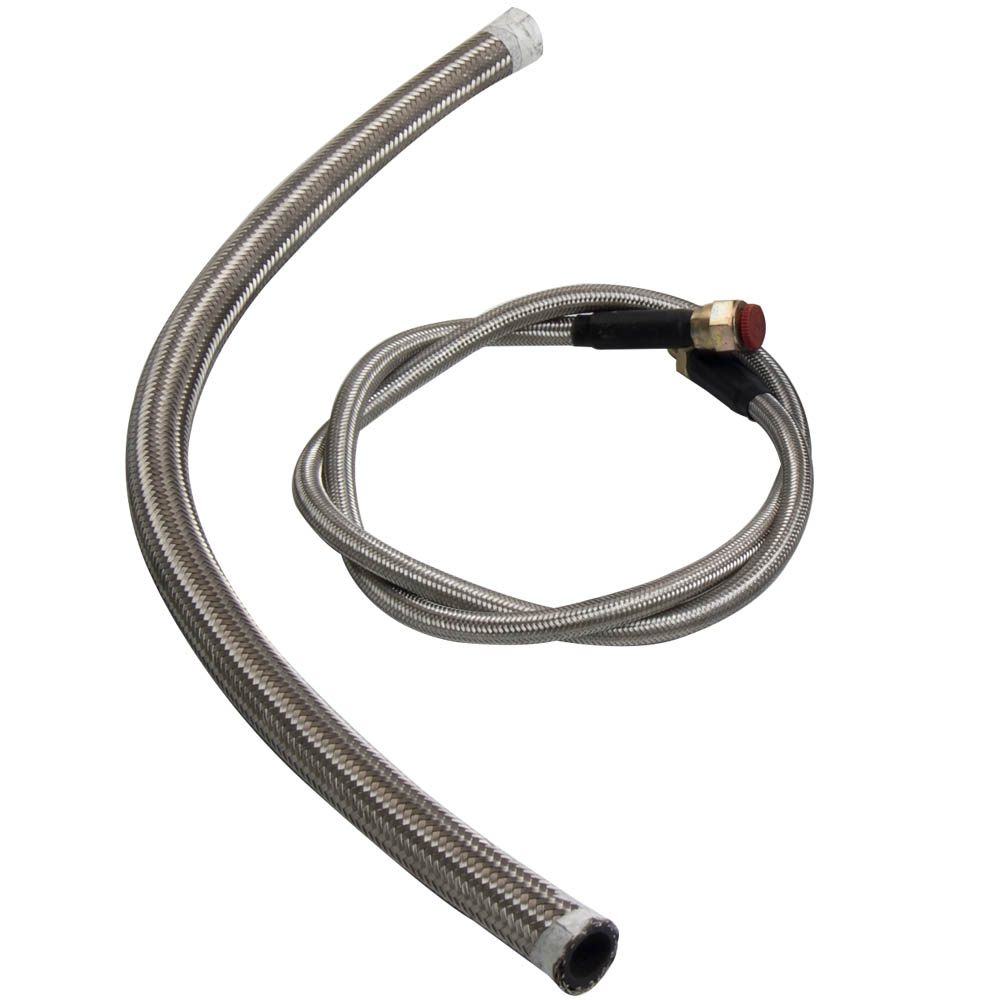

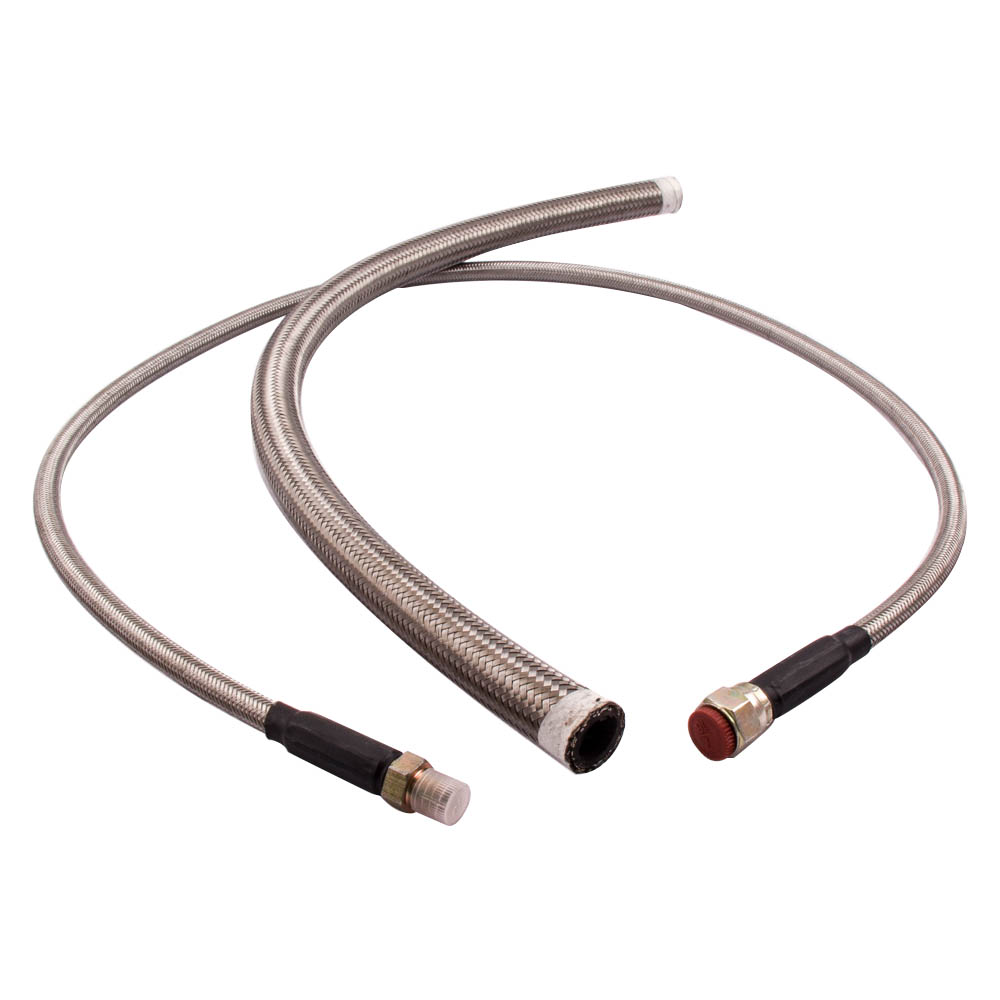

OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm


Warranty: 2 Years

Notice

* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
