Thinktool mini Automotive Scanner All Systems Diagnostics:

This option allows you to detect whether the system parameters are normal or not. Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,Air Conditioning System，Transmission System, ect... Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.

Thinktool mini Support 28 Reset Services(Lifetime Free All Resets)

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the  automatic ascending and descending function of power window.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Reset
1 In order to prevent the car from being used by illegal keys, through the anti-theft key matching function, the car can only be used normally after the anti-theft device control system on the car recognizes and authorizes the remote control.
2 Anti-theft matching is required when replacing the ignition switch key, ignition switch, combination meter, engine control unit (ECU), body control module (BCM) and remote control battery

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change
This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal..

25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

More...

Thinktool mini supports OBD II Functions

Mode 01---Request current powertrain diagnostic data.

Mode 02—Request freeze frame information.

Mode 03—Request emissions-related diagnostic code .

Mode 04—Clear/reset emissions-related diagnostic information.

Mode 05—Request oxygen sensor monitoring test results.

Mode 06—Request on-board monitoring test results for specific monitored systems.

Mode 07—Request emission-related diagnostic trouble codes detected during current or last completed driving cycle.

Mode 08—Request control of on-board system, test or component.

Mode 09—Request vehicle information.

Mode 0A—Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Support to E/C/U Coding

The Coding function is used to re-flash the vehicle control modules.It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts;Provide solutions for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts etc.;Brake the limitations and restrictions; make full use of the car hidden features, like change the chimes on car, set how many times the one-touch signal flickers for one touch, remember settings for Start/Stop systems, and more.

Support Active Test (Actuation Test)

Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:

[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

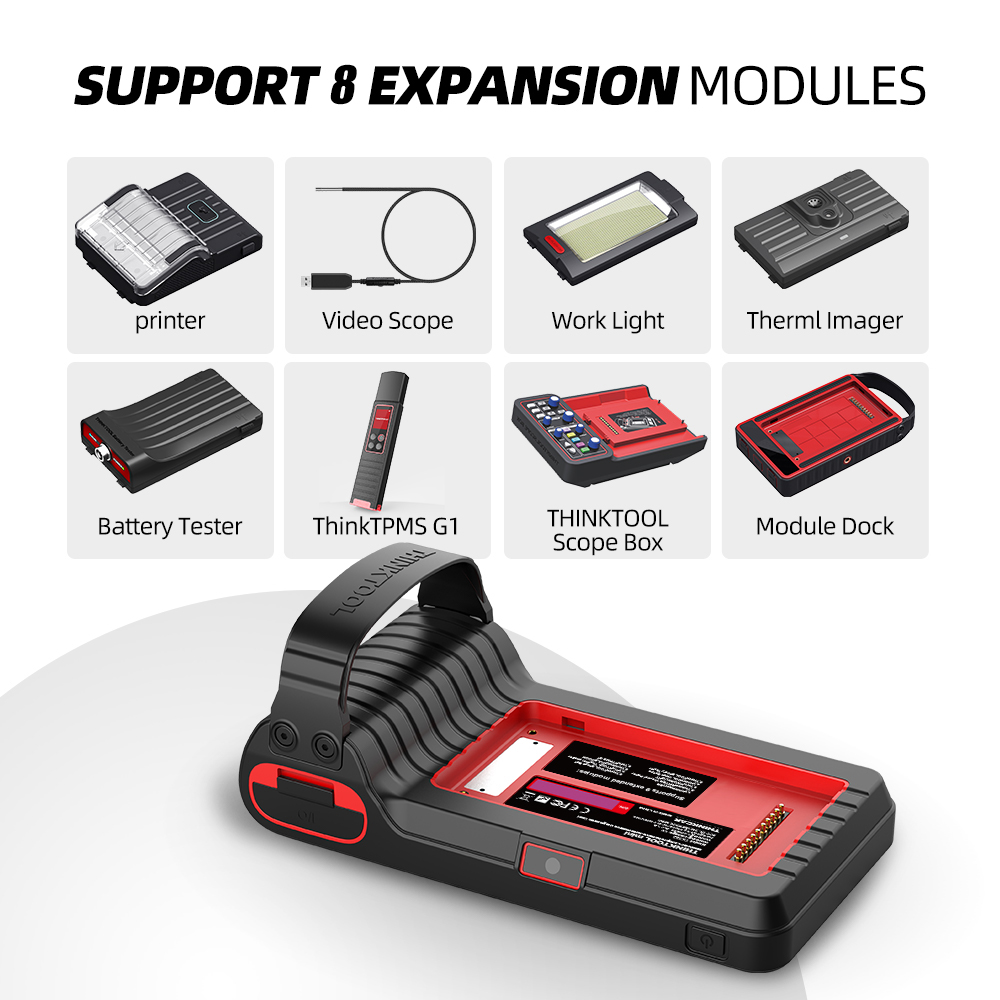

Support Modular expansion

Support 8 optional modules:printer, work light, videoscope, battery tester, scope box, thermal imager, moudledock, wireless TPMStool （note: you can buy those model on ThinkStore）

Product Parameters:

Display Screen ：5.99-Inch/TFT(IPS)

Connection :Wi-Fi/Bluetooth

RAM:2G

ROM:32G

Working Temperature : 32℉~122℉

Storage Temperature: -4℉~144℉

Support 17 Multi-language

English, French, German, Italian, Spanish, Portuguese, Japan, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Traditional, Korean

Support 126+ Car Brands and 1000+ Vehicles

USA：

For BXGM,For CHRYSLER, For AUSTFORD, For GM,For USAFORD

EUROPE:

For ASTONMARTIN,For AUDI,For BENZ,For BMW,For BXFIAT,For CITROEN,For FERRARI,For FIAT,GAZ,For LANDROVER,For MASE,For RATI,For OPEL,For PAZ,PEUGEOT,For PORSCHE...

Austrillia:

For AUSTFORD,For AUSTHOLDEN

Asia:

For BAIC,For CHANGAN,For CHANGCHENG,For CHANGHE,For DAEWOO,For DAIHATSU,DFXK,For FLYER,For FUTIAN,For HAFEL HMAZDA,For HONDA,For HUACHEN,For HYUNDAI,For IKCO,For INDIANMARUTI,For INDIANTATA,For ISUZU,For IVECO.IZH,For JACTY JIAO,For JINLONG,For JOYLONG,For JPISUZU,For KIA,For LIFAN, For LIUWEITY ,For LUXGEN,For MAHINDRA,For MALAYSIA PERODUA,For MALAYSIA PROTON,For MARUT,For MAXUS,For MAZDA,For MITSUBISHI...
