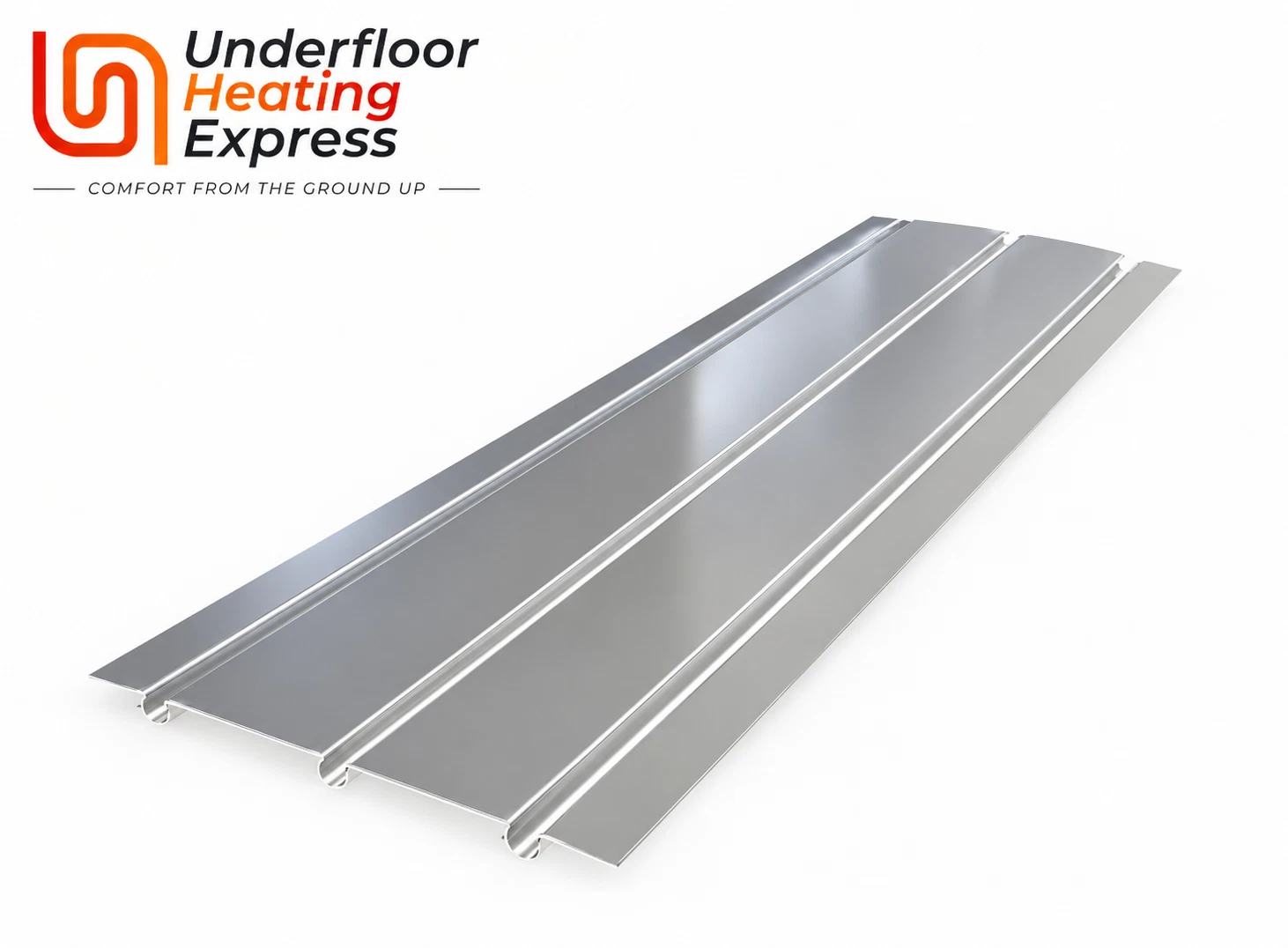

Aluminium Triple Spreader Plate for Underfloor Heating

PACK OF 40 BOARDS

KEY FEATURES

Aluminium triple spreader plate for underfloor heating.
Designed for standard joists at 400mm centres.
Three pipe channels positioned 133mm apart for even heat transmission.
Suitable for 15mm and 16mm underfloor heating pipe.
Plates can be fixed in place using staples or nails.
Pack of 40 boards covers 15.80sqm.

PRODUCT DESCRIPTION

Aluminium Triple Spreader Plate for Underfloor Heating

DELIVERY INFORMATION: Less than 3 packs incur a delivery cost, please contact us on 02071832784 or email sales@underfloorheatingexpress.com for a quote.

Pack of 40 boards covers 15.80sqm.

Aluminium heat spreader plates are 395mm x 1000mm x 0.45mm (groove depth: 16mm) diffuser plates suitable for joist centres of 400mm.

Aluminium Triple Spreader Plate with grooves positioned 133mm apart to enable a homogenous heat transmission. The secure positioning of the pipe is enabled by a 1/2″ round groove running the length of the spreader plate.

Spreader plates are laid across traditional joists and fixed in place using a hand stapler.

Specifically designed to sit between standard joists @ 400mm centres to hold pipes and spread the heat in a joisted floor installation.

Dimensions

Plate Size: 1.0 Metre long x 395mm wide x 4mm.

The plates have 3 channels 133 mm apart, designed to hold 15 & 16mm heating pipes.

Coverage

Coverage: 2.53 Plates / 1.0m²

For use with 15/16mm pipe for joisted floor applications. Spreads heat evenly. Fix with staples or nails.

TECHNICAL SPECIFICATION

Product Type	Aluminium Triple Spreader Plate
Plate Length	1000mm (1 metre)
Plate Width	395mm
Plate Thickness	0.45mm
Groove Depth	16mm
Number of Channels	3
Channel Spacing	133mm
Pipe Compatibility	15mm / 16mm Underfloor Heating Pipe
Joist Centres	400mm
Pack Quantity	40 Boards
Coverage per Pack	15.80sqm
