Features:

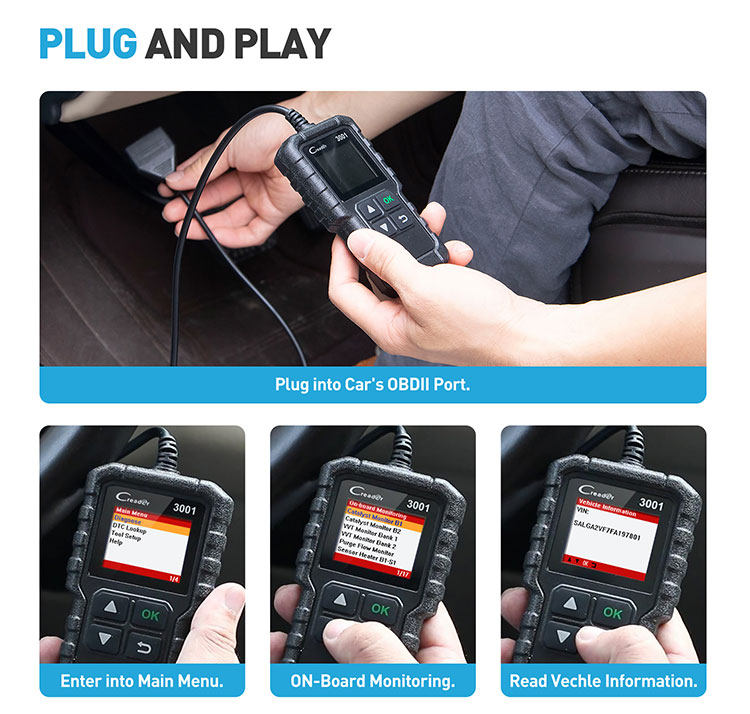

[ Read and Clear Codes ] : Launch 3001 obd2 scanner tool read and clear fault codes for engine system. In addition, launch 3001 built in fault codes definition lookup library. Launch creader 3001 obd2 scanner works on most 1996 and newer US-based vehicles that are OBDII compliant (OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN). "PLUG AND PLAY" scan tool, equipped with a 2.5 feet long cable and made of a very thick flexible insulator, very easy to use for beginners.

[ I/M Readiness Status Test] : You can use this obd2 scanner to check the status of emission-related monitors misfire system and fuel system, make sure the monitor was set before taking it to smog, help you pass the Smog Check easily, save your money for paying fine tickets.

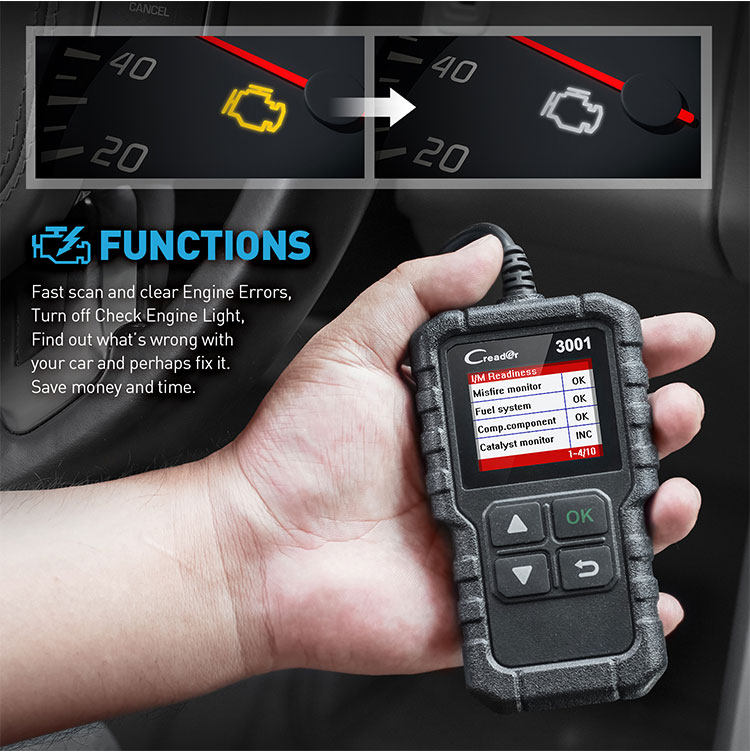

[ Check Engine Light and Identify VIN information] : Turns off the MIL , if you finished repairing the faulty components, then clear the fault codes and turn on the vehicle ignition, it is surprise that you will find the check engine light is off. And more, launch creader 3001 obd2 scanner can read the car's infromation such as VIN number.

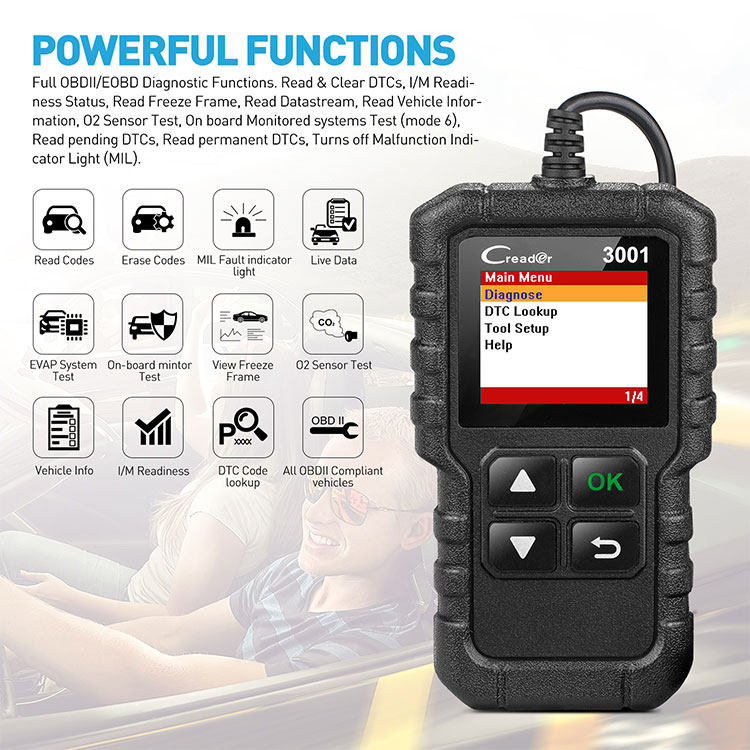

[ View Freeze Frame/Live Data Stream/ O2 Sensor/ Evap System test/ On-Board Monitor Test] : Launch 3001 is one useful and economic OBD2 FULL FUNCTION automotive diagnostic tool, support read live data for engine system, quick detecting vehicle failures

Specificaties:

Scherm: 1.77 " TFT, 160*128 dpi

Spanningsbereik: 9-18 V

Bedrijfstemperatuur: 0℃-50 ℃ (32 ℉-122 ℉)

Temperatuur:-20 ℃-70 ℃ (-4 ℉-158 ℉)

dimensie: 118mm * 68mm * 22.3mm (4.65 " * 2.68 " * 0.88 ")

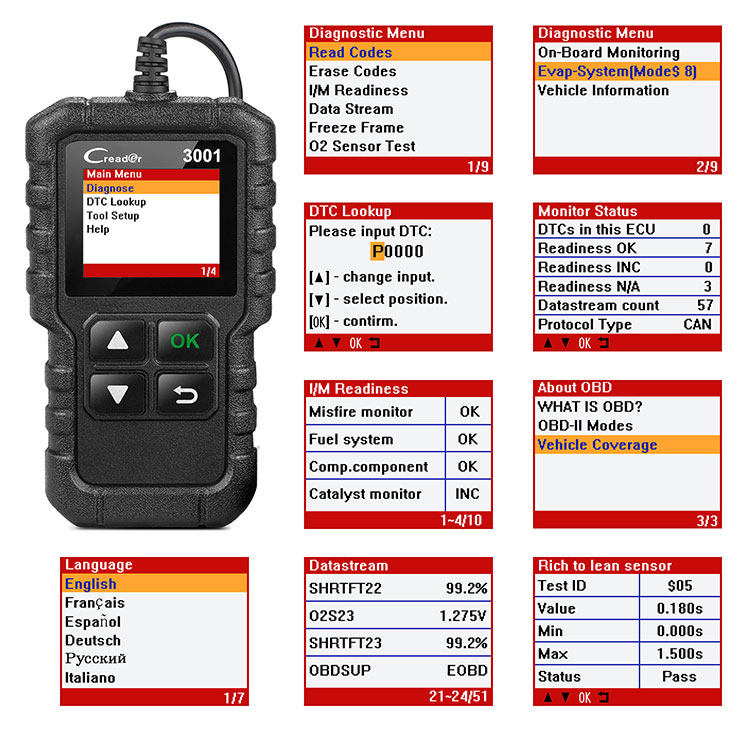

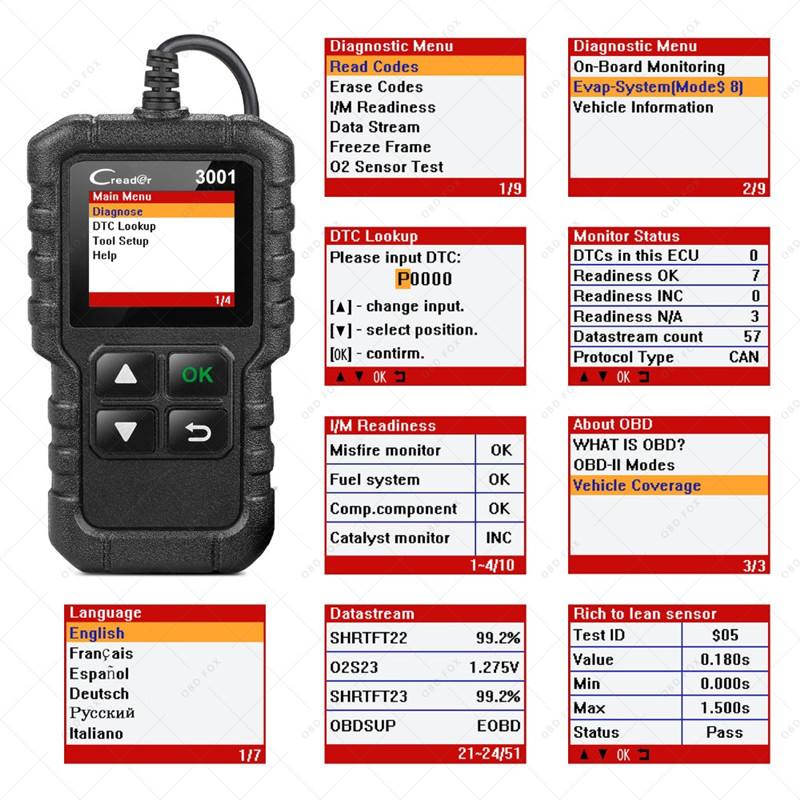

OBDII Function : Read and Delete Fault code , IML Fault indicator , Live Data , EVAP System Test , On-board mintor Test , View Freeze frame, O2 Sensor Test , Read Vehicle information , I/M Readiness , DTC Code lookup

Supported Language: English , French , Russian , Spanish ,German, Italian ,Portuguese

Product Introduction: CReader 3001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.

Support Car Models for OBDII diagnostic function: (Note: CR3001 only Support 12V Gasoline& Diesel, Does not support 24V Truck )

American Car : Need Standard OBD2 Protocols from 2000 to now for Chrysler , for Ford, for GM, For Jeep ...

European Car : Need Standard OBD2 Protocols from 2003 to now For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar...

Japanese/Korean Car: Need Standard OBD2 Protocols from 2006 to now for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota...

Chinese Car: Need Standard OBD2 Protocols from 2009 to now

NOTE:

If you are not sure whether it support your car , pls contact seller and send your car brand , model and release year , seller will check it for you

Support OBD 2 protocols car :

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

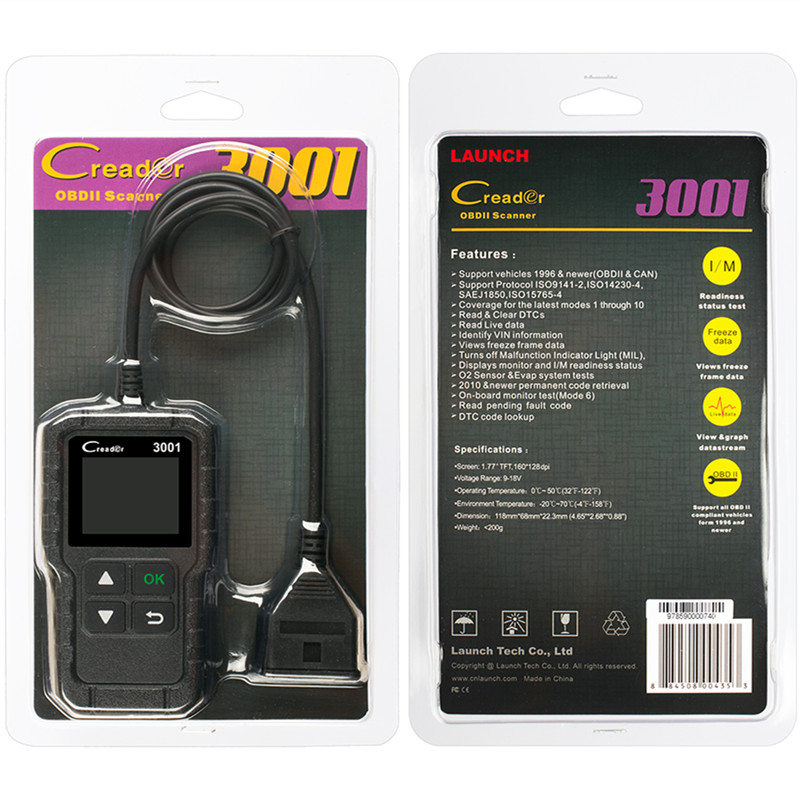

Packing List:

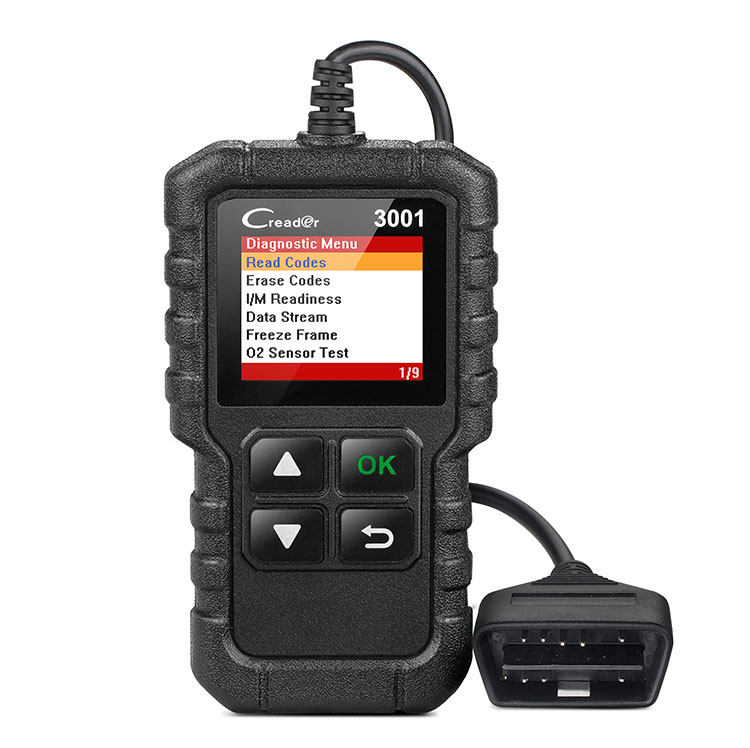

1 x Launch CR3001 Creader
