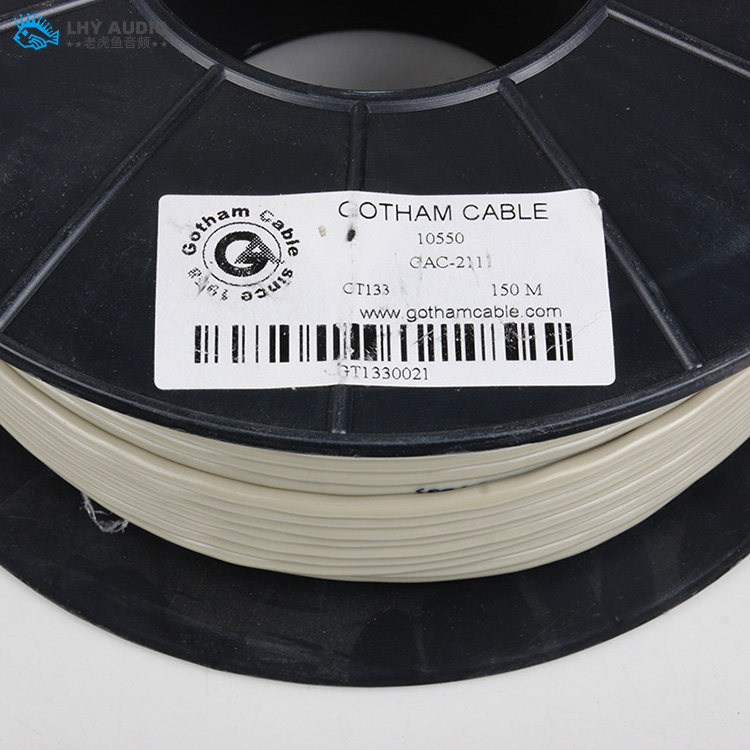

Reminder: The delivery is based on the actual length of purchase, not the roll shown in the picture! Because the wire cannot be sold for a second time after it is cut, it is not supported for seven days without reason to return after the sale.
Wire diameter: 4mm

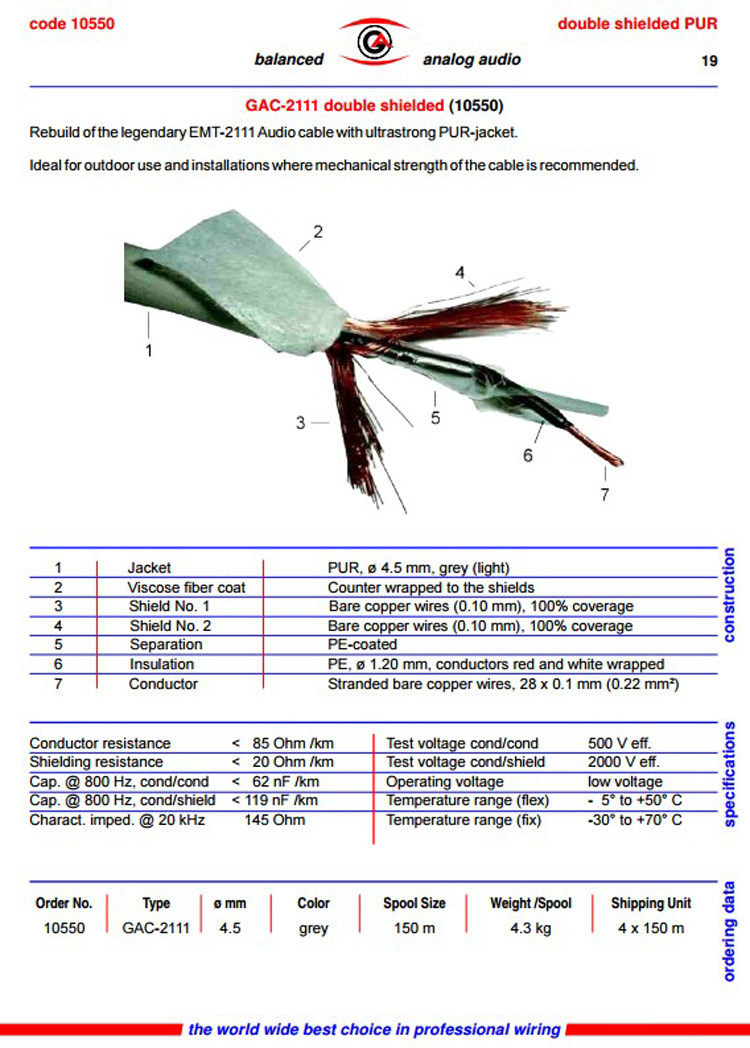

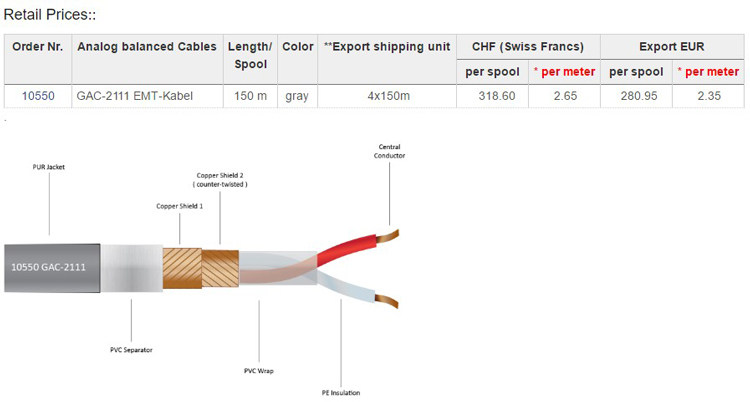

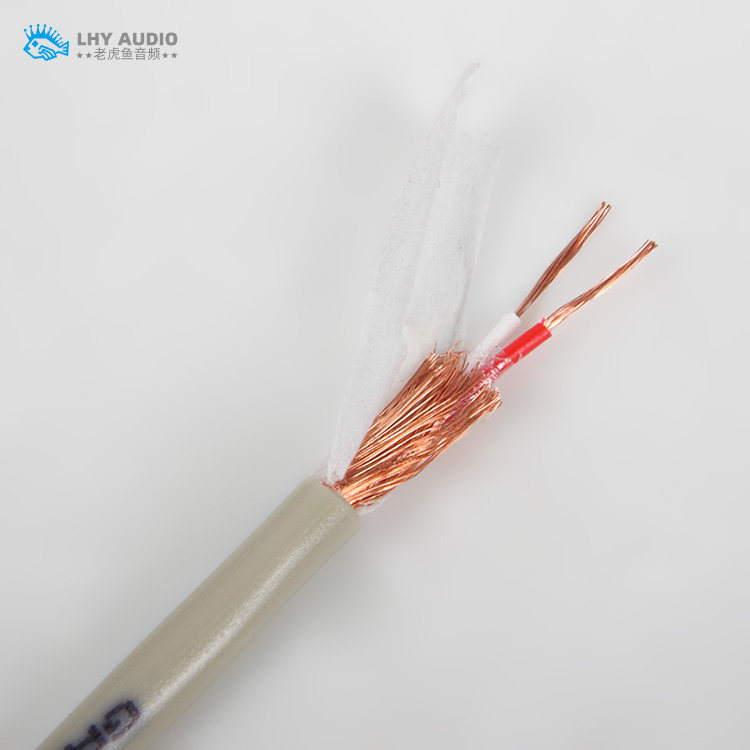

| Aufbau: | ||
| 1= Mantel: | PUR, Ø 4.5 mm 外直径 | |
| 2= Zwischenmantel | Viskose | |
| 3= 1. Wendelschirm | Blanke CU-Drähte (0.10 mm), 100% deckend | |
| 4= 2. Wendelschirm | Blanke CU-Drähte (0.10 mm), 100% deckend | |
| 5= Zwischenfolie | PE | |
| 6= Isolation | PE, Ø 1.20 mm, Adern Schwarz und weiss verseilt | |
| 7= Leiter (2 Leiter) | Blanke CU-Litze 28 x 0.1 mm (0.22 mm²) | |
| Technische Daten: | ||
| Leiterwiderstand: | < 80 Ohm/km | |
| Schirmwiderstand: | < 20 Ohm/km | |
| Kapazität: (bei 800Hz) | Ader/Ader | < 75 nF/km |
| Ader/Schirm | < 130 nF/km | |
| Wellenwiderstand: | bei 20 kHz: | 145 Ohm |
| Prüfspannung: | Ader/Ader | 500 Veff |
| Ader/Schirm | 2000 Veff | |
| Betriebsspannung: | Kleinspannung | |
| Temperaturbereich: | flexi-installiert: | -5° to +50° C |
| fix-installiert: | -30° to +70° C | |
