Features & Benefits

  • Most cost-effective series
  • "Tulip" type contact design with high contact pressure for highest durability
  • Selective gold plated contact and PCB termination area for best conductivity and solderability

Technical Information

Product

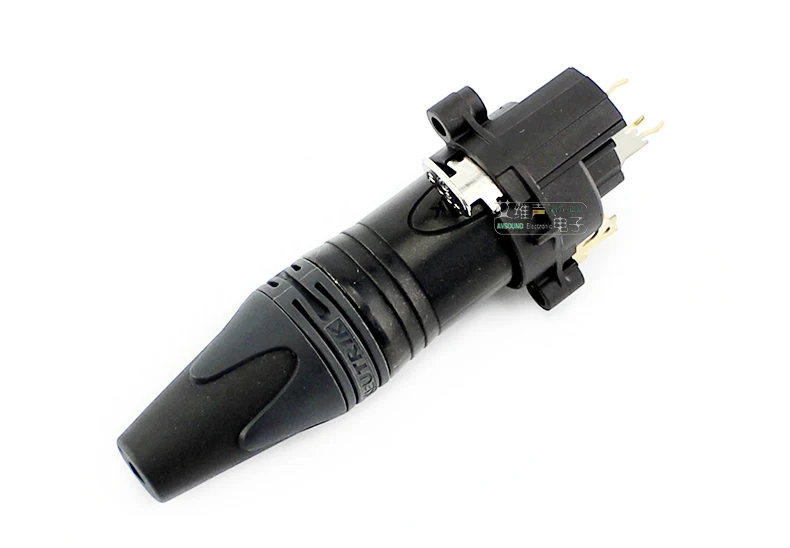

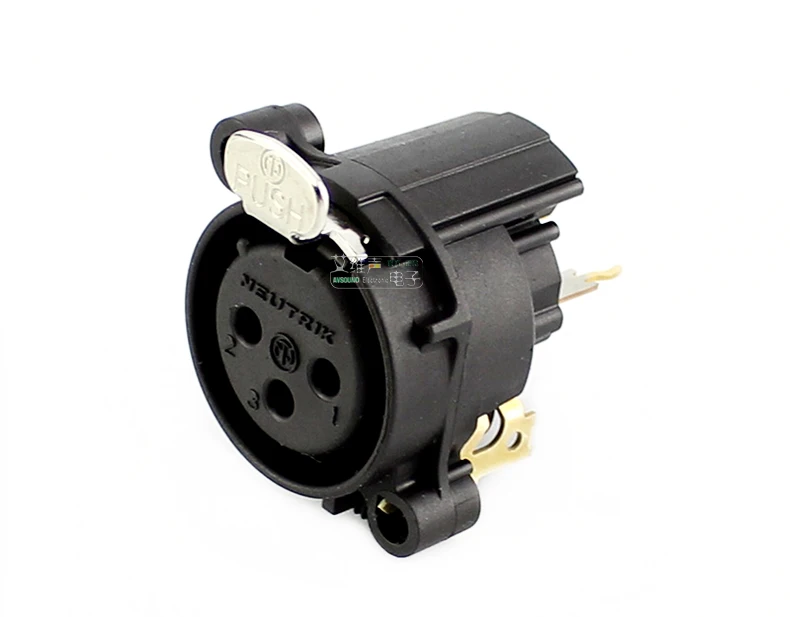

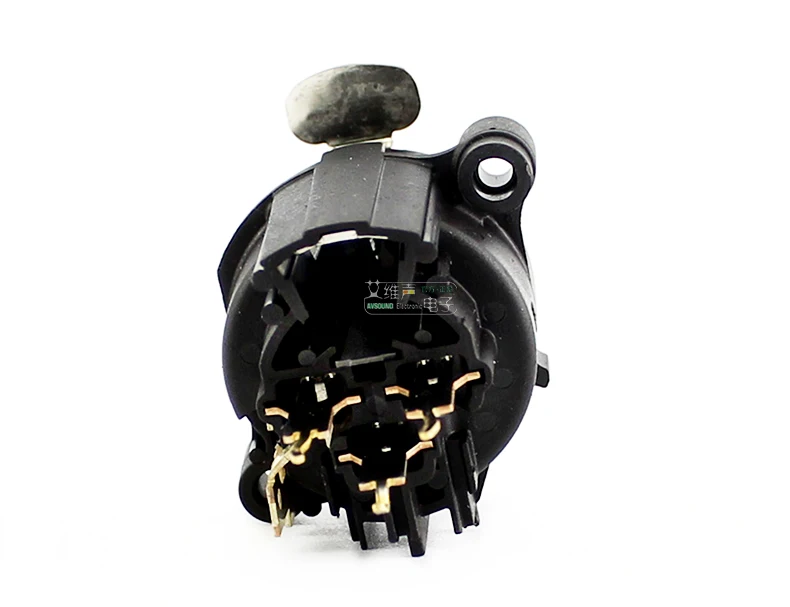

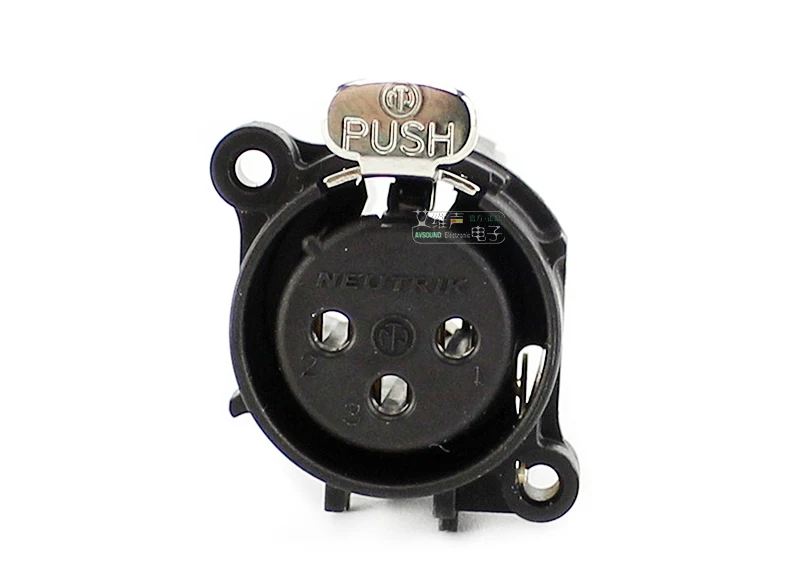

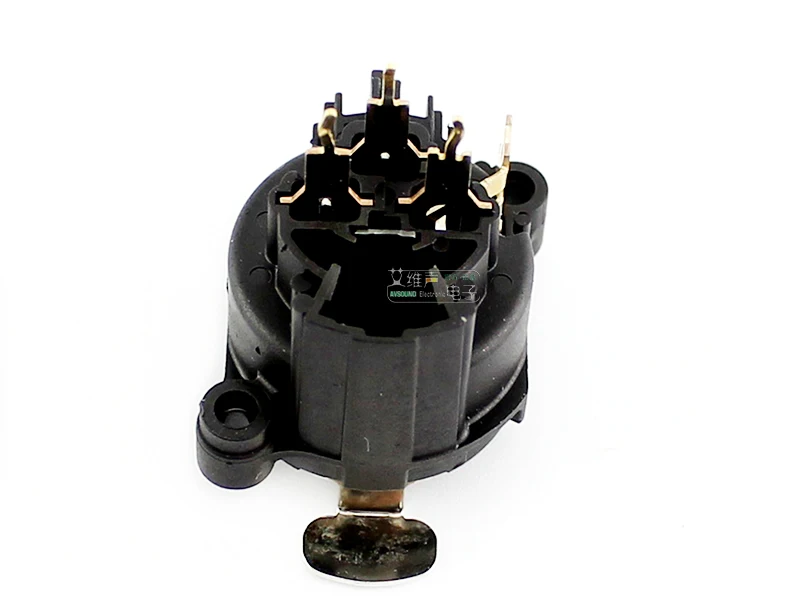

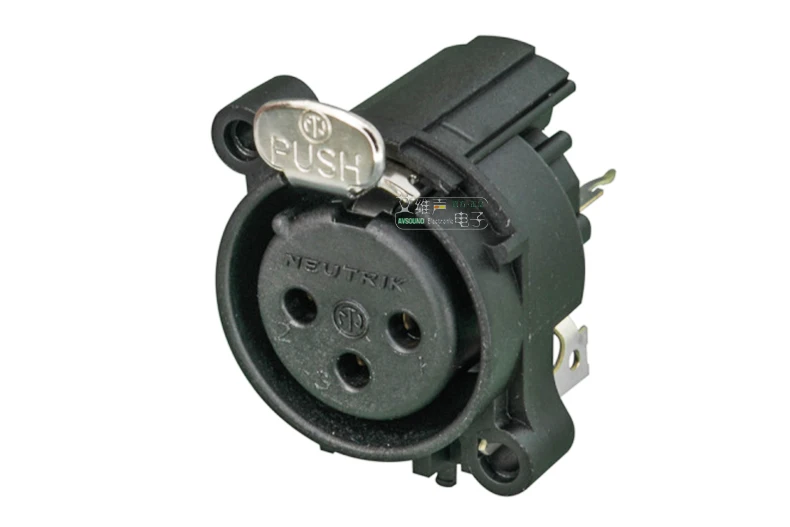

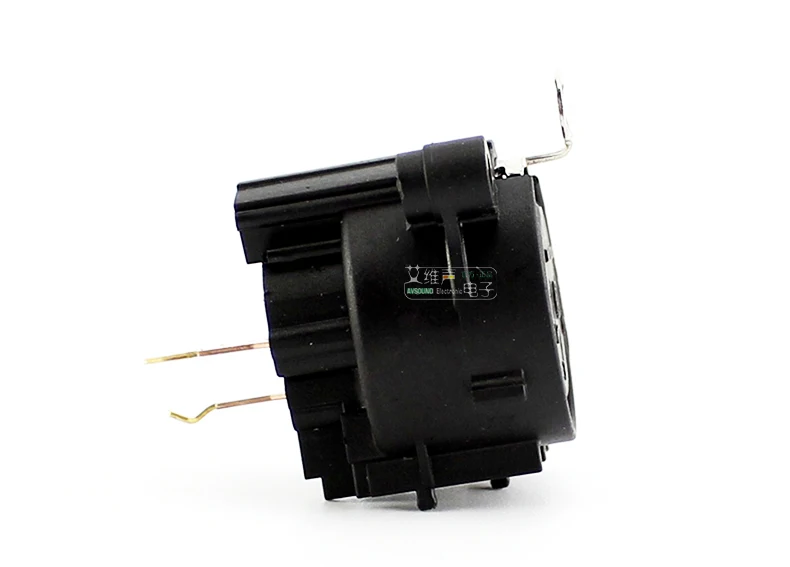

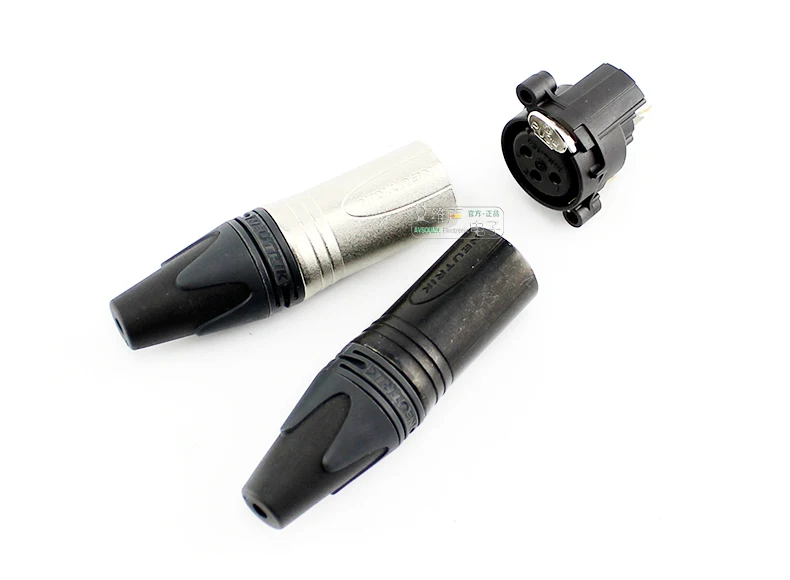

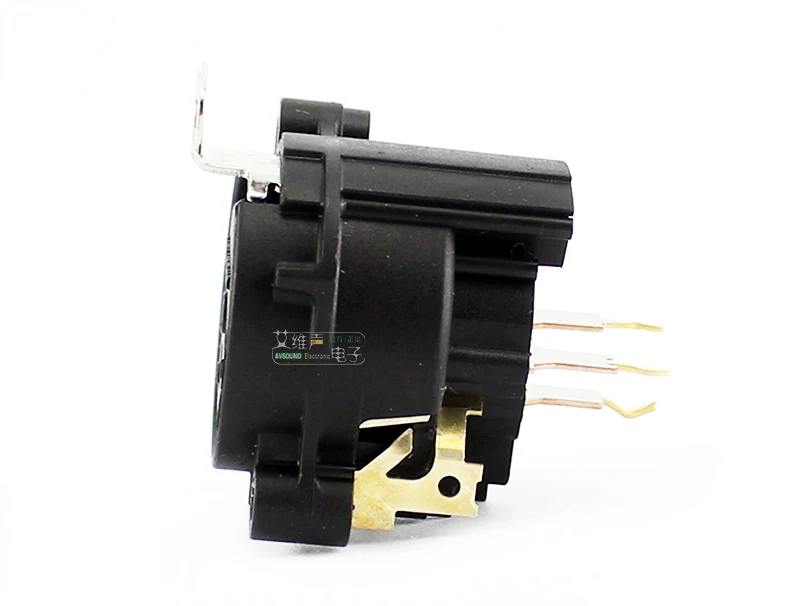

Title NC3FAAV1
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 6 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 6 A
Rated voltage < 50 V
Grounding Options Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Wiring vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape A
Mounting A-Screw
Material
Contacts Bronze (CuSn6)
Locking element Steel Ck67
Shell Polyamide (PA 6.6 30 % GR)
Environmental
Approvals UL
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
