Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 2 YEAR MANUFACTURER

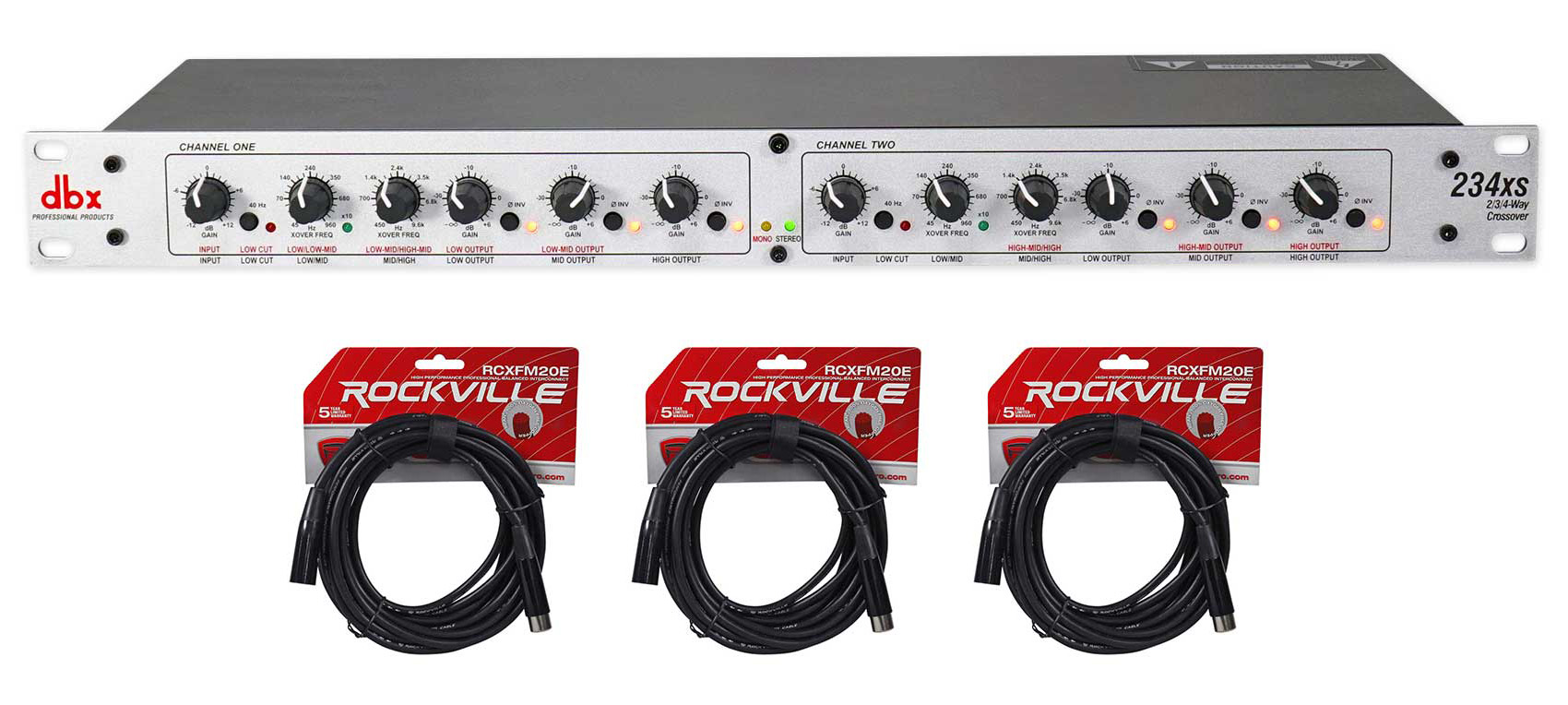

• (1) DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR
• (3) Rockville RCXFM20E-B 20 Foot Female to Male XLR Mic Cables Black 100% Copper

Authorized DBX Dealer!

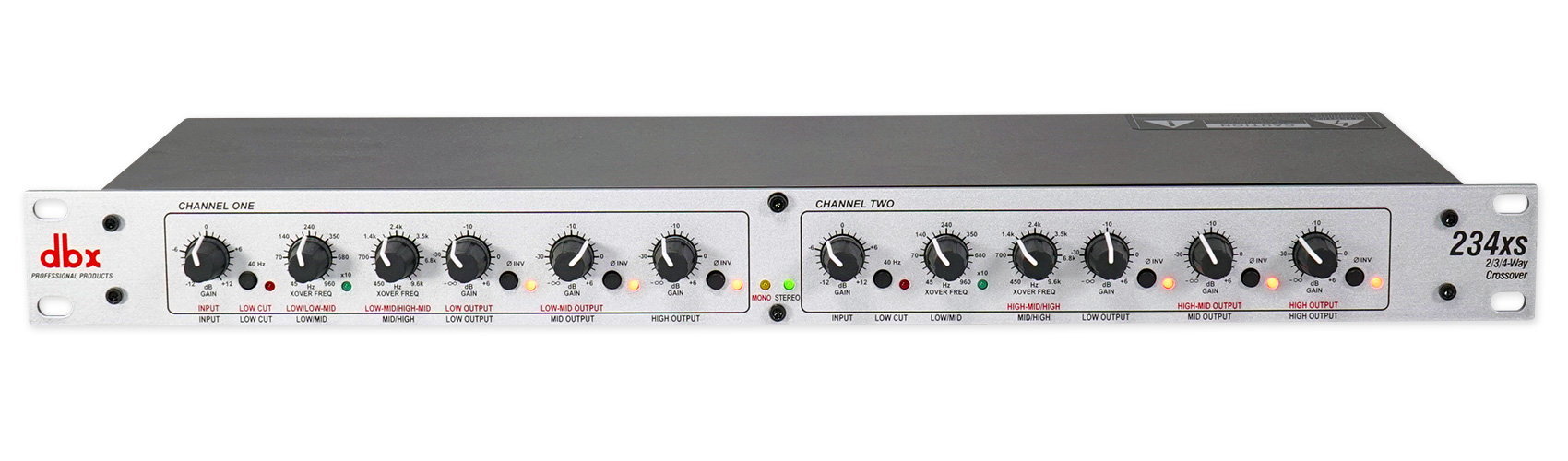

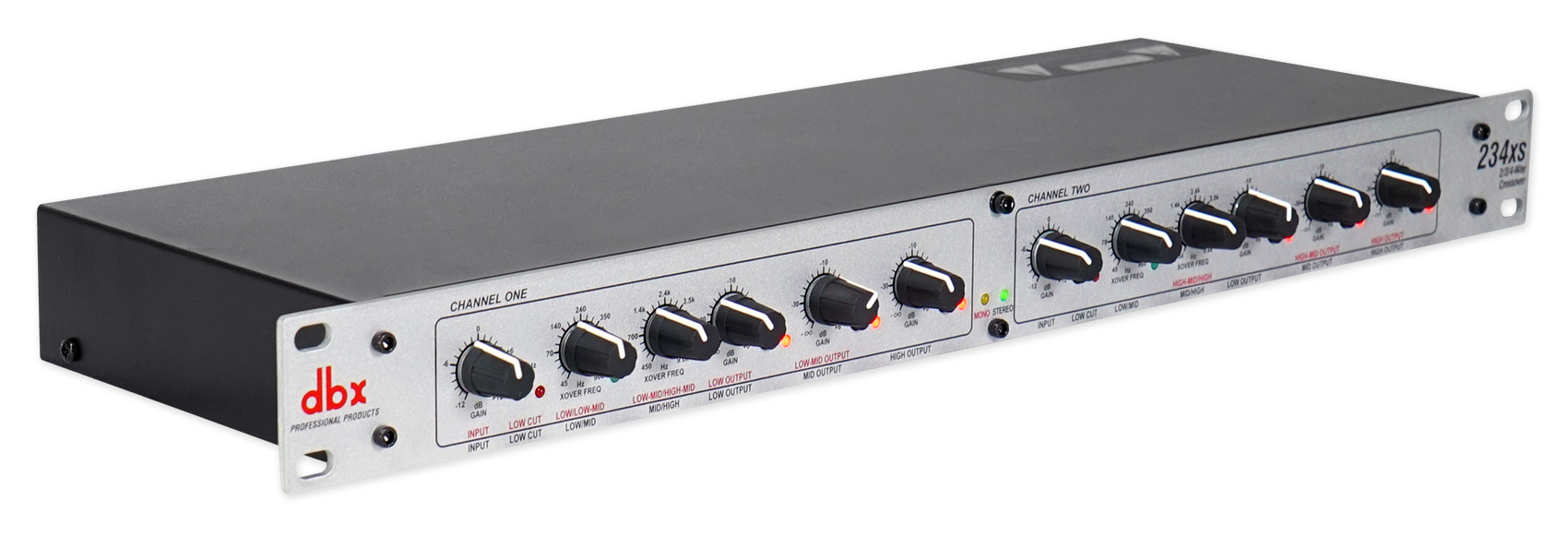

Description of 234XS:

More Sound to Your Amps and Speakers

The secret to making speakers sound great lies with the crossover you use. With the dbx® 234xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 234xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 234xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 234xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.

Features:

• dbx 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR
• XLR balanced ins and outs
• Mode switches for mono 4-way or stereo 2-way/3-way operation
• Low frequency summed (subwoofer) output
• x10 range switch on both channels
• 40Hz high pass (low cut) filter both channels
• Phase reverse switch on all outputs
• Individual level controls on all outputs
• 24dB per octave Linkwitz-Riley filters (the professional standard)
• Stereo/Mono status LEDs indicate the selected mode

Specifications:

• Input:
  • Connectors: XLR
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced >50k ohm, unbalanced >25k ohm
  • Max Input Level: >+21dBu balanced or unbalanced
  • CMRR: >40dB, typically >50dB at 1kHz
• Outputs:
  • Connectors: XLR
  • Type: Electronically-balanaced/unbalanced, RF filtered
  • Impedance: Balanced 60 ohm, unbalanced 300 ohm
  • Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater
• System Performance:
  • Bandwidth: 20Hz to 20kHz, +/-0.5dB
  • Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
  • Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
  • Stereo Mode:
    • >94dB (Low Output)
    • >93dB (Mid Output)
    • >90dB (High Output)
  • Mono Mode:
    • >94dB (Low Output)
    • >94dB (Low/Mid Output)
    • >92dB (High/Mid Output)
    • >88dB (High Output)
  • Dynamic Range: > 106 dB, un-weighted, any output
  • THD + Noise:
    • < 0.004% at +4 dBu, 1 kHz
    • < 0.04% at +20 dBu, 1 kHz
  • Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
• Crossover Frequencies:
  • Stereo Mode:
    • Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Mid/High: 450Hz to 9.6kHz (x10 setting)
  • Mono Mode:
    • Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Low-Mid/High-Mid: 450 Hz to 9.6 kHz
    • High-Mid/High: 450 Hz to 9.6 kHz
  • Filter type: Linkwitz-Riley, 24 dB/octave, state-variable
• Function Switches:
  • Low Cut Switch: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
  • Phase Invert Switch: Inverts the phase at the output, one switch per output
  • x1 / x10 Switch: Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
  • Mode Switch: Selects stereo 2-way, 3-way or mono 4-way operation
  • LF Sum Switch: Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode.
• Indicators:
  • Stereo Operation: Green
  • Mono Operation: Yellow
  • Low Cut: Red-Per Channel
  • x10: Green-Per Channel
  • Phase Invert: Red-Per Output
• Power Supply:
  • Operating Voltage: 100-120 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50 Hz
  • Power Consumption: 15 Watt
  • Main Connection: IEC Receptacle
• Product Dimensions (H x W x D): 1.75" x 19" x 6.9" inches
• Product Weight: 4.0 Lbs.

Video of RCXFM20E-B:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

 The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

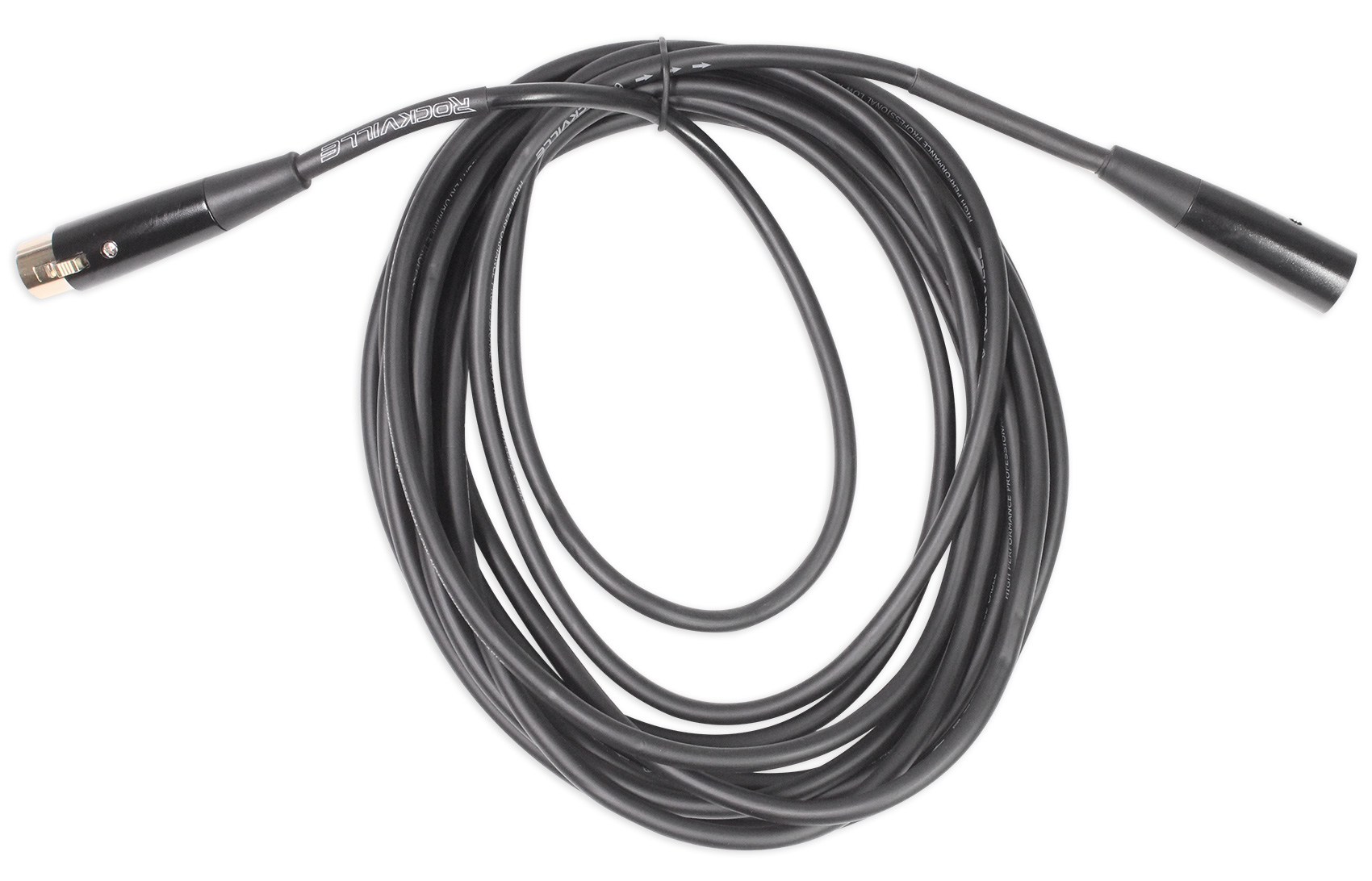

• Rockville RCXFM20E-B 20 Foot Nickel Plated Female to Male XLR Microphone Cable

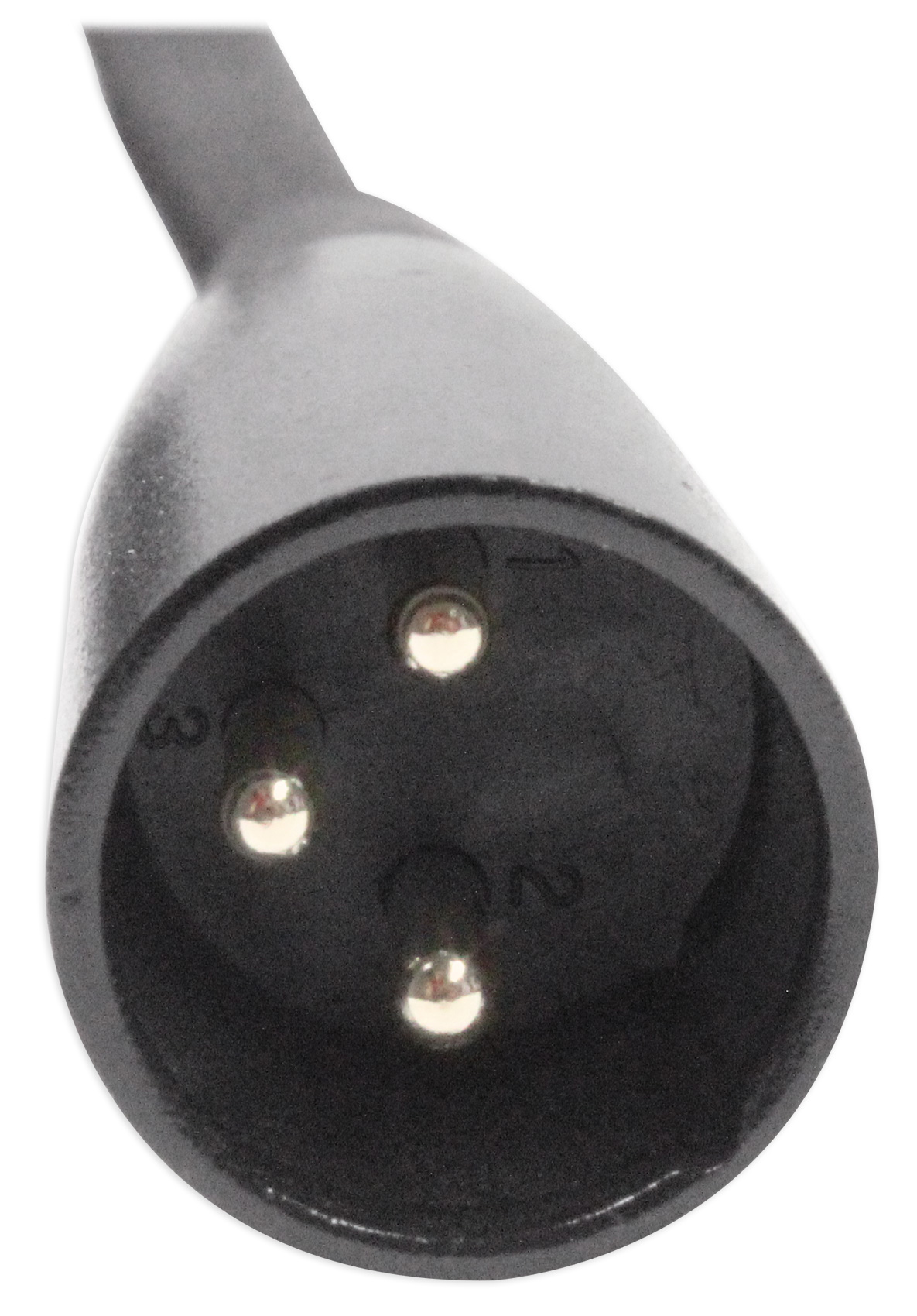

• XLR Connectors with Internal Strain Relief for Rugged Reliability
• 100% Copper Conductors for Enhanced Signal Clarity
• 90% OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
• Length: 20 Ft
• Color: Black
