Car DVD For Mercedes Benz C Class 2011-2014
Note: To make sure the item you selected perfect fits your car, please send us your car dashboard image and tell us the year of the car.
Note: To make sure the item you selected perfect fits your car, please send us your car dashboard image and tell us the year of the car.

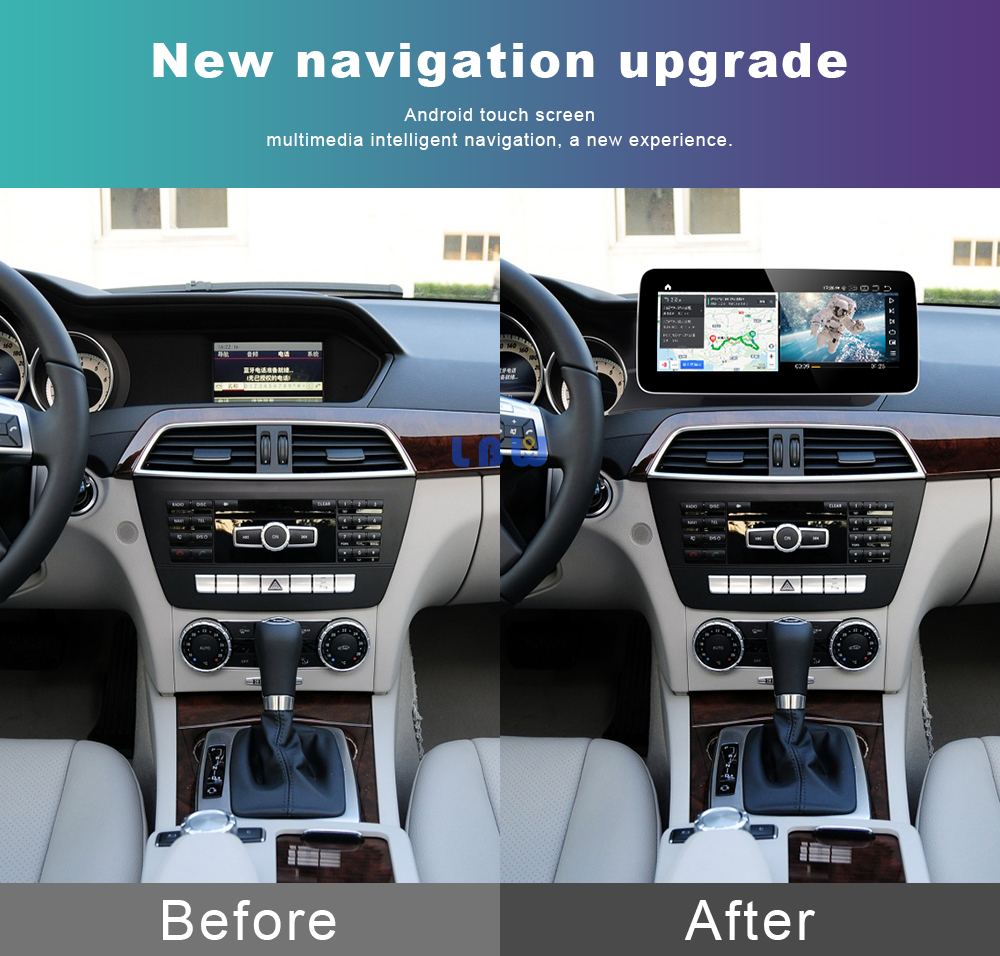

Factory radio screen update into Intelligence Car Multimedia System, only exchange your original car TFT monitor, keep all the factory functions, maintain your original Car Radio and Amplifier function. Only one screen,no external Box, easy to install,plug and play.
Support original all functions
1. Be compatible with cars with original screen 2.0/4.3/6.5/7.0/8.0/8.4 inch.
2. Be compatible with cars with/Without Original Navigation function.
3. Be compatible with cars with/Without Optic fiber.
4. Be compatible with factory Canbus , Door not closed Warnig,Steering Wheel Control, Car Info, etc.
5. Support Original Radio
6. Built-in Bluetooth and Support Original Bluetooth.
7. Support factory joystick control.
8. Play lossless audio.
9. Support original rear view camera and reverse trajector.
10. Support original Parking trajectory/Radar.
11. Only one screen,no external Box, easy to install,plug and play
2. Be compatible with cars with/Without Original Navigation function.
3. Be compatible with cars with/Without Optic fiber.
4. Be compatible with factory Canbus , Door not closed Warnig,Steering Wheel Control, Car Info, etc.
5. Support Original Radio
6. Built-in Bluetooth and Support Original Bluetooth.
7. Support factory joystick control.
8. Play lossless audio.
9. Support original rear view camera and reverse trajector.
10. Support original Parking trajectory/Radar.
11. Only one screen,no external Box, easy to install,plug and play
Technical details:
1.Introduction to the Android platform
• System: Android 13.0
• CPU: snapdragon 625 (MSM8953) 4 core A53, clocked at 2.0GHz, 64bit processor
• Process: 14nm LPP
• GPU: Adreno 506 (650MHz)
• Storage: EMMC 5.1, capacity / 32G
• Save: LPDDR3, capacity / 2G
• Supports 3 major satellite systems simultaneously: GPS, Beidou and Glonass
• BT: BT4.1
• SD card: 1 way SD 3.0 (maximum support 128GB)
• USB: Maximum support for 4 USB 2.0
• Resolution: 1280*480
• Video: Support 4K Ultra HD video playback, H.264 (AVC), H.265 (HEVC)
• Process: 14nm LPP
• GPU: Adreno 506 (650MHz)
• Storage: EMMC 5.1, capacity / 32G
• Save: LPDDR3, capacity / 2G
• Supports 3 major satellite systems simultaneously: GPS, Beidou and Glonass
• BT: BT4.1
• SD card: 1 way SD 3.0 (maximum support 128GB)
• USB: Maximum support for 4 USB 2.0
• Resolution: 1280*480
• Video: Support 4K Ultra HD video playback, H.264 (AVC), H.265 (HEVC)
2.Full Netcom 4G
• Support full Netcom 4G network: LTE Cat 7 (downstream, maximum 300Mbps; uplink, maximum 100Mbps)
•Eurasian version of the frequency band: B1, B3, B5, B7, B8, B38, B39, B40, B41
• North American version of the band: B2, B4, B5, B7, B8, B38, B41
• Eurasia version completely covers the domestic 3 major carrier networks
• Support full Netcom 4G network: LTE Cat 7 (downstream, maximum 300Mbps; uplink, maximum 100Mbps)
•Eurasian version of the frequency band: B1, B3, B5, B7, B8, B38, B39, B40, B41
• North American version of the band: B2, B4, B5, B7, B8, B38, B41
• Eurasia version completely covers the domestic 3 major carrier networks
3.Wifi specification
• Support dual-band WIFI
• Frequency: 2.4G and 5G
• Frequency range: 2.4~2.496GHz, 4.9~5.85GHz • Rate: up to 433 Mbps (5G)
• Network standard: IEEE 802.11a/b/g/n/ac
• Support WIFI direct
• Support dual-band WIFI
• Frequency: 2.4G and 5G
• Frequency range: 2.4~2.496GHz, 4.9~5.85GHz • Rate: up to 433 Mbps (5G)
• Network standard: IEEE 802.11a/b/g/n/ac
• Support WIFI direct
4.Bluetooth specification
• Bluetooth version: 4.1+ BR/EDR+BLE• Protocol: HFP A2DP AVRCP SPP• Supports Bluetooth-WIFI coexistence operation • Maximum transmit power: 9dBm
• Maximum receiving sensitivity: -91dBm
• Transmission distance: <10 meters
• Bluetooth version: 4.1+ BR/EDR+BLE• Protocol: HFP A2DP AVRCP SPP• Supports Bluetooth-WIFI coexistence operation • Maximum transmit power: 9dBm
• Maximum receiving sensitivity: -91dBm
• Transmission distance: <10 meters
5.GNSS specifications
• Satellite system: GPS / Beidou / Glonass (GLONASS)
• frequency:
GPS 1575MHz
Glonass 1601.7MHz
Beidou 1561MHz
• Channel: 22 (simultaneous tracking), 66 (search)
• Tracking sensitivity: -160dBm
• Hot start time: <5 seconds
• Cold start time: <35 seconds
• Positioning accuracy: <3 meters
• Satellite system: GPS / Beidou / Glonass (GLONASS)
• frequency:
GPS 1575MHz
Glonass 1601.7MHz
Beidou 1561MHz
• Channel: 22 (simultaneous tracking), 66 (search)
• Tracking sensitivity: -160dBm
• Hot start time: <5 seconds
• Cold start time: <35 seconds
• Positioning accuracy: <3 meters
6.Benz platform
• Support 3 major systems: NTG4.0, NTG4.5 (NTG4.7) and NTG5.0 (NTG5.1, NTG5.2)
• Support original car AUX automatic switching (NTG4.0 does not support)
• NTG4.5-4.7: Support original car AUX activation function
• NTG5.0-5.2: Support AUX-USB and Bluetooth transmit transmission sound
• Support 3 major systems: NTG4.0, NTG4.5 (NTG4.7) and NTG5.0 (NTG5.1, NTG5.2)
• Support original car AUX automatic switching (NTG4.0 does not support)
• NTG4.5-4.7: Support original car AUX activation function
• NTG5.0-5.2: Support AUX-USB and Bluetooth transmit transmission sound
To avoid any damage because of installation, it would be better to have professional person to do this job.
Additional items to choose :
1. Carplay $50 (it can connect iPhone to Android screen. Supports mobile phone Siri and GPS, music, video, social software and more.)
2. Wireless Carplay $75（No cable connection to the phone）
3. DVR $50 front 1080P (HD) + rear 720P (HD) 2 cameras (32G card)
4. 360 panoramic camera $120 (4 cameras in front、rear、left、right ). Monitor the surrounding situation in all directions. Reduce blind spot accidents. Automatically save traffic accidents when traffic accidents occur. This is evidence of responsibility. When the car travels to a narrow road, it can make You clearly see the image around the car. Easily pass through complicated road conditions)
