Main features:

  • Plug-and-play, easy to use
  • Dual relay controlling, one for control output, another for abnormal protection
  • Support Celsius and Fahrenheit reading

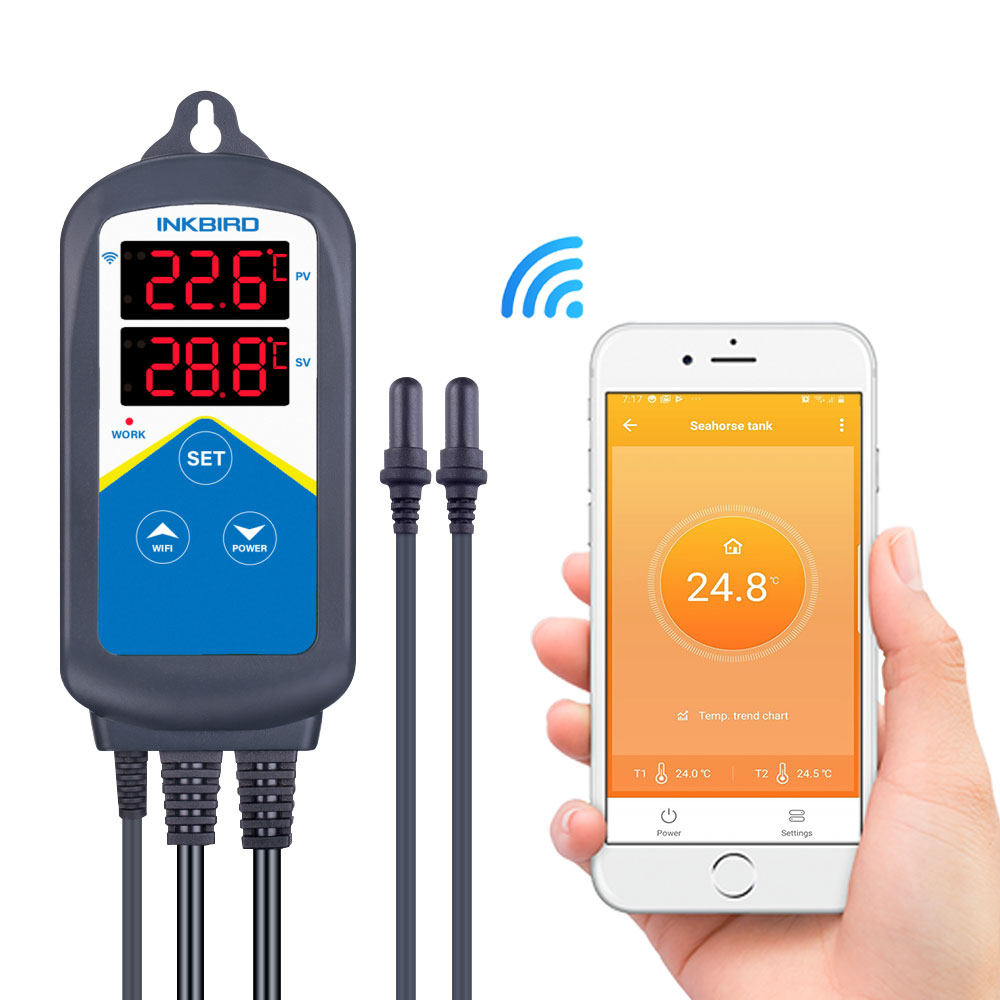

  • Dual display window for simultaneous display of measured temperature and stop heating temperature
  • Dual temperature probes to ensure the accuracy of the water temperature
  • Temperature calibration
  • High and low-temperature alarm
  • Probe abnormal alarm
  • Continuous heating time alarm

Technical Parameters

  • Voltage: 100~240Vac 50/60Hz
  • Current: 10A Max
  • Wattage: 1200W(120Vac), 2200W(220Vac)
  • Type of temperature probe: R25℃=10KΩ±1%；
    R0℃=26.74~27.83KΩ； B25/85℃=3435K±1%
  • Temperature control range: 20.0℃~35.0℃/68.0℉~95.0℉
  • Temperature measurement range: -40.0℃~100℃/-40.0℉~212℉
  • Temperature display accuracy: 0.1℃/℉(<100℃/℉), 1℃/℉(>=100℃/℉)
  • Display unit: Celsius ℃ or Fahrenheit ℉
  • Ambient temperature: -20℃~40℃/-4.0℉~104℉S
  • Storage environment: Temperature: 0℃~60℃/32℉~140℉;
  • Humidity: 20~80%RH (Unfrozen or condensation state)

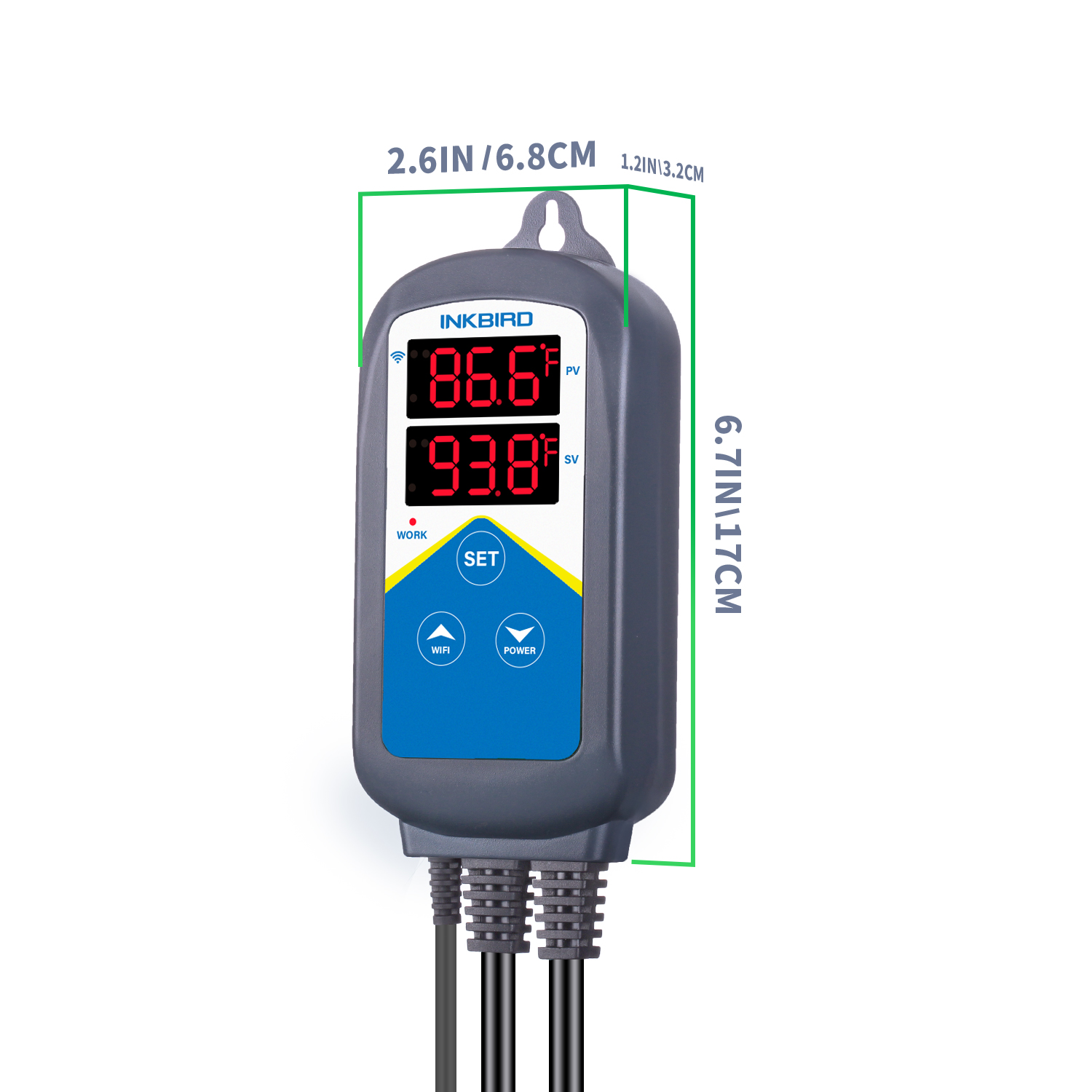

Dimensions

  • Size: 170*68*32mm
    Please note that both sensors have to be in the same tank.

Alarm Notification

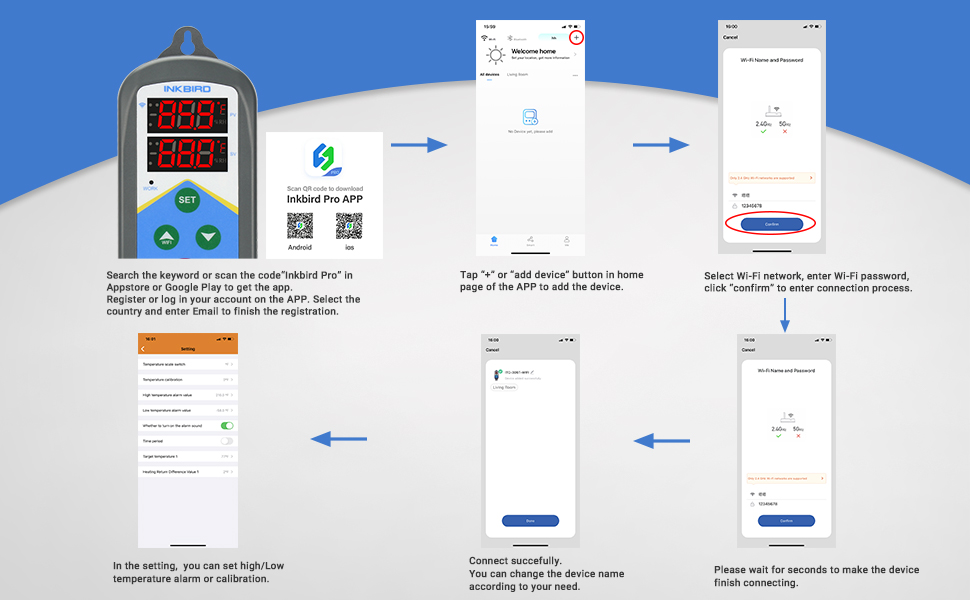

  • When there is an alarm, the INKBIRD app will push an abnormal alarm notification to your smartphone immediately.

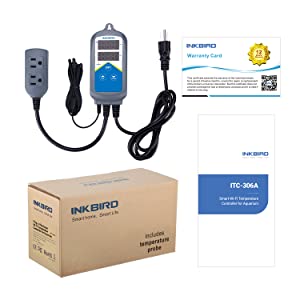

Package Contents

  • 1 x ITC-306A WiFi Temperature Controller
  • 1 x User manual
  • 1 x Brand card
