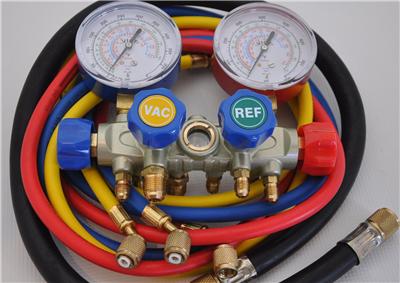

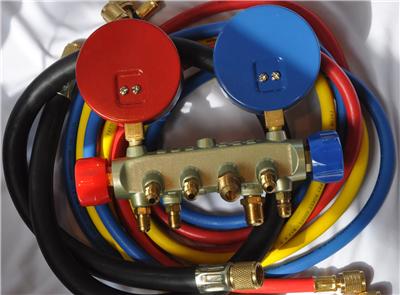

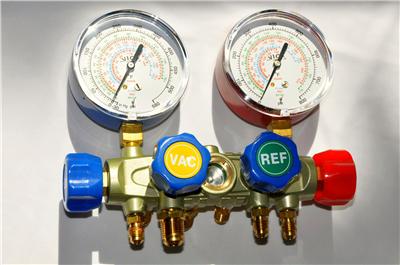

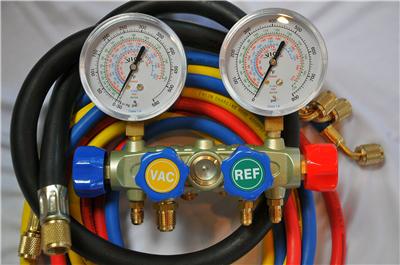

Newer Design 4-way Manifold Gauge Set with 4 Valves and 4 Hoses
Model: GMV4 with Temperature Marked for R410a, R22, R134a, and R404a; more professional HVAC service tools available at https://viot.us/HVAC
Features:
- New design manifold gauge with aluminum forged alloy frame
- 4-Valve Manifold for quick evacuation with 3/8 " vacuum port + hose to cut evacuation time by half
- Large 3 1/8" diameter steel case in red and blue for front access for easy field recalibration
- Mounted on ergonomic Design with an aluminum alloy block frame
- Color coded Easy to grab big knob control valve handles, double "O"-ring piston for reliability and long service life.
- Viewing glass on the block to see the inside action during charging/diagnosis/recovery
- All hose ends and anchors are 1/4" except the black vacuum hose, which is 3/8"
- Pressure in PSI; Temperature in °F: Temperature marked: R410A, R22, R404A, R134a.
- Heavy duty SS hook included

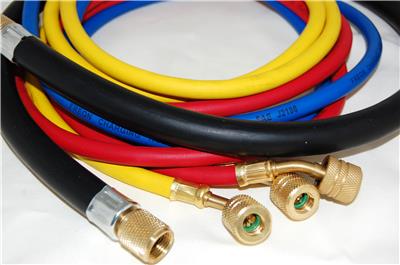

Comes with 3 Color Coded High Pressure Hose set and a Black Vacuum Hose:
- 60 inch in length each on RYB
- 800 PSI working pressure; 4000 PSI burst pressure
- 1/4" female SAE brass fitting to the gauge block
- 1/4 " female SAE brass fitting on the service side with a 45 degree turn for easy access.

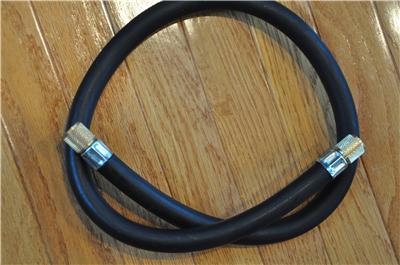

- 36 inches on big Black hose
- 3/8 " SAE flare on both ends, big hose for a faster evacuation.
- Teflon O-ring washer provide the best seal and the most durability)
- Hose seal repair kit included
Note: use adapters CV23p or CV23S for 5/16" system ports.
|
|
|
|
