3-Bits 100V/10A
Description:
● Working voltage of Meter itself: DC 4 - 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
● Working current of Meter itself: ≤20mA
● Voltage Measuring range: DC 0 - 100V
● Current Measuring range: DC 0 - 10A
● Voltage resolution (V): 0.1V
● Current resolution (A): 0.01A
● Measure accuracy: 1% (± 1 digit)
● Display: 0.28" digital tube, Two color blue and red
● Refresh rate: about 300mS / times
● Dimensions: 48mm*29mm*26mm
● Operation Temp: -10°C~+65°C
Package Included:
1PC x DC 100V 10A Voltmeter & Ammeter

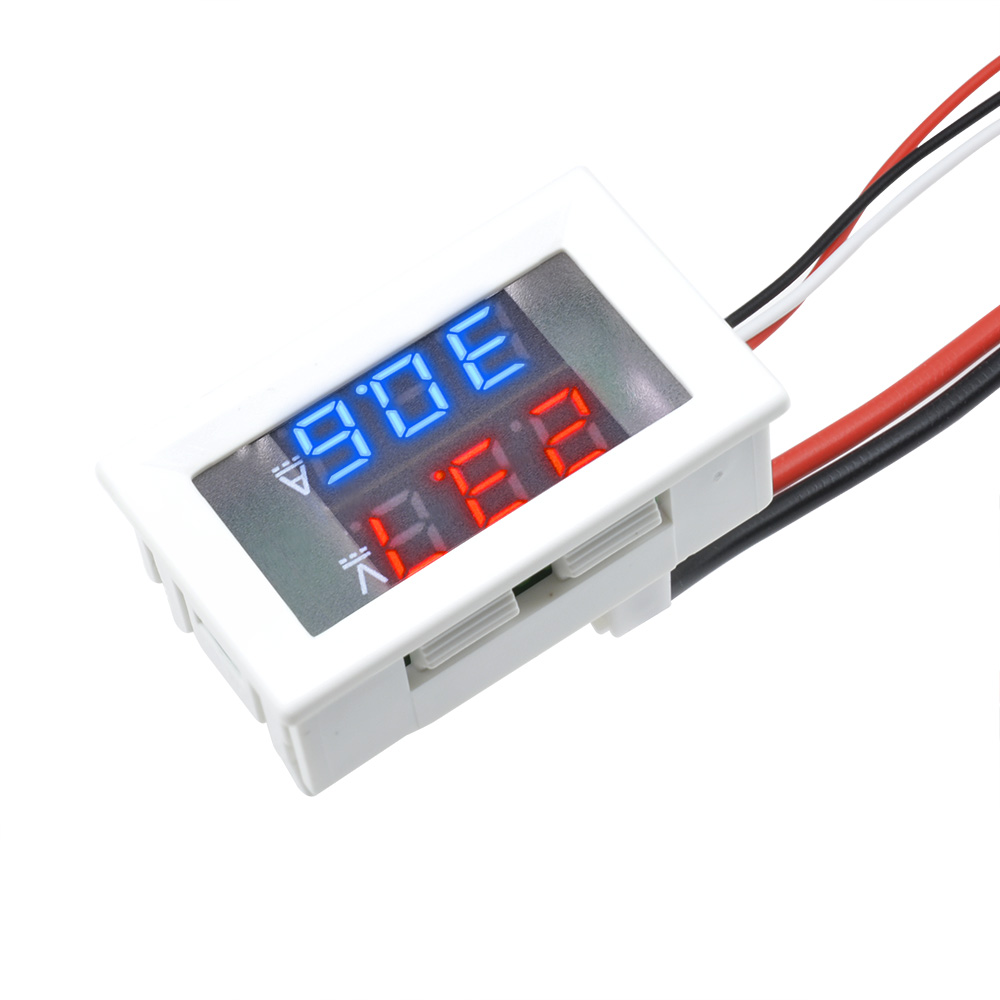

3-Bits 100V/10A (White Case)
Description:
● Working voltage of Meter itself: DC 4 - 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
● Working current of Meter itself: ≤20mA
● Voltage Measuring range: DC 0 - 100V
● Current Measuring range: DC 0 - 10A
● Voltage resolution (V): 0.1V
● Current resolution (A): 0.01A
● Measure accuracy: 1% (± 1 digit)
● Display: 0.28" digital tube, Two color blue and red
● Refresh rate: about 300mS / times
● Dimensions: 48mm*29mm*26mm
● Operation Temp: -10°C~+65°C
Package Included:
1PC x DC 100V 10A Voltmeter & Ammeter
3-Bits 100V/50A
Description:
● 100% new brand
● Size: 48mm x 29mm x 21mm
● Display: red and blue
● Current measurement 50A
● Display: 0.28 inch digital LED
● Operating voltage: DC 4.5 ~ 30V
● Measuring voltage: DC 0 ~ 100V
● Resolution (V) minimum: 0.1V
● Update frequency: about 300ms / times
● Accuracy of the measure: 1% (±1 digit)
● Minimum resolution (A): 0.01a
● Operating current: <20 mA
● Operating temperature: -10 to 65°C
● Operating humidity: 10 to 80% (without condensation)
● Assembly cutout: 45.5mm x 26.5mm
Package Included:
1PC x Ammeter Voltmeter DC 100V 50A
4-Bits 100V/10A
Technical Parameters:
● Display: 0.28" LED digital
● Operating voltage: DC 4 ~ 30V
● Measure voltage: DC 0.000 ~ 100.0V
● Measure current: 0.000~9.999A
● Refresh rate: ≥300ms / times
● Measure accuracy: 1% (± 1 digit)
● Operating Current: <20mA
● Operating temperature: -10 to 65°C
● Operating Humidity: 10 to 80% (non-condensing)
● Size: 48mm x 29mm x 21mm
● Mounting cutout: 45.5mm x 26mm
● Display: 0.28" LED digital
● Operating voltage: DC 4 ~ 30V
● Measure voltage: DC 0.000 ~ 100.0V
● Measure current: 0.000~9.999A
● Refresh rate: ≥300ms / times
● Measure accuracy: 1% (± 1 digit)
● Operating Current: <20mA
● Operating temperature: -10 to 65°C
● Operating Humidity: 10 to 80% (non-condensing)
● Size: 48mm x 29mm x 21mm
● Mounting cutout: 45.5mm x 26mm
Package Included:
1PC x DC 100V 10A Voltmeter & Ammeter
4-Bits 200V/10A
Description:
● It is with high precision and four digital displays.
● Working Voltage: DC 4V-28V
● Working Current: <20mA
● Display: about 0.28 inches
● Two Color: blue and red
● Measuring range: DC 0-200V 0-10A
● It is with built-in shunt.
● Refresh Rate: about 1 S / 3 times
● Measure Accuracy:
Operating Temperature: -10°C~65°C
Working Pressure: 80kPa-106 kPa
● Size: about 48 * 29 * 20 mm / 1.89 * 1.14 * 0.79 inches
● Current: error ±2V
● Voltage: error ±0.1A
Package Included:
1PC x 4 Bit DC 0-200V 10A Voltmeter Ammeter Blue+Red LED Amp Dual Digital Volt Meter
Digital Voltmeter
Description:
● 100% Brand new and high quality
● Precision automatic adjustment, when less than 10V accurate to 0.01V, more than 10V accurate to 0.1V
● And it is self-powered version, Two wire connection, with reverse polarity protection
● No power supply needed
● 100% Brand new and high quality
● Precision automatic adjustment, when less than 10V accurate to 0.01V, more than 10V accurate to 0.1V
● And it is self-powered version, Two wire connection, with reverse polarity protection
● No power supply needed
Specifications:
● Display color: Red
● Two-wire Measurement range: DC 4~30V
● Working Current: <23mA
● Working Temperature: -10°C~65°C
● Minimum input voltage: DC 4V(Lower than 4V, the brightness will be weakened, but this will not affect the accuracy of measurement)
● Maxmum input voltage: DC 30V(Higher than this voltage is has a risk of overburning)
● Permissible error: 1%(±1 digit)
● Display mode: three digit 0.36''LED digital tube
● Size: 21.5 x 13 x 8mm (L*W*H)
● Speed ratio: about 200ms/time
● Lead wire length: 15cm
Package Included:
1PC x Digital Voltmeter
