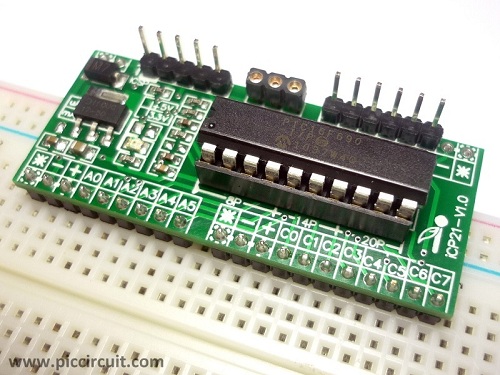

iBoard Tiny x20 is a mini size 8, 14 & 20 Pin Microchip PIC IO Board with lowest cost, easy interfacing, high performance, user friendly and come with free Hi-Tech C source code.


  • Mini size, easy interfacing, high performance and user friendly device
  • Used with the 8, 14 & 20 Pin Flash PIC MCU

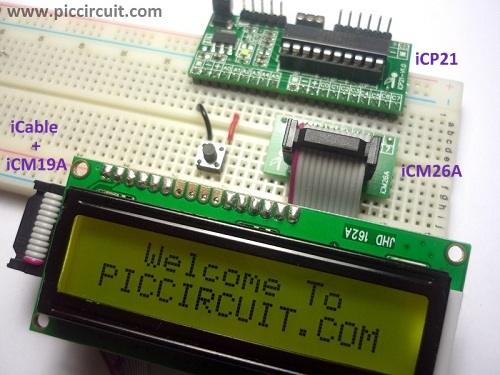

  • Excellent flexibility that allows user to expand the board with plug and play modules

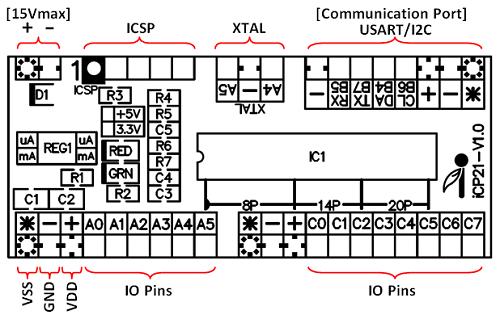

  • iCP21 iBoard Tiny x20 Layout:

      Peripheral Features:
      • NCP1117 - provide +5V voltage supply to PIC Microcontroller (contact us for different voltage output)
      • Maximum Input Voltage: 15Vdc
      • Internal or external oscillator
      • Green LED - power on indicator
      • VS1 and +5V - different input power supply (external supply or +5V supply)
      • ICSP Connector - on-board PIC programming
      • Communication port: USART, I2C
      • 18x IO Pins and 1 Input-Only Pin
      Dimension:
      • Dimension: 5.5cm X 2.3cm X 1.1cm
      • Standard 1x5 2.54mm Pin Socket for ICSP connection
      • Standard 1x9 and 1x11 2.54mm Pin Socket for IO Port connection
      • Standard 1x6 2.54mm Pin Socket for Communication Port (USART/I2C) connection
      Accessories List: (These accessories would be shipped together)
      • 1 x iCP21 iBoard Tiny x20 (Microchip 20pin IO Development Board)
      • 1pc x Microchip MCU (based on selected MCU option)
      • Free 1x5 and 2x11 Pin Header

      Download:

      • iCP21v1.0 iBoard Tiny x20 Schematic: Download
      • More iCP21 information: Link
      • Free Hi-Tech C Tutorial & Source Code:  Link

      Support Devices:
      • 8 Pin: PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F629, PIC12F635, PIC12F675, PIC12F679, PIC12F683
      • 14 Pin: PIC16F505, PIC16F506, PIC16F526, PIC16F610, PIC16F616, PIC16F630, PIC16F636, PIC16F676, PIC16F684, PIC16F688
      • 20 Pin: PIC16F631, PIC16F639, PIC16F677, PIC16F685, PIC16F687, PIC16F689, PIC16F690, PIC16F785
