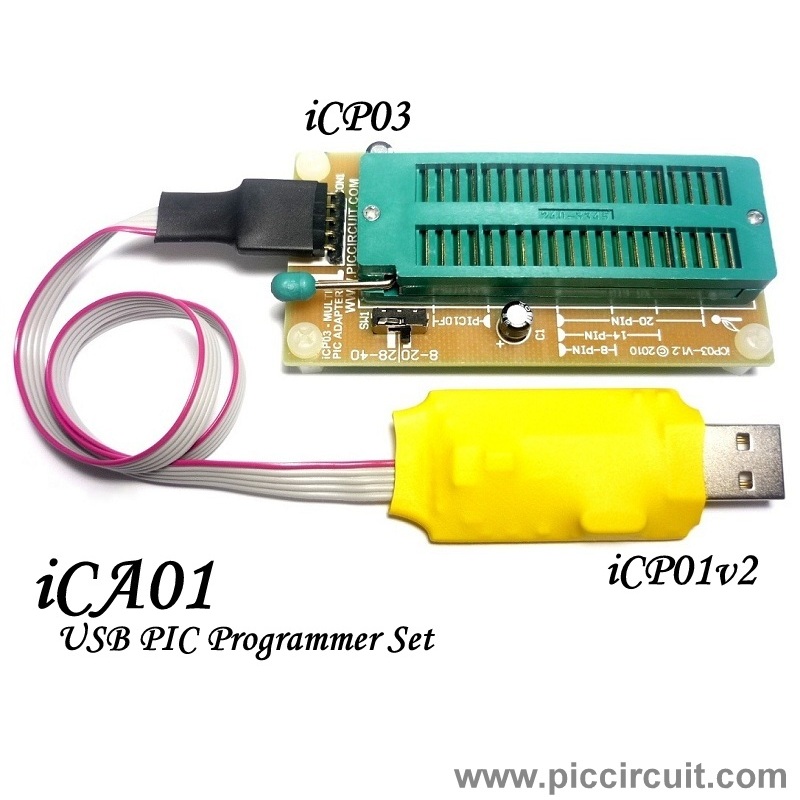

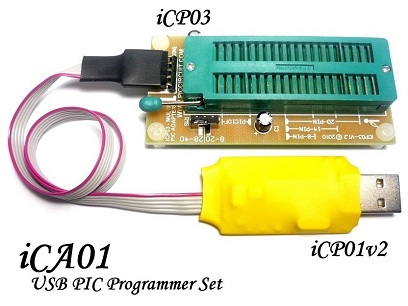

iCA01 USB PIC Programmer Set (iCP01v2 PIC Programmer + iCP03 PIC Adapter) provides complete solution for Microchip PIC programming

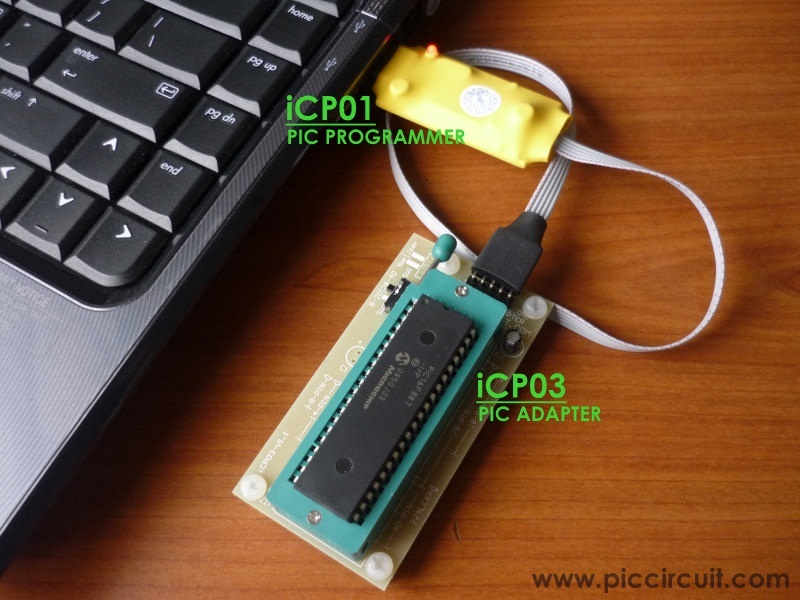

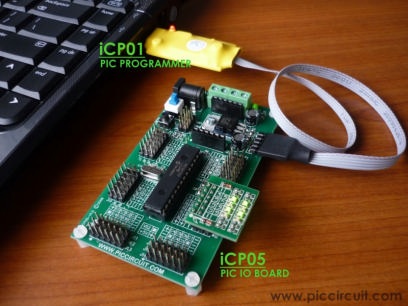

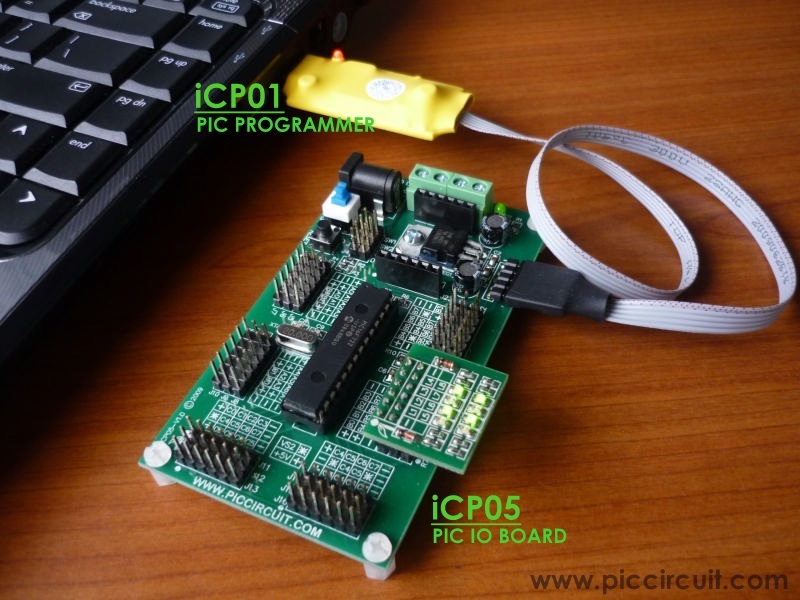

It allows users to program their hex code into Flash PIC MCU by using In-Circuit Programming (ICSP) method or Off-Board Programming (Adapter) method.





Items in package:

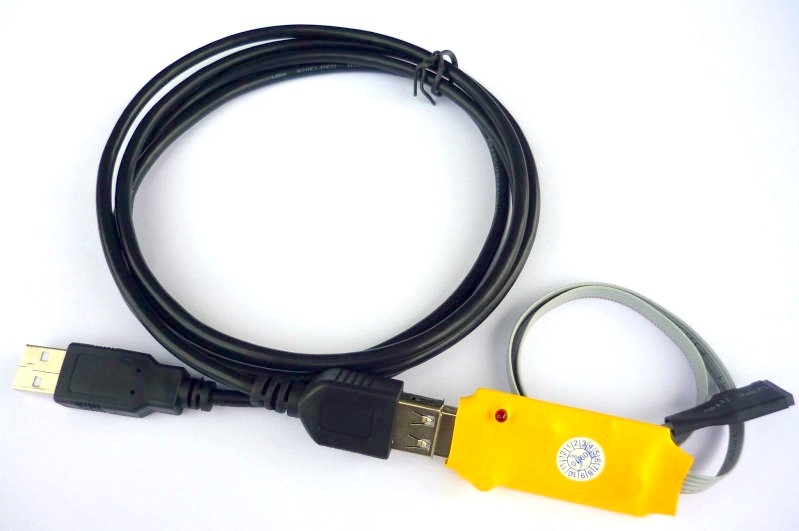

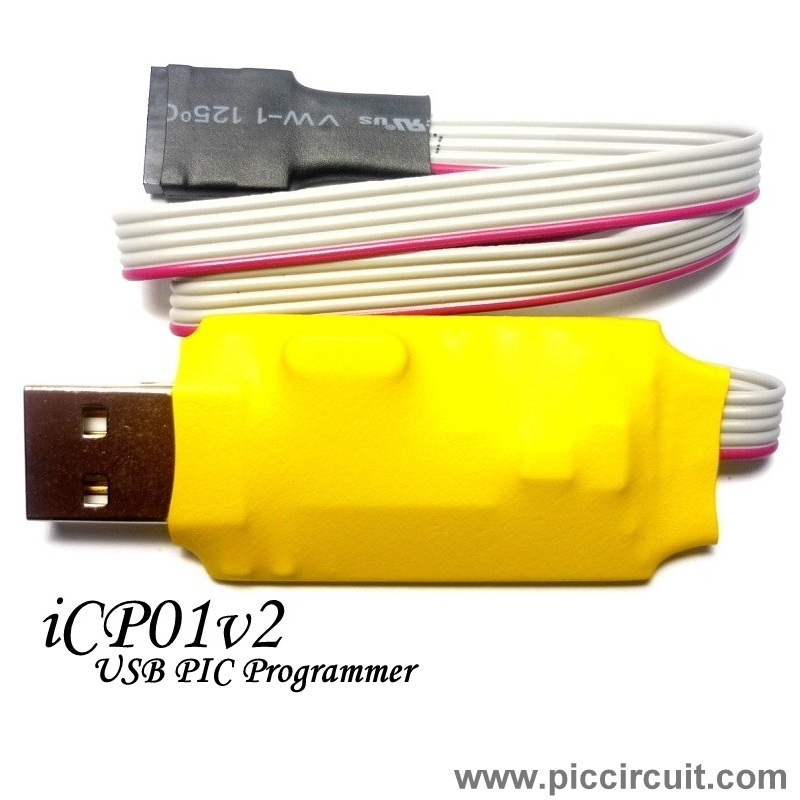

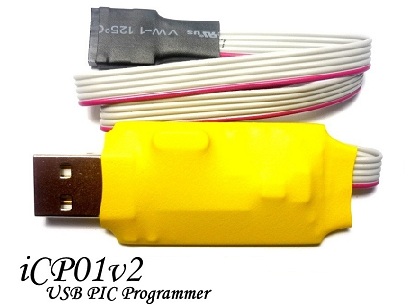

  • 1x iCP01v2 - USB PIC Programmer
  • 1x iCP03v1.2 - Multi PIC Adapter


1. iCP01v2 - USB PIC Programmer Datasheet

  • Low cost, small size , high performance and user friendly device
  • No external power supply is required
  • 100mA current output at VDD pin with over-current protection
  • Used for programming up to 200 type of popular Flash PIC MCU, includes PIC10F, PIC12F, PIC16F, PIC18F and dsPIC30 family
  • Compatible with Microchip's PICkit 2 and MPLAB IDE
  • Supported operating systems (32bit/64bit): Windows XP ,Windows Vista, Windows 7, Windows 8, Windows 10, Linux and Mac OS X
  • Linux and Mac OS programming tutorial (support is NOT provided): Linux, Mac OS X
  • USB plug and play function
  • Excellent flexibility that allows using in both PC desktop and laptop
  • Full-Speed USB & High Voltage programming
  • Dimension: 6.2cm X 2.5cm X 0.5cm, easy to carry and store
  • ICSP wire length: ~ 30cm
  • Standard 2.54mm Pin Socket for ICSP connection
  • Supported for 5V VDD operation voltage (supplied by programmer)
  • Supported for 3.3V, J-Series PIC family with external VDD power supply
  • VPP First Program Entry (VDD control) feature

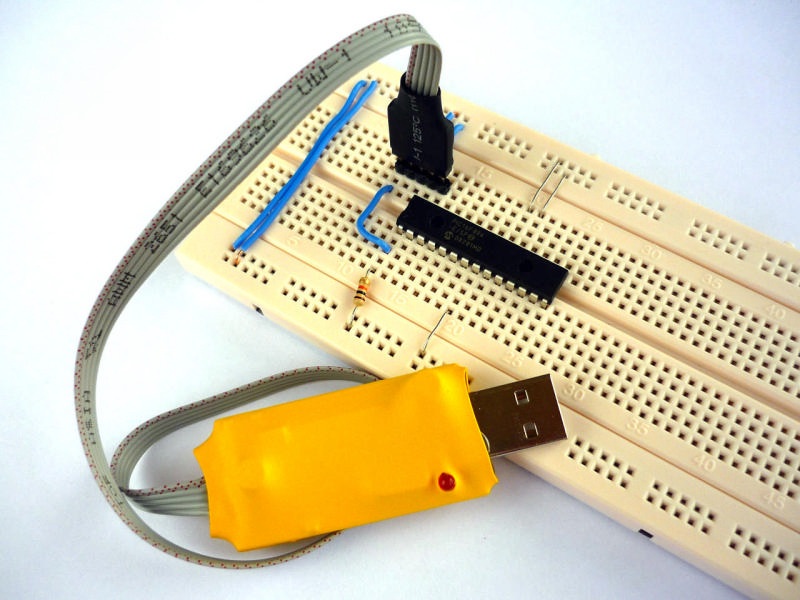

  • ICSP connector reference connection: https://www.piccircuit.com/picture/ICSP%20Connection.jpg
  • USB cable is NOT provided to save material and shipping cost .Please visit www.piccircuit.com to get extra USB cable option.

2. iCP03v1.2 - Multi PIC Adapter Datasheet

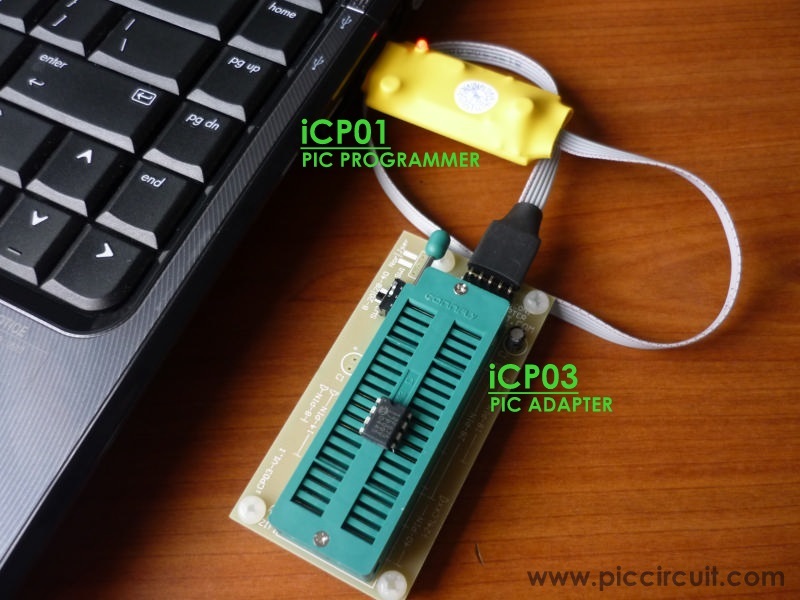

  • PIC programmer adapter which can support 8-pin to 40-pin devices by using single ZIF socket

Similar Product Links:

  • iCP01 - USB Microchip PIC Programmer (5.0V): piccircuit, ebay
  • iCP02 - USB Microchip PIC Programmer (3.3V/5.0V & EEPROM): piccircuit, ebay
  • iCA01 - USB Microchip PIC Programmer Set (5.0V, with Zif Adapter & ICSP): piccircuit, ebay
  • iCA03 - USB PIC Programmer Set (3.3V/5.0V, with Zif Adapter, ICSP & EEPROM): piccircuit, ebay
  • iCA06 - Ultimate USB PIC Programmer Set (3.3V/5.0V, with 3x Different Zif Adapter, ICSP & EEPROM): piccircuit, ebay

Download:

Support Devices: (Please check with us for not listed or new PIC chip)

  • 8 Pin: PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222, PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F617, PIC12F629, PIC12F635, PIC12F675, PIC12F679, PIC12F683, PIC12F1822, PIC12F1840
  • 14 Pin: PIC16F505, PIC16F506, PIC16F526, PIC16F610, PIC16F616, PIC16F630, PIC16F636, PIC16F676, PIC16F684, PIC16F688, PIC16F1823, PIC16F1824, PIC16F1825
  • 18 Pin: PIC16F54, PIC16F84A, PIC16F87, PIC16F88, PIC16F627, PIC16F627A, PIC16F628, PIC16F628A, PIC16F648A, PIC16F716, PIC16F818, PIC16F819, PIC16F1826, PIC16F1827, PIC18F1220, PIC18F1230, PIC18F1320, PIC18F1330, PIC16F1847
  • 20 Pin: PIC16F631, PIC16F639, PIC16F677, PIC16F685, PIC16F687, PIC16F689, PIC16F690, PIC16F720, PIC16F721, PIC16F785, PIC16F1828, PIC16F1829, PIC18F13K22, PIC18F13K50, PIC18F14K22, PIC18F14K50, PIC18F13K22, PIC18F13K50, PIC18F14K22, PIC18F14K50
  • 28 Pin: PIC16F57 (ICSP only), PIC16F72, PIC16F73, PIC16F76, PIC16F722, PIC16F722A, PIC16F723, PIC16F723A, PIC16F726, PIC16F737, PIC16F767, PIC16F870, PIC16F872, PIC16F873, PIC16F873A, PIC16F876, PIC16F876A, PIC16F882, PIC16F883, PIC16F886, PIC16F913, PIC16F916, PIC16F1516, PIC16F1518, PIC16F1782, PIC16F1783, PIC16F1933, PIC16F1936, PIC16F1938, PIC18F242, PIC18F252, PIC18F248, PIC18F258, PIC18F2220, PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523, PIC18F2525, PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685, PIC18F23K22, PIC18F24K22, PIC18F25K22
  • 40 Pin: PIC16F59 (ICSP only), PIC16F74, PIC16F77, PIC16F707, PIC16F724, PIC16F727, PIC16F747, PIC16F777, PIC16F871, PIC16F874, PIC16F874A, PIC16F877, PIC16F877A, PIC16F884, PIC16F887, PIC16F914, PIC16F917, PIC16F1517, PIC16F1519, PIC16F1934, PIC16F1937, PIC16F1939, PIC18F442, PIC18F452, PIC18F448, PIC18F458, PIC18F4220, PIC18F4221, PIC18F4320, PIC18F4321, PIC18F4331, PIC18F4410, PIC18F4420, PIC18F4423, PIC18F4431, PIC18F4450, PIC18F4455, PIC18F4458, PIC18F4480, PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523, PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580, PIC18F4585, PIC18F4610, PIC18F4620, PIC18F4680, PIC18F4682, PIC18F4685, PIC18F43K22 PIC18F44K22, PIC18F45K22, PIC18F46K22
  • dsPIC30 (With ICSP only): dsPIC30F1010, dsPIC30F2010, dsPIC30F2011, dsPIC30F2012, dsPIC30F2020, dsPIC30F2023, dsPIC30F3010, dsPIC30F3011, dsPIC30F3012, dsPIC30F3013, dsPIC30F3014, dsPIC30F4011, dsPIC30F4012, dsPIC30F4013
