Manual bypass switch




Description

32A Manual bypass panel. Used condition. Tested working. 12 Month RTB warranty.

These can have IEC (C20/C19) type inputs, or cut outs for hard wiring. If you need a particular type contact us before ordering and we'll check stock.

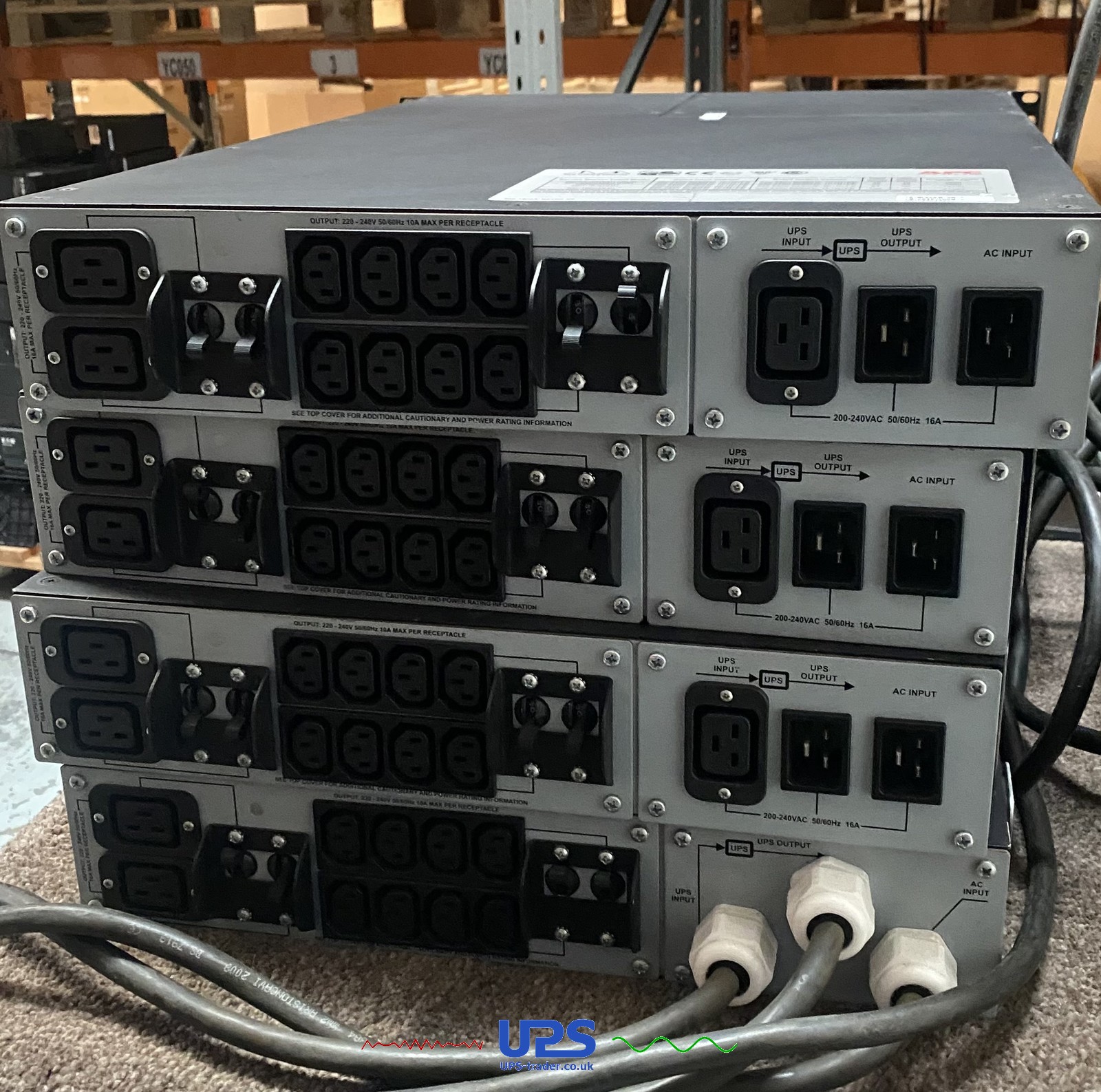

The Photos show both types. The difference is how you plan to connect the bypass panel to your source and load.


Under normal circumstances orders before 3PM are dispatched on the day of order. Large units / quantities may roll over to being dispatched the next day. Email if you need to be sure of when we can send an order. We try to meet all customer deadlines.


All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated only, please contact us for confirmation before ordering. We have experience sending these abroad, and normally ship the UPS in one box and the cellpacks in another. We have the packing materials to make sure that there are no problems in transit. Our warehouse is based in the UK. VAT is included in the buy it now price, and if you are VAT registered you will be able to reclaim this. VAT Invoices are sent automatically as a PDF file, via email, as part of our automated dispatch process.


Specifications


Output

  • Nominal Output Voltage
    230V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    32
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC 320 C19 (Battery Backup)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz
  • Input Connections
    Hard Wire 3 wire (1PH+N+G), IEC-320 C20
  • Number of Power Cords
    1
  • Load Power Factor Range
    0 to 1

Physical

  • Maximum Height
    89mm , 8.9CM
  • Maximum Width
    432mm , 43.2CM
  • Maximum Depth
    660mm , 66.0CM
  • Rack Height
    2U
  • Net Weight
    11.36KG
  • Shipping weight
    23.18KG
  • Shipping Height
    203mm , 20.3CM
  • Shipping Width
    610mm , 61.0CM
  • Shipping Depth
    991mm , 99.1CM
  • Color
    Black
  • Units per Pallet
    10.0

Environmental

  • Operating Temperature
    -20 - 50 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-4500meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters












©
