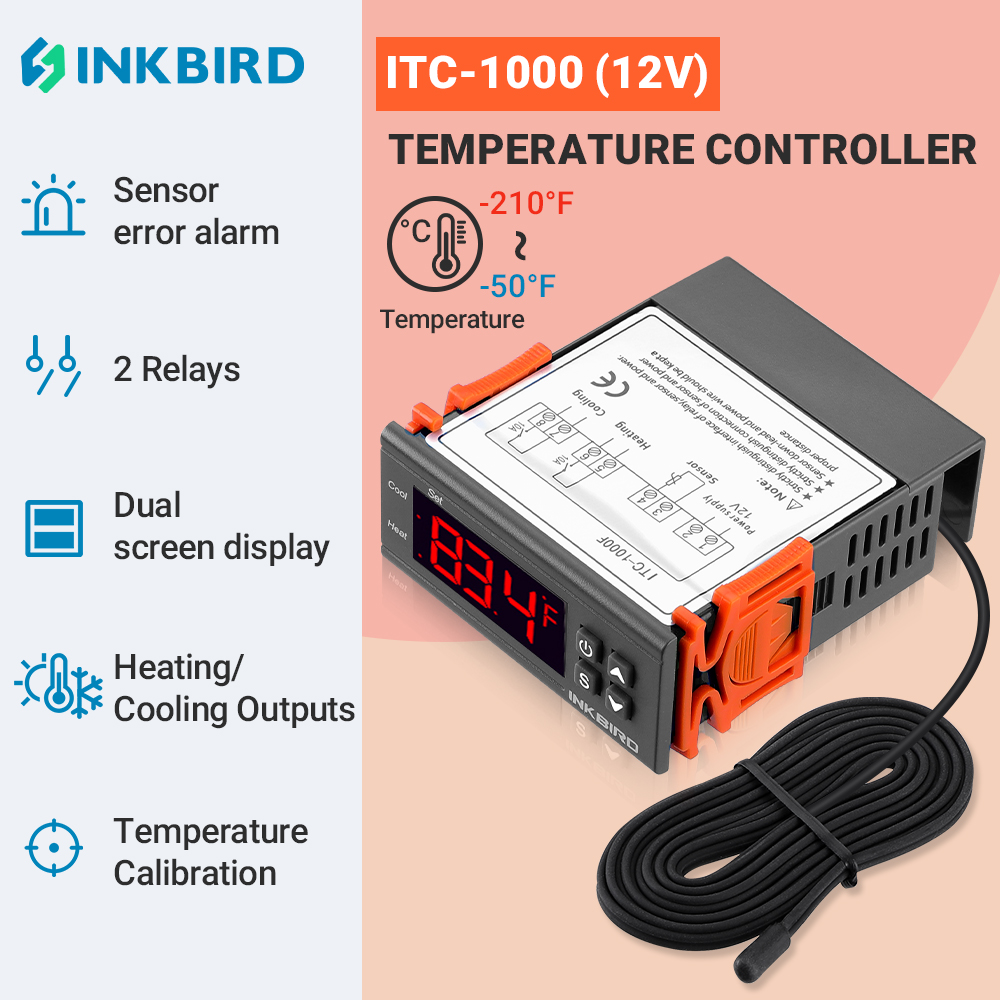

INKBIRD Temperature Controller ITC-1000 12V
Please Note:
- The difference set value is different when the degree is Celsius and Fahrenheit:
- In Celsius degree reading, the set range is 0.3 -15 Celsius degree.
- In Fahrenheit degree reading, the set range is 1 - 30 Fahrenheit degree.
|
Package Conetent:
|
- Fahrenheit and Celsius Display Can Be Choose
- More User-friendly Operating
- Switch Between Cooling and Heating Modes
- Control the Temperature by Setting the Temperature Set Value and the Difference Value
- Temperature Calibrating
- Refrigerating Control Output Delay Protection
- Alarm When Temperature Exceeds the Limit or When Sensor Error
- Output: 2 Relays
- Temperature Measuring Range: -58~210°F / -50~99°C
- Resolution: 0.1°F / 0.1°C
- Accuracy: ±2°F (-58~160°F) / ±1°C (-50~70°C)
- Power Supply: 110VAC 50Hz/60Hz
- Power Consumption: 3W
- Sensor: NTC Sensor
- Relay Contact Capacity: Cooling (10A/250VAC) / Heating (10A/250VAC)
- Relative Humidity: 20~85% (No Condensate)
- Front Panel Size: 75(L)*34.5(W)mm
- Mounting Size: 71(L)*29(W)mm
- Product Size: 75(L)*34.5(W)*85(D)mm Sensor Length: 2m (include the probe)
INKBIRD Temperature Controller ITC-1000 12V
Please Note:
- The difference set value is different when the degree is Celsius and Fahrenheit:
- In Celsius degree reading, the set range is 0.3 -15 Celsius degree.
- In Fahrenheit degree reading, the set range is 1 - 30 Fahrenheit degree.
|
Package Conetent:
|
|
- Output: 2 Relays
- Temperature Measuring Range: -58~210°F / -50~99°C
- Resolution: 0.1°F / 0.1°C
- Accuracy: ±2°F (-58~160°F) / ±1°C (-50~70°C)
- Power Supply: 110VAC 50Hz/60Hz
- Power Consumption: 3W
- Sensor: NTC Sensor
- Relay Contact Capacity: Cooling (10A/250VAC) / Heating (10A/250VAC)
- Relative Humidity: 20~85% (No Condensate)
- Front Panel Size: 75(L)*34.5(W)mm
- Mounting Size: 71(L)*29(W)mm
- Product Size: 75(L)*34.5(W)*85(D)mm Sensor Length: 2m (include the probe)
