New 300MHz LCD AD9854 DDS Signal Generator STM32F103 Controller Board

Detail

AD9854 chip function introduction:

300 MHz internal clock rate
FSK, BPSK, PSK, chirp, AM operation
Dual integrated 12-bit digital-to-analog converters (DACs)
Ultrahigh speed comparator, 3 ps rms jitter
Excellent dynamic performance
80 dB SFDR at 100 MHz (±1 MHz) A OUT
4× to 20× programmable reference clock multiplier
Dual 48-bit programmable frequency registers
Dual 14-bit programmable phase offset registers
12-bit programmable amplitude modulation and
on/off output shaped keying function
Single-pin FSK and BPSK data interfaces
PSK capability via input/output interface
Linear or nonlinear FM chirp functions with single-pin
frequency hold function
Frequency-ramped FSK

Module measured waveform:

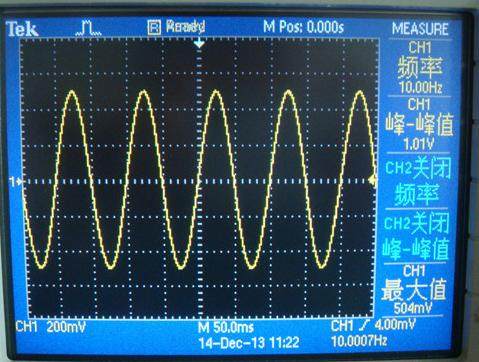

 10HZ

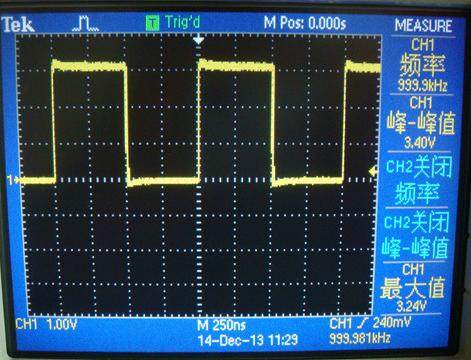

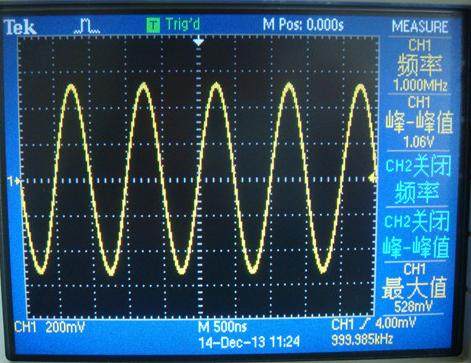

 1MHZ

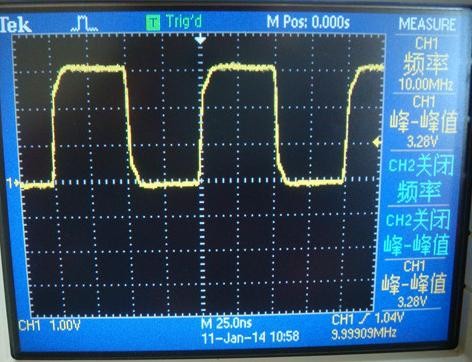

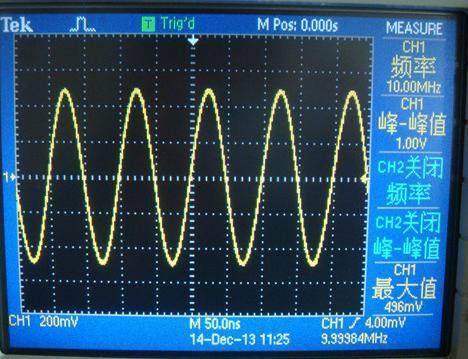

 10MHZ

 100MHZ














 1MHZ



















10MHZ























 .























.























 .





















.






































Module application

Agile, quadrature LO frequency synthesis
Programmable clock generators
FM chirp source for radar and scanning systems
Test and measurement equipment
Commercial and amateur RF exciters

Module performance parameters:

The Development board supplied by 5V power，can supplied directly through the USB;
AD9854  supplied by 5V1A power；
Output frequency 0---100M, resolution 0.001HZ or above;
The output range 0 - 1VPP (1M high resistance), the amplitude will decrease with the frequency, and the resolution of the magnitude is 1024.
Phase resolution: 0.0022 degree.

    • Package include:

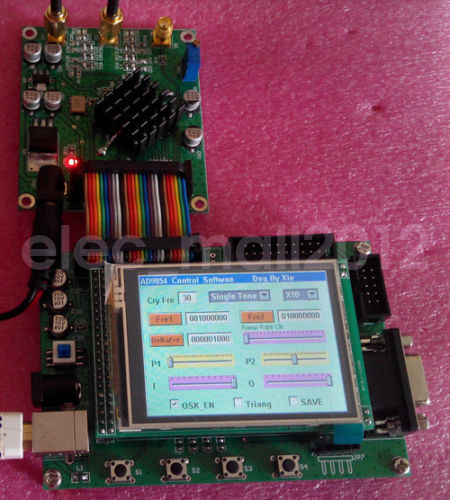

    • 1 x New 300MHz LCD AD9854 DDS Signal Generator STM32F103 Controller Board

    • MCU software、schematic diagram (PDF) send via email.
