2-Way Manifold Dual Gauge with 5ft Hose Set 1/4" Fittings, Temperature Marked: R22 R134a R12 and R404a Aluminum Frame Body HVAC Diagnosis Charging Recovery Field Service Tool Brand New






You are Looking at a

a Brand new
Manifold Set, Model: GMad
with aluminum body, 5-ft, 3-colored refrigeration Hose Set

FEATURES:

 Manifold Gauge Set with Aluminum Frame for R22 R134a R12 and R404a

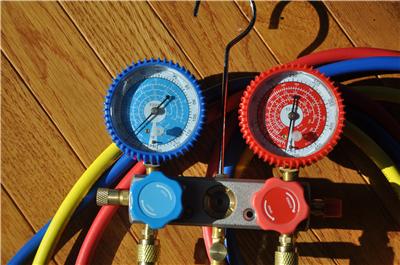

      • Large 2 5/8" diameter, analog gauges,
      • mounted on anodized Aluminum alloy Block body(light weight, stronger than brass)
      • built-in Large sight viewing glass on the utility line(yellow)
      • Diaphragm valves with swivel seals for more positive seal and less wear
      • Large port holes/less restriction, for faster recovery or charging.
      • Pressure in PSIG
      • Temperature in F for R22, R134a, R12, and R404A
      • 3 X 1/4" male SAE anchors in the gauge body
      • a SS hook for hand-free operation
    • 3 Color Coded Hoses, Meet, SAE, and UL standard, 600 PSI Working pressure, 3000 PSI burst pressure.
      • 60 inch in length each
      • 3000 PSI burst pressure
      • 600 PSI working pressure good for all refrigerants.
      • 1/4" female SAE brass fitting to the gauge block
      • 1/4" female SAE brass fittings with valve core depressing device on the Red, Blue and yellow hoses.

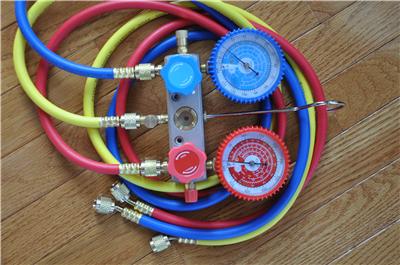

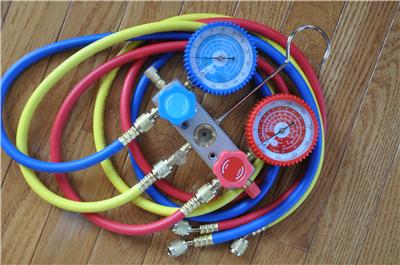

       please note:  the car AC Port couplers are sold separately. or look for other listings that include the couplers, and/or R134a can tap.  what pictured is what you get in this listings.
