3Keys 86 Type Running Water Led Controller

Products parameters:

* Working voltage: 5-24v
* Number of control points: up to 2048 pixels (2048 ICs)

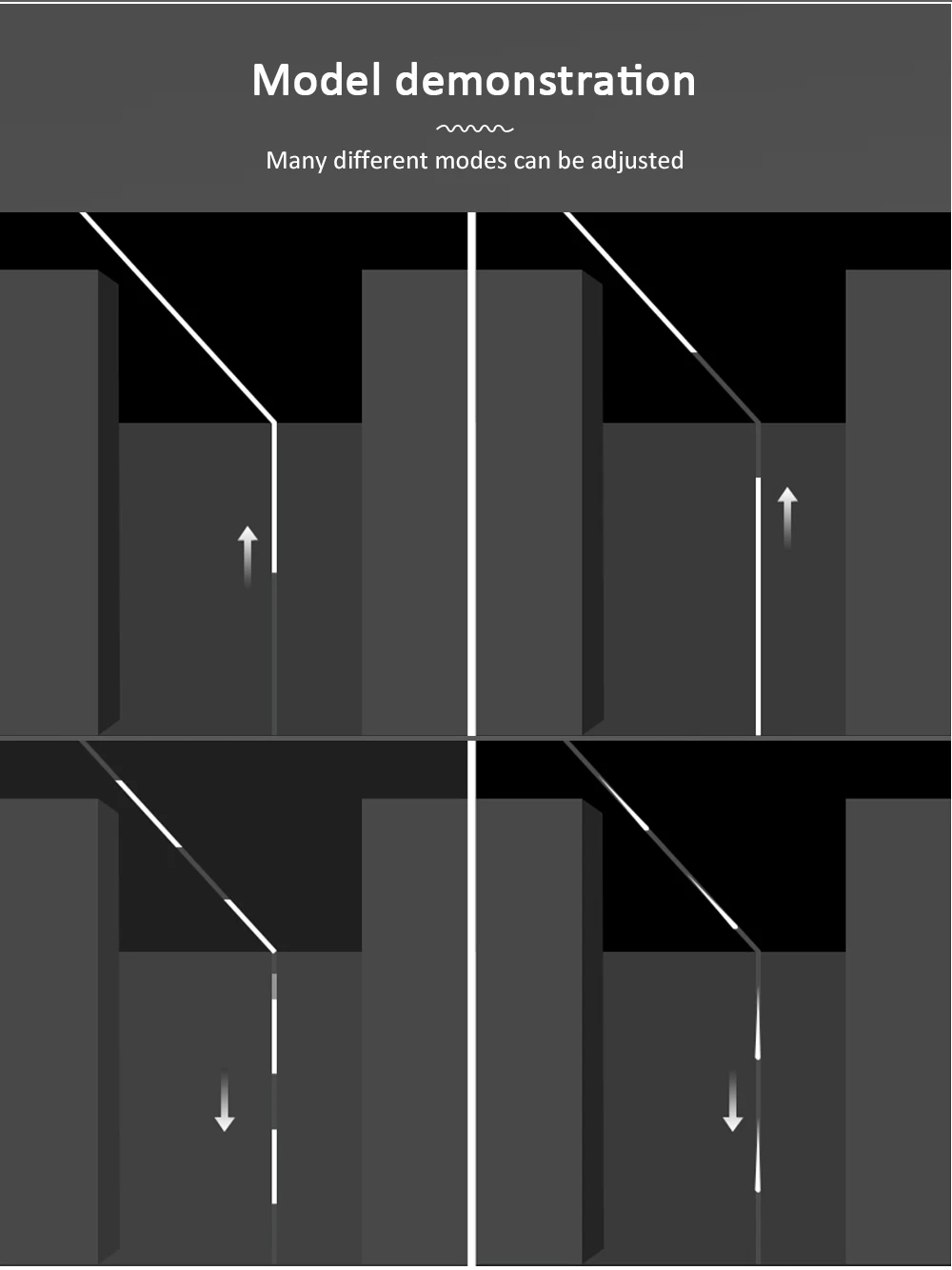

* Mode Effect: 20 kinds, the water flows forward when the machine is turned on, and the water flows back when the machine is turned off.
* Remote control distance: 15 meters

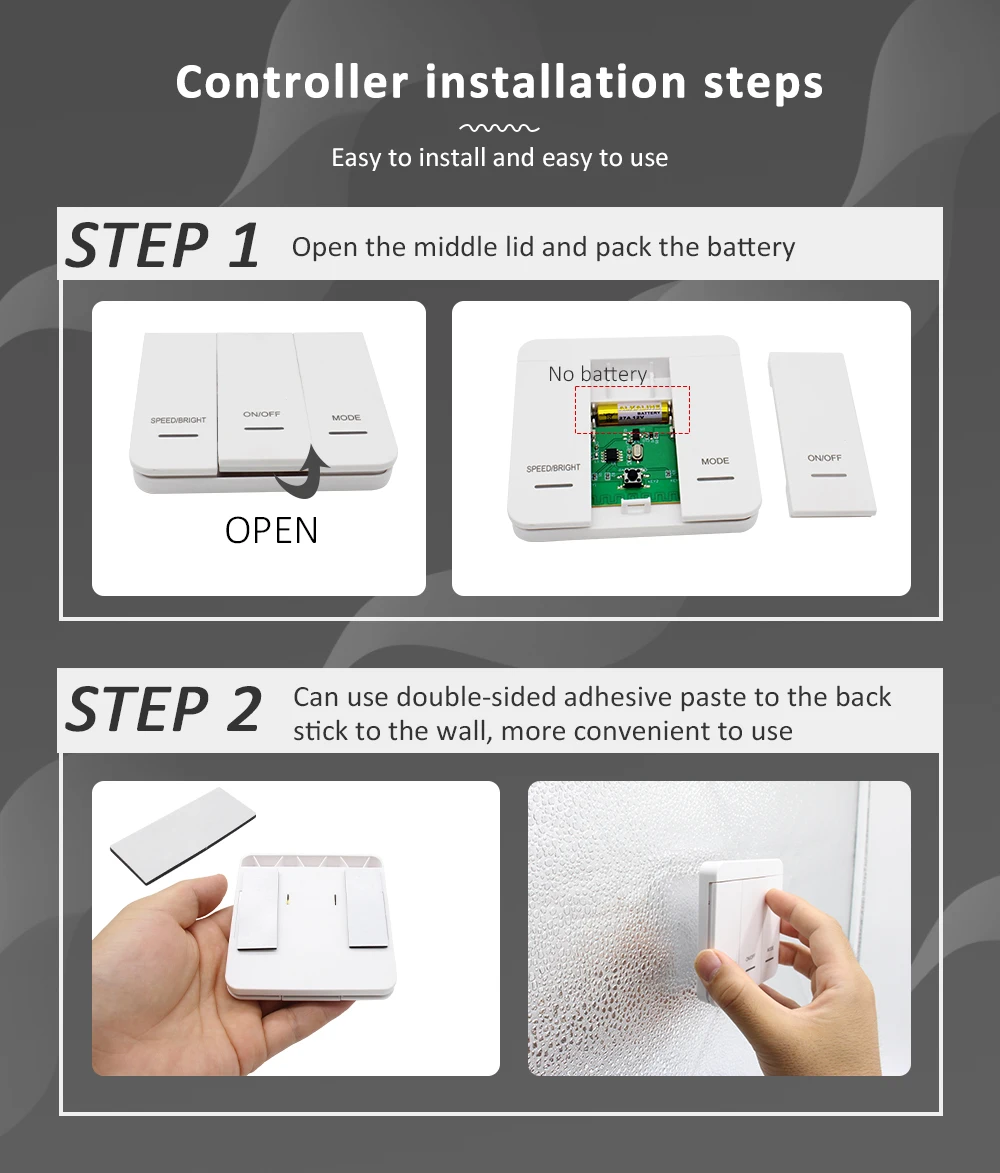

* Battery model: 12v battery, model: "27A 12V" (Battery is not included)
* It can be equipped with multiple switches for linkage control, and can learn to code group control. Multiple controllers can use switches in the same place without interfering with each other.

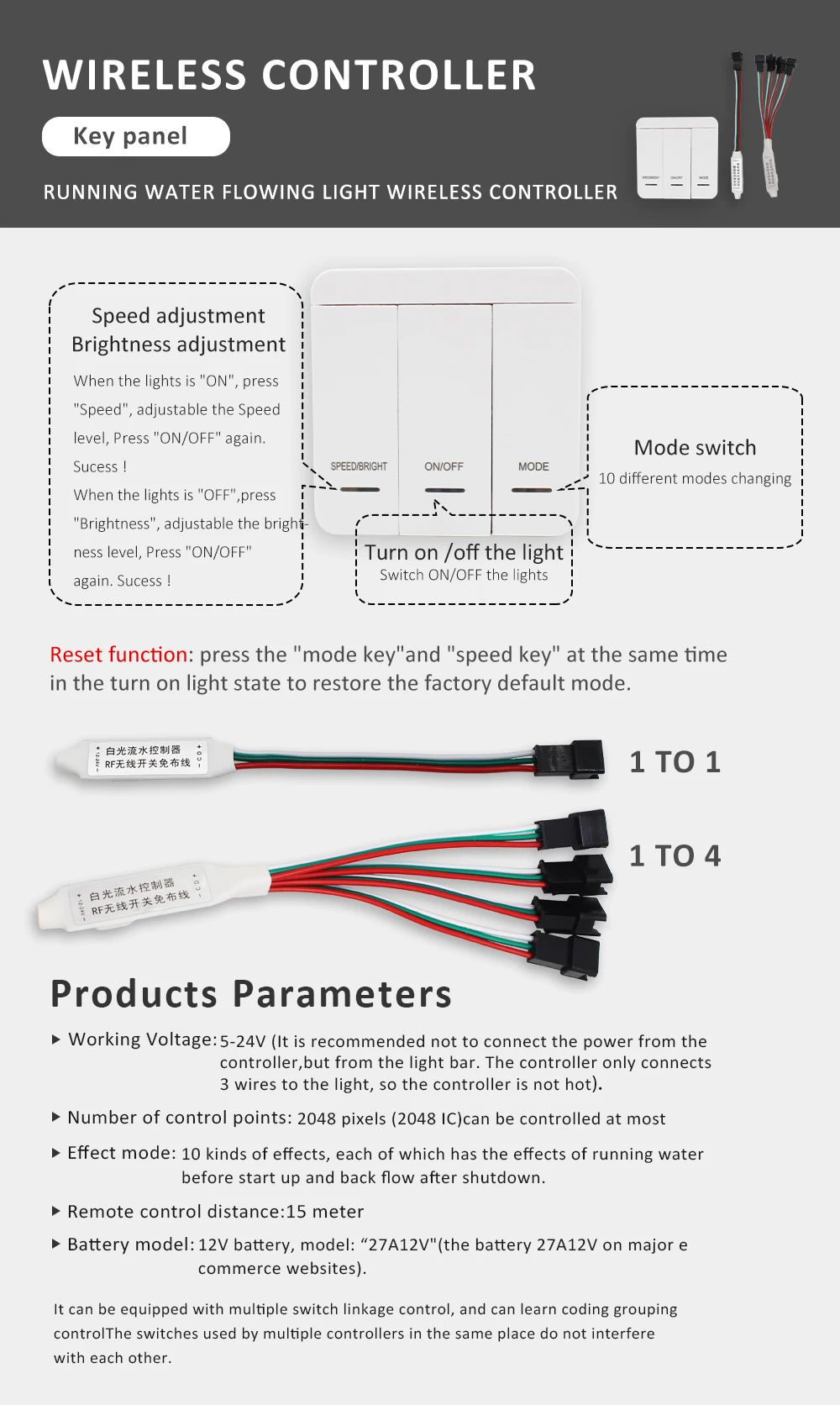

Switch button description:

The first button, speed adjustment/brightness adjustment (speed adjustment function when the light is on, and brightness adjustment function when the light is off)

The second button: Light ON/OFF
The third key: mode switch

Reset function: When the light is on, press the "mode key" and "speed key" at the same time to restore the factory default mode.

Third, the controller adjusts the number of points method:

When the light is off, press and hold the third "mode" key for 5 seconds to enter the adjustment pixel point menu. At this time, press the first technical key "speed" key and the third key "mode" key to adjust the number of points. The "Speed" key is to increase, and the "Mode" key is to decrease. Press and hold to adjust quickly. After adjustment, press the on-off key to save and exit. The default factory setting is 80 points, and the maximum can be adjusted to 2048 points.

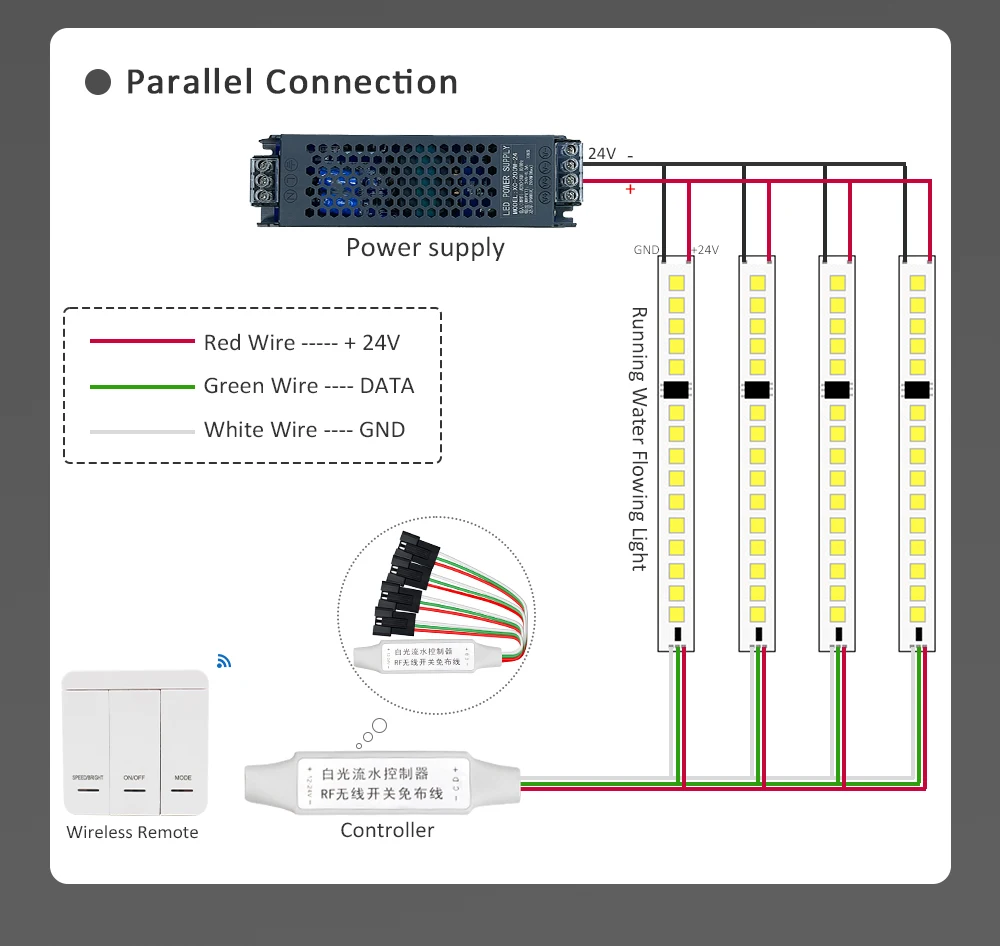

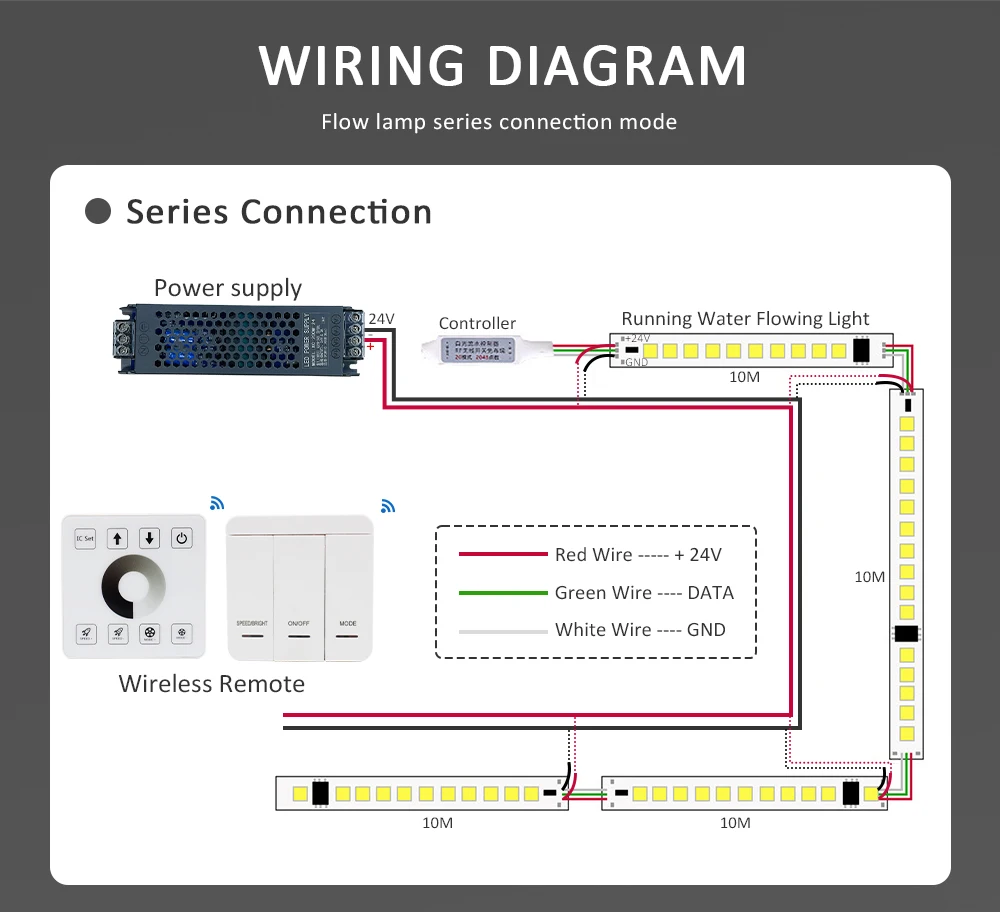

Widely used for MJJC WS2811 Pixel 24V Runing Horse Led Pixel Strip Lights

Package Inlcuding:

1PC X 1to1 3Key Controller Only

1PC X 1to4 3Key Controller Only

1PC X 1to1 Touch Panel Controller Only

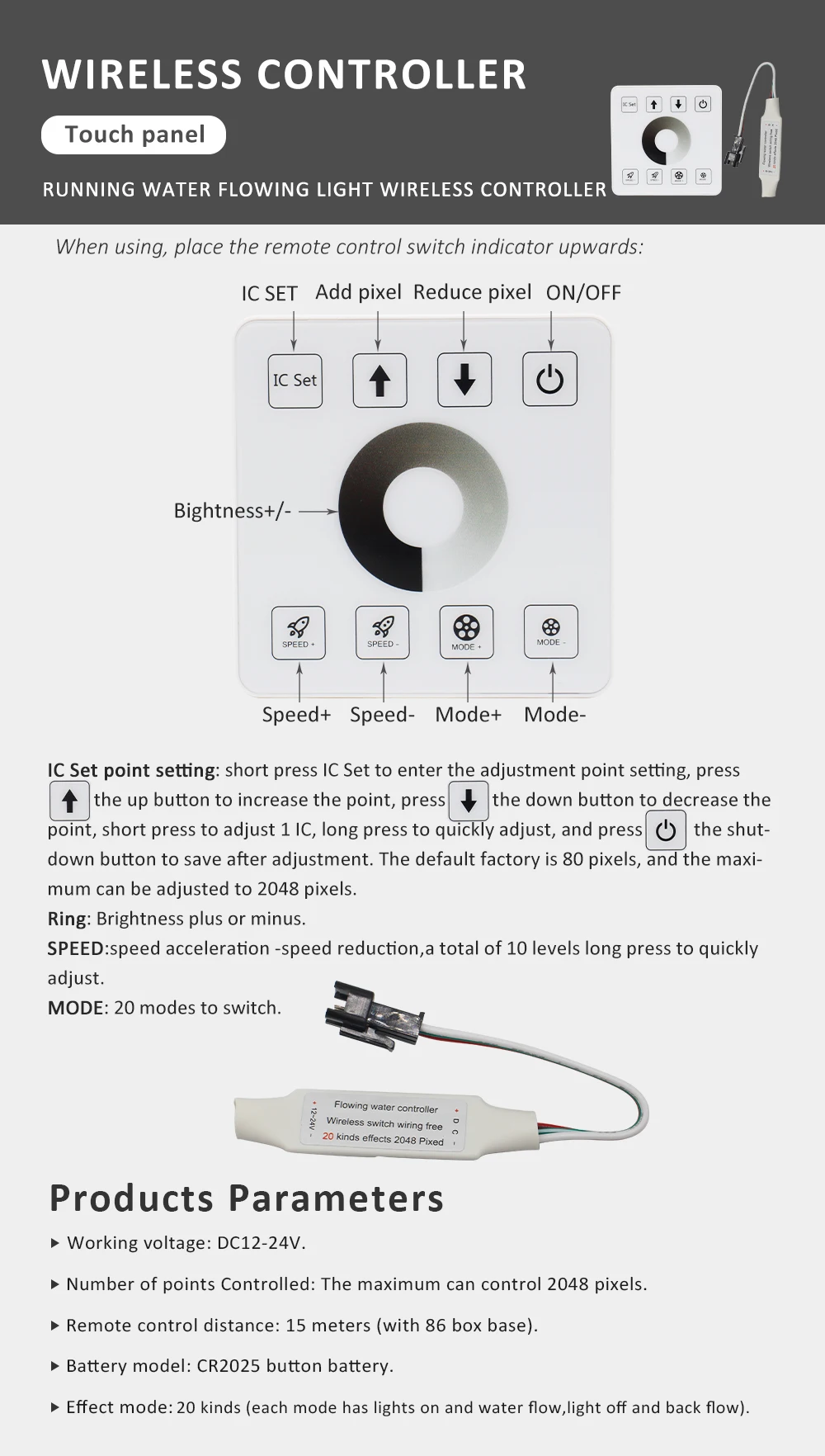

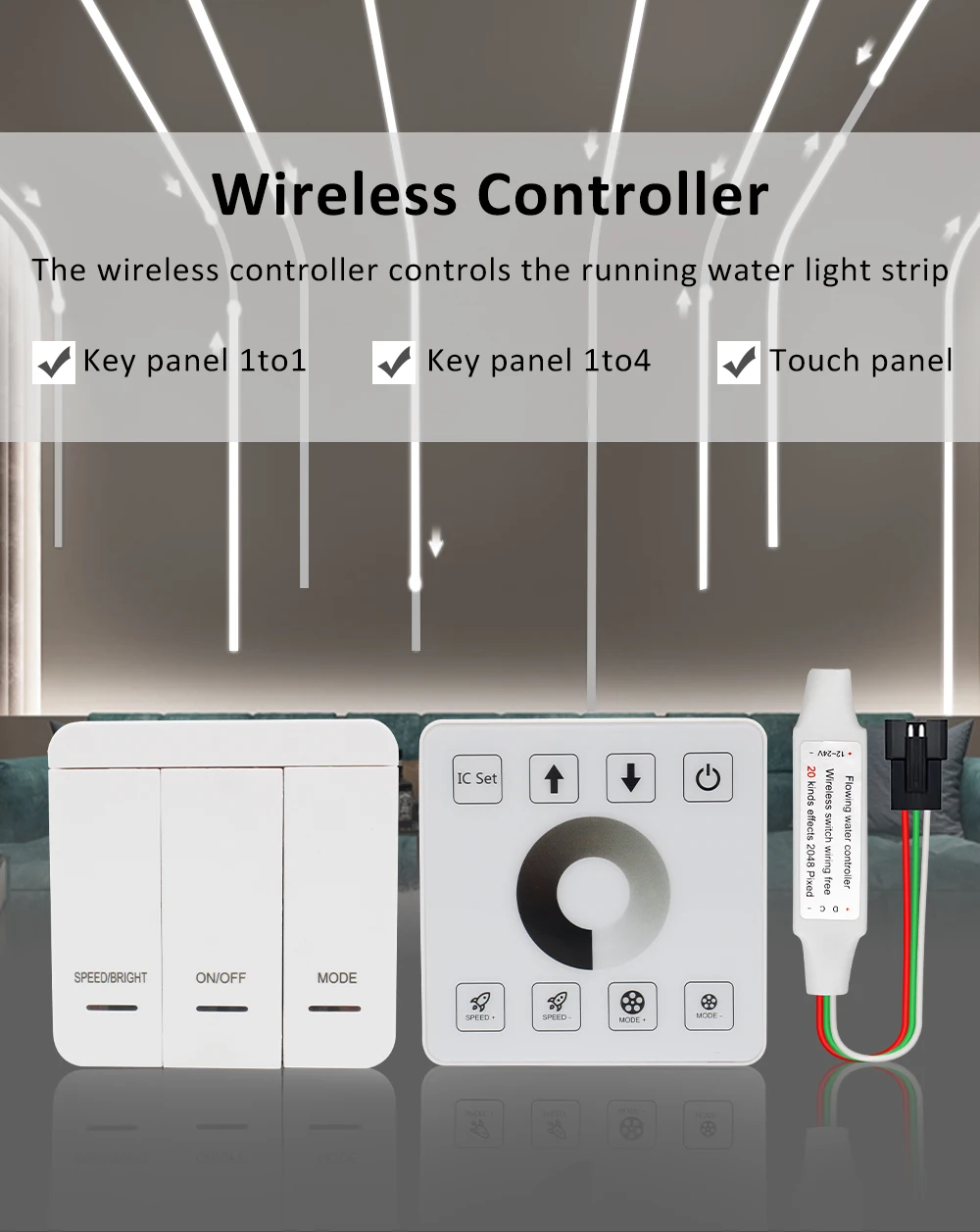

Touch Panel Wireless Pixel Controller:

Product parameters:
* Working voltage: DC 12-24V
* Number of points controlled : the maximum can control 2048 pixels
* Remote control distance: 15 meters(with 86 box base)

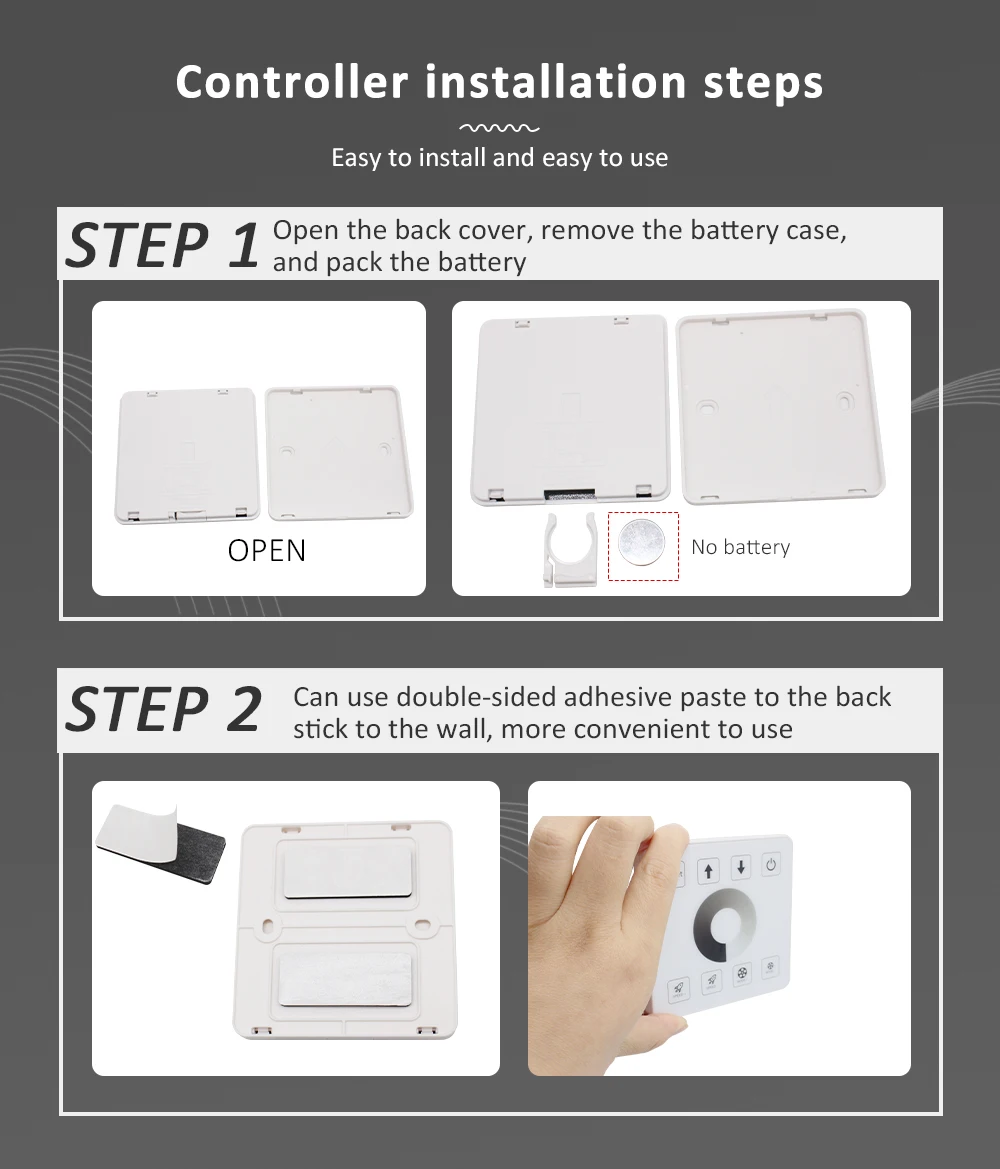

* Battery model: CR2025 buttin battery (battery is not included )
* Effect mode: 20 kinds(each mode has lights on and water flow,lights off and backflow)
