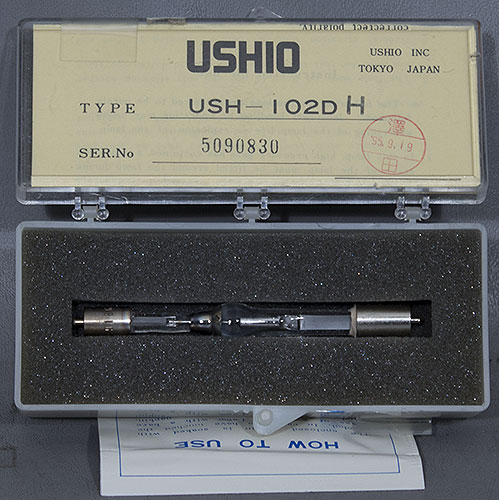

NEW Ushio USH-102DH/Osram HBO 100 W/2 Short Arc Lamp
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Osram and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE IF THIS IS THE CASE. ALSO, EBAY TENDS TO QUOTE INTERNATIONAL SHIPPING AT A VERY HIGH COST. PLEASE CONTACT US FOR BETTER RATES. WE ALSO SHIP VIA FEDEX INTERNATIONALLY. NOT UPS!
This bulb is new, old stock. The unit is the same as an Osram HBO 100 W/2 Lamp.

The Unit's Information Tag Reads:
Model Number: USH-102DH
Serial Number: 5090830

Benefits:

  • High radiance
  • High radiance power in the UV and the visible range

    • Applications:
  • Fluorescence microscopy
  • UV Curing
  • A variety of light guide applications

    • Features:

  • Multi-line spectrum

    • Electrical Specifications:
    Nominal Wattage: 100.00 W
    Lamp Wattage: 100 W
    Lamp Voltage1: 17 to 25 V
    Lamp Current: 4.3 to 5.6 A
    Type of Current: DCX
    Notes:
      1: Initial electrical values

    Photometrical Specifications:
    Nominal Luminous Flux: 2200 lm
    Luminuous Intensity1: 260 cd
    Notes:
      1: Typical initial photometric value

    Dimensions & Weight Specifications:
    Diameter: 10.0 mm
    Mounting Length1: 82.0 mm
    Length with Base Excl. Base Pins/Connection1: 82.00 mm
    Light Center Length (LCL)2: 43.0 mm
    Notes:
      1: Maximum
      2: Distance from end of base to tip of anode (cold)

    Lifespan Specifications:
    Lifespan: 200 h

    Additional Specifications:
    Base (Standard Designation): SFa7.5/SFa9
    Base Anode (Standard Designation): SFa9-2
    Base Cathode (Standard Designation): SFa7.5-2

    Capabilities:
    Burning Position1: s90
    Notes:
      1: Anode underneath

    For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $0.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination.

    Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.:

    (1) Are you the end-user of this item?

    (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name.

    (3) What is the ultimate country destination?

    03/27/17
