Fit for:
Forward Reverse gearbox is for go-karts, utility vehicles and other applications with engines up to 14HP

For # 35 chain 12T and #40/41/420 Chain 10T (Both sprockets included)

Note: Please note only use on 30 SERIES

Features:
Condition: Brand New
Material: Metal
Warranty: 1 Year
Shaft size for driven clutch: 5/8''with 3/16'' keyway
Forward Ratio: 1:1:3
Reverse Ratio: 1:2:6

Sell Point

【Wide Application】This is forward Reverse gearbox. it is suitable for go-karts, utility vehicles and other applications with engines up to 14HP and # 35 chain 12T and #40/41/420 Chain 10T (Both sprockets included)
【Quality Material】It is made of high-quality metal, which is light and sturdy; it allows the operator to choose three positions: forward, reverse and neutral.
【Easy to Install】It is easy to install and complete accessories，suitable for people who like DIY assembly of karts, just follow the operation to complete the installation and use.

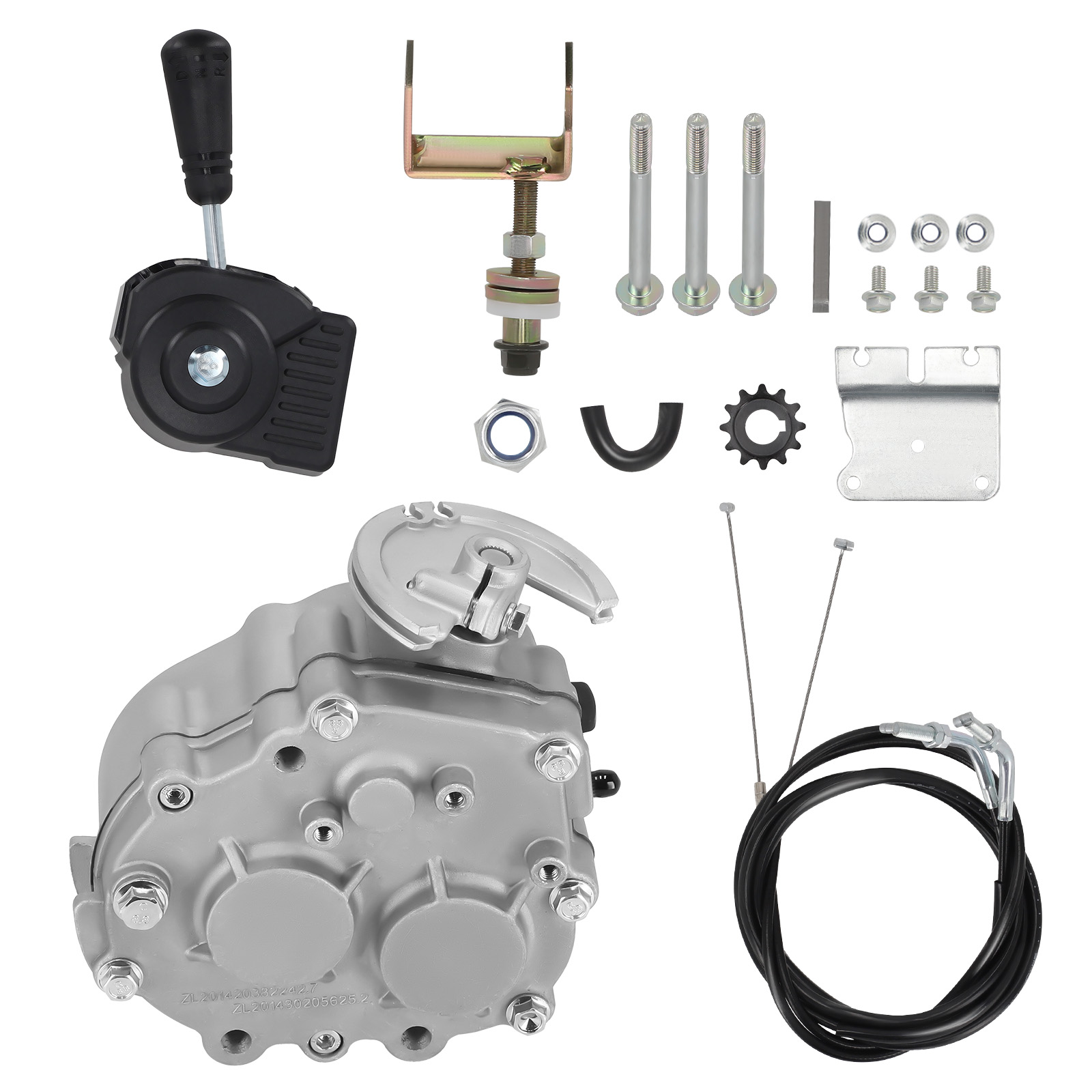

Include:
1 X Forward / Reverse Gearbox with 3/16" Keyway
2 X Mounting Plates

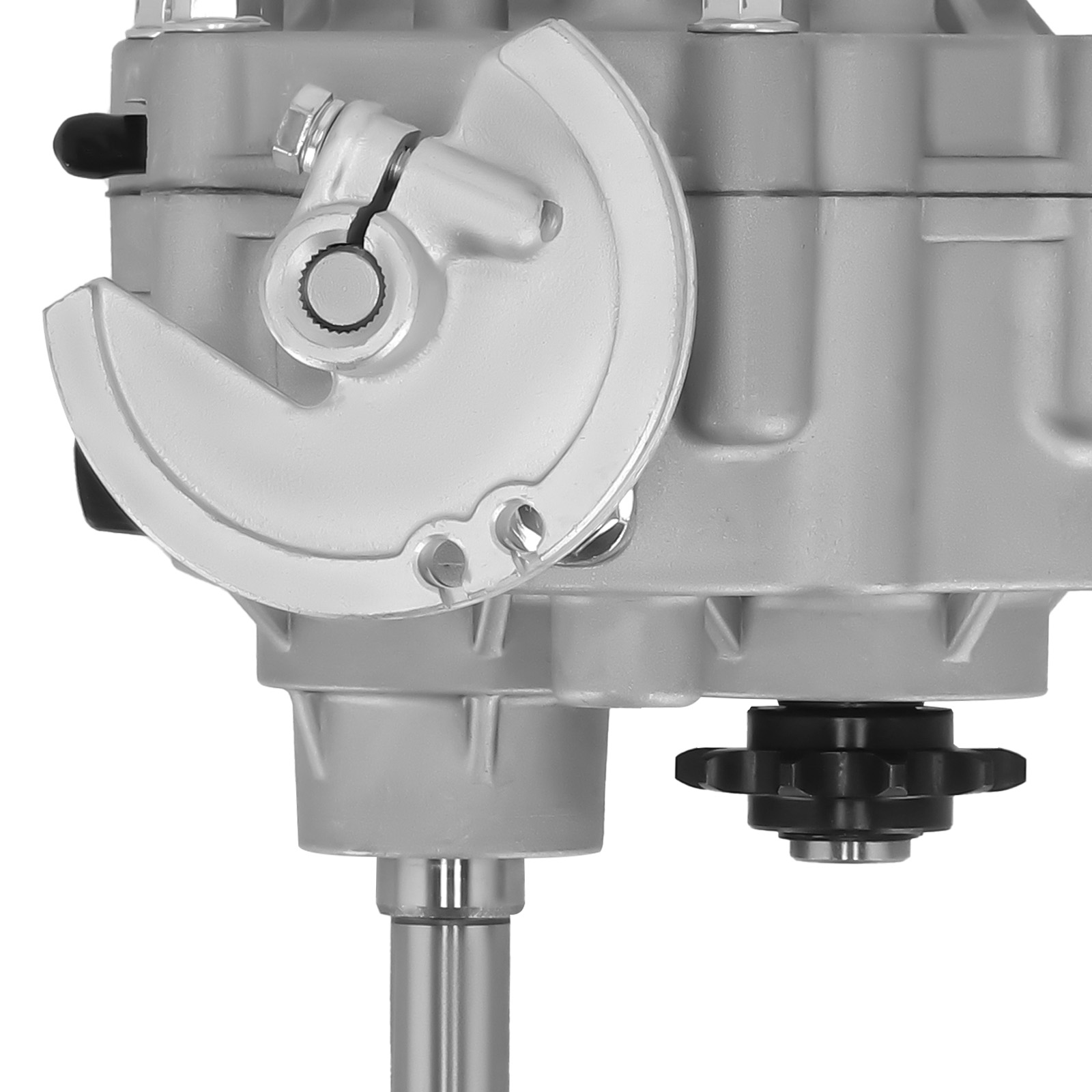

1 X Shifter Disc
2 X Shifter Cable
1 X 10T and 12T Sprocket
1 X Shifter Assembly

Assembled Position:

This is an OEM reverse gear kit used on the Trail Master and Hammerhead small and middle size go-karts with 5.5 and 6.5 hp karts. It can also be used in DIY GO KARTS with engines from 2HP-14HP.

Please note the shaft is 16mm with 5mm. It can’t fit original COMET 30/40 series with 5/8 bore size driven clutch. While it can fit cloned clutch Made in China with 5/8’’ inch size (actuarially is 16mm size) driven clutch.

Comes with parts shown:

• Gear assembly

• Shifter lever F-N-R

• 2 shifter cables

• Equalizer cam

• 2 cable mounting brackets

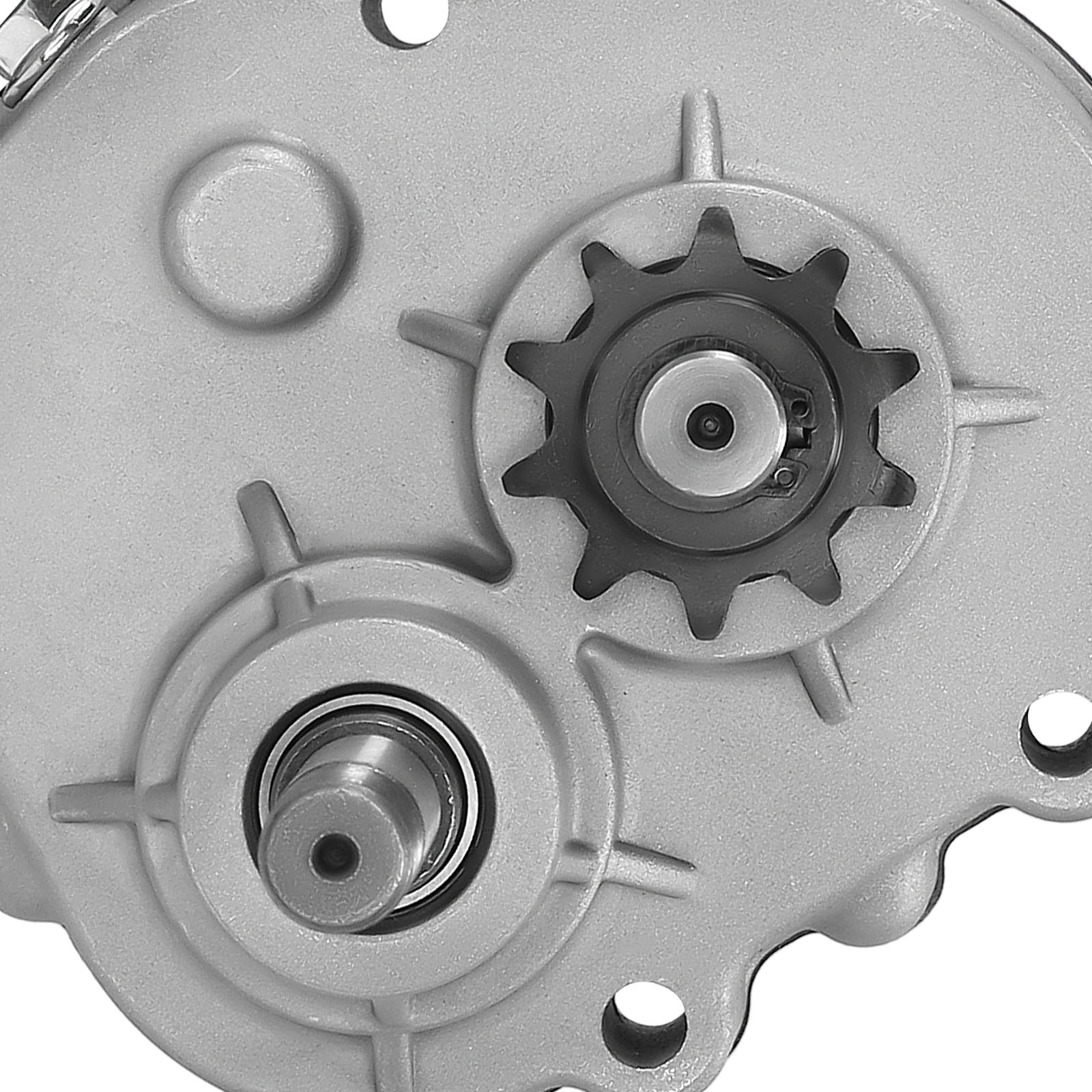

• Choose between 10T sprocket for 41/420 chain and 12T sprocket for #35

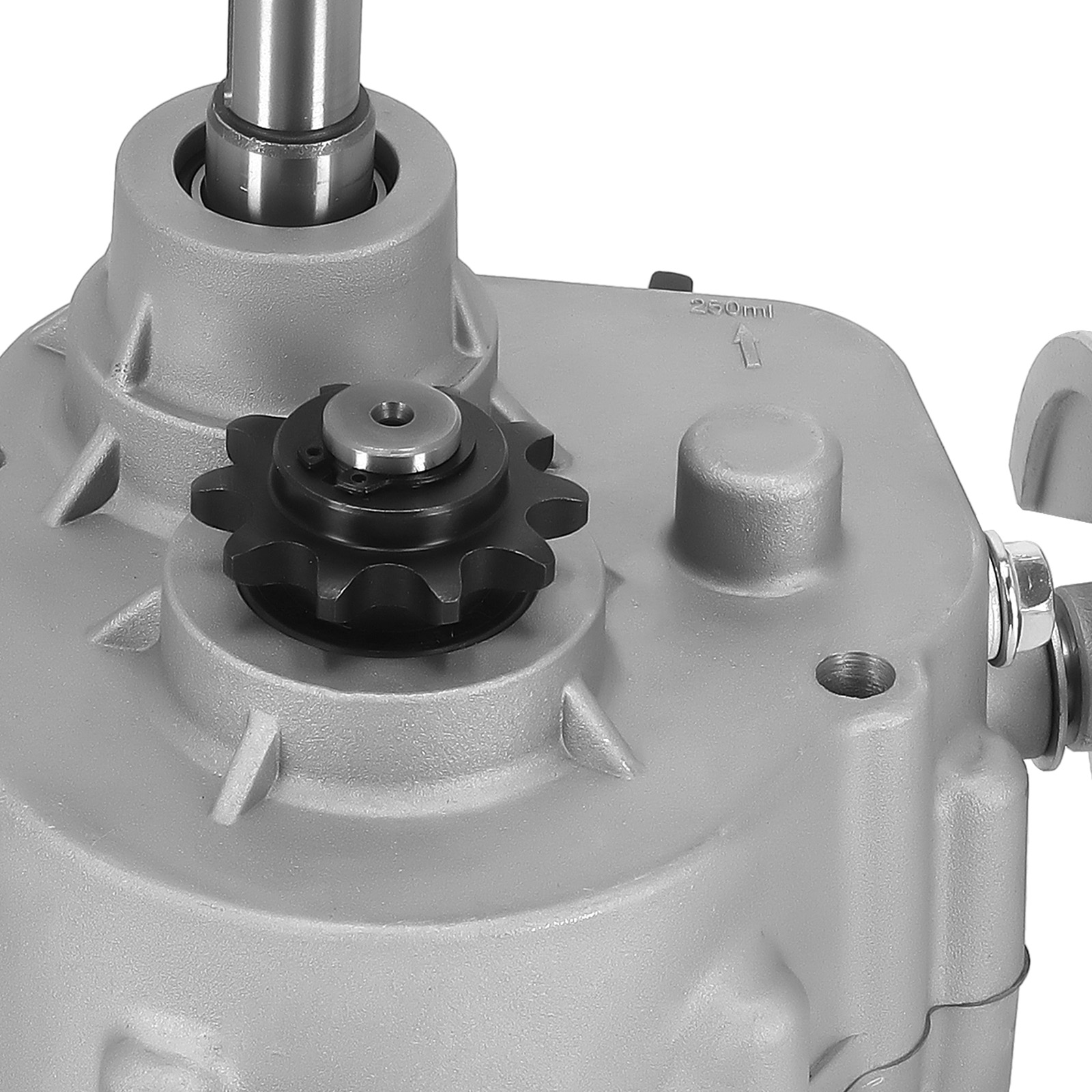

• 16mm output shaft

*Kit does not come with needed brackets to mount gear assembly to motor mount.

You can search “Go Kart Reverse Kit Install Pt. 1” on YOUTUBE. There is a video abut

how to assemble the go kart reverse kit filmed by CarsandCameras.

https://www.youtube.com/watch?v=xIP0Ec43bx8
