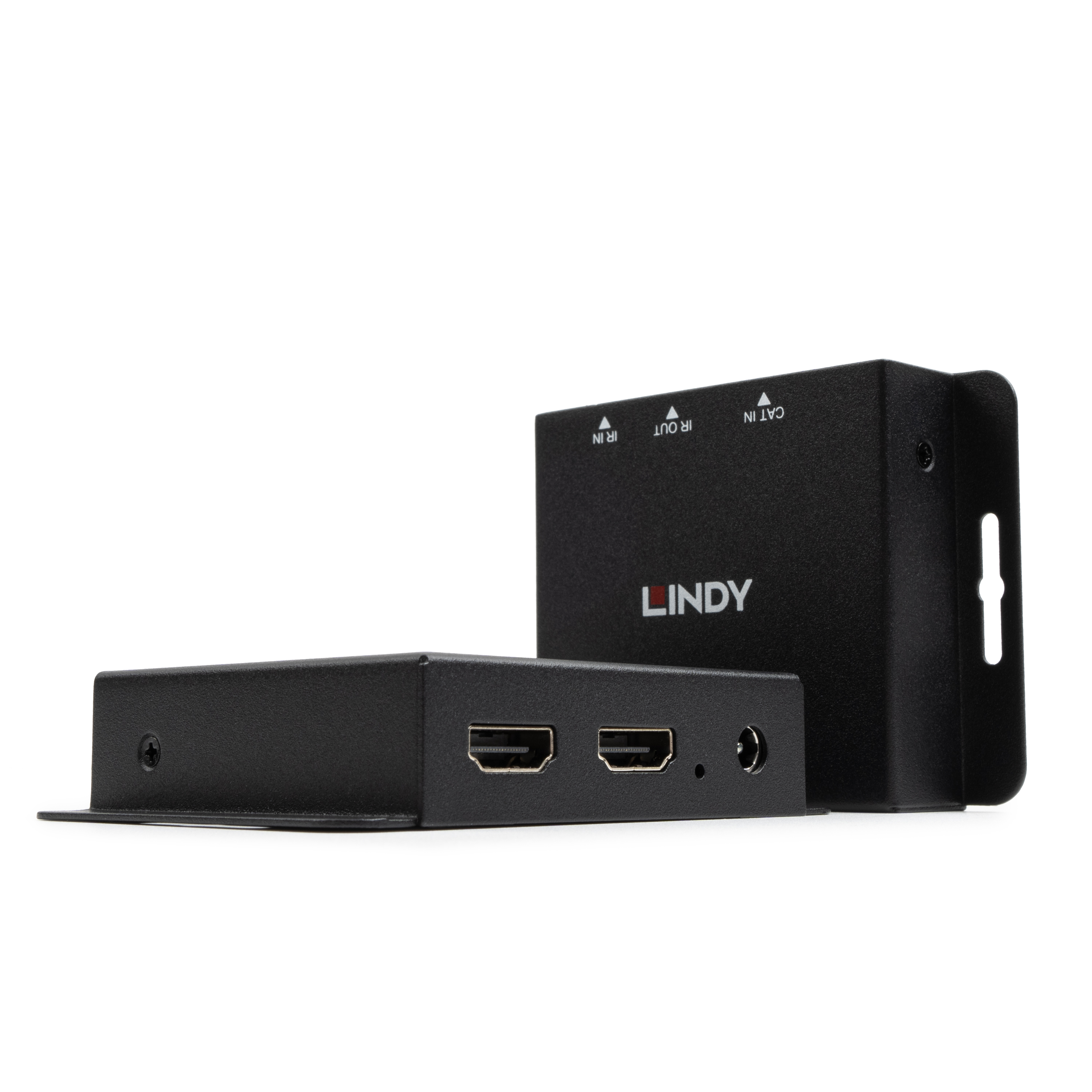

50m Cat.6 HDMI & IR Extender with Poc & Loop Out

• Extends HDMI® & IR Signals up to 50m using a single Cat.6 Cable
• Supports resolutions up to FullHD 1080p
• Features a loop-through HDMI® output on the Transmitter for local monitoring
• Supports power over Cable, only a single power supply is required
• 2-year warranty

The Lindy 50m Cat.6 HDMI® & IR Extender is a simple to use solution which lets the user extend HDMI® signals up to 50m using a single low cost Cat.6 or above cable (not included).

For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.

Supporting resolutions up to 1920x1200@60Hz, FullHD video content can be seen at distances up to 50m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.

This extender features an HDMI® loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone.

Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.

In addition, the units" slim design with built-in mounting brackets allow it to be installed easily in limited spaces behind flat screen monitors or TVs.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: 1.3
• Supported Bandwidth: 4.95Gbps
• Maximum Distance: 50m (164.04ft)
• Maximum Resolution: 1920x1200@60Hz
• HDCP Support: HDCP 1.4
• EDID: pass-through
• Supported Audio: Up to 7.1 (pass-through)
• Separate Audio Ports: -
• IR Support: 20-60kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: GSV100T
• Special Features: PoC (Power over Cable), IR pass-through, Loop Out

Connectors

• Transmitter Input: HDMI® Type A (Female), 3.5mm IR (Female)
• Transmitter Output: HDMI® Type A (Female), RJ-45 (Female), 3.5mm IR (Female)
• Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
• Receiver Output: HDMI® Type A (Female), 3.5mm IR (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 96x20x68mm (3.78x0.79x2.68in) each unit
• Housing Material: Metal
• Net Weight: 0.44kg (0.97lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 – 90% RH (no condensation)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215x75x135mm (8.46x2.95x5.31in)
• Gross Weight: 0.61kg (1.34lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter
• Receiver
• Multi-country Power Supply (UK, EU, US & AUS)
• IR Emitter cable, 1.5m

• IR Receiver cable, 1.5m

• Lindy Manual

Purchasing Information

• No.: 38509
• EAN: 4002888385091
