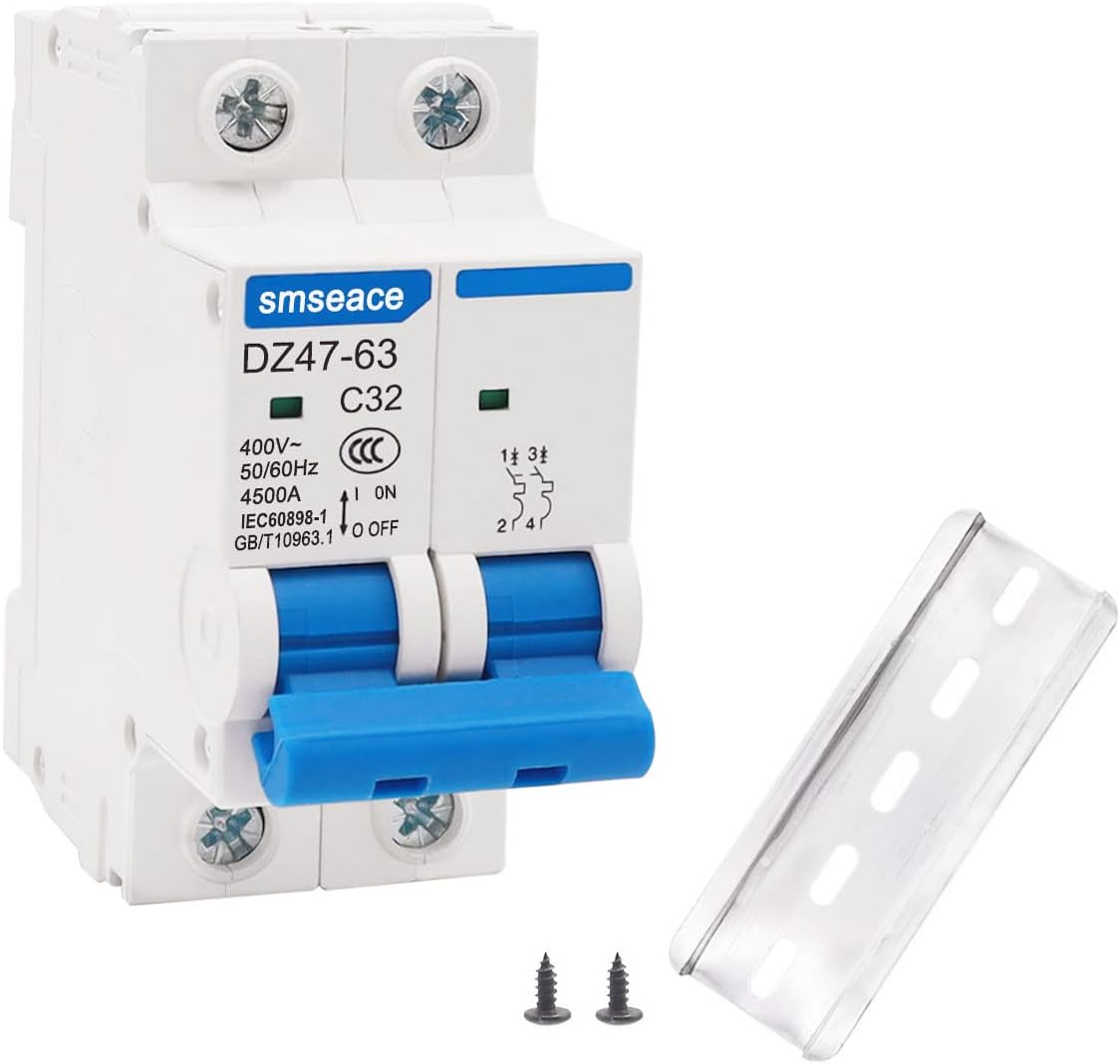

Miniature Circuit Breaker Low Voltage AC 32A 400V,2 Poles AC Disconnect Switch C32 DIN Rail Mount Used to Protect Circuit Equipment

Description

Part Number	CADZ47-63-C32-2P
Current Rating	32 Amps
Mounting Type	DIN Rail Mount
Circuit Breaker Type	Standard
Product Dimensions	2.9"D x 1.4"W x 2.9"H
Voltage	400 Volts
Model	DZ47-63
Number of Poles	2
Item Dimensions D x W x H	2.9"D x 1.4"W x 2.9"H
Size	32A

• Product: Miniature circuit breaker,DZ47-63 miniature circuit breaker, used in 220V branch circuit, is used to protect circuit equipment in houses and buildings.
• Model: DZ47-63; Number of levels: bipolar;For AC 50 Hz or 60 Hz； rated current:32A; rated voltage: 400V.Size: 3.1"x 1.4"x 2.9"/ 79 x35.5x 74mm (L*W*H)
• The double-pole circuit breaker is connected to the live wire and the neutral wire, and both the neutral wire and the live wire have a protective effect and are double disconnected.
• Material: PC plastic.Beautiful and exquisite appearance, high breaking capacity, quick disconnection, guide rail installation, long service life, high performance and light weight.
• Function: used for line overload, short circuit protection and infrequent conversion of lines.Usually the circuit breaker is installed vertically, and the inclination of the vertical plane does not exceed ±5°
