Powerful V5 Rev4 Control Board with 12x8 LED Matrix & Bluetooth Connectivity

Latest Version: Upgrade to the state-of-the-art Arm Cortex-M4 Microcontroller with a swift 48 MHz main core clock speed, alongside 256 KB of flash memory and 32 KB of RAM. Featuring an onboard ESP32-S3, it provides seamless WiFi and Bluetooth connectivity.

Key Features:

  • Onboard LED Matrix: A dazzling 12x8 red LED matrix, perfect for infusing life into creative projects! Animate or visualize sensor data easily - no additional hardware needed.
  • Compatibility: Effortlessly integrates with Blue Rev4 WIFI board; please note that certain codes and libraries may not be compatible with the Blue Rev3 board.
  • Comprehensive Tutorial: Includes a clear and detailed tutorial with a variety of typical projects replete with code and explanations (Download via the product box; no paper tutorial).

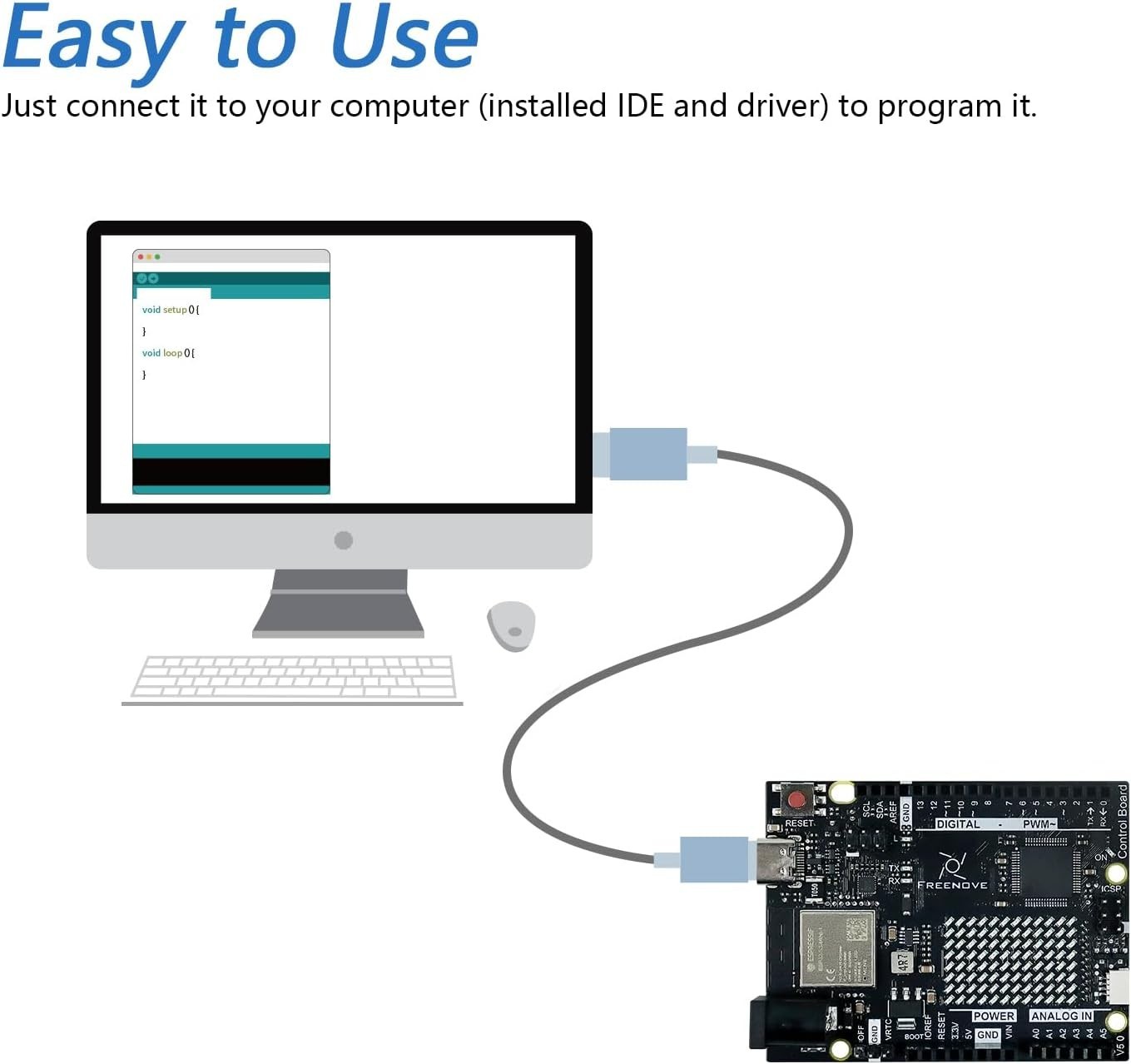

  • User-Friendly: Simply connect the board to your computer (IDE and driver installed) with a USB cable to begin programming.

Options Available:

The package includes the robust V5 WiFi board, featuring the -S3 module and 12x8 red LED matrix. For a more compact choice, explore the V5 Mini, which does not include the matrix.

Why Choose Our V5 Rev4 Control Board?

Boasting a clout of enhanced processing power and expanded memory, our latest upgraded board is designed for both seasoned developers and budding enthusiasts. Experience the magnificence of the onboard 12x8 LED matrix, coupled with a robust array of peripherals that fuel endless project possibilities.

With our dedicated free technical support ready to assist you, you can embark on your creative journey without a hitch. Don’t miss out on the transformative power of this control board—take your projects to new heights and order yours today!

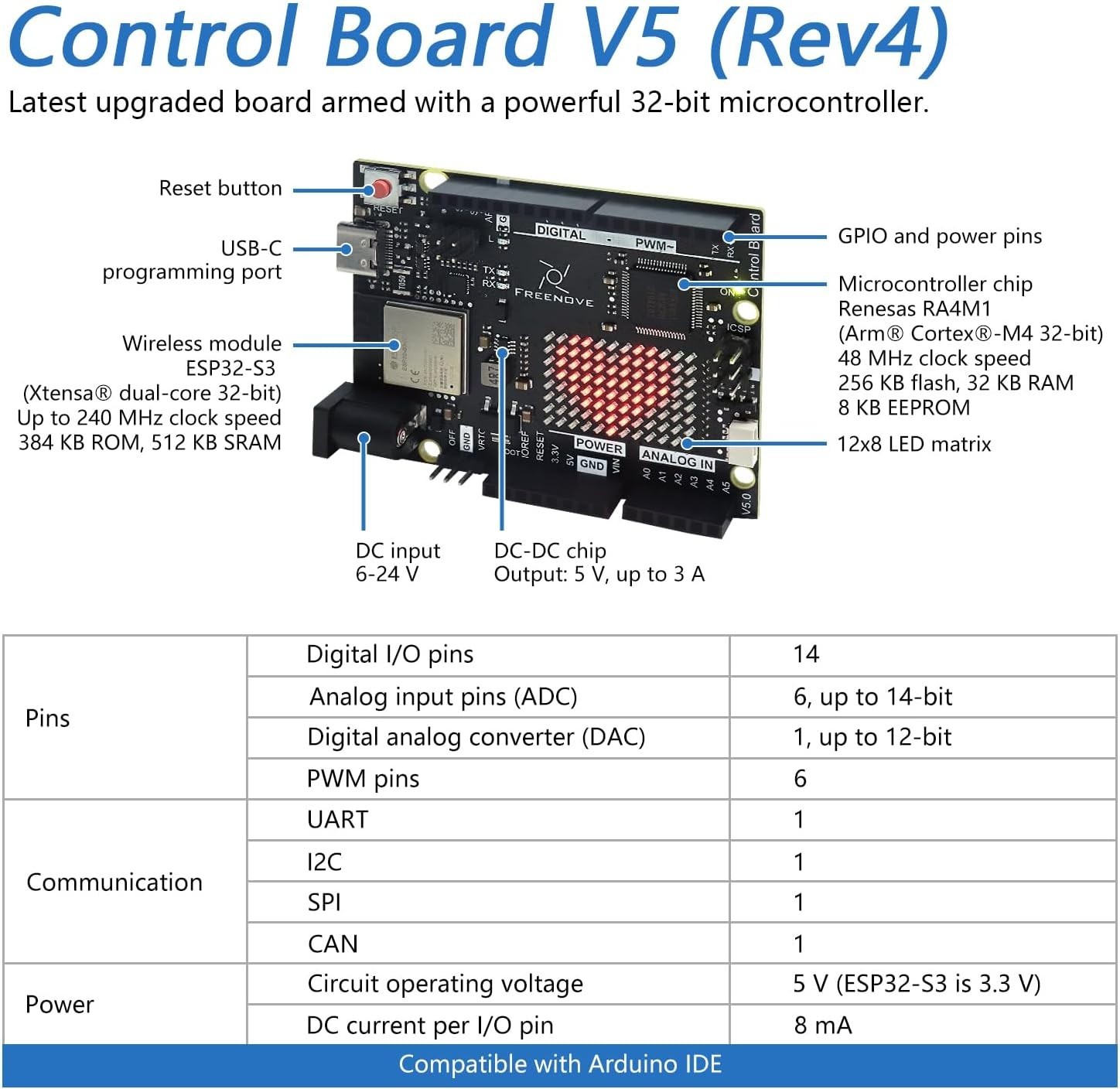

Technical Specifications:

  • Microcontroller: Renesas RA4M1 (Arm Cortex-M4)
  • Pins: 14 Digital I/O pins, 6 Analog input pins, 1 DAC, 6 PWM pins
  • Communication: 1 UART, 1 I2C, 1 SPI, 1 CAN
  • Power: 5 V circuit operating voltage (-S3 is 3.3 V), Input voltage (VIN): 6-24 V, DC current per I/O pin: 8 mA
  • Clock speed: Main core: 48 MHz, -S3: up to 240 MHz
  • Memory: Main core: 256 KB flash, 32 KB RAM, 8 KB EEPROM; -S3: 384 KB ROM, 512 KB SRAM

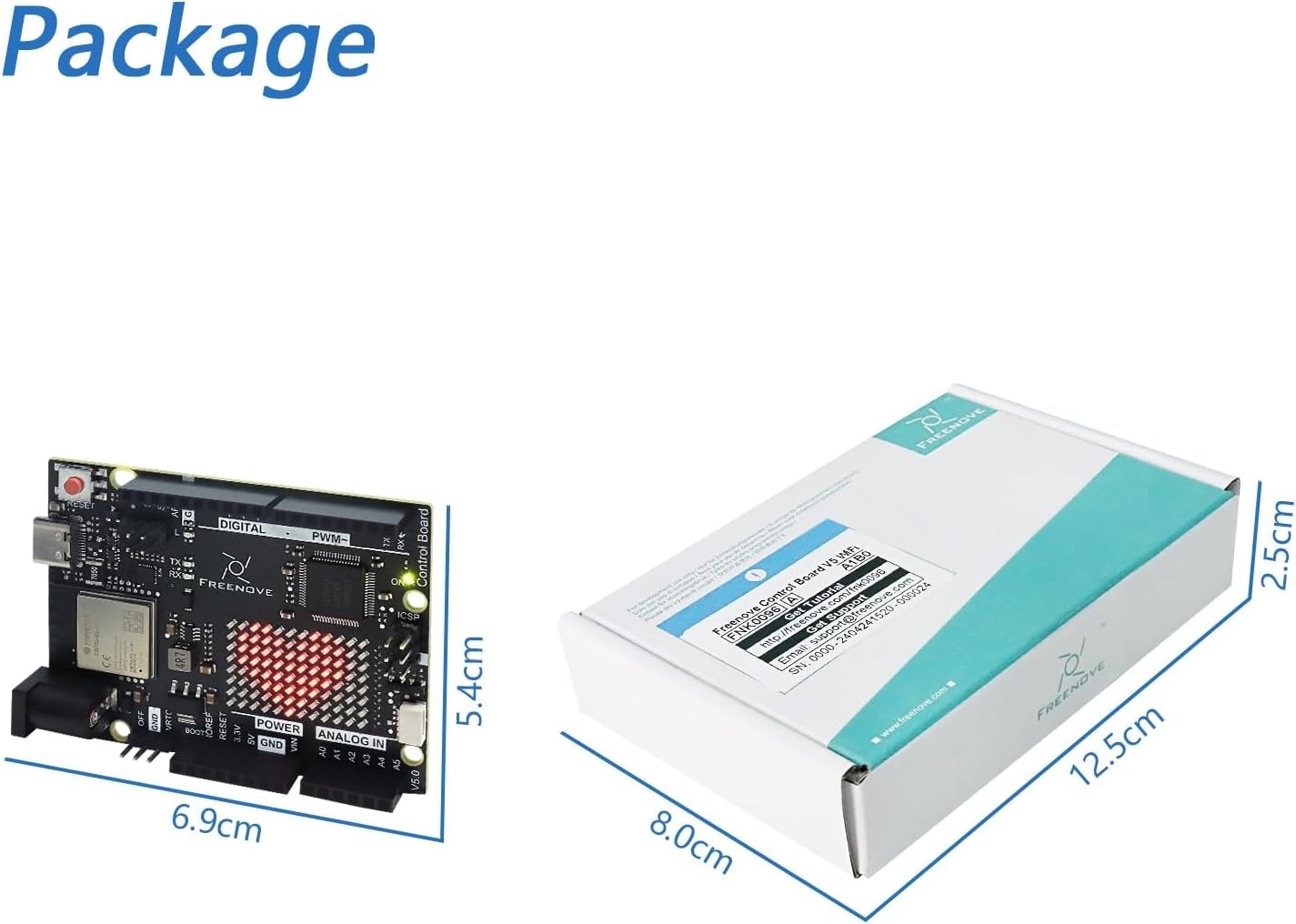

  • Dimensions: Width: 69 mm, Length: 54 mm

Package Includes:

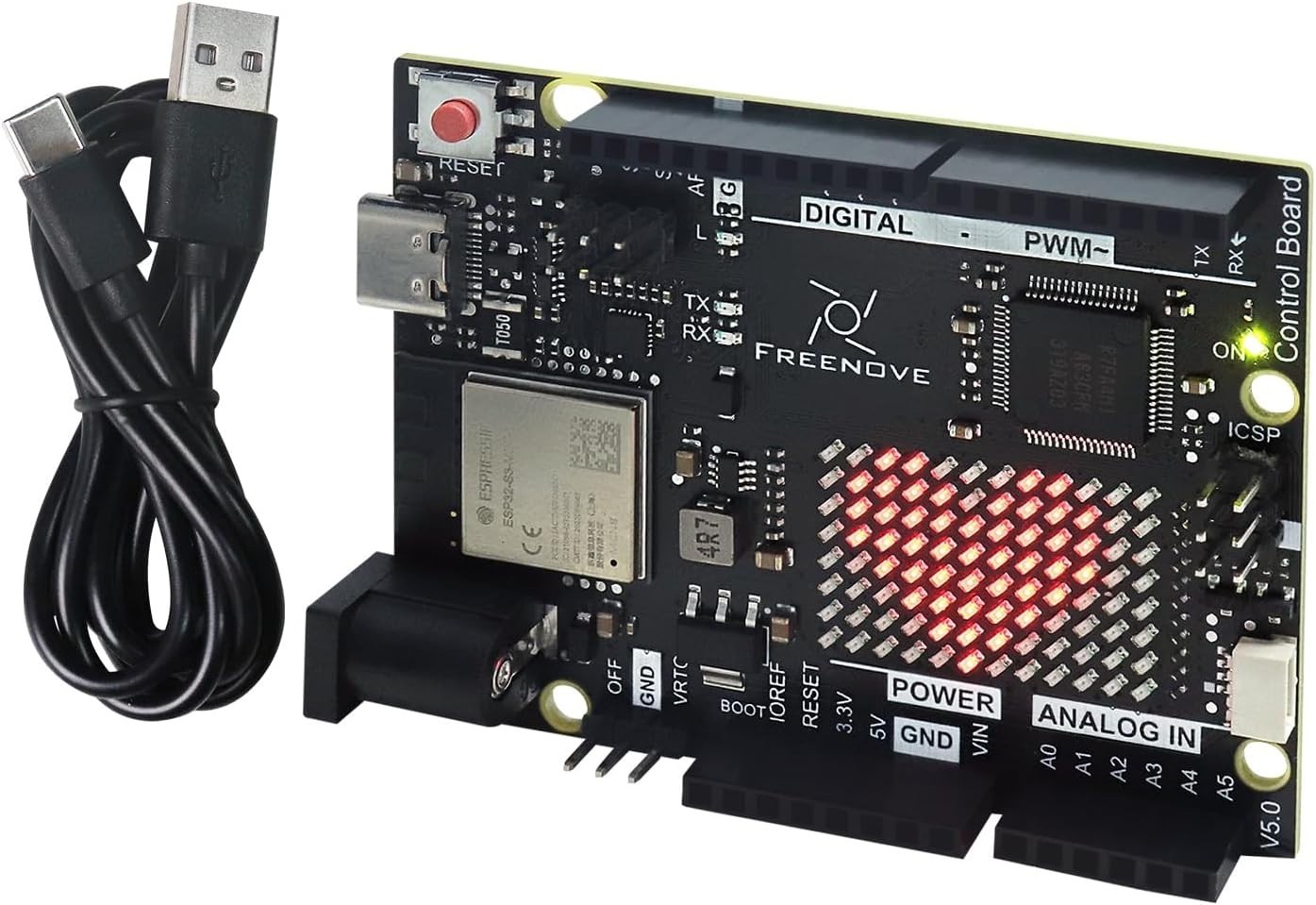

  • 1 x control board V5 (Rev4) WiFi
  • 1 x USB A to C cable
